8.25 Question

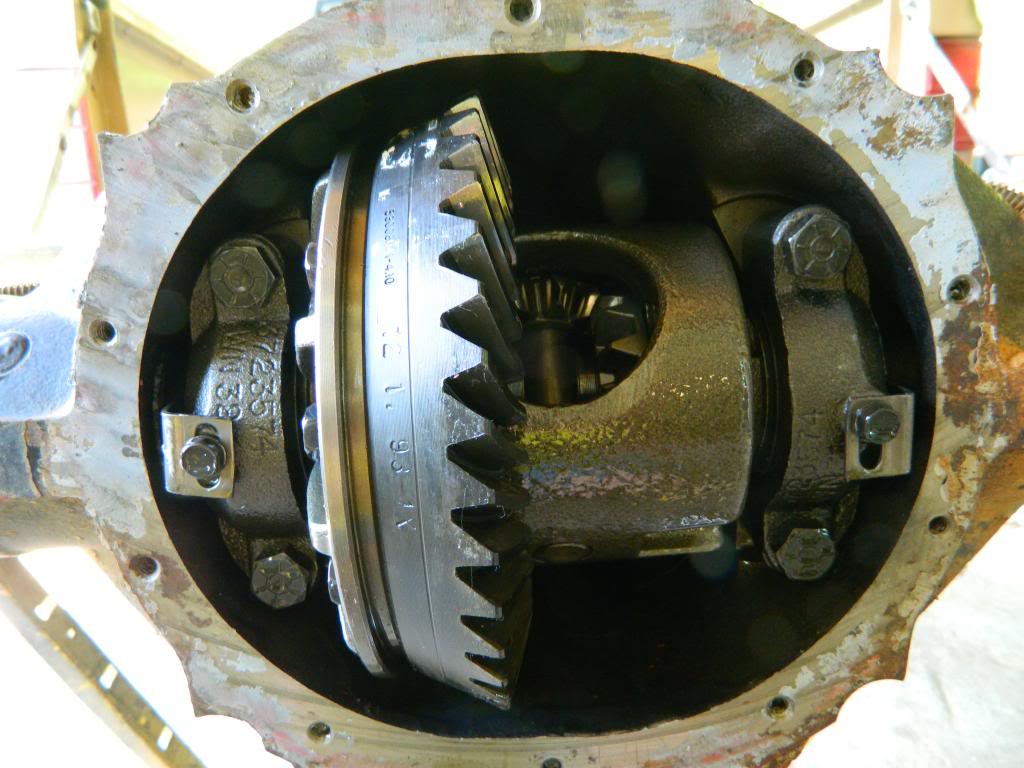

So I picked up a 8.25 that has liberty disc brakes on it and 4.11 gears. I'm tearing the axle down because I want to put a truetrac in it and maybe 4.56 gears for 35s. Currently running 33s(on my jeep now on stock gears ) and this axle has 4.11 in it.
My current question(this might become my help me, i'm a noob thread) is, I have the carrier and gears out and have taken apart 1 side of the axle completely and I was looking at the pinion. It seems like it was put in correct, it doesn't have any play, spins with some resistance, it's used so the resistance is minimal. The teeth on the pinion look in really good condition, pretty much perfect.
If I stick with the 4.11 gears, can I leave this installed when I get the truetrac and gear ring mounted to it? It doesn't seem like I'd need to replace the pinion but just figured I'd ask the community for their experience. Thanks.
My current question(this might become my help me, i'm a noob thread) is, I have the carrier and gears out and have taken apart 1 side of the axle completely and I was looking at the pinion. It seems like it was put in correct, it doesn't have any play, spins with some resistance, it's used so the resistance is minimal. The teeth on the pinion look in really good condition, pretty much perfect.
If I stick with the 4.11 gears, can I leave this installed when I get the truetrac and gear ring mounted to it? It doesn't seem like I'd need to replace the pinion but just figured I'd ask the community for their experience. Thanks.
#2
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Pittsburgh, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L / alabama head
I should also put that the axle is coated with bed liner and was painted. This is normally a cool idea for axle protection but there are chips and rust all over and I want to grind it down and recoat it with something simple and black before I start all the internals. So that is the reason for the complete tear down.
#4
At this point you need to stop what you're doing.
No offense intended, but it seems that until you've done a ton of research....you're not prepared for the work you're trying to do.
No offense intended, but it seems that until you've done a ton of research....you're not prepared for the work you're trying to do.
#5
#6
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Pittsburgh, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L / alabama head
Maybe I wasn't clear. I have the "ring gear" out, and everything else in the pumpkin... The pinion(http://imgur.com/H8rHKhu) that is in the pumpkin still is what I'm asking about.
> Gear sets are comprised of a ring and pinion. It's not just the ring gear.
No ****. Obviously I worded this very poorly. LSD using existing gears, good idea? I do not know what this guy did with this axle, it isn't bent, the ring and pinion are in good condition.
How about this. Do you guys reuse gears when doing rebuilds if they are fine or do you just get new gears? I will be bringing a lot of these parts to a shop to get things done that I cannot do. It doesn't take a veteran grease monkey to take something apart and document everything... so "At this point you need to stop what you're doing." this kind of **** doesn't help.
> Gear sets are comprised of a ring and pinion. It's not just the ring gear.
No ****. Obviously I worded this very poorly. LSD using existing gears, good idea? I do not know what this guy did with this axle, it isn't bent, the ring and pinion are in good condition.
How about this. Do you guys reuse gears when doing rebuilds if they are fine or do you just get new gears? I will be bringing a lot of these parts to a shop to get things done that I cannot do. It doesn't take a veteran grease monkey to take something apart and document everything... so "At this point you need to stop what you're doing." this kind of **** doesn't help.
#7
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Pittsburgh, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L / alabama head
This is a start...
http://www.pirate4x4.com/articles/te...sta/Gear_Setup
http://www.pirate4x4.com/articles/te...sta/Gear_Setup
Trending Topics
#9
Junior Member
Thread Starter
Join Date: Mar 2011
Location: Pittsburgh, PA
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L / alabama head
#10
CF Veteran
Join Date: Jul 2013
Location: Monett, MO.
Posts: 7,554
Likes: 0
Received 14 Likes
on
14 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I can one of your questions very quickly and easy. YES change the gears to a 4.56 ratio that is the correct setup for a 33" tire and can be ran with a 35". I run both sizes on 2 sets of wheels on mine with 4.56's, my 35's are for off road only the 33's serve as both on and off road.
Your going to have and change gears in the front also so might as well do both with the correct gear. I bought my 4.56's from Rustys for my 8.25/D30 with both master install kits for under $500.
You can sell the 4.10's to someone running 31's on a 2wd XJ that correct for that tire.
Your going to have and change gears in the front also so might as well do both with the correct gear. I bought my 4.56's from Rustys for my 8.25/D30 with both master install kits for under $500.
You can sell the 4.10's to someone running 31's on a 2wd XJ that correct for that tire.
Last edited by Fred/N0AZZ; 11-02-2015 at 12:05 PM.
#11
::CF Administrator::
Maybe I wasn't clear. I have the "ring gear" out, and everything else in the pumpkin... The pinion(http://imgur.com/H8rHKhu) that is in the pumpkin still is what I'm asking about.
> Gear sets are comprised of a ring and pinion. It's not just the ring gear.
No ****. Obviously I worded this very poorly. LSD using existing gears, good idea? I do not know what this guy did with this axle, it isn't bent, the ring and pinion are in good condition.
How about this. Do you guys reuse gears when doing rebuilds if they are fine or do you just get new gears? I will be bringing a lot of these parts to a shop to get things done that I cannot do. It doesn't take a veteran grease monkey to take something apart and document everything... so "At this point you need to stop what you're doing." this kind of **** doesn't help.
> Gear sets are comprised of a ring and pinion. It's not just the ring gear.
No ****. Obviously I worded this very poorly. LSD using existing gears, good idea? I do not know what this guy did with this axle, it isn't bent, the ring and pinion are in good condition.
How about this. Do you guys reuse gears when doing rebuilds if they are fine or do you just get new gears? I will be bringing a lot of these parts to a shop to get things done that I cannot do. It doesn't take a veteran grease monkey to take something apart and document everything... so "At this point you need to stop what you're doing." this kind of **** doesn't help.
As far as re-using the gear set...yes it can be done, but, I'm a fan of replacement with known good parts, so personally I would NOT re-use a gearset. If you're planning on going bigger tires, now is the time to get a different gear set, and as mentioned, you'll need to do the front axle as well, unless you're 2wd. That said, if the old gearset is in decent shape, sell it, recoup some of your cost. If you decide to go with a new gearset, just stop what you're doing, take the axle to the shop, and let them take care of it. They need to do things like get the numbers off the current gearset, measure the shim packs, things like that, and it would be easier for them to do it, and get it right, than have to try and backtrack what you may or may not have done. Just my 2 Lincolns.
#12

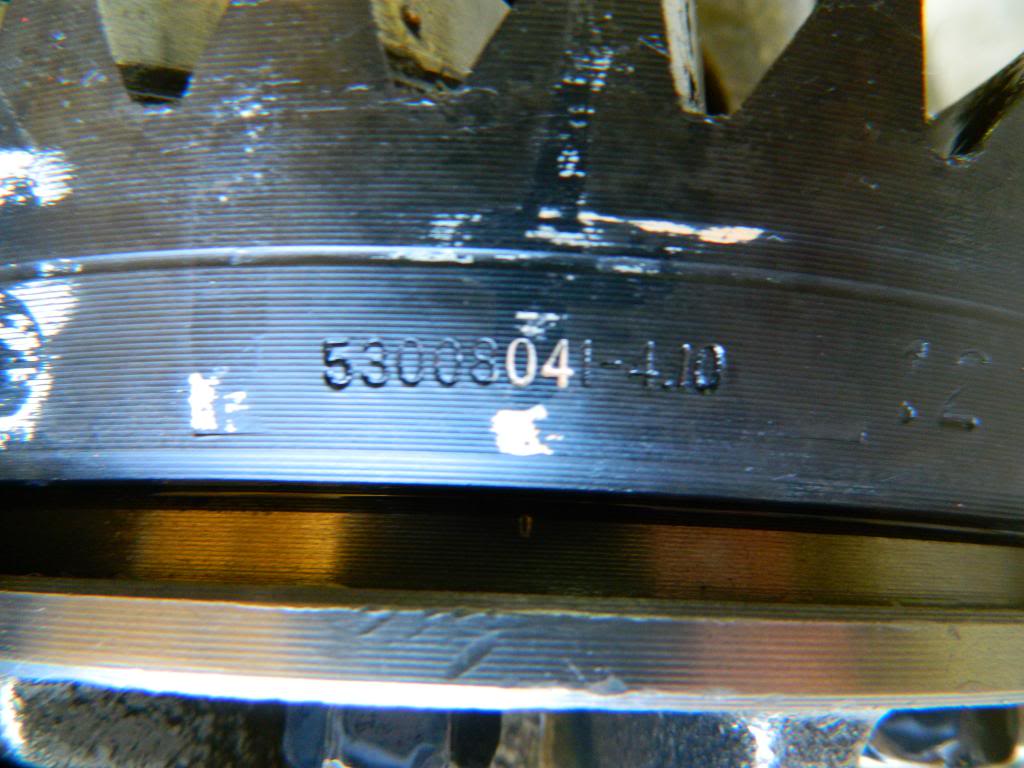

Chrysler 8.25 (factory) are 4.10s, not 4.11s........not that it matters, but that's what it is.
You screwed the pooch, you should have never touched a factory LSD 4.10, you should have sold it.
There is some guy hunting and hunting and hunting for that rear....as I was for 4 months. Needed it to match my front. They only came with the 2.5 XJ.
If you are going to re-gear you should have used a dime-a-dozen 3.55
I run 32s with a tired 2.5 and will run 33s (305-65-18) next year with a fresh 2.5........does just fine with 4.10.
You screwed the pooch, you should have never touched a factory LSD 4.10, you should have sold it.
There is some guy hunting and hunting and hunting for that rear....as I was for 4 months. Needed it to match my front. They only came with the 2.5 XJ.
If you are going to re-gear you should have used a dime-a-dozen 3.55
I run 32s with a tired 2.5 and will run 33s (305-65-18) next year with a fresh 2.5........does just fine with 4.10.
Last edited by Jeep Driver; 11-01-2015 at 04:58 PM.
#13
::CF Administrator::
Chrysler 8.25 (factory) are 4.10s, not 4.11s........not that it matters, but that's what it is.
You screwed the pooch, you should have never touched a factory LSD 4.10, you should have sold it.
There is some guy hunting and hunting and hunting for that rear....as I was for 4 months. Needed it to match my front. They only came with the 2.5 XJ.
If you are going to re-gear you should have used a dime-a-dozen 3.55
I run 32s with a tired 2.5 and will run 33s (305-65-18) next year with a fresh 2.5........does just fine with 4.10.
You screwed the pooch, you should have never touched a factory LSD 4.10, you should have sold it.
There is some guy hunting and hunting and hunting for that rear....as I was for 4 months. Needed it to match my front. They only came with the 2.5 XJ.
If you are going to re-gear you should have used a dime-a-dozen 3.55
I run 32s with a tired 2.5 and will run 33s (305-65-18) next year with a fresh 2.5........does just fine with 4.10.
#14
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
Um, 8.25's came with a variety of gearsets depending on the application. And he said he WANTED to put a LS in it, not that it had one. I'm going to venture a guess and say that the PO did the gears, disc brake swap, and bedlined it, as the axle you speak of was only available with the 2.5 V6...but if it WAS that axle, yeah, not wise taking it apart...definitely a unicorn, LOL
#15
::CF Administrator::
2.5l 4 cylinder with the V6 manual transmission....from the wiki page:
Jeep XJs came in several standard gearing ratios:
3.07:1, manual transmission, I6 engine.
3.54:1, automatic transmission, I6 engine with Dana 44 rear differential
3.54:1, manual transmission, I4 engine with Dana 35 rear differential
3.55:1, automatic transmission, I6, V6 engines; manual transmission, I4 engine
3.73:1, automatic transmission, I6, tow package, UpCountry package, 2.5 VM diesel manual
4.10:1, 2.5L I4 engine, V6 manual transmission
4.56:1, automatic transmission, I4, offroad or tow package
Jeep XJs came in several standard gearing ratios:
3.07:1, manual transmission, I6 engine.
3.54:1, automatic transmission, I6 engine with Dana 44 rear differential
3.54:1, manual transmission, I4 engine with Dana 35 rear differential
3.55:1, automatic transmission, I6, V6 engines; manual transmission, I4 engine
3.73:1, automatic transmission, I6, tow package, UpCountry package, 2.5 VM diesel manual
4.10:1, 2.5L I4 engine, V6 manual transmission
4.56:1, automatic transmission, I4, offroad or tow package
