EagleXJ

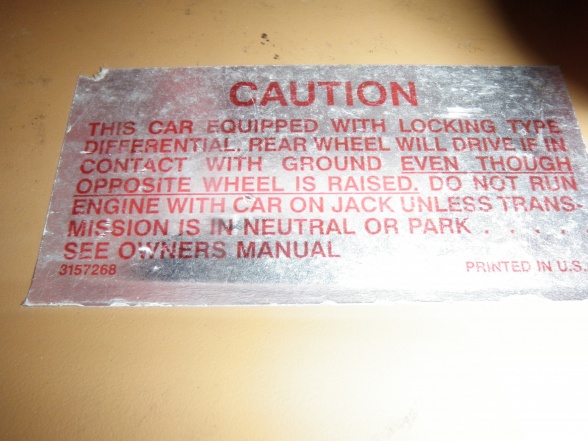

I never noticed this sticker inside my glove box before. Anyone know what it means?

s346k

uhh

I think it's about as self-explanatory as possible.

i'm assuming your jeep has a lsd rear? i think this means if you jack up one side and put the jeep in gear it will still move (the tire on the ground will move it) despite the fact the opposing tire is in the air.

EagleXJ

LOL seems obvious but I tried exactly what you said and the airborne wheel just spun. I've heard of XJs coming with lsd but never locking differentials?

thatXJguy

Perhaps someone put it there.

It's pretty self-explanatory. If your Cherokee doesn't do exactly what the sticker says, either you have a different rear now or someone put the sticker there.

EagleXJ

Odd.

wiggles

Clutches could be warn out, why not look inside the diff

EagleXJ

I'll check the differential. The sticker appears to be stock though; have you ever heard of a XJ coming from the factory with a locker?

93XJLI

its the sticker for the rear LSD. its factory.

EagleXJ

How would I test it to make sure it works?

EagleXJ

If the clutch(s) is bad, is that reparable or is it not worth it?

Xj88

If I remember right you can hack it up spin one wheel and if the other spins in the SAME direction you have an LSD

DougyFresh

I always thought the little tag on the diff telling to use friction modifier meant it had the LSD in it. well both my d35 that came out, and the 8.25 that went in, have this tag and with it jacked up, the tires turn opposite directions... If I powerbrake it, I get two blackmarks though...

Turbo X_J

Sounds like you already tried by attempting to drive the vehicle off a jack ((?)!).


LSD wheels will rotate the same direction while in the air.

DougyFresh

I know that's how it's SUPPOSED to be, but in mud, or while powerbraking, both back tires pull even though when I jack it up they spin opposite directions

EagleXJ

Alrighty, I'll jack the rear end up and see what happens.
