What body part is this?

Old 10-11-2018, 09:56 PM
  #1
Newbie
Thread Starter

Join Date: Oct 2018
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee (XJ)
Default What body part is this?

So it finally happened. My Jeep kissed a Honda and didn't fare very well. I've a 1998 XJ, Stone White, with 378k+ on it. Still doesn't smoke. But as you can guess, insurance won't pay to fix it - because it's old and has a lot of miles on it. So, I'm doing it myself. I've got everything from the front header panel to the fender bracket to the bumper bracket sourced and ready to buy - just waiting on the check. I have one part I'm not sure about, and here where someone hopefully can answer me.

There's a small panel on the inside of the engine compartment, drivers side, that the air filter housing and the engine controller mount onto. Not the fender, the smaller formed panel that's spot welded that makes up the engine compartment. It's a bit crinkled, and I'm concerned it will throw off the geometry for alignment when I start putting parts back on the front end.

Anyone know what that's called?

Oh, and here's Lilly after the accident.

Yep. Before the smash-up, only paint problem was the two spots on the hood.
TexXJ387plus is offline
Old 10-12-2018, 07:53 AM
  #2
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,986
Received 17 Likes on 15 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Default

It's probably part of the inner fender and not available separately.

Might have to straighten it.
cruiser54 is offline
Old 10-12-2018, 11:03 AM
  #3
CF Veteran

Join Date: Dec 2015
Location: PA
Posts: 1,992
Likes: 0
Received 9 Likes on 8 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

The airbox and PCM mount to what most call the inner fender. Chryslers calls it a "front inner wheelhouse", in the 97-98 parts catalog. You need the left side, but the only the right side keeps popping up thru Google.

Right - part # 55235624
Left - part # 55235625

Find a solid donor and cut it out, or look yours over to see just how bad it is. Its just steel, and steel can be bent back into shape and welded if need be, if its not too bad. Take a pic of the panel. It might be salvageable. I thought there was a thread floating around here somewhere on a similar repair, but cant remember whos it was.





fb97xj1 is offline
Old 10-12-2018, 11:23 AM
  #4
Senior Member

Join Date: Dec 2017
Location: Calgary, AB
Posts: 608
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Grand Cherokee (ZJ)
Engine: 5.2
Default

Originally Posted by fb97xj1 View Post
The airbox and PCM mount to what most call the inner fender. Chryslers calls it a "front inner wheelhouse", in the 97-98 parts catalog. You need the left side, but the only the right side keeps popping up thru Google.

Right - part # 55235624
Left - part # 55235625

Find a solid donor and cut it out, or look yours over to see just how bad it is. Its just steel, and steel can be bent back into shape and welded if need be, if its not too bad. Take a pic of the panel. It might be salvageable. I thought there was a thread floating around here somewhere on a similar repair, but cant remember whos it was.
There was/is and the consensus is to either repair or weld in new.
firebane is offline
Old 10-12-2018, 11:38 AM
  #5
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,086
Likes: 0
Received 1 Like on 1 Post
Year: '98
Engine: 4.0 I6
Default

Yeah, most just cut one out from the JY and weld it in.

Straightening it isn't always an option but probably easier if its still possible
investinwaffles is offline
Old 10-13-2018, 12:42 PM
  #6
Newbie
Thread Starter

Join Date: Oct 2018
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee (XJ)
Default

Thanks - kinda what I thought. I'll get a inside pic today on the panel if I can.
TexXJ387plus is offline
Old 10-13-2018, 05:32 PM
  #7
Newbie
Thread Starter

Join Date: Oct 2018
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee (XJ)
Default

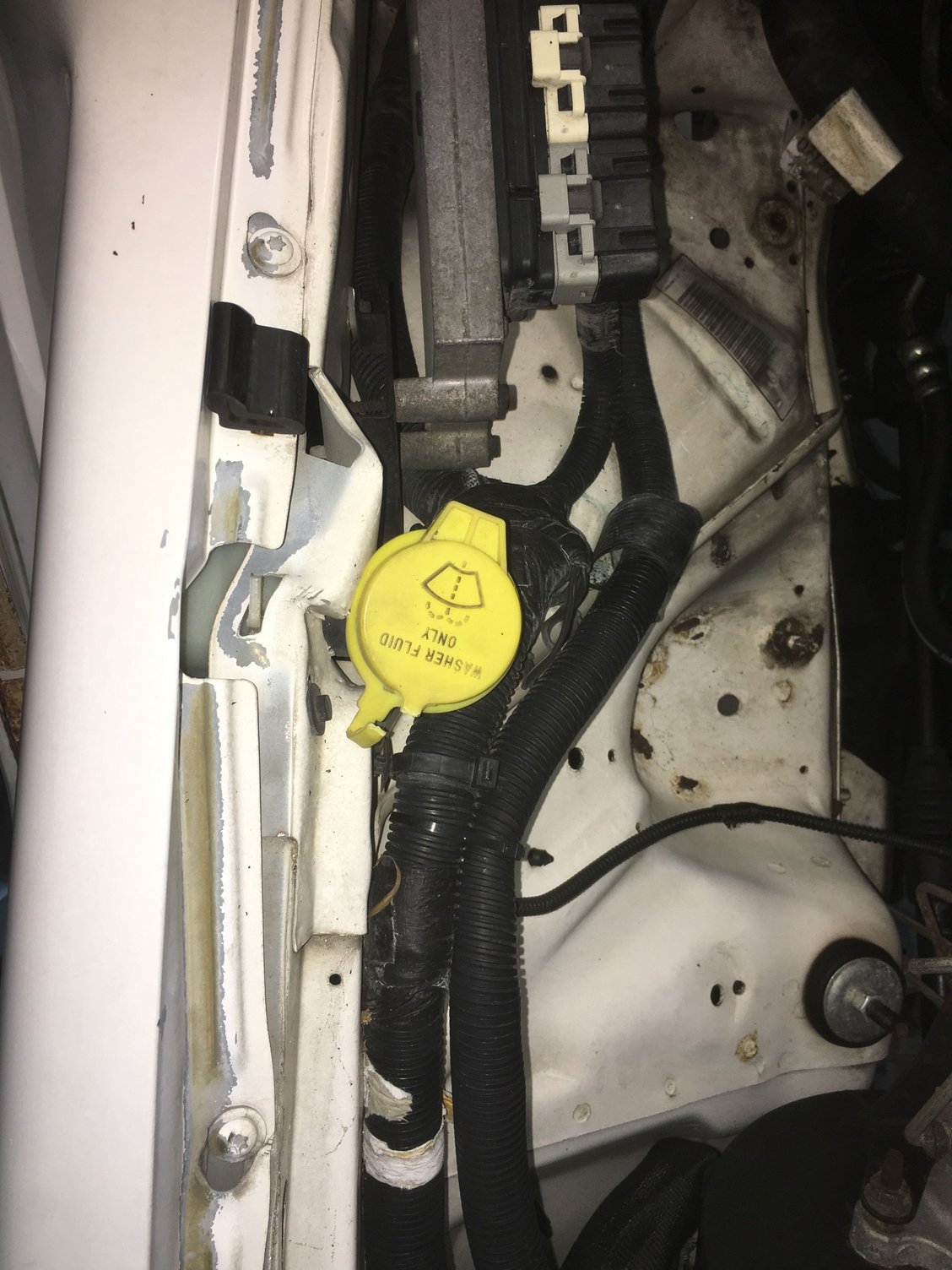

Looking towards front of vehicle - where airbox sits.

Looking from front of vehicle.

Another shot from the front.

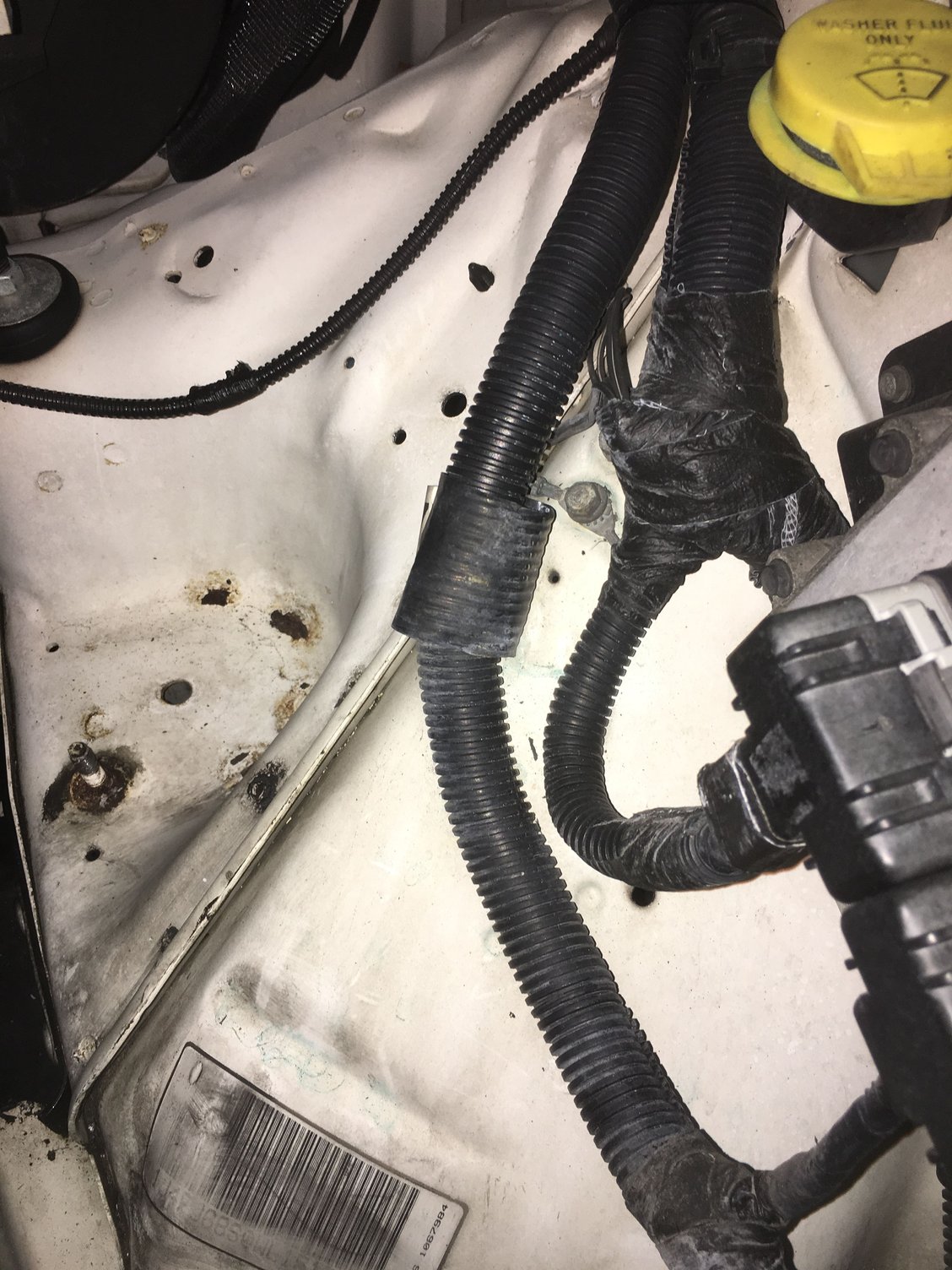

Top down view.
Inside of fender well. Looks like I might be able to bang it out, or go get a scrapped one and replace it. What do y'all think? Also, thanks for the tips and info everyone - much appreciated.
TexXJ387plus is offline
Old 10-16-2018, 08:14 AM
  #8
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,086
Likes: 0
Received 1 Like on 1 Post
Year: '98
Engine: 4.0 I6
Default

I would try to hammer it out if you can - definitely looks possible!

https://www.harborfreight.com/automo...-pc-63259.html
