Thoughts on this harness?
http://pages.ebay.com/motors/link/?n...107210&alt=web
Looking to do a h4 conversion on my xj. Don't want to end up with crap, dont want to spend $100 plus on some wires and components, and am not trusting myself to my first wiring project on my trusty daily driver. If not this premade harness, could someone point me to the Holy Grail?
Thanks
Looking to do a h4 conversion on my xj. Don't want to end up with crap, dont want to spend $100 plus on some wires and components, and am not trusting myself to my first wiring project on my trusty daily driver. If not this premade harness, could someone point me to the Holy Grail?
Thanks
#2
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Looks fine, but I've seen similar harnesses for much less:
http://www.ebay.com/itm/H4-9003-HB2-...5Tri37&vxp=mtr
http://www.ebay.com/itm/9003-H4-Head...1WvCLE&vxp=mtr
http://www.ebay.com/itm/H4-Headlight...hTjl3S&vxp=mtr
Anything like that from ebay is hard to say what quality might be like, could be fine, maybe not.

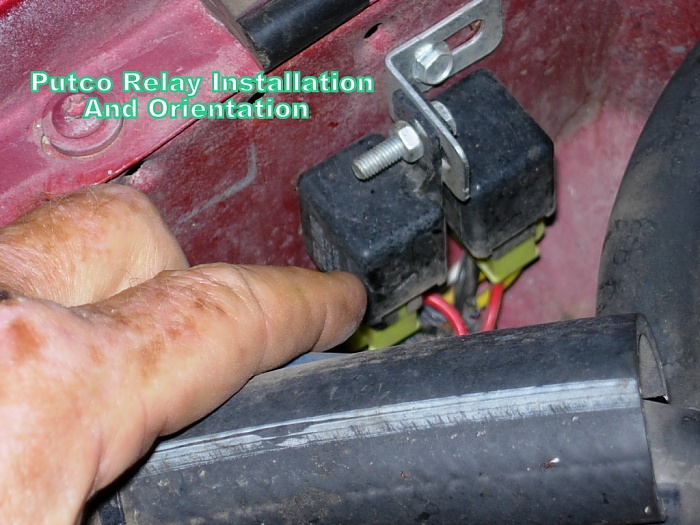

The Putco harness is commonly used as an XJ headlight upgrade harness and reasonably priced. Some people have had issues with failed relays on these but that is mostly bad grounds or improper orientation of the relays allowing water infiltration (the connectors should face down):
As for the "Holy Grail" the ARB harness is often considered the "best", but it also costs $125:
http://www.quadratec.com/products/97018_2430.htm
http://www.ebay.com/itm/H4-9003-HB2-...5Tri37&vxp=mtr
http://www.ebay.com/itm/9003-H4-Head...1WvCLE&vxp=mtr
http://www.ebay.com/itm/H4-Headlight...hTjl3S&vxp=mtr
Anything like that from ebay is hard to say what quality might be like, could be fine, maybe not.
The Putco harness is commonly used as an XJ headlight upgrade harness and reasonably priced. Some people have had issues with failed relays on these but that is mostly bad grounds or improper orientation of the relays allowing water infiltration (the connectors should face down):
Amazon.com: Putco 230004HW Premium Automotive Lighting H4 100W Heavy Duty Wiring Harness and Relay: Automotive
As for the "Holy Grail" the ARB harness is often considered the "best", but it also costs $125:
http://www.quadratec.com/products/97018_2430.htm
#4
Newbie
Thread Starter
Join Date: Apr 2014
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Do you think the ones that have been linked from eBay look to be a higher quality harness as opposed to the putco? Yea, the ARB is the harness that I was referring to on the 100+ side.. ARB could sell toilet paper and charge $20 a roll.
#5
Senior Member
Join Date: Nov 2012
Location: Harrisburg, Pennsylvania
Posts: 918
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L HO
The eBay harnesses have ceramic connectors which are at least theoretically better than the plastic ones, but it is hard to say how good the wiring itself is on the eBay harnesses. The relays on all of these are likely Chinese but the eBay ones use "Bosch-style" sockets and should be easy to find replacements for, while the Putco uses "Matsushista-style" relays which aren't quite as easy to find replacements for (but are still commonly used in Hondas and other Japanese cars and aren't too difficult to come by), the eBay harness also has a fuse holder rather than the Putco's "fuse-able links". At least on the surface the eBay harness looks better, but the quality of the wiring itself is the only question.
Last edited by dmill89; 02-11-2016 at 10:04 PM.
#6
Newbie
Thread Starter
Join Date: Apr 2014
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Appreciate the info.. been researching this pretty hard for the last three days.. I just like to make the smart purchase (highest quality for the least amount of $). I knew you guys wouldn't steer me wrong
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I've used 6 or 7 Putco harnesses and a $20 ebay one with ceramic connectors and had no problem.
It's my belief that the grounding is CRITICAl to keeping the relays from getting hot and failing.
Also, mount the relays so no water can get into them.
It's my belief that the grounding is CRITICAl to keeping the relays from getting hot and failing.
Also, mount the relays so no water can get into them.
Trending Topics
#8
CF Veteran
Join Date: Jul 2012
Location: Andover, VT
Posts: 2,972
Received 227 Likes
on
177 Posts
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0 L
The putco worked great for me. I had a relay fail after about a month, which was annoying. I replaced its been working great for a little under a year now.
If you order the putco order a couple spare relays with it. They're weird relays that I couldn't find at the parts stores.
If you order the putco order a couple spare relays with it. They're weird relays that I couldn't find at the parts stores.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
The putco worked great for me. I had a relay fail after about a month, which was annoying. I replaced its been working great for a little under a year now.
If you order the putco order a couple spare relays with it. They're weird relays that I couldn't find at the parts stores.
If you order the putco order a couple spare relays with it. They're weird relays that I couldn't find at the parts stores.
#10
Senior Member
Join Date: Mar 2014
Location: Cincinnati, Ohio
Posts: 539
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I have a few of the ebay model for sale here in the classifieds for $18 shipped.
https://www.cherokeeforum.com/f74/he...pgrade-219596/
I have had mine installed since early summer and no problems. I also sanded the ground area to bare metal when I installed and seems to be just fine.
https://www.cherokeeforum.com/f74/he...pgrade-219596/
I have had mine installed since early summer and no problems. I also sanded the ground area to bare metal when I installed and seems to be just fine.
#11
Senior Member
Join Date: Nov 2013
Location: Vernon NJ
Posts: 616
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I just did the same thing that you are looking to. I used to Putco harness and a pair of H4 housings that I found on line that are DOT approved with the bulbs in them. It took me 35 minutes to install the harness and about 5-10 to install the housings with the bulbs. The difference is amazing. Make sure you get the housings that are DOT approved so you don't blind on coming traffic.
#12
Senior Member
Join Date: Sep 2014
Location: A.A. Co. Maryland
Posts: 738
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline
That looks pretty much like this one that's about 1/2 the price:
http://www.ebay.com/itm/330997592807
http://www.ebay.com/itm/330997592807
#13
CF Veteran
Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 8,567
Likes: 0
Received 18 Likes
on
16 Posts
Year: My Jeep is a GMC
http://pages.ebay.com/motors/link/?n...107210&alt=web
Looking to do a h4 conversion on my xj. Don't want to end up with crap, dont want to spend $100 plus on some wires and components, and am not trusting myself to my first wiring project on my trusty daily driver. If not this premade harness, could someone point me to the Holy Grail?
Thanks
Looking to do a h4 conversion on my xj. Don't want to end up with crap, dont want to spend $100 plus on some wires and components, and am not trusting myself to my first wiring project on my trusty daily driver. If not this premade harness, could someone point me to the Holy Grail?
Thanks
that harness is for a four headlight system.
#15
Banned
Join Date: Feb 2014
Location: Florida
Posts: 2,379
Likes: 0
Received 13 Likes
on
12 Posts
Year: 2000
Model: Cherokee(XJ)
Engine: Golen 4.6L
E-code housings have better cutoff and are less likely to blind oncoming traffic than DOT housings. I think you're probably thinking of those stupid HID housings that spray light everywhere, but that's not the same as what most people run with the H4 upgrade.
