Removing XJ Alternator Casing. Need Help.
I've run into my first real snag with my XJ build so I'm here looking for some help regardining my alternator. I have 2, the one on the Jeep which is busted, and my spare, I need to remove the front casing from the busted alternator, and put it on my spare because 1 of the bolt holes doesn't line up, but I cant get the darn thing off.
I've removed the pulley, the bolts, and the fins, released the 3 black metal clips, and pulled the front casing free so it moves up and down and side to side but still wont pull off. I cant see anything still holding it down and I'm stumped as to how to remove it. Anything help? Am I missing something?

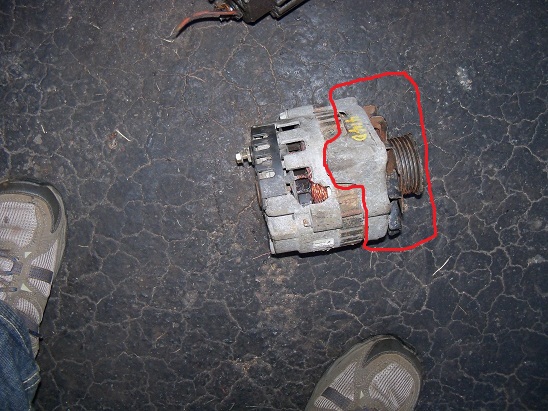

The part highlighted in red is what I'm trying to remove.
*I had this posted in "OEM Cherokee Tech" but it was deleted for some reason so I assumed maybe wrong section?*
I've removed the pulley, the bolts, and the fins, released the 3 black metal clips, and pulled the front casing free so it moves up and down and side to side but still wont pull off. I cant see anything still holding it down and I'm stumped as to how to remove it. Anything help? Am I missing something?
The part highlighted in red is what I'm trying to remove.
*I had this posted in "OEM Cherokee Tech" but it was deleted for some reason so I assumed maybe wrong section?*
#2
Junior Member
Thread Starter
Join Date: Aug 2011
Location: Nova Scotia, Canada
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0 Liter

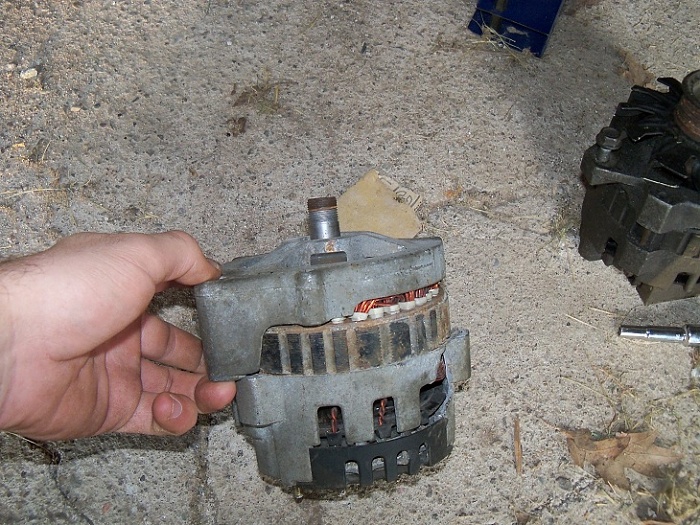

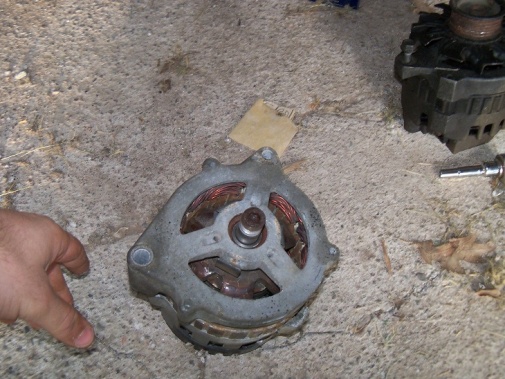

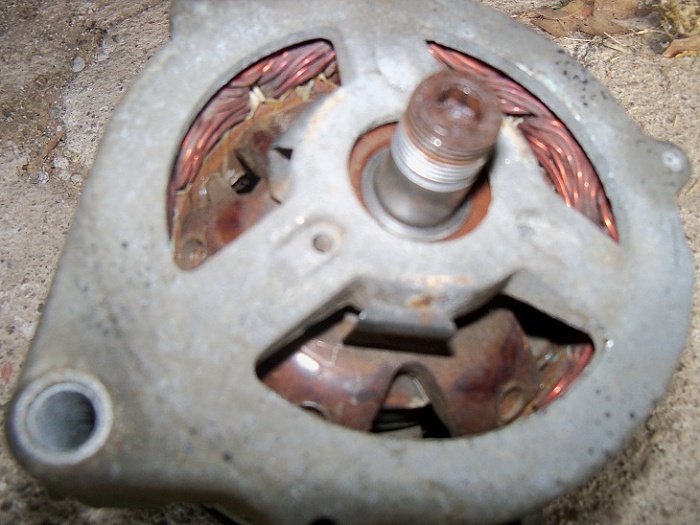

Here are a few pictures of the alternator now to give you a better idea of what stage I'm at with trying to remove the case.
