rear axle confusion
#1
Member
Thread Starter
Join Date: Feb 2011
Location: wyoming
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
rear axle confusion

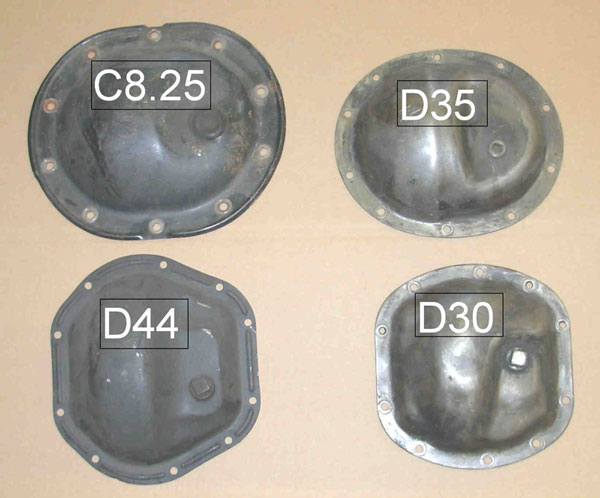

so im pretty confused about my rear axle. just bought this 2001 cherokee a few weeks ago. all the paper work that i got says that it has abs. i looked at the axle and noticed the rubber plug says dana so i assumed it was a dana 35. i ordered a lift and bought dana 35 u bolts. ubolts do not fit and bottom of axle has flat lip like crysler axle. basically i am wondering if 2001 cherokees with abs have crysler 8.25 axles. sorry for rambling but im pretty confused
#4
Member
Join Date: Jun 2011
Location: Salamanca NY
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 IL6
As bad as this will sound go down the road and spike the breaks, if the squeal then they are not ABS, I think there is a way to check under the hood. Maybe your owners manual will tell you?
Here is some good info
https://www.cherokeeforum.com/f2/how...ave-abs-22381/
Here is some good info
https://www.cherokeeforum.com/f2/how...ave-abs-22381/
#6
Member
Thread Starter
Join Date: Feb 2011
Location: wyoming
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
As bad as this will sound go down the road and spike the breaks, if the squeal then they are not ABS, I think there is a way to check under the hood. Maybe your owners manual will tell you?
Here is some good info
https://www.cherokeeforum.com/f2/how...ave-abs-22381/
Here is some good info
https://www.cherokeeforum.com/f2/how...ave-abs-22381/
#7
CF Veteran
Pop your hood.
http://i418.photobucket.com/albums/p...x/P1020256.jpg
Look for the abs pump *the black thing to the bottom right of the picture*
I'm pretty sure ABS only got the d35, so if you have an 8.25 either the axle has been swapped and abs disabled/converted or you don't have ABS.
http://i418.photobucket.com/albums/p...x/P1020256.jpg
Look for the abs pump *the black thing to the bottom right of the picture*
I'm pretty sure ABS only got the d35, so if you have an 8.25 either the axle has been swapped and abs disabled/converted or you don't have ABS.
Trending Topics
#10
Correct. ABS was only installed on the Dana 35 rear axle. If your Jeep has ABS and a Chryco 8.25 then that means that a previous owner had to replace the rear axle at some point. Most likely took it to a shop that simply swapped in the 8.25 from a junkyard and then raped them for the cost of rebuilding.
#12
Member
Join Date: Jun 2011
Location: Salamanca NY
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 IL6
Well you dont have to be flying down the road, just be on dirt or gravel, and try to lock them up doing like 10-20 you'll know. I wasnt sure about the canister under the hood, thats why i posted the link. I think he has more than enough to get what he needs
#14
Member
Thread Starter
Join Date: Feb 2011
Location: wyoming
Posts: 161
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Pop your hood.
http://i418.photobucket.com/albums/p...x/P1020256.jpg
Look for the abs pump *the black thing to the bottom right of the picture*
I'm pretty sure ABS only got the d35, so if you have an 8.25 either the axle has been swapped and abs disabled/converted or you don't have ABS.
http://i418.photobucket.com/albums/p...x/P1020256.jpg
Look for the abs pump *the black thing to the bottom right of the picture*
I'm pretty sure ABS only got the d35, so if you have an 8.25 either the axle has been swapped and abs disabled/converted or you don't have ABS.
