Cherokee Chat General non-tech Cherokee chat
XJ/MJ/ZJ/WJ

I won $250, help me spend it wisely!

Thread Tools

Search this Thread

Old Nov 6, 2013 | 09:31 AM
  #31
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by SteveMongr

Noticed you are going to fab rear bumps.
I have seen the factory spring plates 'extended' to receive the bumpstop, seems to work best on higher lifts..
I used Daystar progressive 4.5" tall bumps, mounted on a longer base that spreads the load ($50).
On axle, a leaf-spring perch ($14 Jegs) is the contact point and can be adjusted in height to match shock travel, with hocky pucks or UHMW I prefer.
I set up the bumps to fully bottom out at 16" shock mount-to-mount.
Last picture is from a go-fast setup.
If someone can fab up steel to drop the top bumpstop that much all work. I had to do both top and bottom cause i coulndt make anything
Reply
Old Nov 6, 2013 | 09:32 AM
  #32
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by PocketsEmpty

Right, I was looking on IRO at HD plates and was just wondering if I could get by with the stockers until I decide on the bumpstop situation.

LOL, thanks for reminding me I should've won $2500 I do already have a winch, but definitely need most of those other things...including the hoodie!

So far I'm about to hit the trigger on ZJ tie rod conversion parts, the parking brake cable I need to finish my rear disc conversion once and for all, a ratcheting 1/4" wrench to get those pesky torx out of my door hinges, and a Monroe steering stabilizer to replace my rusty crapola Gabriel. Looks like I'll still have enough left over for a track bar even! Thanks for the help everyone, and SteveMongr, great post! Thanks for that info!
You can buy those plates now and use those as normal spring plates even if you don't put bumpstop on them they work. Just drop the top ones as much as you can. Last thing you want is booming your expensive shocks out
Reply
Old Nov 6, 2013 | 09:36 AM
  #33
PocketsEmpty's Avatar
Thread Starter
CF Veteran

Joined: Dec 2012
Posts: 4,169
Likes: 6
From: York, PA
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by sycoglitch
You can buy those plates now and use those as normal spring plates even if you don't put bumpstop on them they work. Just drop the top ones as much as you can. Last thing you want is booming your expensive shocks out
No doubt...I definitely won't be wheeling at all until I know everything is set up properly including the bumps

Serious, if you're still watching, do you sell full sets of shocks for a 5.5" lift? I plan on flexing and measuring properly of course, just trying to get a ballpark figure. Id like to order all 4 in one shot if possible
Reply
Old Nov 6, 2013 | 09:44 AM
  #34
SteveMongr's Avatar
Beach Bum

Joined: Jul 2011
Posts: 6,123
Likes: 22
From: Cape Hatteras, North Carolina
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by sycoglitch
If someone can fab up steel to drop the top bumpstop that much all work. I had to do both top and bottom cause i coulndt make anything

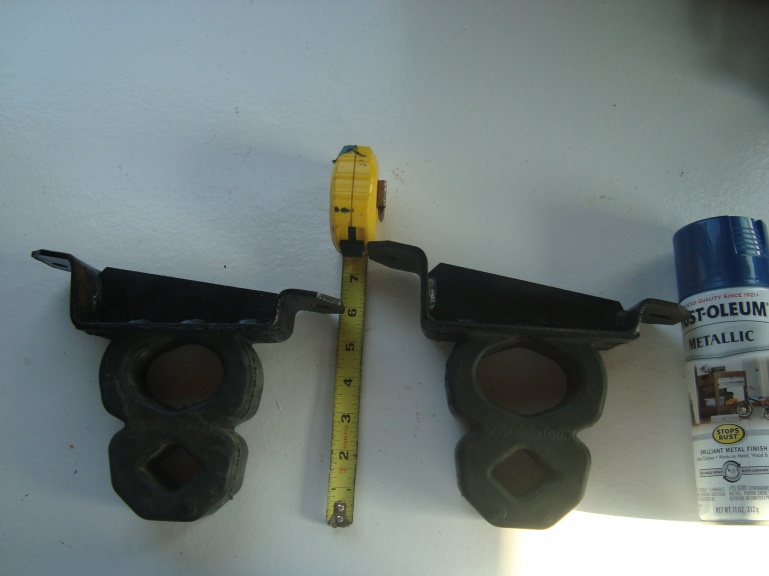

I used the bases from bumpstops on a Nissan pathfinder '99.
They drop the bumps by 2"
Attached Thumbnails I won 0, help me spend it wisely!-bumps.jpg
Reply
Old Nov 6, 2013 | 10:00 AM
  #35
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by PocketsEmpty

No doubt...I definitely won't be wheeling at all until I know everything is set up properly including the bumps

Serious, if you're still watching, do you sell full sets of shocks for a 5.5" lift? I plan on flexing and measuring properly of course, just trying to get a ballpark figure. Id like to order all 4 in one shot if possible
He had at one time a deal on bilstein all 4 for like 400

Originally Posted by SteveMongr

I used the bases from bumpstops on a Nissan pathfinder '99.
They drop the bumps by 2"
This is good to know.
Reply
