cb antenna location
#1
Senior Member
Thread Starter
Join Date: Dec 2009
Location: zeeland mi
Posts: 538
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
cb antenna location
ok i installed a cb in my 97 xj. i am currently useing a mag mount antenna. but today made a mount that comes off the side by hatch to use a better antenna. but would like to know what you think is the best location on an xj would be.
#4
CF Veteran
Join Date: Mar 2010
Location: wilkes barre PA.
Posts: 1,200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 6 cylinder

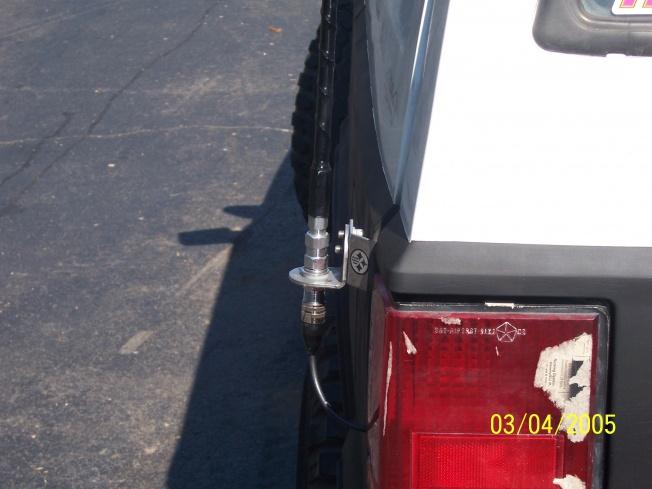

Here's mine. I have a SWR of less than 1.5 on all channels so the antenna is working out good for me in this spot.\
#7
Senior Member
Join Date: Dec 2009
Location: Southeast Michigan
Posts: 598
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: i-6 4.0

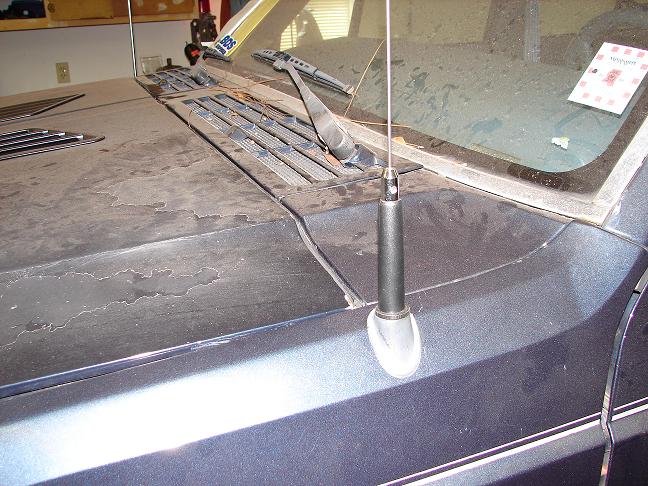

i decided to do mine a bit different, dont have a good pic of it but heres one anyway.
stupid flare fell off when going up a hill lol
stupid flare fell off when going up a hill lol
Trending Topics
#8
CF Veteran
I have mounted in virtually the same spot as those above and it works find for me.
As far as Driver side vs. Passenger side..... it depends on how tall your antenna is. Mine is a 102".. If you have a lot of trees that over hang the road it will be best to put it on the driver's side so you aren't beating your antenna on the trees as you drive down the road. However, if you go through drive thrus often you may want to put the antenna on the passenger side so that it clears the awnings.
If the antenna is not as tall then for best performance I believe the passenger side is better, at least for highway use. However, for off road it is easier to see the antenna on the driver's side so you can try not to rip it off. If you only use the CB off road then the antenna can be mounted almost anywhere if all you need to reach is the guys in your group.
As far as Driver side vs. Passenger side..... it depends on how tall your antenna is. Mine is a 102".. If you have a lot of trees that over hang the road it will be best to put it on the driver's side so you aren't beating your antenna on the trees as you drive down the road. However, if you go through drive thrus often you may want to put the antenna on the passenger side so that it clears the awnings.
If the antenna is not as tall then for best performance I believe the passenger side is better, at least for highway use. However, for off road it is easier to see the antenna on the driver's side so you can try not to rip it off. If you only use the CB off road then the antenna can be mounted almost anywhere if all you need to reach is the guys in your group.
#12
Seasoned Member
Join Date: Jun 2010
Location: Walkersville, Md. 21793
Posts: 332
Likes: 0
Received 0 Likes
on
0 Posts
Year: 87
Engine: 4.0
#13
CF Veteran
Join Date: Mar 2010
Location: wilkes barre PA.
Posts: 1,200
Likes: 0
Received 0 Likes
on
0 Posts
Year: 96
Model: Cherokee
Engine: 6 cylinder
I have had my antenna on for a month now and I don't have a problem with it mounted on the side. My side view mirrors on the other hand I have to replace every week
#14
Junior Member
Join Date: Jun 2010
Location: Ft. Pierce, FL
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Here's mine but I'm a lil more into cb's than most. When I goto the trails or hunting i use a fiberglass skipshooter antenna with a 6in spring. On my MFJ 259 antenna analyzer my numbers are swr 1.0, ohms 50, r-50 and x-2.
#15
Member
Join Date: Jul 2009
Location: Kiln MS
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Renix
Didn't want my antenna on the side for fear of ripping it off or folding and busting the tail light....so I mounted 4 foot whip on the drivers side like the stock FM antenna on the passenger side.
What do ya'll think?
What do ya'll think?
