Hey guys I need some advice from anyone who has installed the bushwacker cut outs.. I'm trying to get them installed on my 00 and it's turning into a little. Bit of a headache. The fronts are done. They were easy. Haha

The problem I'm having is getting the rear to line up. Does anyone have pics of their install? Or could anyone take pics of theirs on their jeep? I have the hardware and the "dogs leg" but I can't for the life of me get them to line up. Every pic I see they meet where the gap in the door and body is and when I seem to get them remotely lined up the piece on the door seems to be over hanging it about an inch and a half..

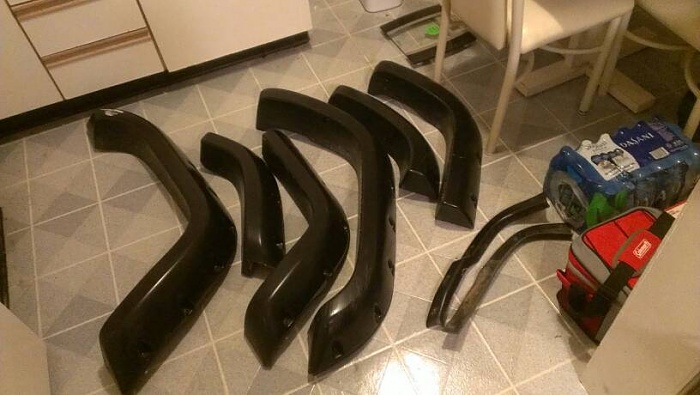

I think my problem is I am cut and folded... But I thought the "cut out" style flares were for cut out fenders haha... The instructions are super vague but it looks like I'm going to have to actually bend the folds out and re cut them or something. That's the only thing I can think of. help would be really cool thanks everyone..I did get these second hand but like I said i have everything but the trim tool..



so i was wondering this aswell. the BW flairs accualy use the top 2 bolt holes from the fenders. and i think they are going to hang over. i saw on a build page where the screws were maby a half inch fron the end of the door.



In the instructions they don't mention anywhere abut using the existing bolts. Matter of fact they couldn't bc the hardware they give you wouldn't work... The back is a real pain in the..... Lol



I know this is totally off topic but I couldn't help but notice you're from jersey...you know any good spot to go muddin? all my places keep gettin busted and raided and **** lol



Anyone



Talking about the accual bolt holes, I downloaded there pdf guide. Maby that was just for the flat flairs though. Idk just tryna help



Improvise improvise improvise!



Can u post any pics of wat exactly ur talkin about i have them on and can post some pic to help u out

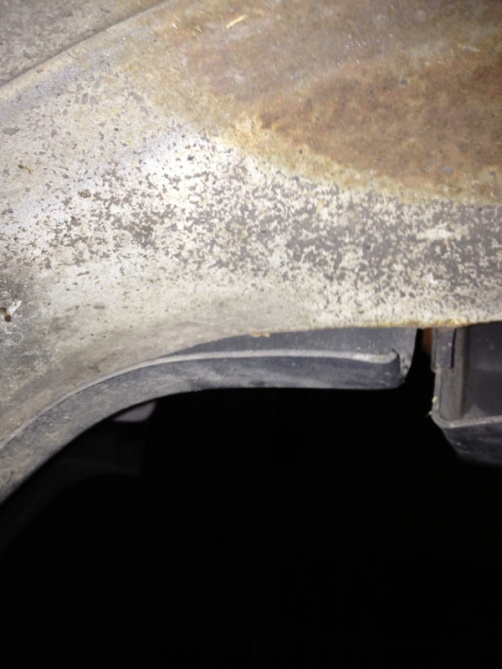

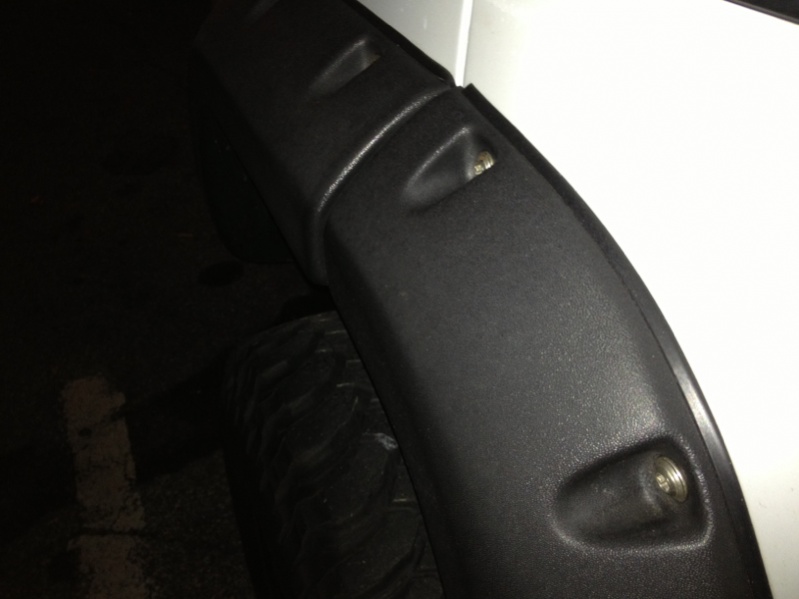

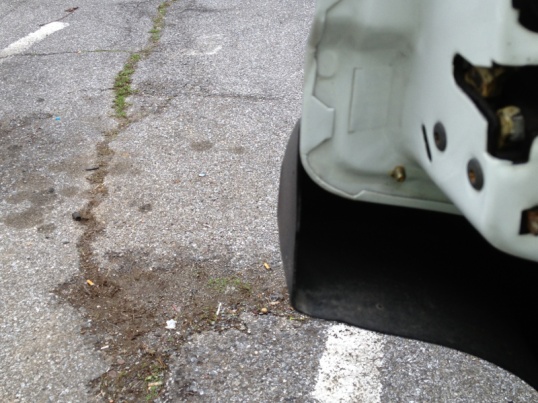

Here's a pic from the inside the wheel well top inside of the dog leg. Second pic is of the dog leg piece line it up the best u can mine not prefect.



Dizzy, can you take a pic of where they line up on the door? For some reason i just can't get them both to sit right.. Did you have that problem? And the one that sits on the door is supposed to slide under the dog's leg when closed correct?

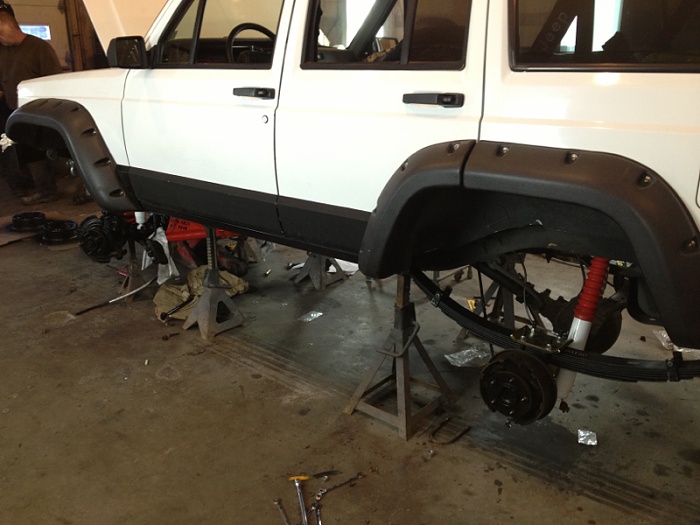

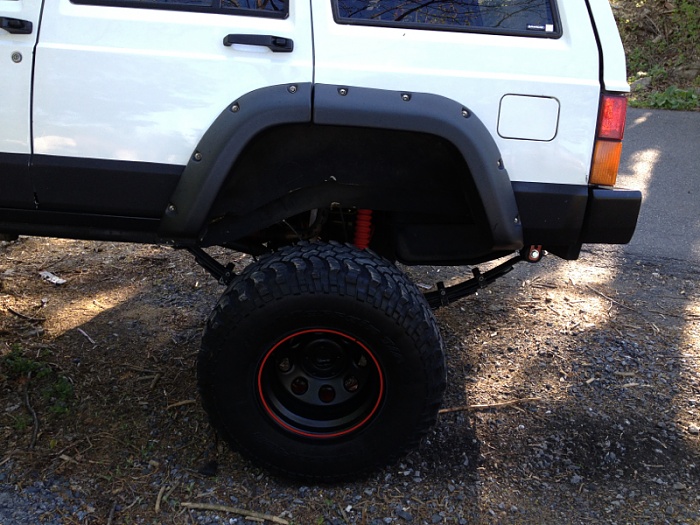

Yea it's goes under the dog leg it's raining where I'm at when it stops ill get the pic for u best thing to do is close the door get a washable marker mark the holes then do the back and see how they line up. Make adjustments then put them on. You'll see wen I post pics mines off a lil. Here's a couple I had in my phone



Thank you... All the I've seen shows them meeting at the door. For some reason when I go to line mine up the piece on the door wants to fall about an inch and half onto the rear quarter... But I was already trimmed and folded before doing this. So I don't have my fenders cut the exact way they call for In the instructions maybe that's it idk..

Also for the front.. Being mines a 00 I had to cut down two of the screws bc they would have went into the washer resovoir... I want to just put nuts and bolts I'd feel more. Comfortable with that. They tell you to drill like a 3/16 hole and that's way too big for the hardware given imo



Yea drill smaller hole the screws are strong mine been hit by a drunk driver my fender was on my hood BW still connected had no damage and it took the hit



Ok thanks for your help.. I'm going to be installing the rear tomorrow so I'll let you know how it goes.. If i have any questions I'll post them here so keep an eye out. The directions bushwacker gives are extremely vague

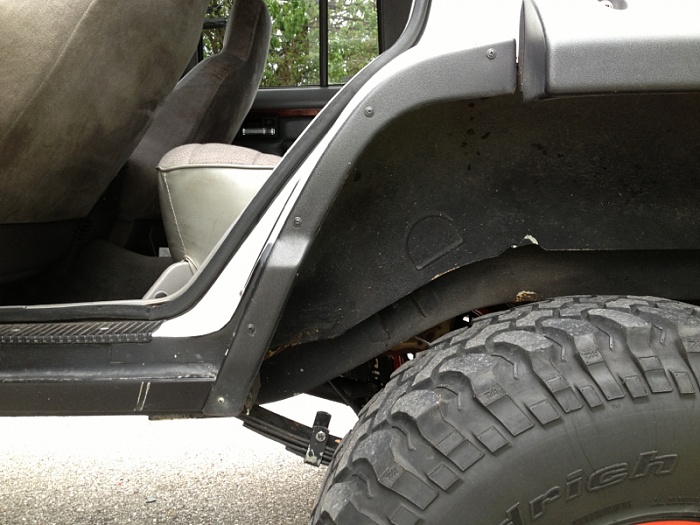

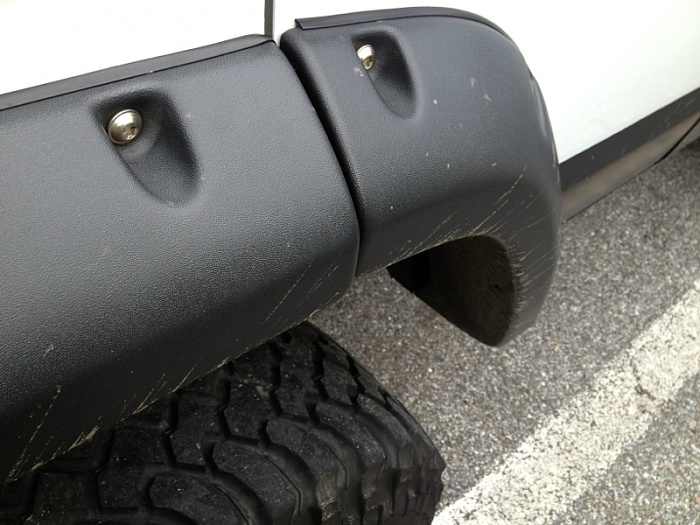

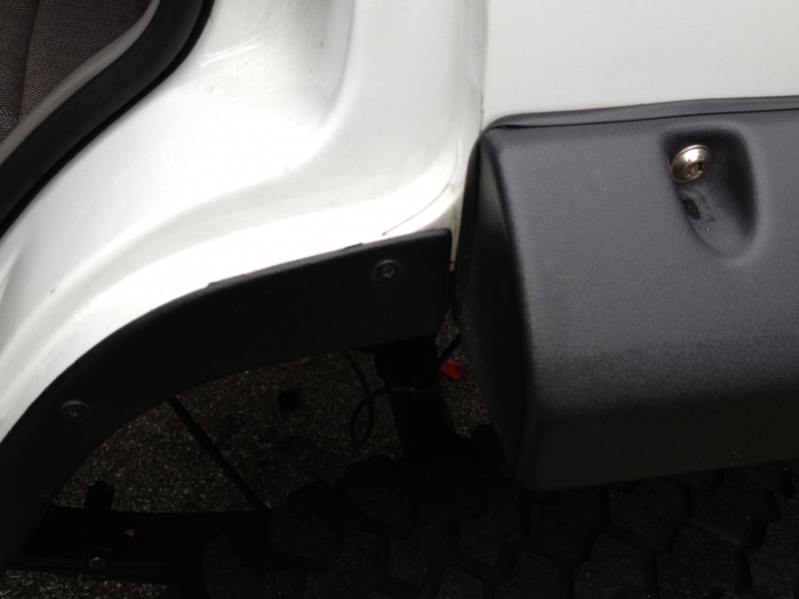

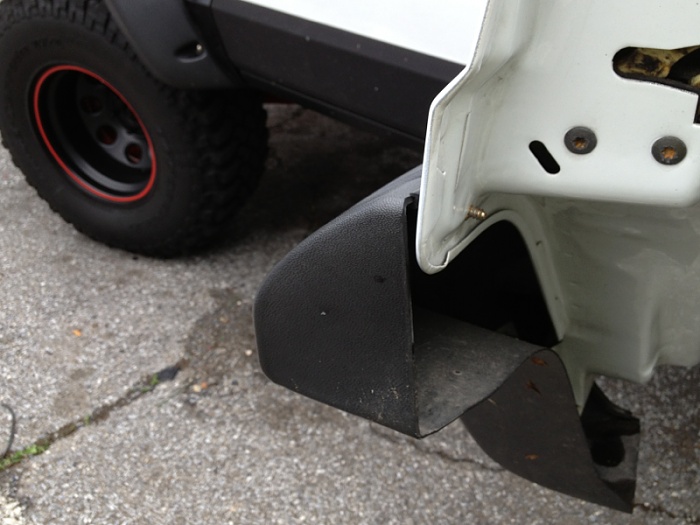

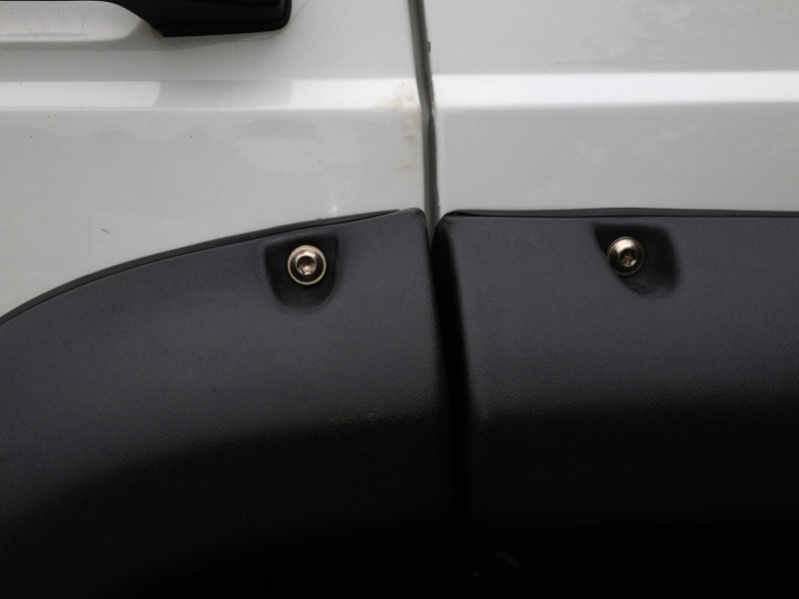

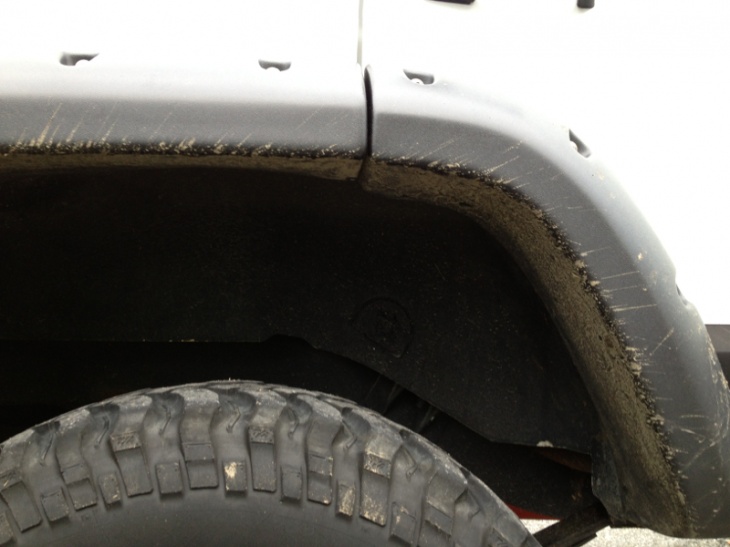

Took some pics in between rain storms hope it could help some
