Another Door speaker Question
Hello USA! Greetings from UK
I own a Jeep Cherokee 2003 model. I wanted to upgrade my front door speakers as mine seem to have given up. I was researching various websites (Including this one) as to which size the original speakers were so my replacements were the same size. Most websites said the speakers were 5.25" so I purchased some.
Once I took the door panel off I could clearly see that the door speakers were far bigger and are in fact 6.5" speakers (So I'll be returning them and getting bigger ones)

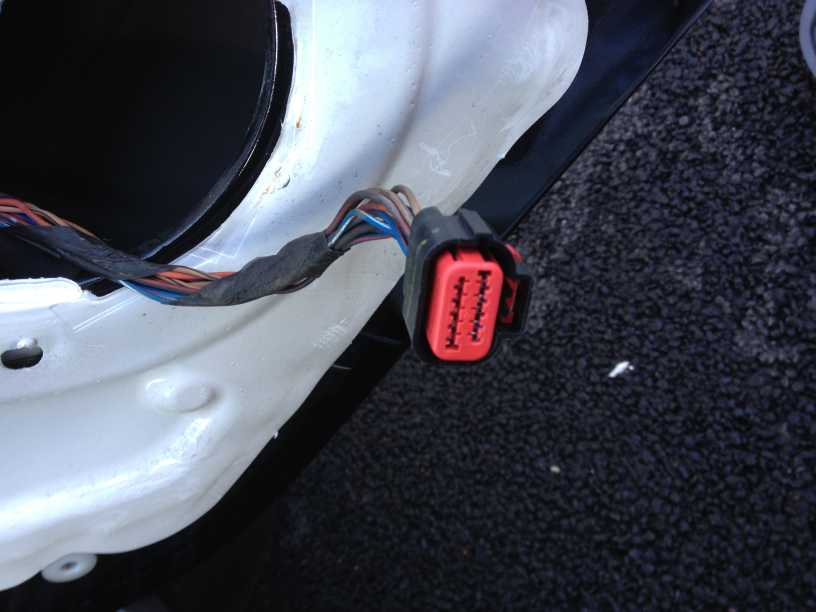

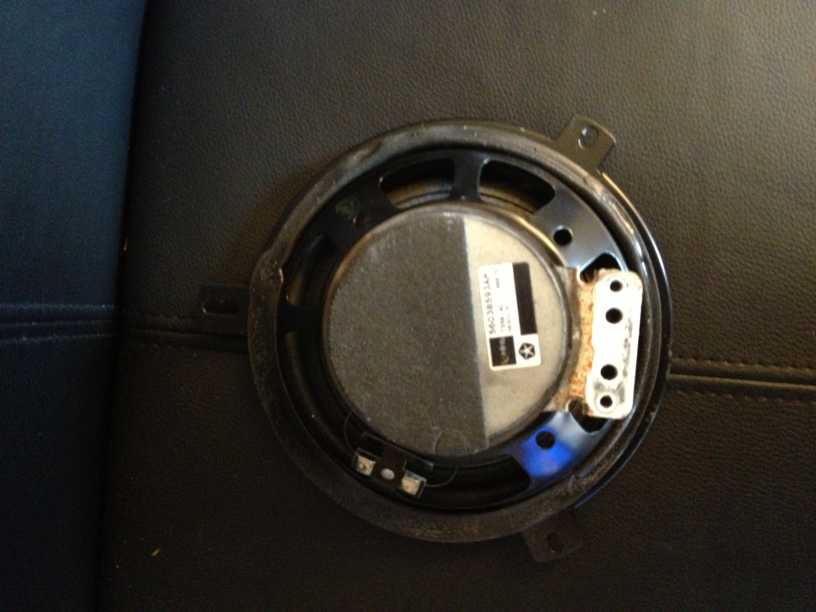

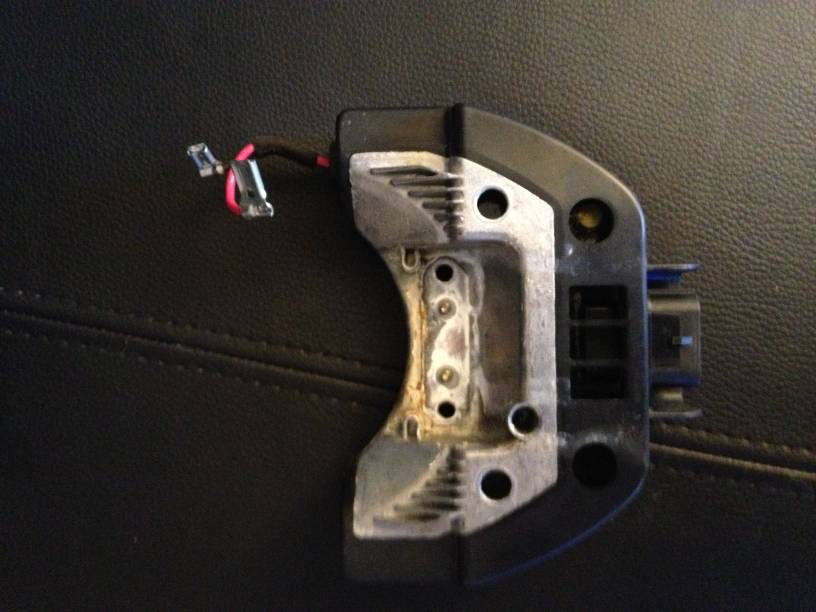

My problem now arises re the connections to the wiring loom. The factory speakers have a unit screwed to them, this then connects to the wiring loom and the speaker. Please see pic named 'Attached to speaker' There is also a bracket attached to the speaker which I can't see how this detaches from the speaker. So I'm now at a loss as how I would connect my new speakers.
Many Thanks
I own a Jeep Cherokee 2003 model. I wanted to upgrade my front door speakers as mine seem to have given up. I was researching various websites (Including this one) as to which size the original speakers were so my replacements were the same size. Most websites said the speakers were 5.25" so I purchased some.
Once I took the door panel off I could clearly see that the door speakers were far bigger and are in fact 6.5" speakers (So I'll be returning them and getting bigger ones)
My problem now arises re the connections to the wiring loom. The factory speakers have a unit screwed to them, this then connects to the wiring loom and the speaker. Please see pic named 'Attached to speaker' There is also a bracket attached to the speaker which I can't see how this detaches from the speaker. So I'm now at a loss as how I would connect my new speakers.
Many Thanks
#2
CF Veteran
I think you'll find that the 2003 Cherokee in the UK was actually the Jeep Liberty in the USA so this site doesn't really cover them.
Sorry I can't help you with your question either
Sorry I can't help you with your question either
#3
Member
Join Date: May 2012
Location: Gilbert, Arizona
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I don't have one of these personally, but looked around to see what I could find. See if this helps you at all
http://www.jeepforum.com/forum/f28/r...-door-1200997/
There are also other threads on the same site about replacing these. Good luck to you, hope this helped if you haven't found it already.
http://www.jeepforum.com/forum/f28/r...-door-1200997/
There are also other threads on the same site about replacing these. Good luck to you, hope this helped if you haven't found it already.
Last edited by Dro; 04-19-2013 at 04:00 AM.
#4
Seasoned Member
Join Date: Dec 2012
Location: Middletown, Maryland
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6
Soldier I guess. I'm not sure I quite get what the issue is... one issue is that the Cherokee was discontinued in the USA in 2001. You may gets better results On jeep forum.
#6
Newbie
Thread Starter
Join Date: Apr 2013
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Thanks for the link Dro, I now see that the unit with the red and black wire coming out is in fact an amp. I tried by passing this by cutting into the wiring loom from the door by splicing into the red and black wires but the speaker did not work, i thought I may have been cutting into the wrong wires, I tried looking for a wiring loom picture on the net but could only find Grand Cherokee wiring looms. I connected the amp to the speakers and they work. I have an aftermarket Sony head unit so surely I don't need to use this amp? I'm also struggling to find a speaker bracket in the UK so I can use the factory holes already drilled.
#7
Member
Join Date: Apr 2011
Location: South east Michigan. (For now)
Posts: 110
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0l
For the bracket, MDF or aluminum plate can be cut to make any thing you need.
For the stock amp, sell it on ebay.
Run a new wire from the Sony head unit you have to the door and hook it to your new speakers. This will bypass the stock amp and solve your problem. This will not work with the stock head unite as it dose not have an amp built in it like the aftermarket Sony unit you have now. So you will not be able to reinstall the stock head unit unless you keep the door amps.
Good luck.
For the stock amp, sell it on ebay.
Run a new wire from the Sony head unit you have to the door and hook it to your new speakers. This will bypass the stock amp and solve your problem. This will not work with the stock head unite as it dose not have an amp built in it like the aftermarket Sony unit you have now. So you will not be able to reinstall the stock head unit unless you keep the door amps.
Good luck.
Trending Topics
#8
Newbie
Thread Starter
Join Date: Apr 2013
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Is it safe to rivet the speakers in place? or could this damage the speakers? I read somewhere else that if i don't use the amp with the attached wiring loom that the rear speakers will not work?
#9
Newbie
Thread Starter
Join Date: Apr 2013
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I've purchased coaxial speakers to replace the factory speakers in the door. Obviously coaxial speakers come with tweeters, will this effect the sound as my Jeep has tweeters in the dash?
#10
Seasoned Member
Join Date: Dec 2012
Location: Middletown, Maryland
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6
No but I'm going to assume that your speakers are wired through an amp and a crossover. That's how the grand Cherokees were done. If that's so then the tweeters in the door won't really be doing anything.
#12
Seasoned Member
Join Date: Dec 2012
Location: Middletown, Maryland
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6
