Alt...
Hey guys I got a 91 jeep Cherokee
Larado I was wondering if anyone knew what kind of alternator was in there and also what is the biggest alt you can put in there without having to move **** around modify anything was. Thanks Andrew.
Larado I was wondering if anyone knew what kind of alternator was in there and also what is the biggest alt you can put in there without having to move **** around modify anything was. Thanks Andrew.
09-12-2011, 01:45 PM
#2
Senior Member
Join Date: Sep 2011
Location: Arvada
Posts: 733
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L Inline 6
Go to AutoZone's website and put in your Jeep specs and search alternator and it will show you which ones they have that will fit your Jeep.
I just replaced my alternator in my 2000 and what I did was go underneath the Jeep to take it out otherwise I would have had to remove an A/C unit to get to the alternator. I am not sure of the placement of it on a 91 but if it is underneath, then go up from the bottom to get it.
I just replaced my alternator in my 2000 and what I did was go underneath the Jeep to take it out otherwise I would have had to remove an A/C unit to get to the alternator. I am not sure of the placement of it on a 91 but if it is underneath, then go up from the bottom to get it.
09-12-2011, 10:25 PM
#5
CF Veteran
Join Date: Oct 2009
Location: somewhere Gee oh Dee cant find me...
Posts: 4,529
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: I6 4.0L
Power Master and Mean Green both make replacement alt.s that put out 200 amps, but they cost round $400
09-13-2011, 07:46 AM
#6
Member
Join Date: Apr 2011
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Umm you don't have to crawl under your jeep to swap the alt. I have a '97 and have done three alt swaps since may, just set your battery on the ground and it will slide out between the battery tray and the A/C compressor or whatever is sitting above it.
It is a much easier fit getting it out this way than squeezing it out through the bottom where it barely fits and you gotta spin it in 20 odd angles before it will find its way.

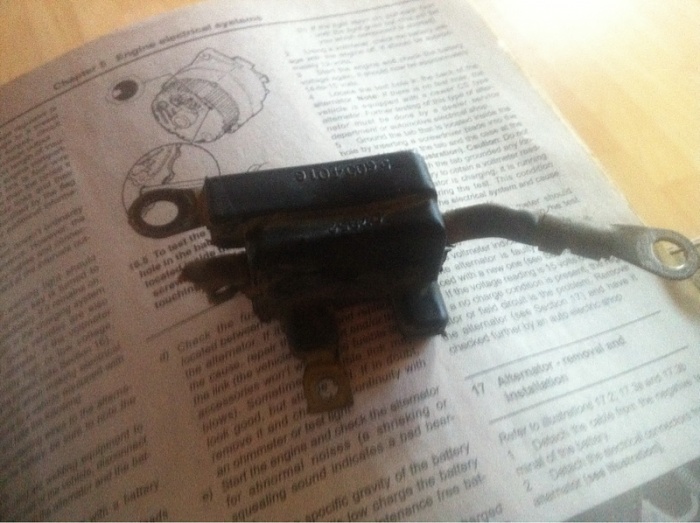

Also, if it has the black plastic piece in this picture, check the contacts on it. As you can see in the photo one of mine broke off and made me think I had a dead alt.
Then the black plastic bugger was a PITA to figure out what it was, no auto parts store could identify it... Because it's just that, a black piece of crap to keep your wires pretty and "idiot proof" changing the alternator (until it breaks, then you're SOL because no one knows what part it is lol). Fixing it is as simple as chopping it off and adding rings to the wire ends and then bolting them on to the alt.
It is a much easier fit getting it out this way than squeezing it out through the bottom where it barely fits and you gotta spin it in 20 odd angles before it will find its way.
Also, if it has the black plastic piece in this picture, check the contacts on it. As you can see in the photo one of mine broke off and made me think I had a dead alt.
Then the black plastic bugger was a PITA to figure out what it was, no auto parts store could identify it... Because it's just that, a black piece of crap to keep your wires pretty and "idiot proof" changing the alternator (until it breaks, then you're SOL because no one knows what part it is lol). Fixing it is as simple as chopping it off and adding rings to the wire ends and then bolting them on to the alt.
Last edited by AKinHI; 09-13-2011 at 07:52 AM.
09-14-2011, 03:19 PM
#7
Seasoned Member
Thread Starter
Join Date: May 2011
Location: St. Lucie FL
Posts: 832
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: I6
Originally Posted by AKinHI
Umm you don't have to crawl under your jeep to swap the alt. I have a '97 and have done three alt swaps since may, just set your battery on the ground and it will slide out between the battery tray and the A/C compressor or whatever is sitting above it.
It is a much easier fit getting it out this way than squeezing it out through the bottom where it barely fits and you gotta spin it in 20 odd angles before it will find its way.
Also, if it has the black plastic piece in this picture, check the contacts on it. As you can see in the photo one of mine broke off and made me think I had a dead alt.
Then the black plastic bugger was a PITA to figure out what it was, no auto parts store could identify it... Because it's just that, a black piece of crap to keep your wires pretty and "idiot proof" changing the alternator (until it breaks, then you're SOL because no one knows what part it is lol). Fixing it is as simple as chopping it off and adding rings to the wire ends and then bolting them on to the alt.
It is a much easier fit getting it out this way than squeezing it out through the bottom where it barely fits and you gotta spin it in 20 odd angles before it will find its way.
Also, if it has the black plastic piece in this picture, check the contacts on it. As you can see in the photo one of mine broke off and made me think I had a dead alt.
Then the black plastic bugger was a PITA to figure out what it was, no auto parts store could identify it... Because it's just that, a black piece of crap to keep your wires pretty and "idiot proof" changing the alternator (until it breaks, then you're SOL because no one knows what part it is lol). Fixing it is as simple as chopping it off and adding rings to the wire ends and then bolting them on to the alt.
