62mm bored TB installed. Review

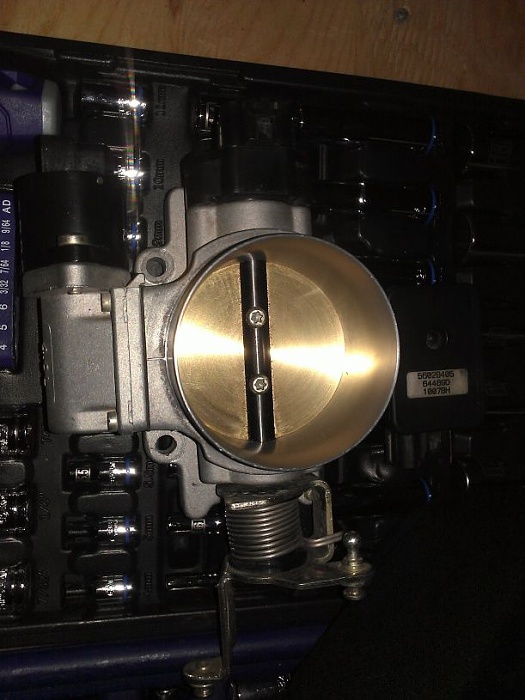

I had maxbore.com do my TB since he does 62mm and includes the butterfly for $99 shipped.
I installed it tonight. Reset the ECU. Took it for a spin. 15-20min or so.
Results?
Maybe more responsive off the line. I notice nothing else. Worth $99? Not sure.
I don't want to be a sheep and post I am now racing Mustangs or anything.
I installed it tonight. Reset the ECU. Took it for a spin. 15-20min or so.
Results?
Maybe more responsive off the line. I notice nothing else. Worth $99? Not sure.
I don't want to be a sheep and post I am now racing Mustangs or anything.
Last edited by CrawlerXJ; 12-17-2012 at 10:53 PM.
#2
Seasoned Member
Join Date: Jul 2011
Location: Montreal, Canada
Posts: 385
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 I6 HO
did you bore out the planum intake as well? from what ive read if you do this then you will feel the diff, other than that if you put a 62mm tb on a 58mm planum intake then the hole is still only 58mm at max
#3
Senior Member
Thread Starter
Join Date: Aug 2010
Posts: 893
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Planum intake? Educate me. You mean the intake manifold? If so, I read that's 62mm on the 99+ If not, please explain.
#4
Senior Member
Join Date: Feb 2010
Location: errrvre where
Posts: 681
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: I6 4.0L HO, JBA headers, 99 intake, #703 injectors
i would also like to know this. should the intake manifold be bored out aswell? im gearing up to swap in the 99 intake, is it already big enough or does it need to be bored out?
#5
Senior Member
Thread Starter
Join Date: Aug 2010
Posts: 893
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#6
Senior Member
Thread Starter
Join Date: Aug 2010
Posts: 893
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
After reading/searching it looks like its not included. It's extra. According to another site, its double. But, I will wait until he replies before I say its true. Bummer, I never read any where anyone talk about this.
#7
CF Veteran
Join Date: Jun 2009
Location: Columbus, Ohio
Posts: 2,173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0, comp cam, 99 intake, apn header, neon injectors, Thunderbolt 2.5" High Flow Cat
Pretty sure the stock bore on the 99+ intake is only 60mm, it needs to be opened up to match the throttle body.
Trending Topics
#9
Senior Member
Thread Starter
Join Date: Aug 2010
Posts: 893
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Here was his reply.
The plenum opening is plenty big judging by the carbon build up ring the TB had on the back. If you compare the size of the TB to the plenum you'll see that they are almost the same.
The plenum opening is plenty big judging by the carbon build up ring the TB had on the back. If you compare the size of the TB to the plenum you'll see that they are almost the same.
#11
Senior Member
Thread Starter
Join Date: Aug 2010
Posts: 893
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
After reading the gain is 3-6hp. Something probably only noticed by dyno. Which makes sense on why I didn't really see any improvement but a snapper take off.
#12
Senior Member
Join Date: Feb 2010
Location: errrvre where
Posts: 681
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: I6 4.0L HO, JBA headers, 99 intake, #703 injectors
it wasnt the power i really noticed either. it was the throttle responce and the smoother acceleration. ive had a bored tb for alittle over 2 years and when i installed it, it drove alot smoother. like the engine could just breathe better. recently i did a whole ignition tune up and the throttle responce went through the roof. quicker smoother idle to 4500 rpms and almost no time delay if im in neutral. even on the trail if i bog down to 900 rpms or so on a medium hill climb and i setup on it alittle more it opens wide up with no problems.
#13
CF Veteran
Join Date: Mar 2012
Location: whiting
Posts: 1,414
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Originally Posted by Donnie_K
Pretty sure the stock bore on the 99+ intake is only 60mm, it needs to be opened up to match the throttle body.
#14
mine's in the mail. I'll have it installed monday, hopefully. I'll post my impressions. I've upgraded injectors, homebrew CAI, and 2.5" catback. I'll probably do a banks header, custom downpipe, and magnaflow soon. It's that or a tire carrier bumper. $70 ebay bore, butterfly replaced, as well.
#15
Junior Member
Join Date: Jun 2012
Posts: 38
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Just my .02, But isn't 62mm to big? That is to say: Too much air for a stock motor?
I have taken the taper out of the stock TB and did notice better throttle response and more felt power on the low end.
I have taken the taper out of the stock TB and did notice better throttle response and more felt power on the low end.
