Winch mount

Old 11-09-2013, 10:07 AM
  #1
Member
Thread Starter

01mainexj's Avatar

Join Date: Aug 2012
Posts: 162
Model: Cherokee
Default Winch mount

so I got bored one day and had a winch and a jeep so I started off like this
Name:  14676_zpsa014fc8e.jpg
Views: 16
Size:  96.5 KB
then braced that front cross member a bunch then from there back along the top of the unibody rails then put this plate on top of that
Name:  14677_zps5117b584.jpg
Views: 13
Size:  73.1 KB

then put everything else back on and painted it up and it looks like this
Name:  14682_zps82ae5d28.jpg
Views: 18
Size:  85.9 KB
I kinda like the way it looks with the stock bumper it didn't cost me anything so I figured id try it out it still need to put shackle tabs somewhere I haven't decided what im going to do there

I also did remove the ac radiator thing whatever its called because im going to be using the ac compressor for on board air anyways
01mainexj is offline
Old 11-09-2013, 10:42 AM
  #2
CF Veteran

bheath's Avatar

Join Date: Jul 2011
Location: JOCO
Posts: 4,520
Year: 1999
Model: Cherokee
Engine: 4.0 Inline 6
Default

what do you mean by 'braced the front crossmember'? lol

more pics please...
bheath is offline
Old 11-09-2013, 10:50 AM
  #3
Member
Thread Starter

01mainexj's Avatar

Join Date: Aug 2012
Posts: 162
Model: Cherokee
Default

haha I knew someone was going to ask that. I didn't take very many pictures while I was doing it next time I have the bumper off i'll take more. I pretty much took some 5x3 angle iron or around there and welded it to the crossmember with the shorter side up then welded the winch munting plate to that and the top of the crossmember. I welded all of the seems on the front end completely too
01mainexj is offline
Old 11-09-2013, 01:21 PM
  #4
Seasoned Member

Join Date: Aug 2013
Location: Duluth, MN
Posts: 452
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

I'm wondering if that will actually withstand all of the weight/pressure when actually stuck.

Looks good though man.
JeepMN is offline
Old 11-09-2013, 03:15 PM
  #5
CF Veteran

motorcharge's Avatar

Join Date: Mar 2012
Location: Richmond, VA
Posts: 1,369
Model: Cherokee
Default

Because winching from the crossmember without distributing the force of the pull is a good idea.
motorcharge is offline
Old 11-09-2013, 03:32 PM
  #6
Member
Thread Starter

01mainexj's Avatar

Join Date: Aug 2012
Posts: 162
Model: Cherokee
Default

Originally Posted by motorcharge View Post
Because winching from the crossmember without distributing the force of the pull is a good idea.
which is why after I braced the crossmember I distributed it by plating the unibody a foot and a half back from the crossmember with plenty of plug and stitch welds and welded those tie ins to the bracing
01mainexj is offline
Old 11-09-2013, 03:33 PM
  #7
Member
Thread Starter

01mainexj's Avatar

Join Date: Aug 2012
Posts: 162
Model: Cherokee
Default

im not really worried at all if you saw it before the radiator and bumper were back on youd understand
01mainexj is offline
Old 11-10-2013, 09:27 AM
  #8
Member

tobyw's Avatar

Join Date: Jan 2012
Location: WA
Posts: 204
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Is that flat plate just cantilevered out there with the winch sitting on it, or are there some sort of gussets that run back to the reinforced crossmember? What will happen when/if you need to pull at an up or down angle, such as when your rig is stuck either nose high or nose low? Or when the recovery point is a few feet above or below your winch?
tobyw is offline
Old 11-10-2013, 09:31 PM
  #9
Member
Thread Starter

01mainexj's Avatar

Join Date: Aug 2012
Posts: 162
Model: Cherokee
Default

it is gusseted with the angle iron that was the only thing I was worried about so I beefed it up until I was no longer worried at all
01mainexj is offline
Old 11-19-2013, 07:45 PM
  #10
Seasoned Member

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by 01mainexj View Post
it is gusseted with the angle iron that was the only thing I was worried about so I beefed it up until I was no longer worried at all
where ya from in maine? I'm down in the old orchard beach area
typicalsundayxj is offline
Old 11-20-2013, 12:20 PM
  #11
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

erase

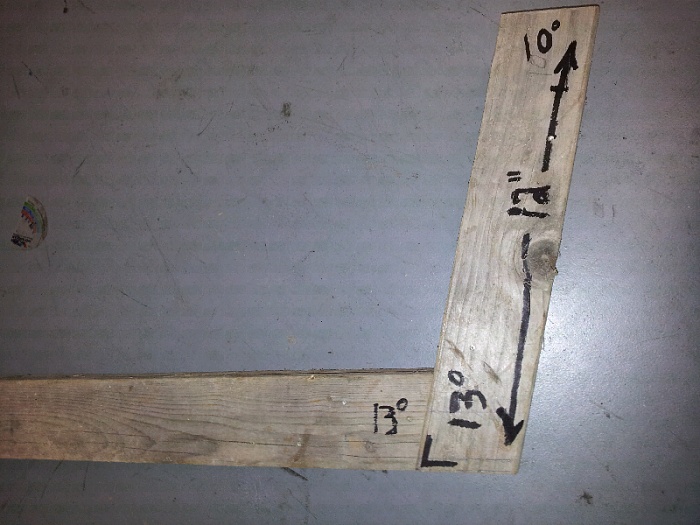

Attached Thumbnails Winch mount-forumrunner_20131120_132032.jpg   Winch mount-forumrunner_20131120_132048.jpg

Last edited by HS00XJ; 11-20-2013 at 12:23 PM. Reason: Wrong thread sorry
HS00XJ is offline
Old 11-20-2013, 02:10 PM
  #12
Seasoned Member

typicalsundayxj's Avatar

Join Date: Dec 2011
Location: Southern Maine
Posts: 437
Year: 1999
Model: Cherokee
Engine: 4.0L
Default

Perfect man!
