Welding thread!!!!

Old 01-05-2014, 01:49 AM
  #31
Senior Member

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by Flowpro View Post
Done with 7018 rods. Not as pretty as a wire welder but much easier to use outside.







I've always just stuck to the 6013's, might try out some 7018. Do you get a lot of slag with those?
I want a mig but for now I just have 225 Miller and a flux core
Michael952 is offline
Old 01-05-2014, 02:15 AM
  #32
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Cool thread!
My rig:

Welding thread!!!!-forumrunner_20140105_021002.jpg

And my bumper that I made with it (in its final stages)

Welding thread!!!!-forumrunner_20140105_021413.jpg
wiggles is offline
Old 01-05-2014, 01:59 PM
  #33
Seasoned Member

Join Date: Mar 2013
Posts: 304
Model: Cherokee
Default

I just got a friends Hobart 125. Its been sitting on a shelf in his garage for about 4 years. I just picked up a roll of 35 flux. I need to order the spool adapter for the larger spool of wire I picked up.
Name:  C402D3D0-28B4-4AAF-B58C-C90BC4867A73_zpshs5q43gn.jpg
Views: 670
Size:  115.2 KB
peckerwood1986 is offline
Old 01-05-2014, 05:54 PM
  #34
CF Veteran

Flowpro's Avatar

Join Date: Mar 2011
Location: Waterloo, Iowa
Posts: 1,102
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Michael952 View Post
I've always just stuck to the 6013's, might try out some 7018. Do you get a lot of slag with those?
Yep, a lot of slag.

The better you get welding the more tendency the slag will just lift off the weld as it cools without having to chip it off very much. Pretty neat.

On the other hand, the worst the weld is, the more you'll cuss trying to get all the slag off.
Flowpro is offline
Old 01-05-2014, 06:05 PM
  #35
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Raleigh, NC
Posts: 68
Year: 98
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Flowpro View Post
Yep, a lot of slag.

The better you get welding the more tendency the slag will just lift off the weld as it cools without having to chip it off very much. Pretty neat.

On the other hand, the worst the weld is, the more you'll cuss trying to get all the slag off.
7018 is what I use daily at work. Lots of slag but if you are good at stick welding the slag pops right off like a big cap over the weld. I just tap it once or twice with my chipping hammer and the whole deal comes right off.
Jake. is offline
Old 01-05-2014, 06:07 PM
  #36
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,981
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

I'm surprised nobody mentioned 7014's. I love those rods. Excellent for welding while on AC.
XJwonders is offline
Old 01-05-2014, 06:08 PM
  #37
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Raleigh, NC
Posts: 68
Year: 98
Model: Cherokee
Engine: 4.0
Default

Also in my line of work is pretty cool when I am doing service work I see a weld someone did 10 sometimes 15 years ago and the slag was never popped off. I tap it off with a hammer and it looks like it was just welded.
Jake. is offline
Old 01-05-2014, 08:07 PM
  #38
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by wiggles View Post
Cool thread!
My rig:

And my bumper that I made with it (in its final stages)
Im about to start a stubby bumper and was wondering the height measurement on the front platewhere the winch mounts to.i want it small as possible but i dont have a winch for mock up yet.thanks
HS00XJ is offline
Old 01-05-2014, 08:32 PM
  #39
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Originally Posted by HS00XJ View Post

Im about to start a stubby bumper and was wondering the height measurement on the front platewhere the winch mounts to.i want it small as possible but i dont have a winch for mock up yet.thanks
For my rugged ridge winch it needs to be about 6.5" tall
wiggles is offline
Old 01-05-2014, 08:44 PM
  #40
CF Veteran

hankthetank's Avatar

Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJwonders View Post
I'm surprised nobody mentioned 7014's. I love those rods. Excellent for welding while on AC.
7014 is good for mostly downhand, 7018 is all position.
hankthetank is offline
Old 01-05-2014, 08:47 PM
  #41
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by wiggles View Post

For my rugged ridge winch it needs to be about 6.5" tall
Thanks thats what i was wondering.my cardboard templates are at 6" so ill add another.5"
HS00XJ is offline
Old 01-06-2014, 11:23 AM
  #42
CF Veteran

peep's Avatar

Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,136
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default Mig n Stick

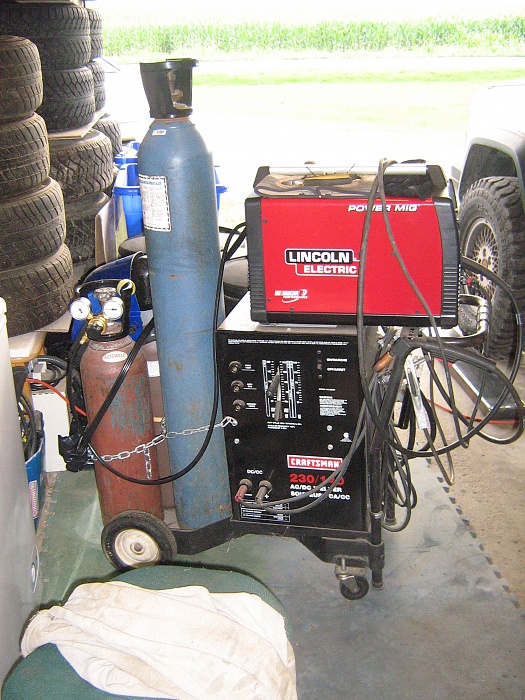

For home shop I use a Lincoln 180 w/ 10 lb spool of .025wire on 75/25 Liquidair or same gas mix in Praxair Autoweld. Very flexible for range 22 ga and up to 1/4" without changing the mechanical setup. My trusted Sears Craftsman 230/140 ACDC stick for the heavies.
Can also put a .035 wire Spool on the Mig for heavier applications but rarely needed and the stick is quick and always ready to go.
I live rural and keep a small spool of fluxcore on hand in case of a gas runout in middle of a project.
Run Praxair Stargon SS trimix gas w/ .035 308L stainless on the mig. Excellent shielding for stainless at 30 - 35 cfh flow, controls spatter well, you can use stainless for your stainless applications and also for joining dissimilar metals.
I pull the 220V feed from the main panel. Can't run my shop feed and the cloths drier at the same time, laundry wins any debates or I get wet socks.
I keep a stainless wire hand brush and stainless cup brush on variable speed hand grinder for preparation, cleaner the base metal the better.
Wear your helmet! None of that low brow OCC squint and squeeze BS, that's for reality morons on TV, you need your eyes, wear your helmet! I like an older Jackson brand autoshield. Miller Elite systems dominate at workplace and have a nice rechargeable coolvent system that is sweet for prolonged use in the summer and really helps keeps the smoke blocked from your in helmet breathing zone, but the system is priced higher than most would invest in a home shop application.
Keep a package of spare tips, nozzle, helmet shield inserts handy. replacing worn tips can correct an erratic wire feed and the shield will need replacement. You must be able to see where you weld.

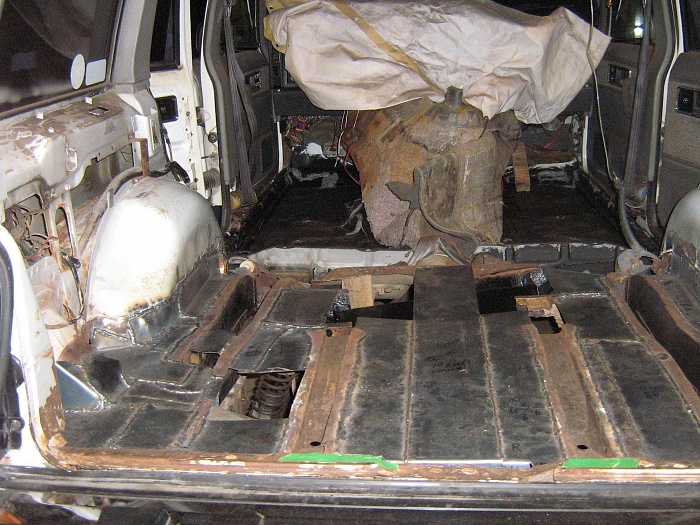

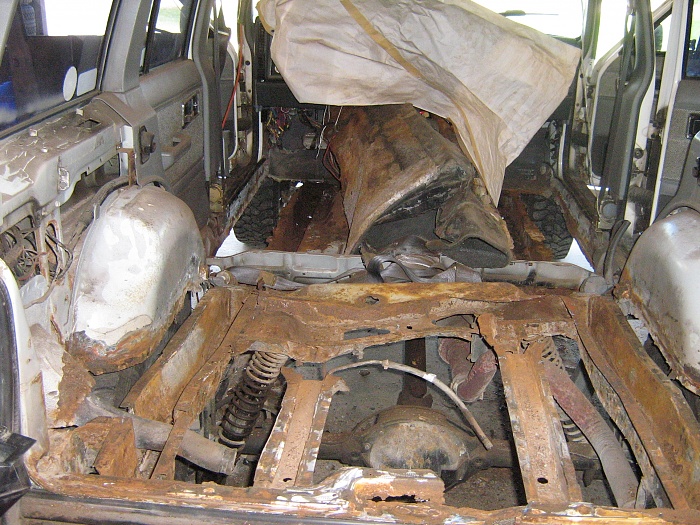

Attached Thumbnails Welding thread!!!!-img_1779.jpg   Welding thread!!!!-img_1754.jpg   Welding thread!!!!-img_1831.jpg
peep is offline
Old 01-06-2014, 11:29 AM
  #43
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 18,981
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by peep View Post
For home shop I use a Lincoln 180 w/ 10 lb spool of .025wire on 75/25 Liquidair or same gas mix in Praxair Autoweld. Very flexible for range 22 ga and up to 1/4" without changing the mechanical setup. My trusted Sears Craftsman 230/140 ACDC stick for the heavies. Can also put a .035 wire Spool on the Mig for heavier applications but rarely needed and the stick is quick and always ready to go. I live rural and keep a small spool of fluxcore on hand in case of a gas runout in middle of a project. Run Praxair Stargon SS trimix gas w/ .035 308L stainless on the mig. Excellent shielding for stainless at 30 - 35 cfh flow, controls spatter well, you can use stainless for your stainless applications and also for joining dissimilar metals. I pull the 220V feed from the main panel. Can't run my shop feed and the cloths drier at the same time, laundry wins any debates or I get wet socks. I keep a stainless wire hand brush and stainless cup brush on variable speed hand grinder for preparation, cleaner the base metal the better. Wear your helmet! None of that low brow OCC squint and squeeze BS, that's for reality morons on TV, you need your eyes, wear your helmet! I like an older Jackson brand autoshield. Miller Elite systems dominate at workplace and have a nice rechargeable coolvent system that is sweet for prolonged use in the summer and really helps keeps the smoke blocked from your in helmet breathing zone, but the system is priced higher than most would invest in a home shop application. Keep a package of spare tips, nozzle, helmet shield inserts handy. replacing worn tips can correct an erratic wire feed and the shield will need replacement. You must be able to see where you weld.
For welding dissimilar metals, it's always recommended to use 309 grade. It won't crack
XJwonders is offline
Old 01-06-2014, 12:14 PM
  #44
CF Veteran

peep's Avatar

Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,136
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Default

Agreed on the 309 being best choice for dissimilar joining applications. Resistance to cracking is superior.
I use primarily 301 / 304 Series stainless for my base fabs stocks and 308/308L is my mainstay. One may not have all alloys available when looking at home shop applications.
But if your application is more critical and a planned construction of dissimilar stainless grades or combining in basic carbon steels, the 309 is a better choice. I do keep some 316 rod on hand, for limited applications to my needs, wherein the 309 doesn't have a molybdenum content if a 316 material component is part of the build.
I guess my welding inventory of home fab has been accumulated over time and it would be of benefit to add some 309 to improve the choices available, thanks for the best practice tip!
peep is offline
Old 01-11-2014, 05:27 PM
  #45
Junior Member

angel1168's Avatar

Join Date: Oct 2012
Posts: 42
Default

quick question i have never welded before but i am thinking on getting one since the floors on my comanche have wholes in them. im debating between the Hobart Handler 125EZ and Hobart Handler 140. what would you guys recommend. main use would be on the comanche floors , bumpers, and possibly a roll cage. im just not sure if the almoast 200.00 difference is really worth it for what i am trying to do.
angel1168 is offline
