Well I crushed the heck out of my rockers so this was a much needed modification. I was just gonna do the 2x6 rockers but since my rig is strictly for wheeling I thought I might as well go all out with it.
My doors will never be going back on after this one lol.
So let's get started.
I have read thread upon thread of xj "boatsides" and am a little dissapointed in the lack of individuality on this subject Lol. Everyone does 2x6 rockers.
So I've decided to do mine a little different.

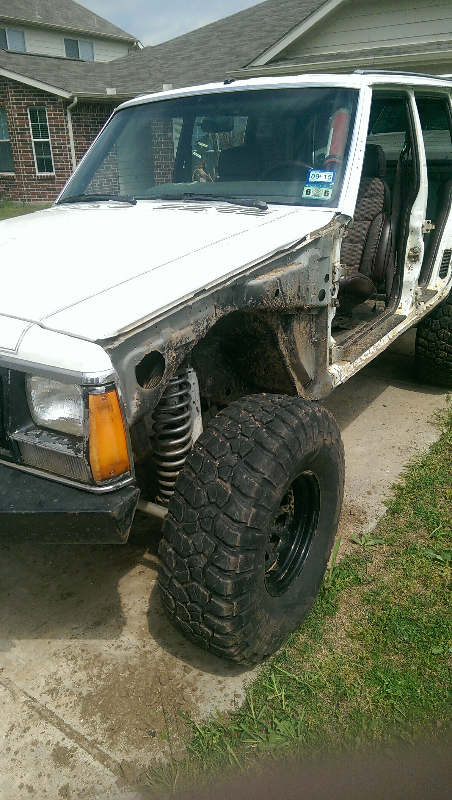

First I took the old crumpled rock rashed fenders off and threw them away.

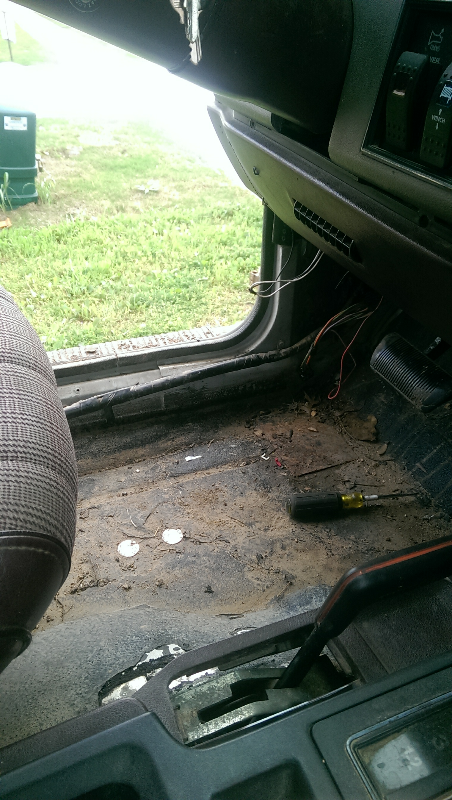

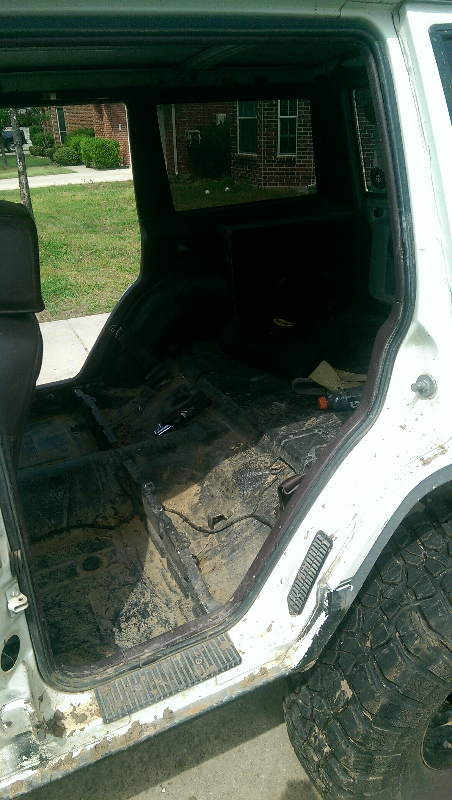

Then I took all the wiring out of the passenger side foot jam. All the trim came off as well. The other side I will do the same but unfortunately looks like the fuel pump wiring goes through that harness so I will have to get creative.


true XJ boatsides-forumrunner_20150407_203110.png



true XJ boatsides-forumrunner_20150407_203137.png



true XJ boatsides-forumrunner_20150407_203149.png

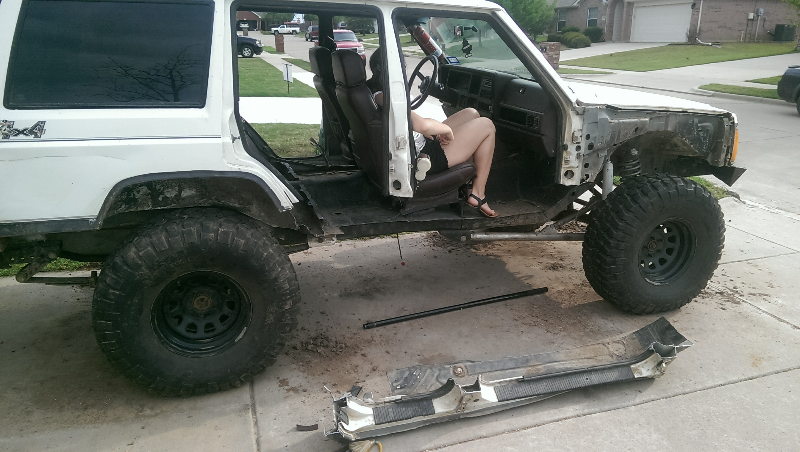

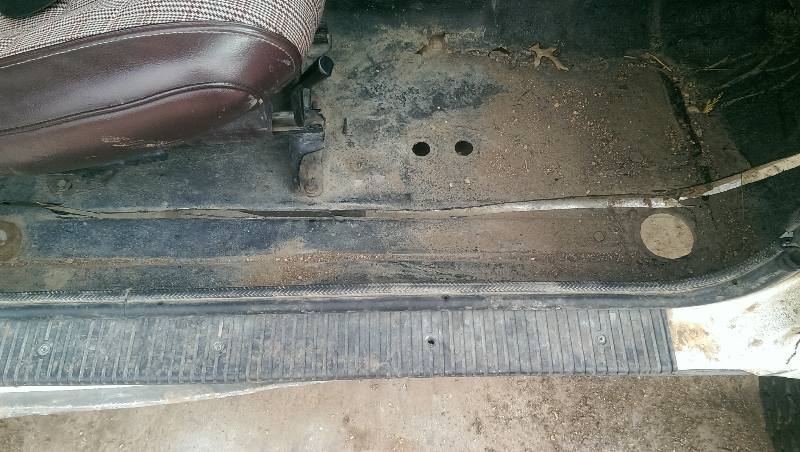

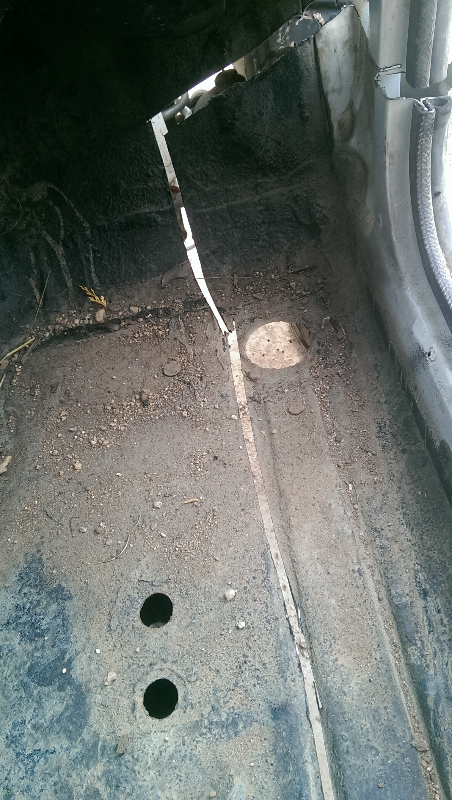

Then came the first cut. Right next to the unibody.


true XJ boatsides-forumrunner_20150407_203233.png



true XJ boatsides-forumrunner_20150407_203253.png

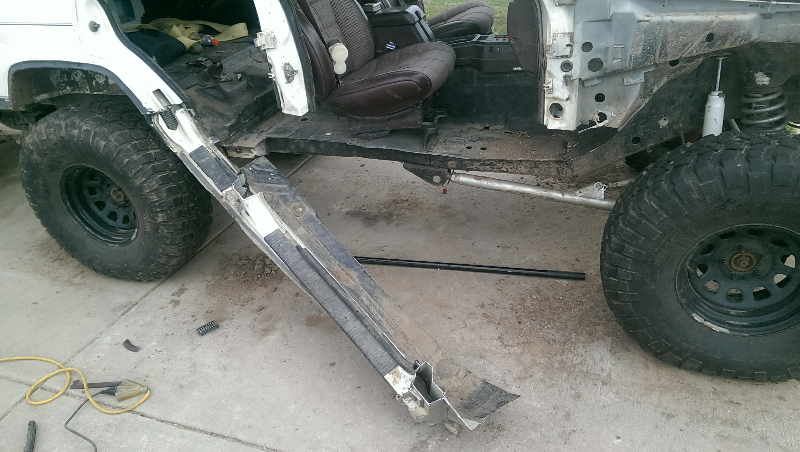

Then the a and b pillar bases


true XJ boatsides-forumrunner_20150407_203339.png


Last but not least the c pillar base.
Be careful here, don't want to compromise front leaf springs hanger.
Going to have to get creative.


true XJ boatsides-forumrunner_20150407_203450.png

So overall its about 9" above where the bottom of the stock rocker was!

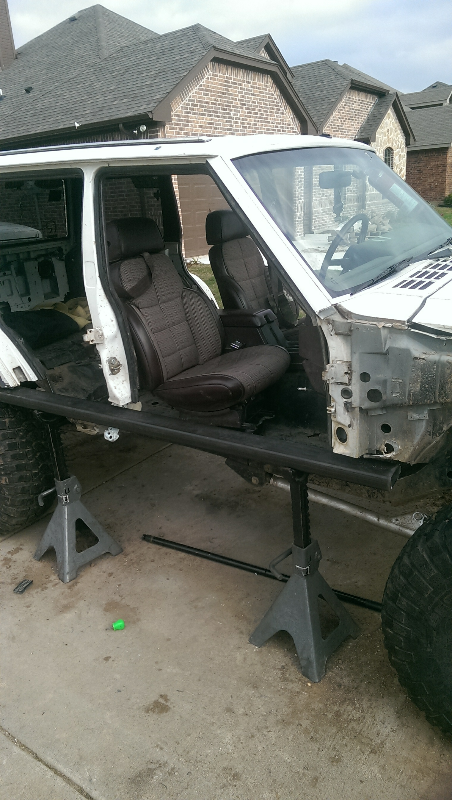

Here is my 6' stick of 2x4 3/16 all mocked up.


true XJ boatsides-forumrunner_20150407_203614.png

I'm going to brace this in probably 5 or so places to the unibody with 2x2.

This is all I got to tonight. Need to tac up the 2x4 and go get some more steel.
884x4 is offline
Old 04-07-2015, 09:08 PM
  #2
CF Veteran

XJlimitedx99's Avatar

Join Date: Jul 2012
Location: Milford, NH
Posts: 2,388
Year: 1999
Model: Cherokee
Engine: 4.0l
Default

I love the creativity on this. Can't wait to see how it goes
XJlimitedx99 is offline
Old 04-07-2015, 10:48 PM
  #3
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,600
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Finally getting a move on this aren't you haha. Happy to see a different direction and a intense one at that. Good luck.
unidentifiedbomb is offline
Old 04-08-2015, 07:33 AM
  #4
Seasoned Member

Join Date: Aug 2013
Location: Duluth, MN
Posts: 452
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by 884x4 View Post
Well I crushed the heck out of my rockers so this was a much needed modification. I was just gonna do the 2x6 rockers but since my rig is strictly for wheeling I thought I might as well go all out with it.
My doors will never be going back on after this one lol.
So let's get started.
I have read thread upon thread of xj "boatsides" and am a little dissapointed in the lack of individuality on this subject Lol. Everyone does 2x6 rockers.
So I've decided to do mine a little different.
First I took the old crumpled rock rashed fenders off and threw them away.
Then I took all the wiring out of the passenger side foot jam. All the trim came off as well. The other side I will do the same but unfortunately looks like the fuel pump wiring goes through that harness so I will have to get creative.

Then came the first cut. Right next to the unibody.

Then the a and b pillar bases

Last but not least the c pillar base.
Be careful here, don't want to compromise front leaf springs hanger.
Going to have to get creative.

So overall its about 9" above where the bottom of the stock rocker was!
Here is my 6' stick of 2x4 3/16 all mocked up.

I'm going to brace this in probably 5 or so places to the unibody with 2x2.

This is all I got to tonight. Need to tac up the 2x4 and go get some more steel.
Dang that's a lot of clearance! Good job so far. Are you welding right to the unibody or do you have stiffeners on there too?
JeepMN is offline
Old 04-08-2015, 09:02 AM
  #5
CF Veteran
Thread Starter

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJlimitedx99 View Post
I love the creativity on this. Can't wait to see how it goes
Thanks, I should have it done within 2 weeks
Originally Posted by unidentifiedbomb View Post
Finally getting a move on this aren't you haha. Happy to see a different direction and a intense one at that. Good luck.
Haha yeah I've been talking about it for a while I figured I might as well go ahead and do it.
Originally Posted by JeepMN View Post

Dang that's a lot of clearance! Good job so far. Are you welding right to the unibody or do you have stiffeners on there too?
Yeah im happy with how high it will be.
And I've got HD offroad stiffeners on the unibody
884x4 is offline
Old 04-08-2015, 09:16 AM
  #6
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

very cool, i'm watching.
HS00XJ is offline
Old 04-08-2015, 01:57 PM
  #7
CF Veteran
Thread Starter

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Year: 1988
Model: Cherokee
Engine: 4.0
Default

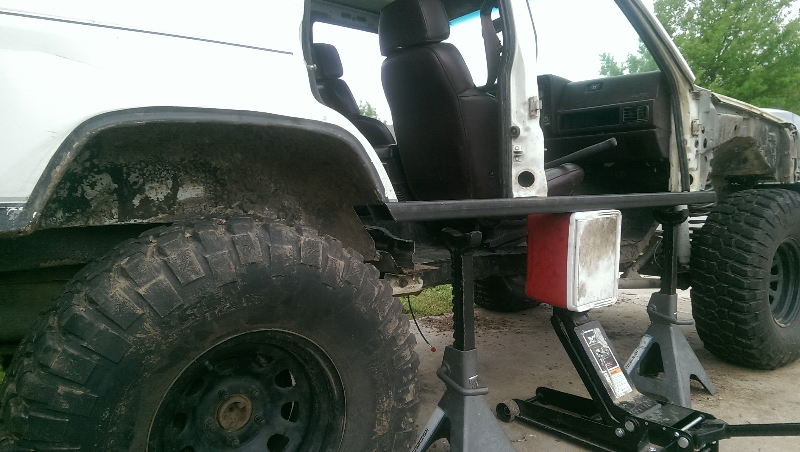

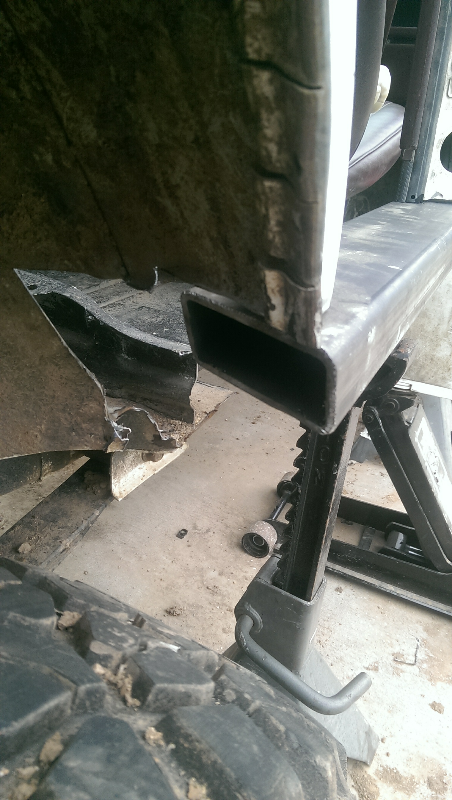

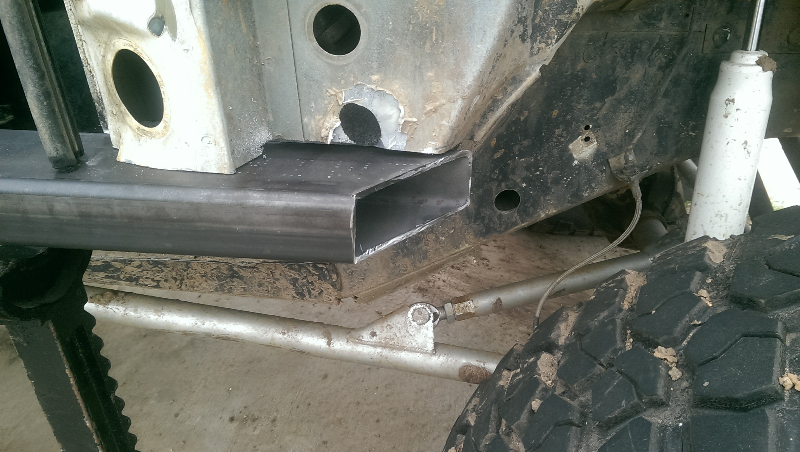

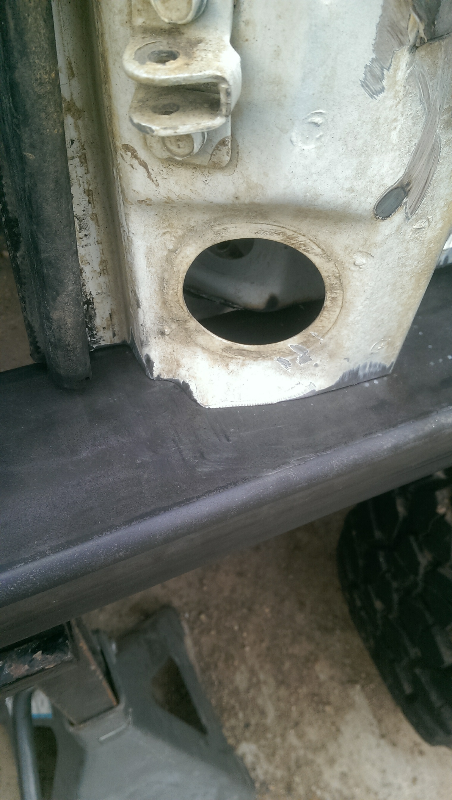

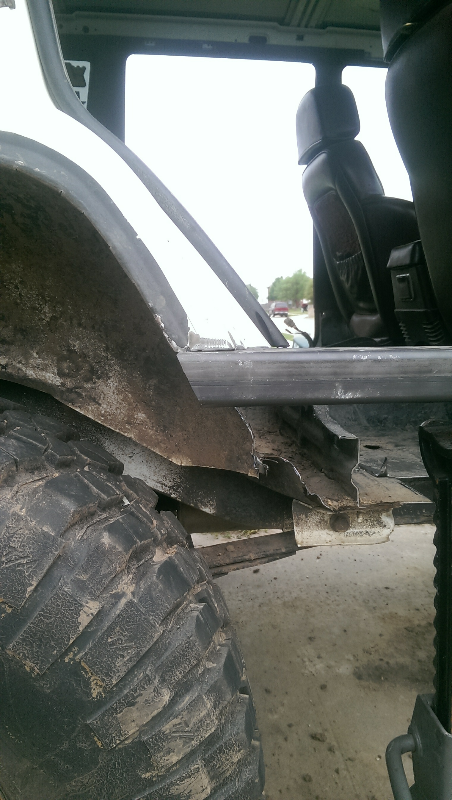

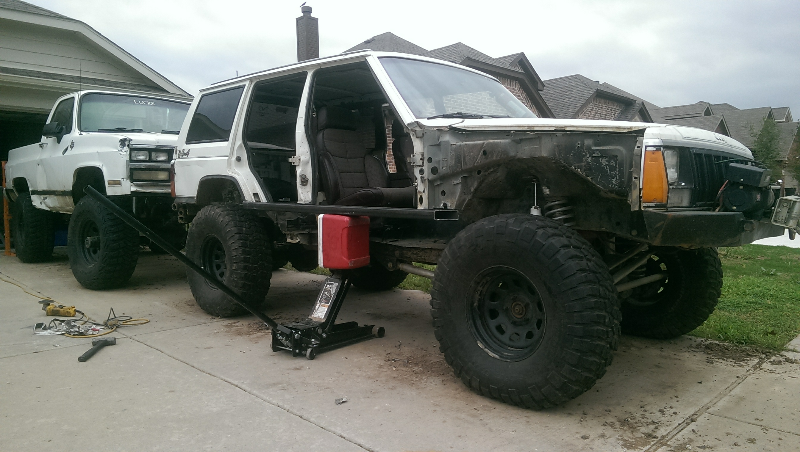

So I got a little more work done. I trimmed the a b and c pillers until they sat flush with the tube. Then I cut and angled the ends of my tube. Still Need to cut some plate out to cap them.
Sanded the edges of the pillars so I could weld the tube to the pillars but I haven't welded them yet.

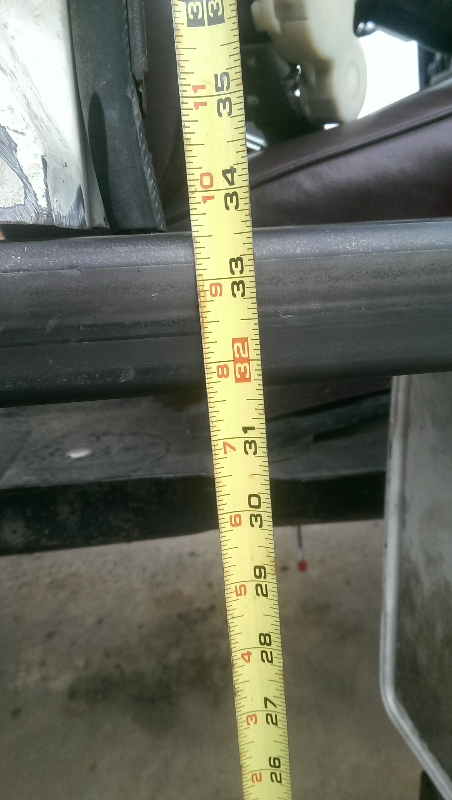

I measured and I have about 32" of ground clearance at the rocker!

Still need steel for the braces to the unibody.



true XJ boatsides-forumrunner_20150408_135547.png



true XJ boatsides-forumrunner_20150408_135606.png



true XJ boatsides-forumrunner_20150408_135622.png



true XJ boatsides-forumrunner_20150408_135641.png



true XJ boatsides-forumrunner_20150408_135653.png



true XJ boatsides-forumrunner_20150408_135707.png



true XJ boatsides-forumrunner_20150408_135727.png
884x4 is offline
Old 04-08-2015, 02:28 PM
  #8
CF Veteran

XJlimitedx99's Avatar

Join Date: Jul 2012
Location: Milford, NH
Posts: 2,388
Year: 1999
Model: Cherokee
Engine: 4.0l
Default

I'm very interested to see how you go about bracing these to the unibody rails.
XJlimitedx99 is offline
Old 04-08-2015, 03:11 PM
  #9
CF Veteran
Thread Starter

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by XJlimitedx99 View Post
I'm very interested to see how you go about bracing these to the unibody rails.
It will be easy until I reach the front leaf spring hanger. Just 2x2 slanted down to the side of the unibody from the bottom of my tube. I'm going to have to figure something else out when I reach the hanger though
884x4 is offline
Old 04-08-2015, 06:04 PM
  #10
CF Veteran

Atmos's Avatar

Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,385
Year: Buggy build in process
Model: Cherokee
Engine: 5.7 LS1
Default

ambitious. how much leg room are you gonna have left?
Atmos is offline
Old 04-08-2015, 08:32 PM
  #11
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Reminds me of this jeep.I believe Atmos posted before.

true XJ boatsides-forumrunner_20150408_213137.png
HS00XJ is offline
Old 04-09-2015, 12:31 AM
  #12
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,600
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

That jack is pretty cooler!
unidentifiedbomb is offline
Old 04-09-2015, 10:38 PM
  #13
CF Veteran
Thread Starter

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Atmos View Post
ambitious. how much leg room are you gonna have left?
enough, tight but enough lol
884x4 is offline
Old 04-09-2015, 10:40 PM
  #14
CF Veteran
Thread Starter

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Year: 1988
Model: Cherokee
Engine: 4.0
Default

Originally Posted by unidentifiedbomb View Post
That jack is pretty cooler!
LOL i see what you did there...
Originally Posted by HS00XJ View Post
Reminds me of this jeep.I believe Atmos posted before.

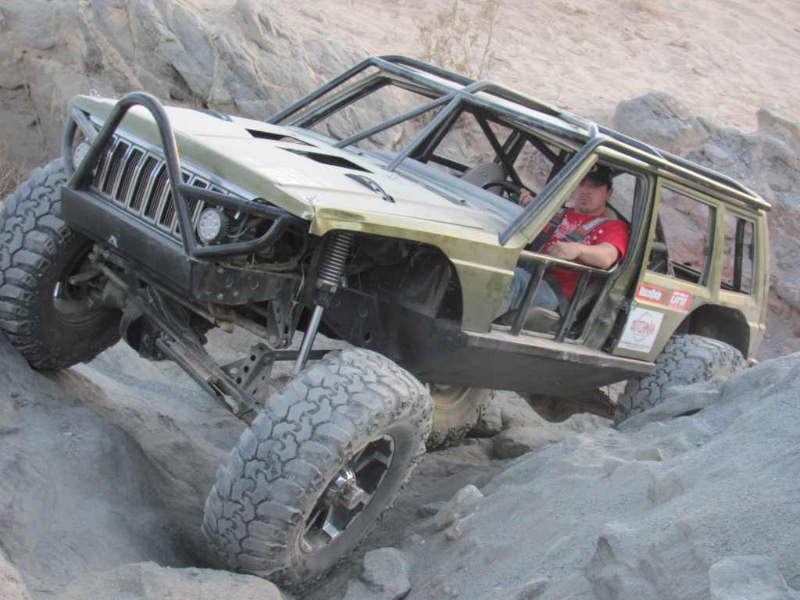

Attachment 269545
