Well not having a pick up anymore SUCKS! So decided to build a trailer for hauling, parts mostly. I need some doors here, metal there, axles soon.

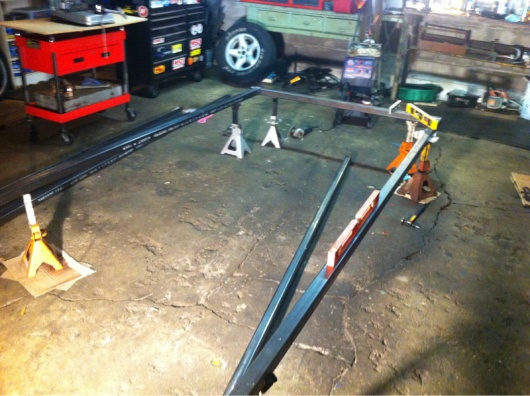

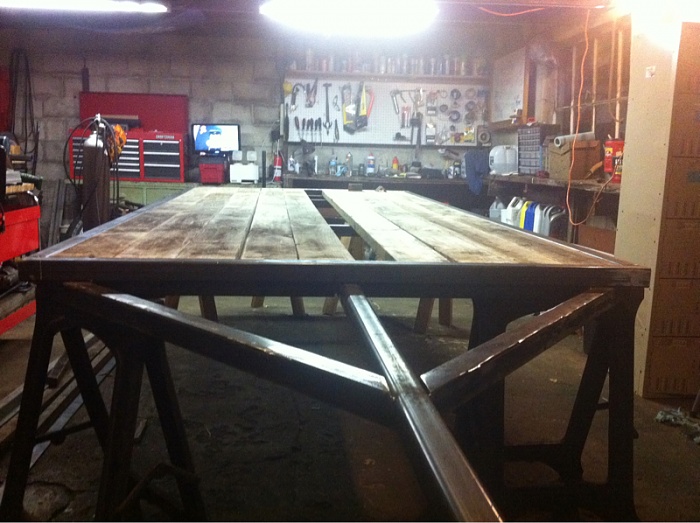

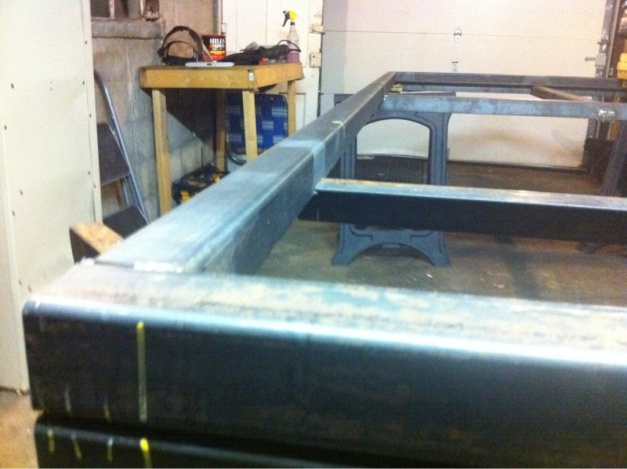

Got the frame and deck mostly done this weekend. About 12 hours in solo.


Specs:
5x10 frame .125 2x2 Tube
2x2 .188 Angle Supports
2x2 .250 Tongue 8ft A Frame
2x6 treated deck

To do:
Spare carrier
Ramp Build
Ramp hangers underneath
Fenders and lighting
Coupler and Jack install
Test ride
Disassemble and paint(implement enamel on metal)


Anyone running stock aluminum rims on there trailers?

Any tips from experience with the to dos?

Thanks

190 for steel

Never too level with an uneven floor.

Work was interrupted for the night. Yup, and that guy asked me why I was so weird!
Attached Thumbnails Trailer Build-image-2828047011.jpg   Trailer Build-image-3750787955.jpg   Trailer Build-image-3812502137.jpg   Trailer Build-image-4127094536.jpg   Trailer Build-image-1344828103.jpg

Trailer Build-image-1803162352.jpg   Trailer Build-image-2604205538.jpg   Trailer Build-image-1177531618.jpg

Last edited by thewhiteknight02; 10-09-2013 at 01:19 PM.
thewhiteknight02 is offline
Old 10-06-2013, 10:57 PM
  #2
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

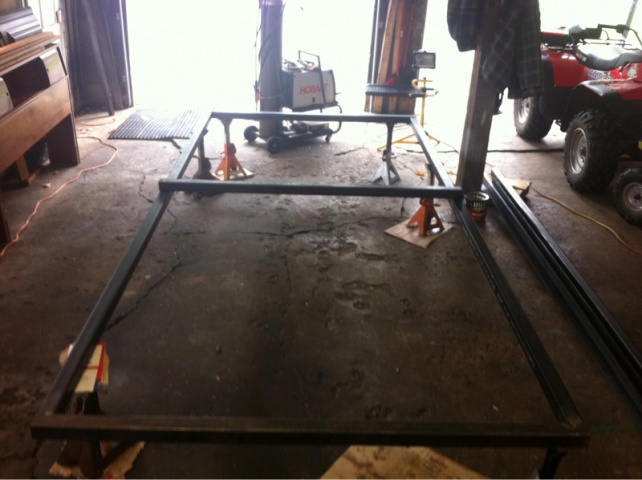

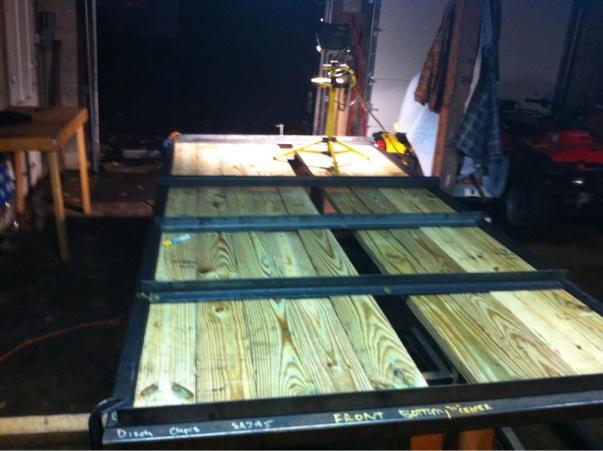

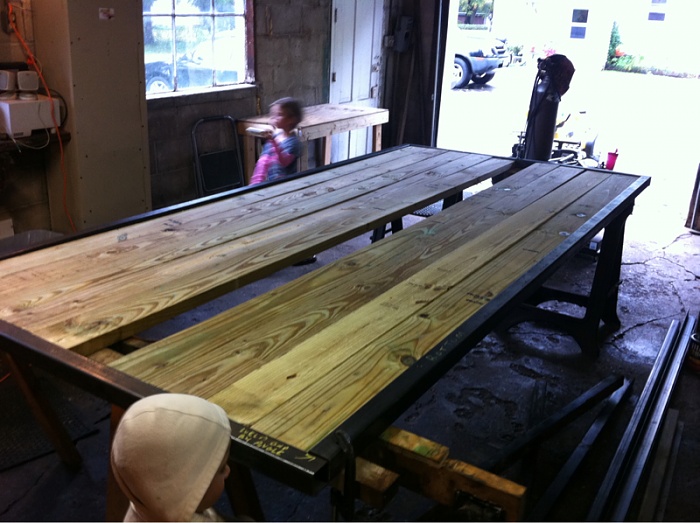

Pics
Attached Thumbnails Trailer Build-image-817414547.jpg   Trailer Build-image-2371384092.jpg   Trailer Build-image-1055903592.jpg   Trailer Build-image-4217132304.jpg

Last edited by thewhiteknight02; 10-06-2013 at 11:00 PM.
thewhiteknight02 is offline
Old 10-06-2013, 11:23 PM
  #3
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

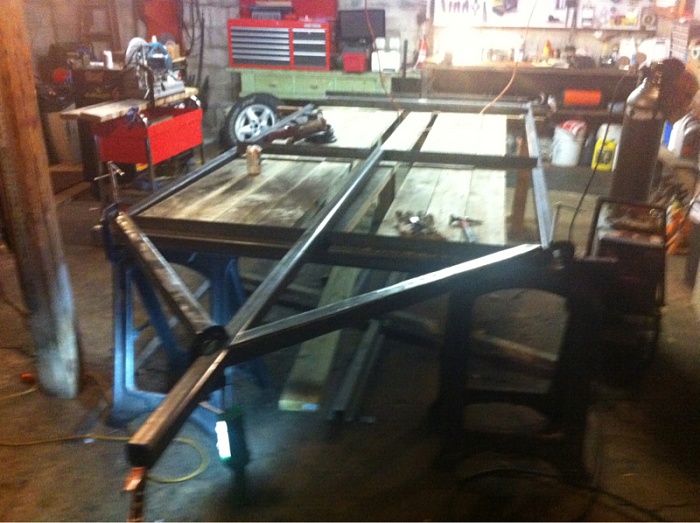

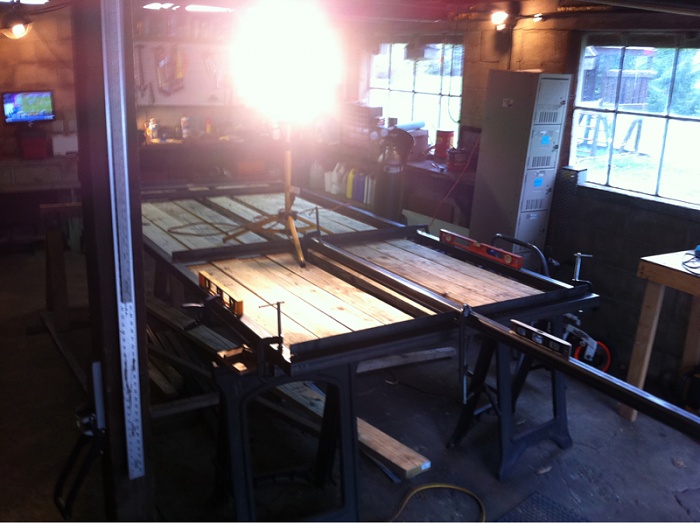

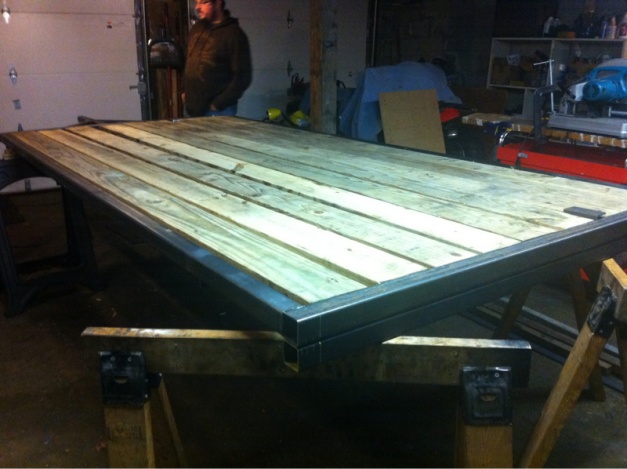

Pics
Attached Thumbnails Trailer Build-image-3950330795.jpg   Trailer Build-image-1902880768.jpg   Trailer Build-image-2420509663.jpg   Trailer Build-image-3049834641.jpg   Trailer Build-image-2349962795.jpg

Trailer Build-image-625365739.jpg   Trailer Build-image-2481698982.jpg   Trailer Build-image-3553819748.jpg
thewhiteknight02 is offline
Old 10-07-2013, 06:53 AM
  #4
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

Sweet. How much $ do you have invested in material?
gettin_dirty_with_ruby is offline
Old 10-07-2013, 07:10 AM
  #5
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

FUn.
Lowrange2 is offline
Old 10-08-2013, 03:01 AM
  #6
Member

dohc91gli's Avatar

Join Date: Mar 2013
Location: McMinnville Oregon
Posts: 115
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Man, I wish I was this talented. Nice work, Good sir.
dohc91gli is offline
Old 10-08-2013, 03:22 AM
  #7
Junior Member

Join Date: Jun 2013
Posts: 49
Model: Cherokee
Default

Looks like a cool project. Can't wait to see the outcome. Keep us posted.
karlos1 is offline
Old 10-08-2013, 07:15 AM
  #8
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

I'm about 275 in so far. Frame and deck.
thewhiteknight02 is offline
Old 10-09-2013, 10:47 AM
  #9
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

Picked up a 3500# axle, 15" trailer rims, and some beefy springs for around 125.

Need to find some nice tires.
Attached Thumbnails Trailer Build-image-2030651987.jpg
thewhiteknight02 is offline
Old 10-09-2013, 10:12 PM
  #10
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

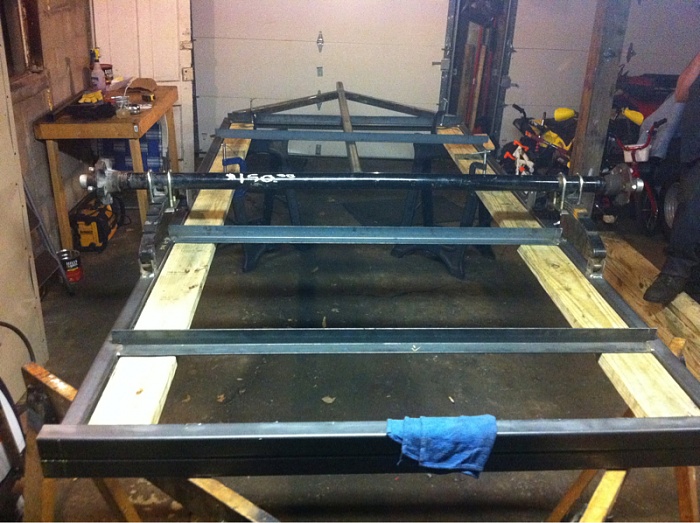

Axle mounted.
Attached Thumbnails Trailer Build-image-2141084831.jpg   Trailer Build-image-345012155.jpg
thewhiteknight02 is offline
Old 10-10-2013, 07:10 AM
  #11
Senior Member

94xjohio's Avatar

Join Date: Jun 2012
Location: Cuyahoga Falls
Posts: 634
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

Nice job man looks good. I am doing the same project, but I bought an old 24' camper. Cut the deck from 20' to 14' moved the axles up further towards the tounge. Cut out all the center cross beams (they were weak). I have 5 more cross beams to weld in then deck it and paint. Then I got trailer built for the xj
94xjohio is offline
Old 10-10-2013, 12:25 PM
  #12
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

Thanks. I was sick of borrowing trailers. And couldn't find any on CL that weren't 500-750 for a rusty jalopy trailer without some goofy wood fencing or whatever all over it. Searched for weeks.

Still debating putting rails around, permanent, or stake pockets, removable.

Main purpose is ATV hauling, parts/material hauling, and deer carcass transport. With the occasional trip to the dump. <-- may require stake pockets. We'll see. Have to make final decision before painting, quickly bc weather is getting cold here.
thewhiteknight02 is offline
Old 10-11-2013, 07:52 AM
  #13
Senior Member

94xjohio's Avatar

Join Date: Jun 2012
Location: Cuyahoga Falls
Posts: 634
Year: 1994
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by thewhiteknight02 View Post
Thanks. I was sick of borrowing trailers. And couldn't find any on CL that weren't 500-750 for a rusty jalopy trailer without some goofy wood fencing or whatever all over it. Searched for weeks.
X2
94xjohio is offline
Old 10-14-2013, 01:35 PM
  #14
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

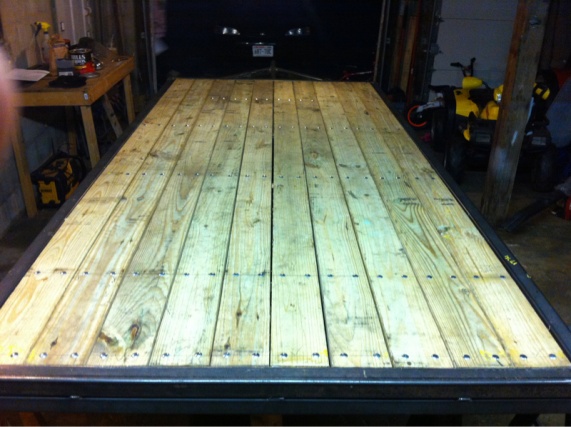

Had some time this weekend to work on it.

Carriage bolts galore.

Bolted up axle with ****ty tires to measure for fenders. Yet to fab.
Attached Thumbnails Trailer Build-image-789354953.jpg   Trailer Build-image-3919994162.jpg
thewhiteknight02 is offline
Old 10-19-2013, 08:04 PM
  #15
Member
Thread Starter

thewhiteknight02's Avatar

Join Date: Dec 2012
Posts: 122
Default

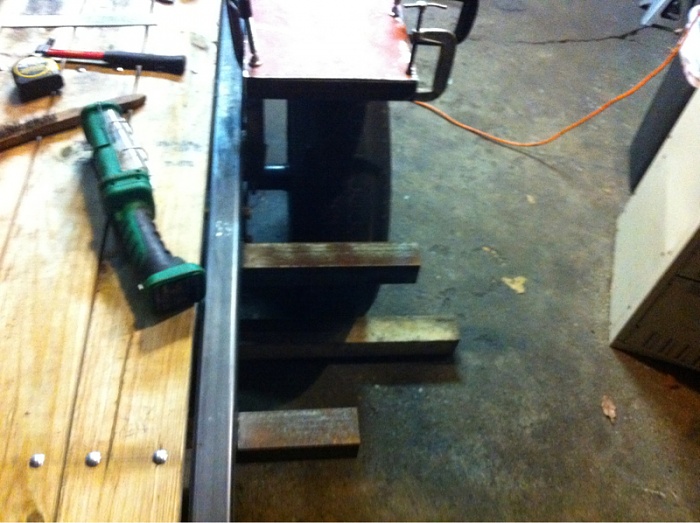

Working on fenders presently.

Three pc sheetmetal step on design. Very strong.

Tread pattern triangular steps to frame.

Ran outa solid wire so onto this fc. Works great.

Lights will come off the rearmost angle.

Also thinking of ideas for sides. What ab stake pockets with 2x6 posts, 3 ft tall corrugated steel running horizontally for sides then expanded steel on front and rear. All sprayed black. Low drag compared to fence style or plywood Completely removable to retain original flatbed design. Only need sides once and a while.

...
