Slim Winch Bumper.....
08-19-2011, 09:01 PM
#1
Member
Thread Starter
Join Date: Jul 2009
Location: Kiln MS
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Renix
Slim Winch Bumper.....
...but no money for winch.

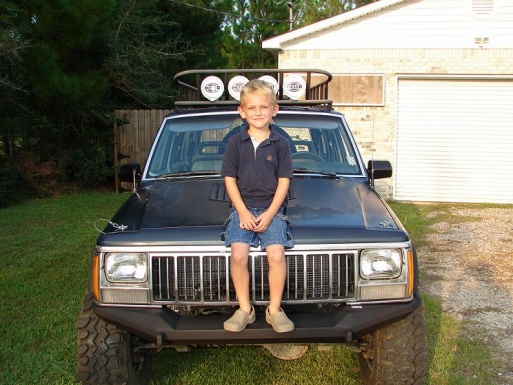

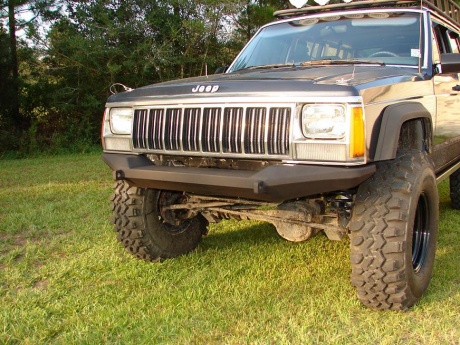

Almost finished with my slim(er) winch bumper. Still need to place a stinger of some sort and add a mini skid underneath that will go back to the radiator support.
I don't think it turned out half bad.
Almost finished with my slim(er) winch bumper. Still need to place a stinger of some sort and add a mini skid underneath that will go back to the radiator support.
I don't think it turned out half bad.
08-20-2011, 07:54 AM
#4
Member
Join Date: May 2010
Location: Concord, NH
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
that is a great looking bumper, and yes very slim, liking it alot... nice job. I would just go with a low wide brush bar for the winch, not a stinger, but thats me, do what you wish of course...
Trending Topics
08-22-2011, 03:20 PM
#8
CF Veteran
Join Date: Jun 2011
Location: Nor-Cal
Posts: 2,858
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: The venerable 4.0
Write up? That thing is art... along the same lines as a stealth fighter, which many think is ugly bit I think its Damn sexy!
08-22-2011, 08:18 PM
#9
Member
Join Date: Jul 2010
Location: Steubenjeepville, OH
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Also...a step by step with pics.
hint...hint
08-23-2011, 01:30 AM
#12
Half bad? are you fishing for compliments cuz you have mine.
08-23-2011, 08:44 AM
#14
Member
Thread Starter
Join Date: Jul 2009
Location: Kiln MS
Posts: 153
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0 Renix
Thanks for the compliments guys. I was just posting a pic of my most recent bumper cause someone ask asked if I had finished my xj build yet. Are we ever really finished?
Anyway, I didn't take many build pics cause there're basically all built the same if built correctly. Full tie-in to the unibody with 6 or 7 bolts per side. I made a steering box brace out of some scrap 5/32 material to replace the aluminum cast piece.
Winch plate and tie-in are 1/4 and rest is 3/16.
The thing I wished I would have done different is to recess the clevis mounts into the bumper. Maybe next time.
I do have a few more pics and will post later tonight.
Anyway, I didn't take many build pics cause there're basically all built the same if built correctly. Full tie-in to the unibody with 6 or 7 bolts per side. I made a steering box brace out of some scrap 5/32 material to replace the aluminum cast piece.
Winch plate and tie-in are 1/4 and rest is 3/16.
The thing I wished I would have done different is to recess the clevis mounts into the bumper. Maybe next time.
I do have a few more pics and will post later tonight.
08-24-2011, 12:28 AM
#15
Newbie
Join Date: Jun 2011
Location: Salmon Arm BC
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0L Med. Output
That is almost the exact bumper I had envisioned for the front of my XJ. I love the low profile look. Much nicer than those big bulky ones that some guys make. Great work!!
