Side Mirror Relocation Mod
Ok so it’s getting close to summer and I will be pulling my doors off but I still need it to be street legal to drive around. Since I wacked a tree with my passenger side mirror and now it’s bent and rattles I thought I would just do away with both altogether. Also I’m a college student and I away from home so most of my modifications right now are cheap and easy. This is what I came up with…
O'reily auto parts side mirrors and all hardware cost me about $35 total

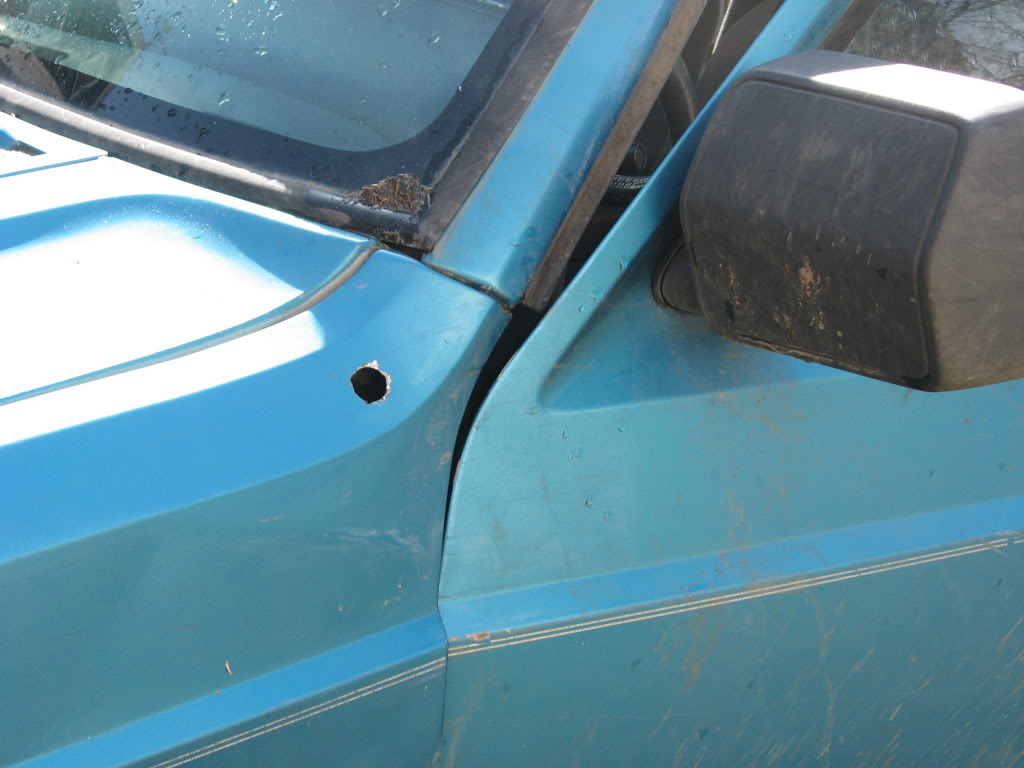

First I measured out a good place to easily mount some side mirrors that could still be seen and came up with this (where the tape) is then I proceeded to drill a ½” hole in the fender.

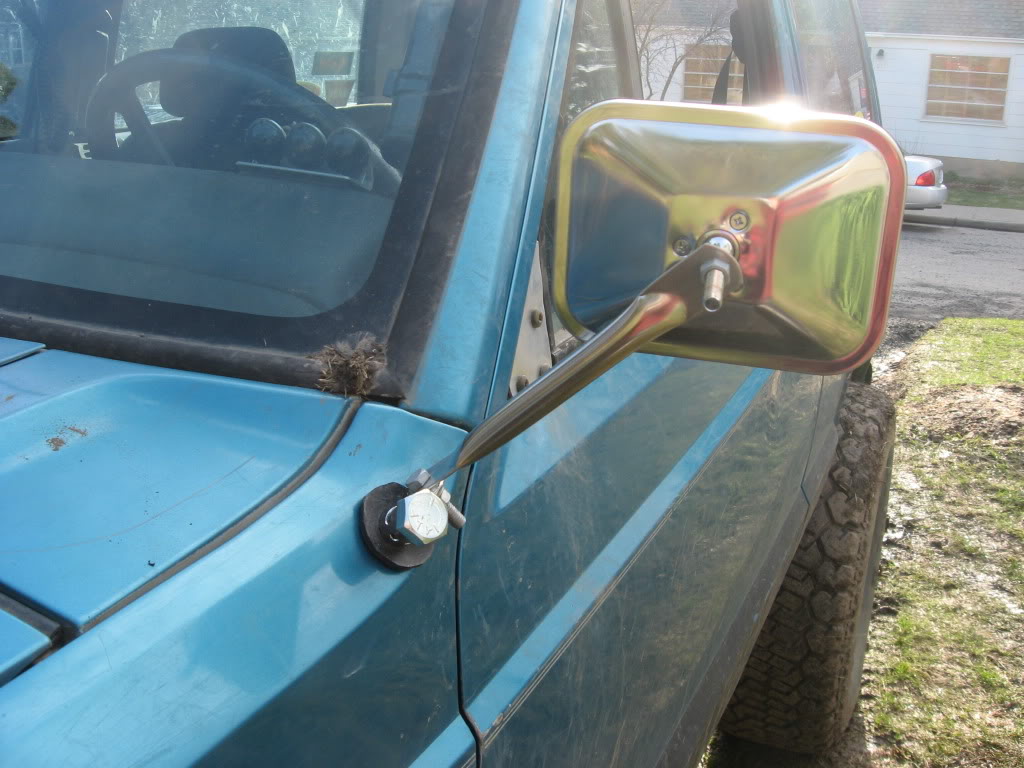

Then I put a 1/2” bolt through with some rubber washers on both sides and added the mirror bracket and tightened it down.

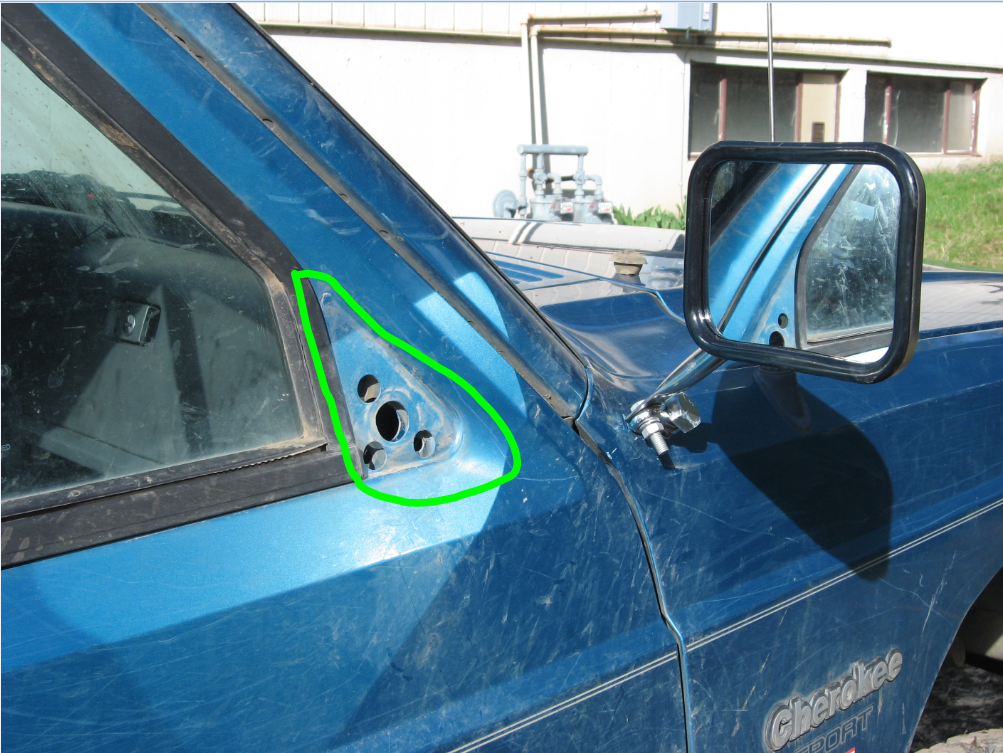

After that there was the problem of the existing screw holes and mirror adjustment cable holes.


So I cut out some cheap scrap metal I had and used a rubber gasket maker kit to make sure it was a water tight seal then I tightened it all down.



Then I adjusted the mirrors and finished! Here’s what it came out like….




So what do you think and yes I can see both mirrors it is tight on the passenger side but still usable besides, that’s what a copilots for right.
Any advice or suggestions Thanks!

Pics have been moved or deleted it says.

fixing pics one sec

ok pictures are up and ready!

Huh...I have a AM General that looks like that. I don't see the advantage of doing it to a XJ ....

You get some Fab points though..

What's not to get? He's going doorless and needs some side mirrors.

Nice Job. I thought of doing that but I think I'm just going to attach them to my tube doors. But if I ever want those off too, I'm thinking of doing something along the lines of this.

Very nice! I like how that looks. I was just thinking of doing something with my mirrors when I go doorless.

Thanks! And they are easily removed for wheeling if need be!

nice work good doorless solution are you going to paint where the old mirrors were to make it look better?

I saw this when you first posted it and liked it a lot. Then I was out 4wheeling today and this happened:


Looks like I'm doing your mod now!

You could make them to be able to fold out of the way for when your on the trail. But I like em its probably what I'm gonna do when I finally take my doors off.

Well im in Wisconsin and a cop told me Irony need side mirrors to be legal.

Nice and cheap I like it! it actually looks BA from the front, I love the look of a cut up creative xj!

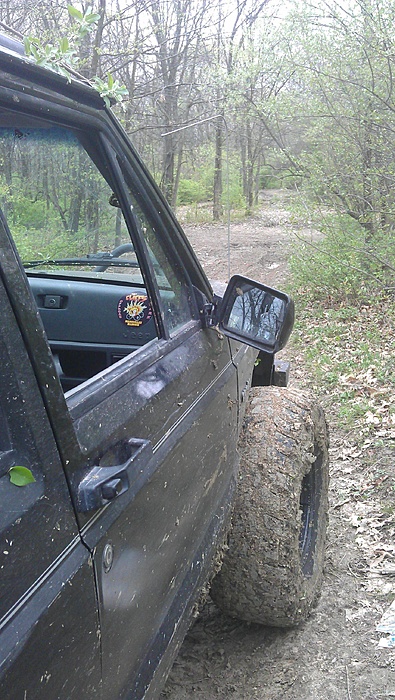

I used an old motorcycle mirror from one of my past bikes. Just welded a little tab on it and it bolts to the hinge. I only use it when doorless obviously

They do and can be easily removed for extreme conditions like big trees ripping crap off!
