Roof rack and mounts

Old 10-17-2013, 11:57 AM
  #1
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default Roof rack and mounts

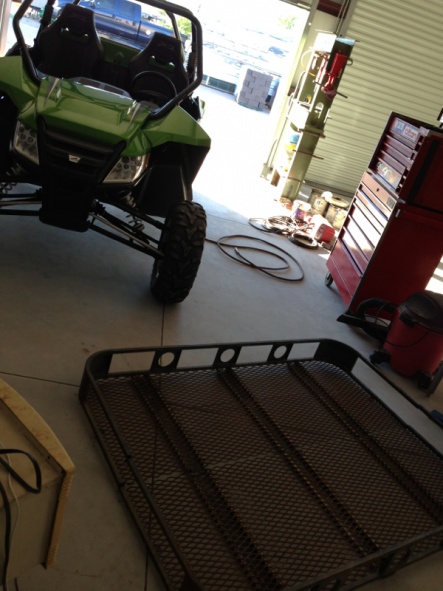

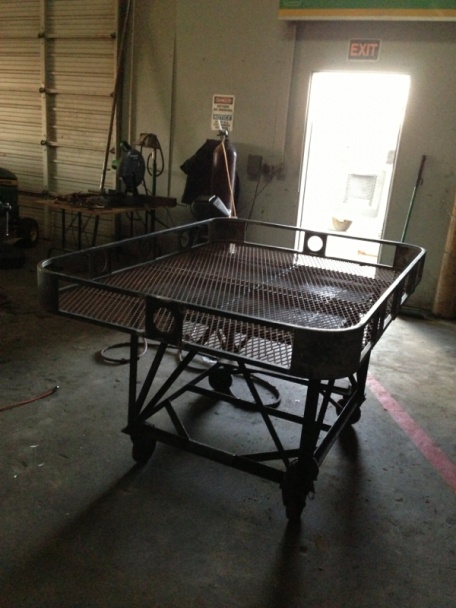

Thought I'd share my roof rack and mount project i finally finished. The xj is an 88 with the old style rails and I opted to stay away from gutter mounts after horror stories. I search online forever and couldn't find any that I was happy with so I built these! I started with a con-ferr roof rack that I picked up for $50 delivered, it was 60"W by 66"L and as we know Xj roof is narrower than 60"! So I cut 10" out of the center of it..
Attached Thumbnails Roof rack and mounts-image-3880274355.jpg   Roof rack and mounts-image-3038360255.jpg   Roof rack and mounts-image-356251703.jpg   Roof rack and mounts-image-2609082848.jpg   Roof rack and mounts-image-414303981.jpg

Roof rack and mounts-image-1113645658.jpg   Roof rack and mounts-image-3254211602.jpg
lhcazxj is offline
Old 10-17-2013, 11:59 AM
  #2
Member

Sean112280's Avatar

Join Date: Oct 2013
Location: Yelm, WA
Posts: 134
Year: 97
Model: Cherokee
Engine: 4.0
Default

Looks good! Good job on it
Sean112280 is offline
Old 10-17-2013, 02:01 PM
  #3
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Originally Posted by Sean112280 View Post
Looks good! Good job on it
Thanks!
lhcazxj is offline
Old 10-17-2013, 04:10 PM
  #4
Junior Member

Lowrange2's Avatar

Join Date: May 2008
Location: +34 25' 35.67", -81 21' 12.04"
Posts: 15,016
Year: 1993
Engine: 4.0
Default

I guess I don't get it. Did you run the bolts through the plate inside the channel or weld it to it or something?
Lowrange2 is offline
Old 10-17-2013, 05:59 PM
  #5
Senior Member

Bossokee's Avatar

Join Date: Jan 2011
Location: Dalton, MA
Posts: 645
Year: 1998
Model: Cherokee
Engine: 4.0 H.O. 180K miles
Default

I think I see what you did here, did you use that plate to bolt to on the other side of the rack? Kind of like a u-bolt plate
Bossokee is offline
Old 10-17-2013, 07:07 PM
  #6
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Originally Posted by Lowrange2 View Post
I guess I don't get it. Did you run the bolts through the plate inside the channel or weld it to it or something?

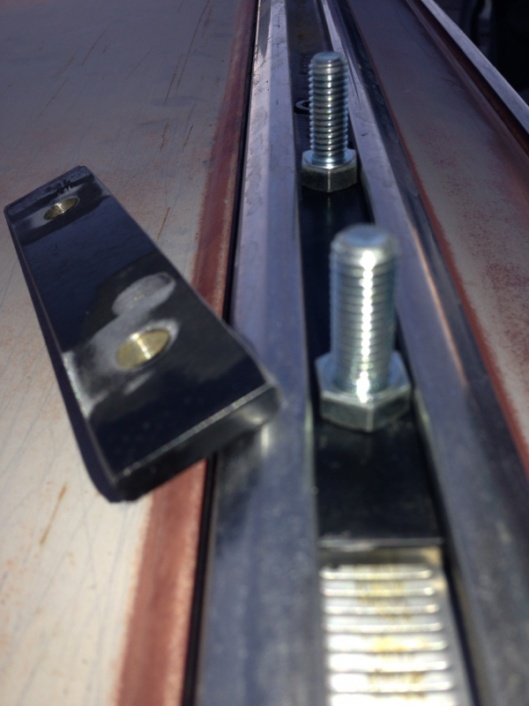

Guess I should have put that in there lol Yes I welded the bolts to the lower plate
Attached Thumbnails Roof rack and mounts-image-3850872194.jpg
lhcazxj is offline
Old 10-17-2013, 10:00 PM
  #7
Junior Member

wickedwelder's Avatar

Join Date: Nov 2010
Location: Casper Wyoming
Posts: 91
Year: 1989
Model: Cherokee
Engine: 4.0
Default

I like the way you made the mounts. I have an 89 I've been trying to figure out how to mount a rack on without using the gutters. How many mounts did you use? How stable/strong is it mounted like that?
wickedwelder is offline
Old 10-17-2013, 11:12 PM
  #8
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,594
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

I like them but not a big fan of the rise, would you be willing to make a low profile set if anyone requested?
unidentifiedbomb is offline
Old 10-17-2013, 11:25 PM
  #9
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Originally Posted by wickedwelder View Post
I like the way you made the mounts. I have an 89 I've been trying to figure out how to mount a rack on without using the gutters. How many mounts did you use? How stable/strong is it mounted like that?
I know how you feel haha! I used 3 mounts per side. I weigh 195lbs and I can walk around on the rack and its very sturdy. I can even bounce while standing on it and it holds up awesome. Factory plastic mounts are rated for 150lbs. I wouldn't be afraid to load 250 or better properly distributed
lhcazxj is offline
Old 10-17-2013, 11:30 PM
  #10
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Originally Posted by unidentifiedbomb View Post
I like them but not a big fan of the rise, would you be willing to make a low profile set if anyone requested?
The rise is exactly 1". I wanted the rack to be the lowest as possible and since the roof is contoured and the rack is flat, 1" of rise on the rail left me with 1/2" clearance in the center of the roof for load sag room. As for building some for someone I suppose I could but my fabbing is not professional quality haha. Just enough to pass as decent
lhcazxj is offline
Old 10-17-2013, 11:33 PM
  #11
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,594
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Originally Posted by lhcazxj View Post
The rise is exactly 1". I wanted the rack to be the lowest as possible and since the roof is contoured and the rack is flat, 1" of rise on the rail left me with 1/2" clearance in the center of the roof for load sag room. As for building some for someone I suppose I could but my fabbing is not professional quality haha. Just enough to pass as decent
Haha i have an 88' and really like the idea. I'm thinking of making an emt rack in the summer so if i could get some wider dom and drill into them and mount them like this it would be perfect I think over u bolting over the factory cross members
unidentifiedbomb is offline
Old 10-17-2013, 11:42 PM
  #12
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Haha i have an 88' and really like the idea. I'm thinking of making an emt rack in the summer so if i could get some wider dom and drill into them and mount them like this it would be perfect I think over u bolting over the factory cross members[/QUOTE]

That should work. I thought about u bolting it the the factory racks and then after thinking on it I thought it was a bad idea. It ended up being way sturdier than I thought it was gonna be I was impressed. specs on the mounts are 1" rise with 7/8" square tubing, 7/8" flat strap with 13mm head bolts welded to them, and the square tubing is actually kicked on a 5 degree angle so they stand straight up (because the roof is contoured)
lhcazxj is offline
Old 10-17-2013, 11:48 PM
  #13
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,594
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

I would pay you for a set of six when i need them haha i'm serious about this it might not be until the summer but i like the idea a lot.
unidentifiedbomb is offline
Old 10-18-2013, 08:54 AM
  #14
Junior Member
Thread Starter

lhcazxj's Avatar

Join Date: Sep 2013
Location: Lake Havasu City, AZ
Posts: 99
Year: 88
Model: Cherokee
Default

Originally Posted by unidentifiedbomb View Post
I would pay you for a set of six when i need them haha i'm serious about this it might not be until the summer but i like the idea a lot.
Lol. Well just pm me and maybe when that time comes ill build a set for ya!
lhcazxj is offline
Old 10-20-2013, 08:00 AM
  #15
Newbie

Join Date: Jul 2013
Posts: 1
Model: Cherokee
Default

Nice Job
XJ-94-Traveler is offline
