Recessed CB Mount
Here is my take on a CB mount for my ’99…

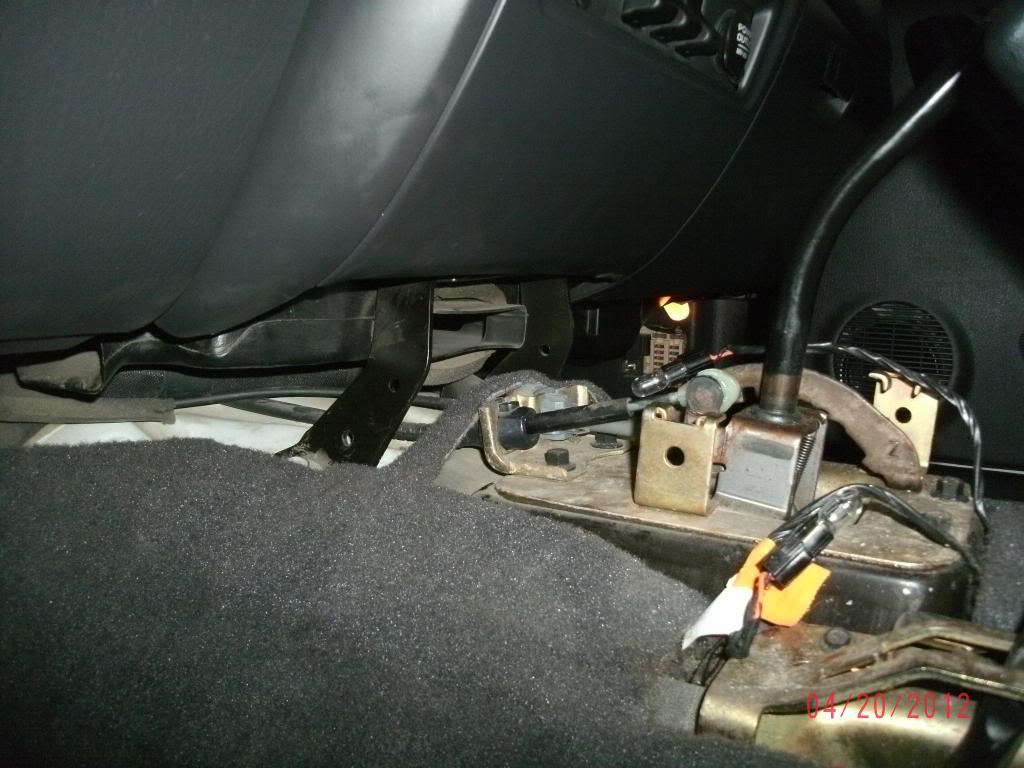

First I removed the center console to access the situation. I found a nice sturdy dash support bracket there, which made the perfect foundation for a CB mount:

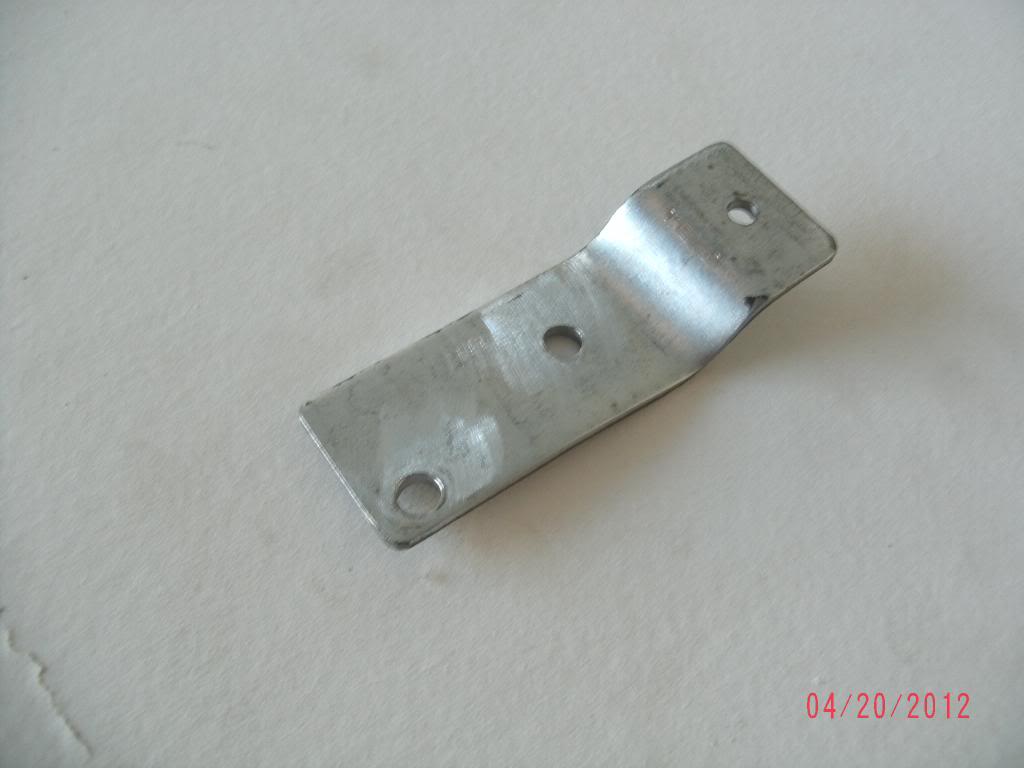

Once I did some test fitting and calibrated eyeballing, I bent up a little bracket out of some 1” wide 12-gauge sheetmetal. Drilled a couple holes, and mounted it to the dash support bracket:
I had to put a little twist in it to make the CB hang vertically and not at an angle like the dash support bracket:

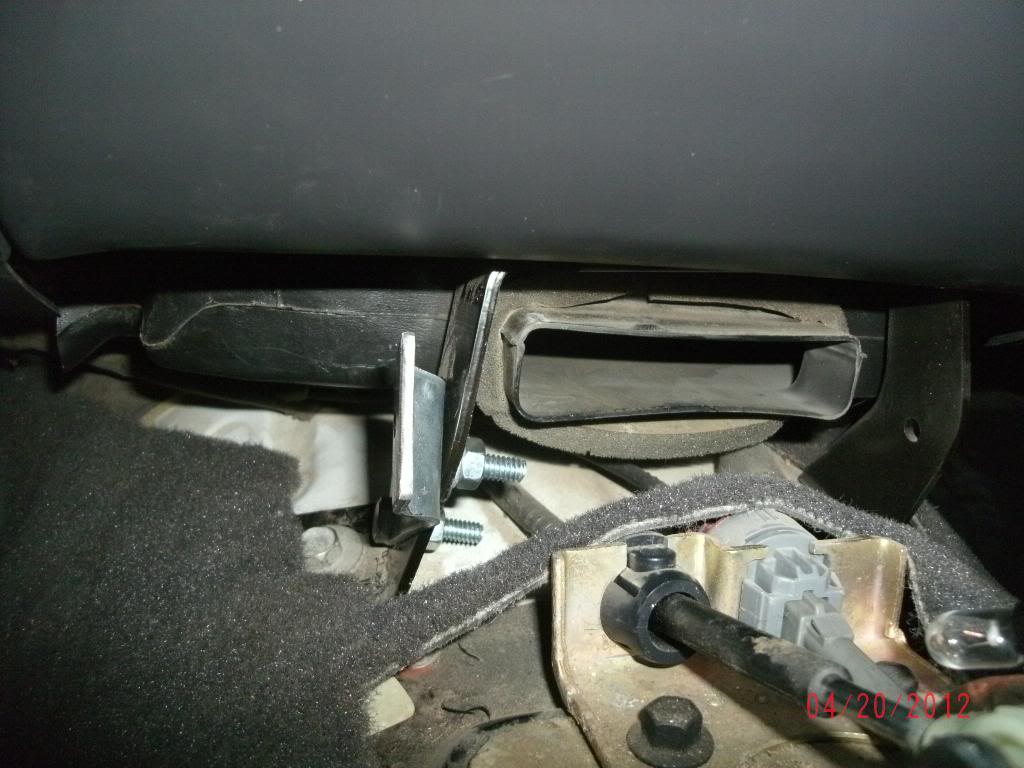

Then I mounted my bracket with some ¼-20 hardware:

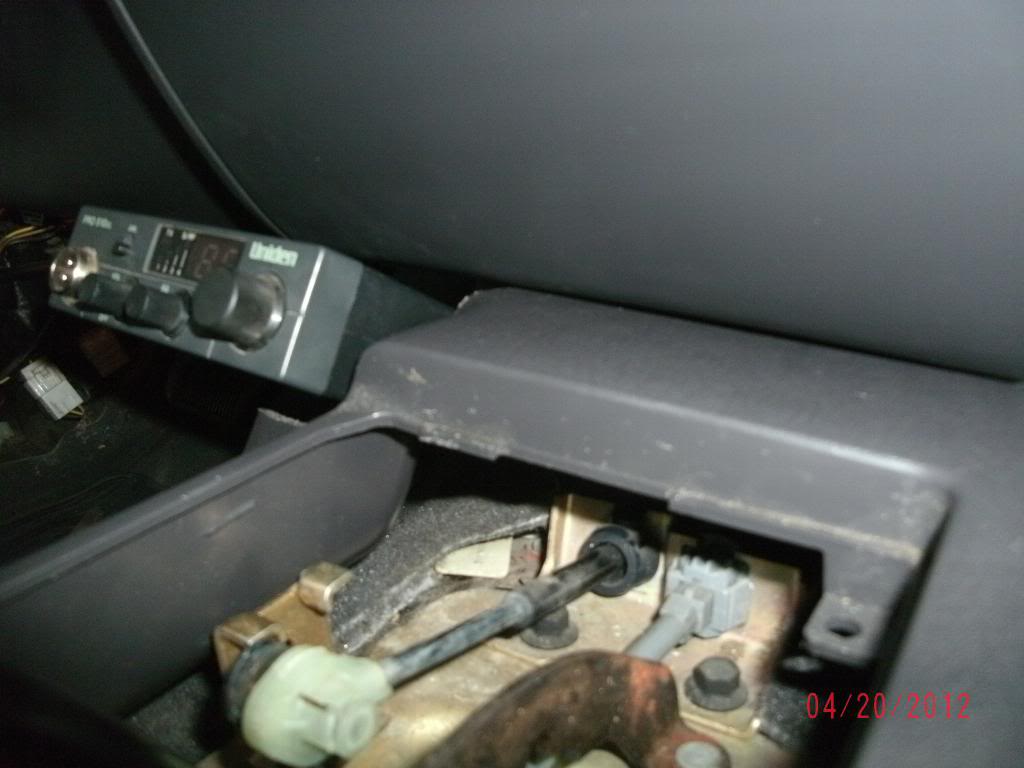

With that done, I hung the CB on my bracket:

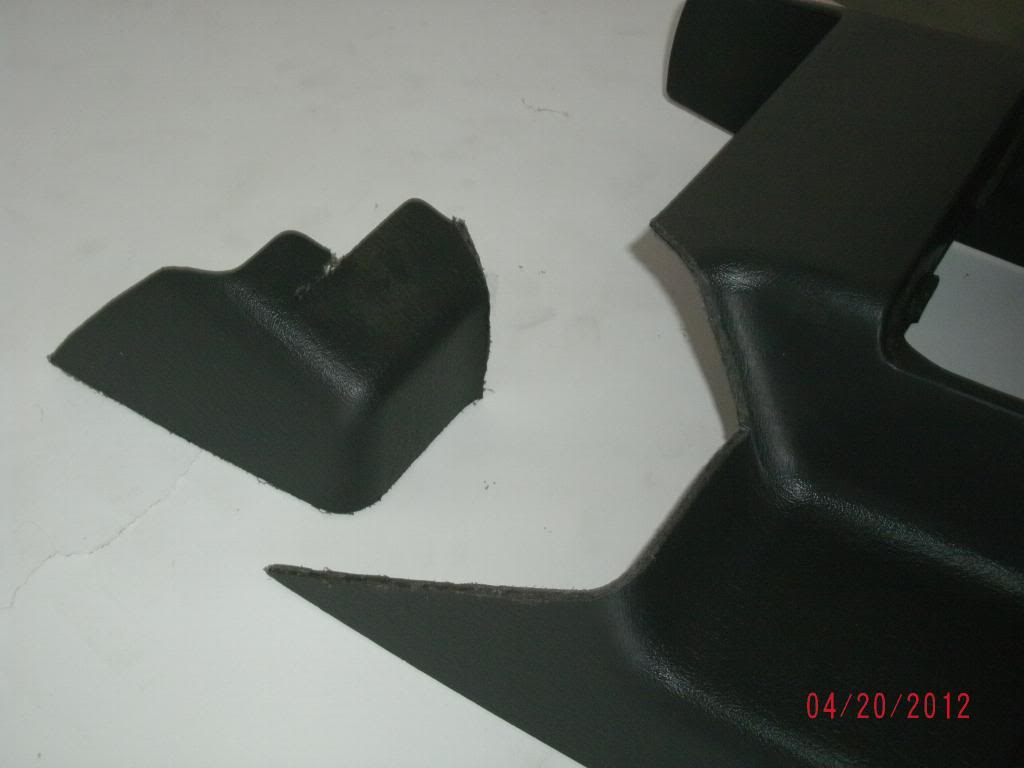

Next it was time to carve up the center console to make room for the CB:

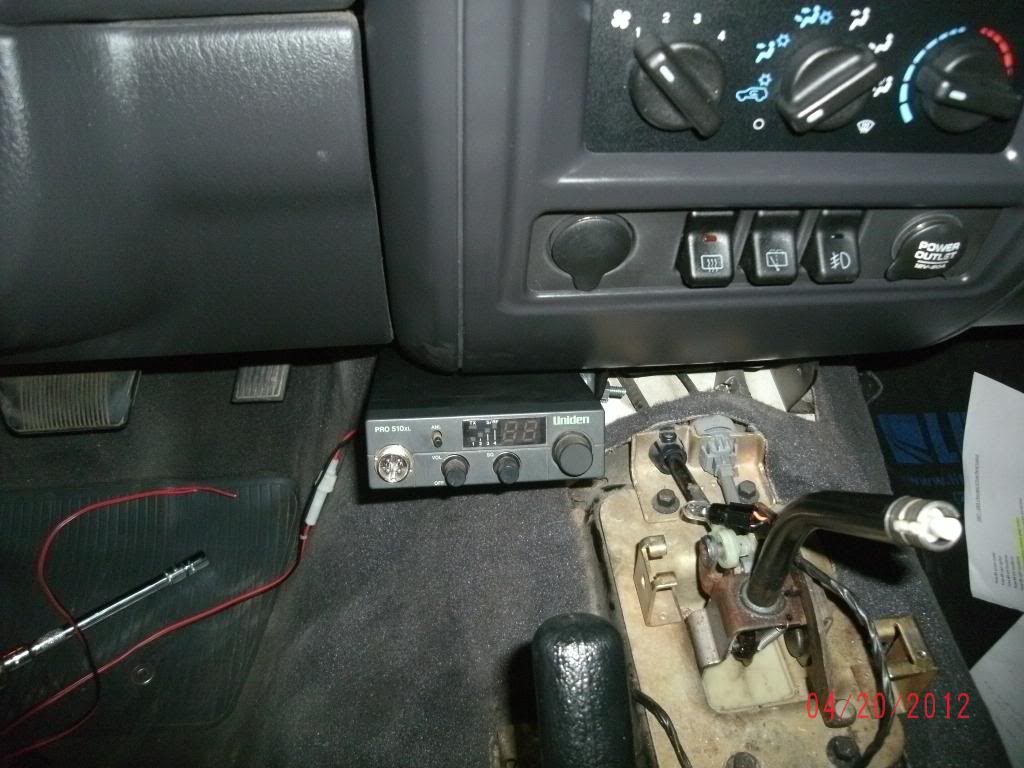

And finally, the semi-finished installation:

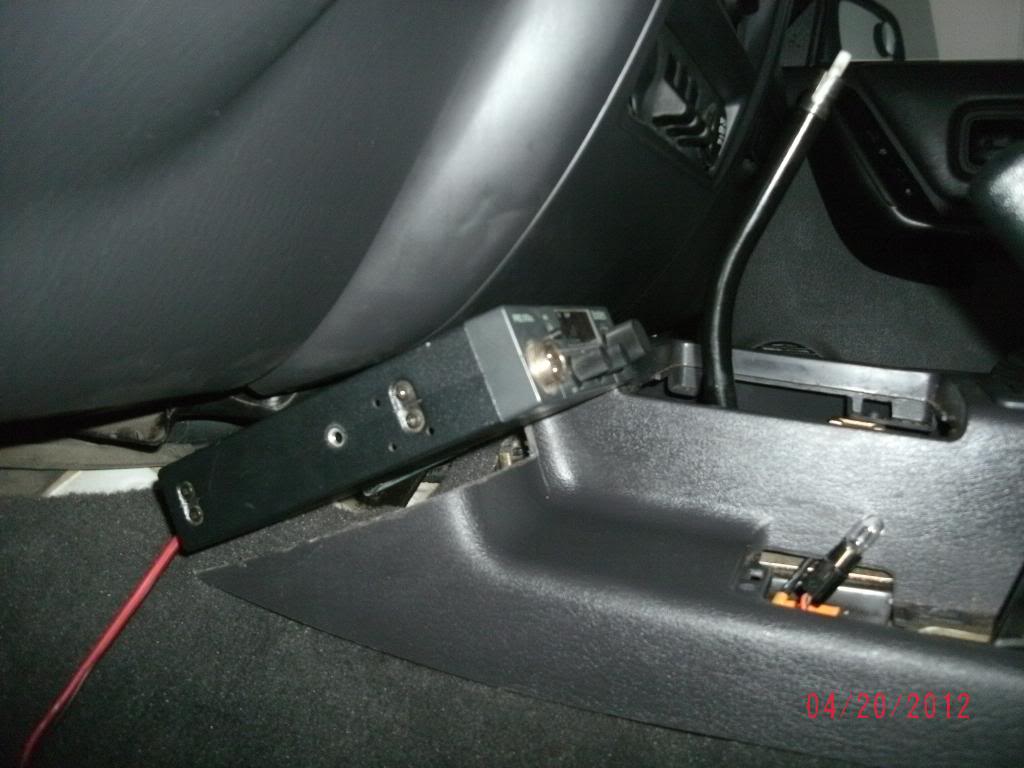

There is still plenty of leg room; I’m 6’-1” tall and don’t have any interference even when sliding into the seat or laying my leg as far sideways as comfortable for extended driving:
And yes, I need to address my transfer case shifter handle as it does just barely kiss the control ***** on the CB when in the 2wd position. But that is a project for next weekend…
First I removed the center console to access the situation. I found a nice sturdy dash support bracket there, which made the perfect foundation for a CB mount:
Once I did some test fitting and calibrated eyeballing, I bent up a little bracket out of some 1” wide 12-gauge sheetmetal. Drilled a couple holes, and mounted it to the dash support bracket:
I had to put a little twist in it to make the CB hang vertically and not at an angle like the dash support bracket:
Then I mounted my bracket with some ¼-20 hardware:
With that done, I hung the CB on my bracket:
Next it was time to carve up the center console to make room for the CB:
And finally, the semi-finished installation:
There is still plenty of leg room; I’m 6’-1” tall and don’t have any interference even when sliding into the seat or laying my leg as far sideways as comfortable for extended driving:
And yes, I need to address my transfer case shifter handle as it does just barely kiss the control ***** on the CB when in the 2wd position. But that is a project for next weekend…
