my try at a winch bumper.
06-17-2012, 11:52 AM
#1
Junior Member
Thread Starter
Join Date: Apr 2011
Location: fresno, ca
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.7 stroker
my try at a winch bumper.

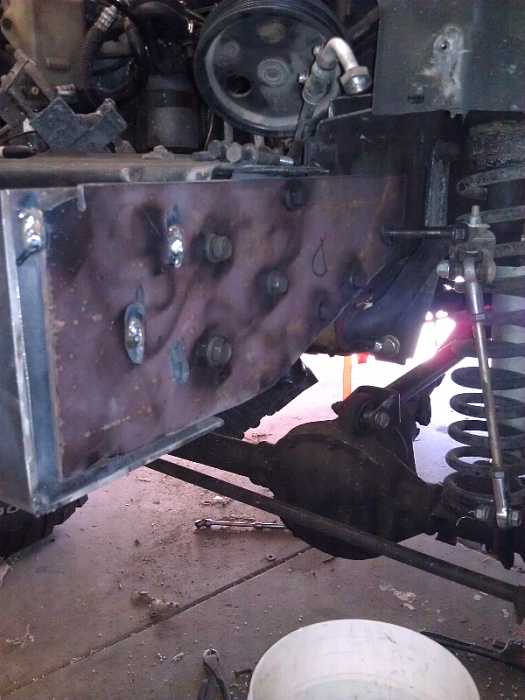

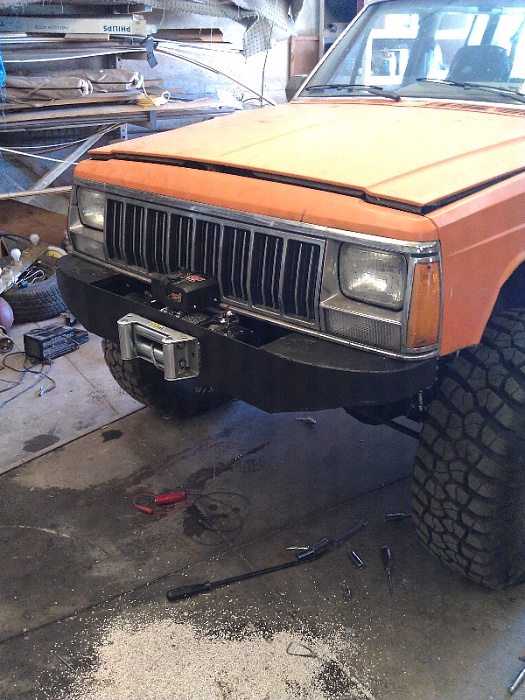

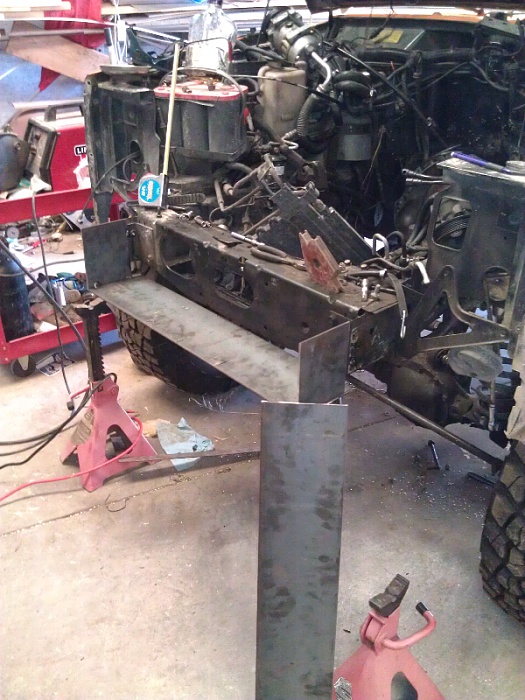

My goal was to have the winch sit low and tight so it did not block my radiator and impact my cooling. I will add some build pics, I was alone when I built it so I didn't take too many.
Trending Topics
06-17-2012, 07:00 PM
#9
Junior Member
Thread Starter
Join Date: Apr 2011
Location: fresno, ca
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.7 stroker
Yes, all the 90 deg angles are backed up with 1 1/2" angle and the bottom and back sides are capped off with gussets inside.
06-19-2012, 08:41 AM
#12
Junior Member
Thread Starter
Join Date: Apr 2011
Location: fresno, ca
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.7 stroker
I also doubled up the plate under the winch and tied it into the radiator support for a bit more strength.
06-19-2012, 12:02 PM
#13
CF Veteran
looks strong, but you should add in 3/4 inch d-ring tabs, welded both sides with a flat gusset plate on the back.
good for pulling with a strap, and using a ****** block for a 2 line pull.
good for pulling with a strap, and using a ****** block for a 2 line pull.
06-21-2012, 05:48 PM
#14
Junior Member
Thread Starter
Join Date: Apr 2011
Location: fresno, ca
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.7 stroker
I have recovery hooks under he bumper tied into the "frame" mounts. I wanted to keep the front clean and smooth. When I get back from vacation I am going to clean up the welds and wire up a switch to the inside for the winch.
