my spin on flat fender flairs

Old 09-30-2014, 11:33 PM
  #1
::Regional Moderator::
Thread Starter

89limited_hero's Avatar

Join Date: Jun 2012
Location: clackamas,or
Posts: 422
Year: 1992
Model: Cherokee(XJ)
Engine: h.o. 4.0l
Default

A buddy gave me the idea then I searched and couldn't find anything. So I ran with the idea. Most I have seen follow the wheel opening or bigger if Fenders are trimmed but still follow the wheel opening. What I did is cut the fender that was cut pretty good and finished the job off by going straight the the corner lights.

List of what I used:
lawn edging donated by a friend
1"x1" aluminum angle in 8' stick
Self tappers
And 1/8" rivets

What my fenders looked like
Name:  ForumRunner_20140930_212054.png
Views: 1037
Size:  503.9 KB

Have a cut off wheel
Name:  ForumRunner_20140930_212205.png
Views: 1012
Size:  488.7 KB

This step I didnt get pics but I cut the angle in to lengths a long on the follow the long straight of the fender and smaller length to fit half way down the down turn of the fender and one more smaller length at the bottom of the fender.
Mounted the lengths to the fender with self tappers on the in side of the fender.
Then riveted the edging to the angle
Can get pic if anyone wants to see.
Finished results

Back one are normal just went to the body line cause I plan on cut and fold the rear quarters.
Attached Images

Last edited by 89limited_hero; 09-30-2014 at 11:37 PM.
89limited_hero is offline
Old 09-30-2014, 11:39 PM
  #2
::Regional Moderator::
Thread Starter

89limited_hero's Avatar

Join Date: Jun 2012
Location: clackamas,or
Posts: 422
Year: 1992
Model: Cherokee(XJ)
Engine: h.o. 4.0l
Default

Better pics dont want anyone hurting themselves. Lol
Attached Images
89limited_hero is offline
Old 10-01-2014, 12:31 AM
  #3
CF Veteran

odgreen's Avatar

Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Pics all work
odgreen is offline
Old 04-28-2015, 01:14 PM
  #4
::Regional Moderator::
Thread Starter

89limited_hero's Avatar

Join Date: Jun 2012
Location: clackamas,or
Posts: 422
Year: 1992
Model: Cherokee(XJ)
Engine: h.o. 4.0l
Cool

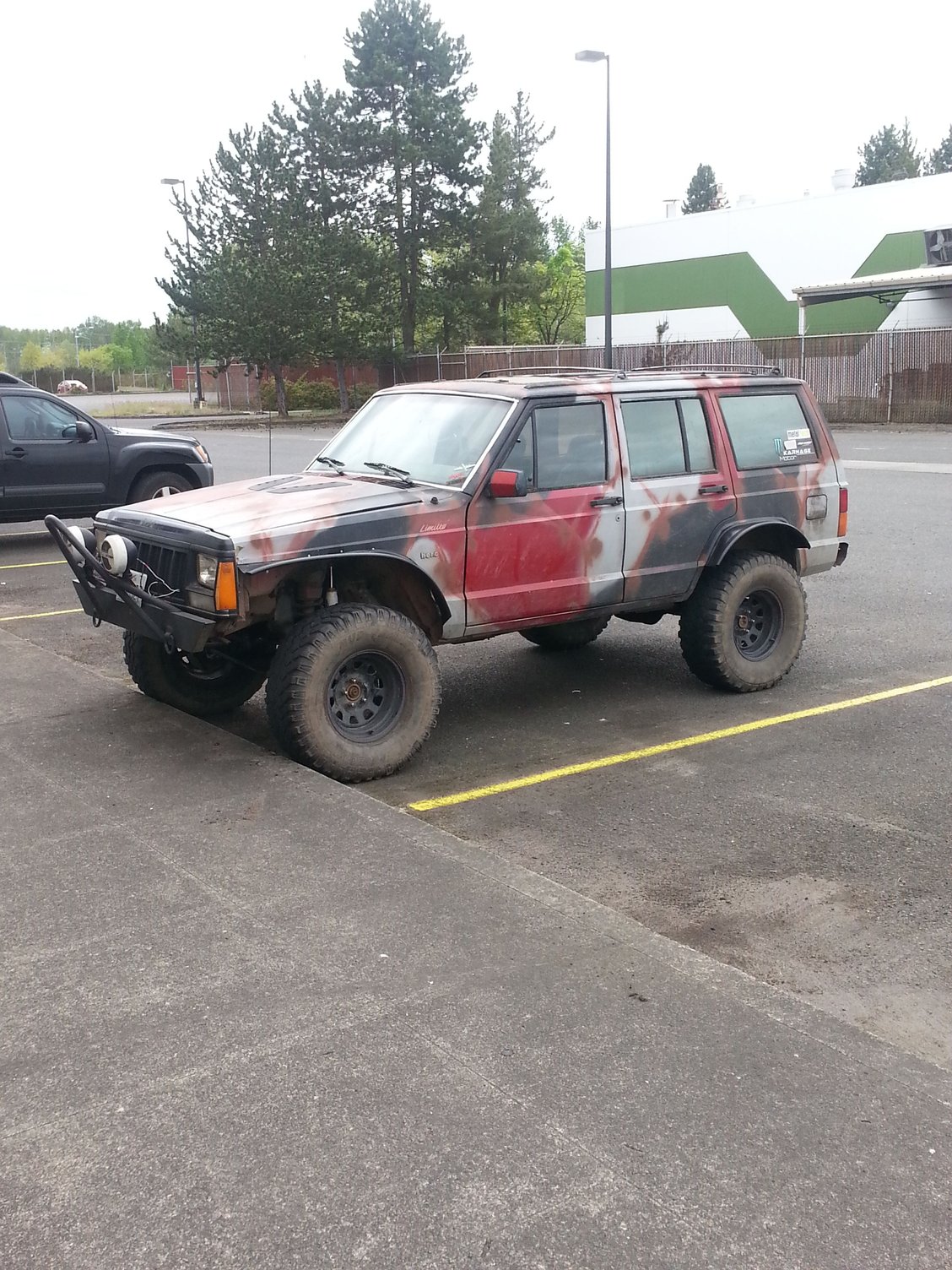

Here is some better most recent pictures of how my flat fender flares came out. Im still undecided about the rear flairs I might find some wrangler flairs for the rear as I think they will look better with the front flairs. But im undecided right now.




With doors





Flexing with tube doors





A better look at the front flair from a side view
89limited_hero is offline
