Kenneth's Front Bumper Build

Old 07-02-2014, 12:19 AM
  #1
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default Kenneth's Front Bumper Build

Going to get the materials tomorrow. I'm using 1/8" plate for the bumper and 1/4" for the frame mounts. I plan on welding another piece of 1/4" to the D-ring bracket to make it a 1/2" thick.

This will be the time I've ever fabricated anything substantial. I just bought a welder a few weeks ago so this will be a learning experience. I'm open to all criticism and praise. If anyone wants the solidworks files let me know and I'll upload or email them.

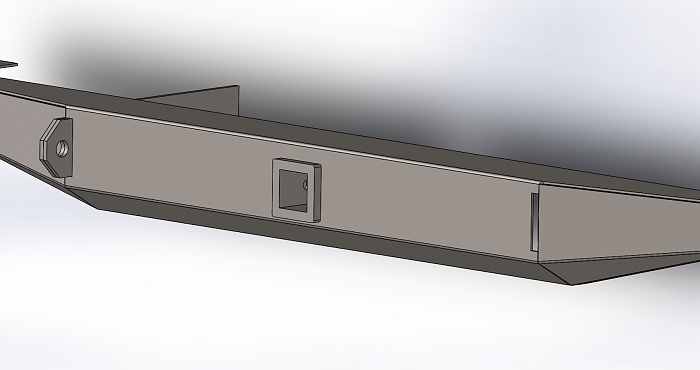

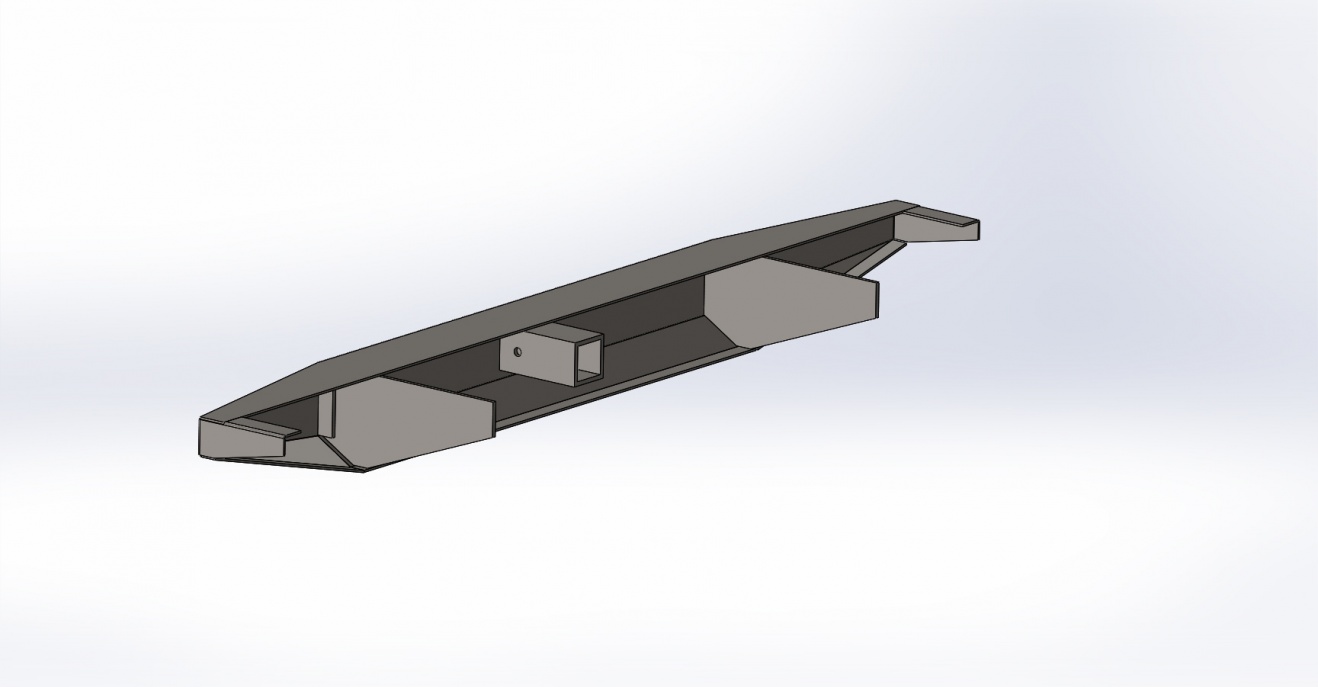

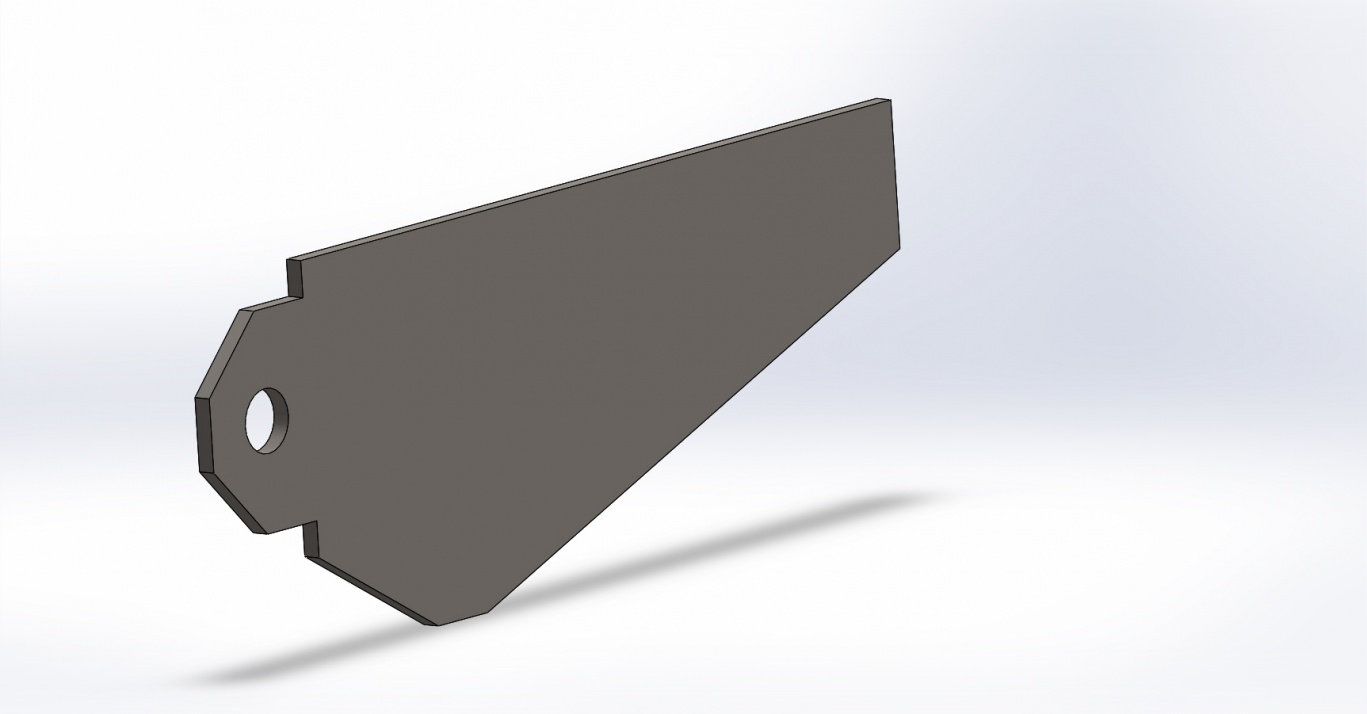

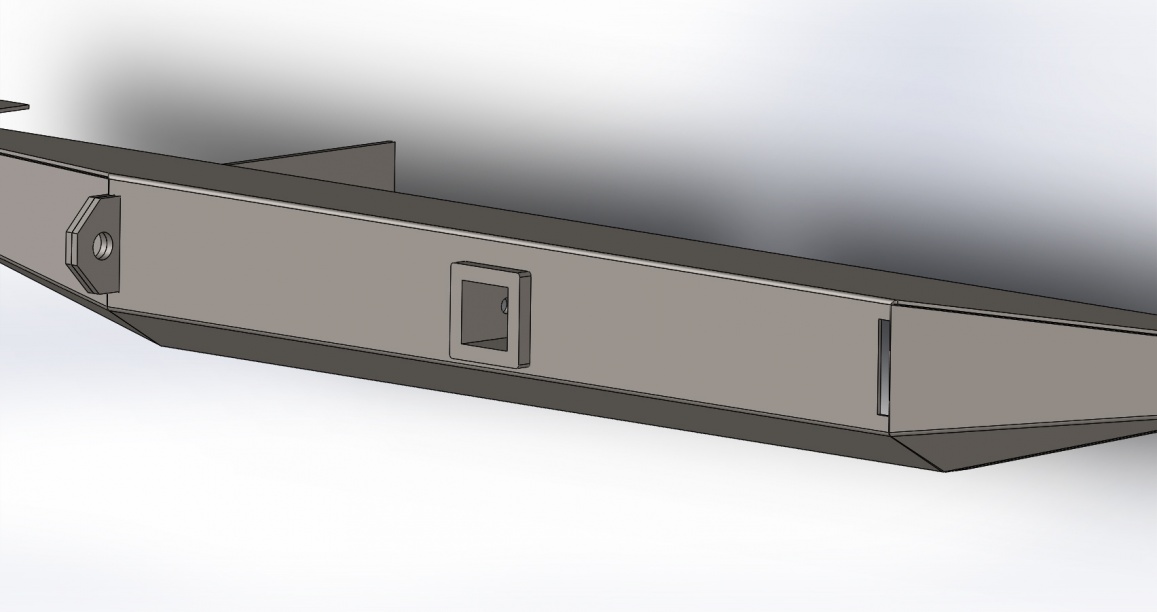

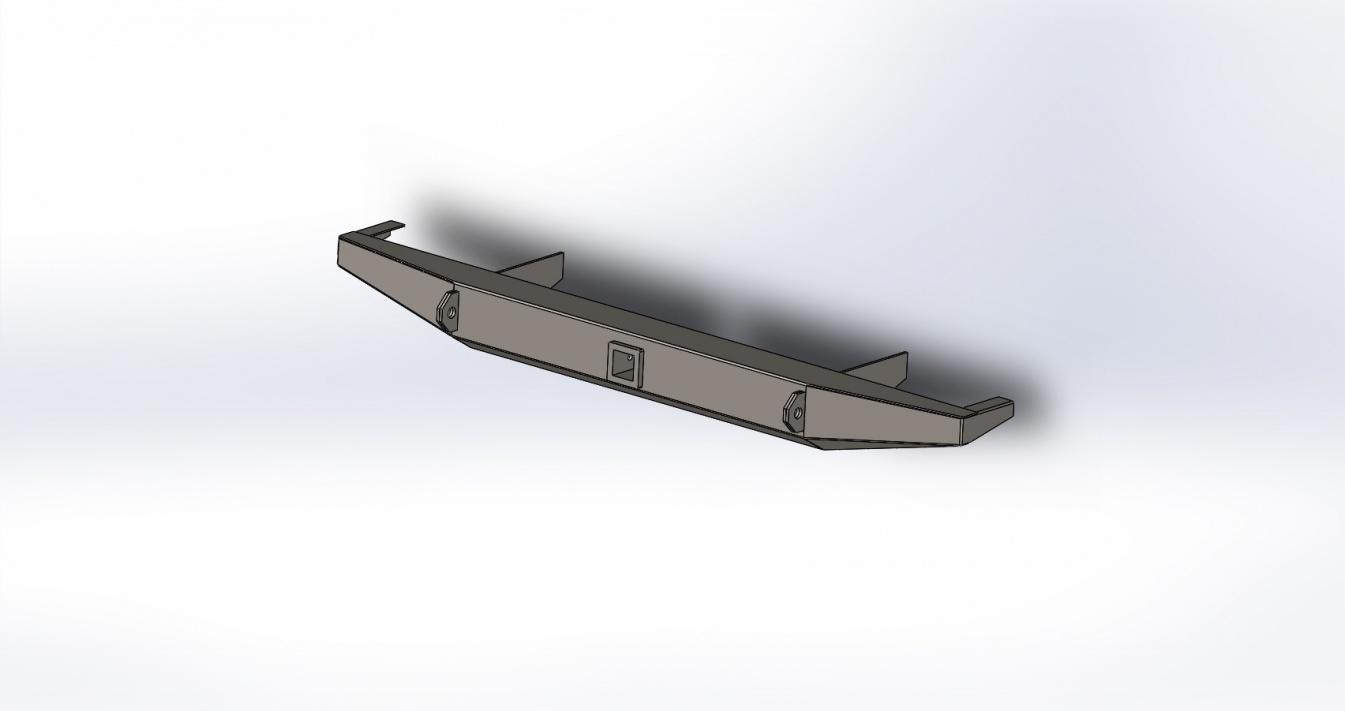

Attached Thumbnails Kenneth's Front Bumper Build-front-bumper-assy-rear.jpg   Kenneth's Front Bumper Build-front-bumper-assy.jpg   Kenneth's Front Bumper Build-front-bumper-assy-slot.jpg   Kenneth's Front Bumper Build-frame-brackets-rough-.jpg
kennethboyd is offline
Old 07-02-2014, 10:32 PM
  #2
Member

ShakeandbakeXJ's Avatar

Join Date: Sep 2011
Location: Salt Lake City, Utah
Posts: 199
Year: 1999
Model: Cherokee
Engine: 4.0
Default

I'm interested in seeing the progress on this build
ShakeandbakeXJ is offline
Old 07-03-2014, 08:20 AM
  #3
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

I'll be posting pictures as I go. Might take me a few weeks though. I ended up getting 1/4"x4 flat bar for the piece that attaches to the frame. It was a ***** to cut haha. I caught my miter saw on fire!
kennethboyd is offline
Old 07-03-2014, 11:35 PM
  #4
Member

ShakeandbakeXJ's Avatar

Join Date: Sep 2011
Location: Salt Lake City, Utah
Posts: 199
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Any updates!?
ShakeandbakeXJ is offline
Old 07-04-2014, 10:32 AM
  #5
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

Well I burnt up 2 HF cutting discs and one dewalt jigsaw blade and this is all I got cut. I wish I had a plasma cuter, I think I'll go by Lowe's and get a nice cutting wheel for my angle grinder.

kennethboyd is offline
Old 07-04-2014, 12:30 PM
  #6
Seasoned Member

kelly4's Avatar

Join Date: Dec 2011
Location: Michigan
Posts: 253
Year: 2000
Model: Cherokee
Default

Plan on going through A LOT of cutting discs. I usually pick up a pack of at least 10 and go through most of them, especially when cutting plate steel like that. Good luck on the build though. Looks like you have a good plan!
kelly4 is offline
Old 07-04-2014, 01:11 PM
  #7
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by kelly4 View Post
Plan on going through A LOT of cutting discs. I usually pick up a pack of at least 10 and go through most of them, especially when cutting plate steel like that. Good luck on the build though. Looks like you have a good plan!
I'm almost exactly copying your design haha. I got the rest cut with only 1.5 dewalt cutting discs.

kennethboyd is offline
Old 07-04-2014, 03:11 PM
  #8
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

70% bent. I am cutting completely through about half of each fold line and scoring about halfway through the rest. This makes it pretty easy to bend with a rubber mallet.



kennethboyd is offline
Old 07-12-2014, 04:33 PM
  #9
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

Just finished welding the bumper part.







My welds look pretty bad after grinding them. I am using 1/8" 6011 on 1/8" sheet at 95 amps and it was burning through some places so I tried to go faster than I thought I should. This is my first welding project so I am open to any constructive criticism.

About to go pull my old bumper and figure out how to attach this thing.
kennethboyd is offline
Old 07-13-2014, 01:39 AM
  #10
Seasoned Member

XJNVA's Avatar

Join Date: Apr 2013
Location: Purcellville, Virginia
Posts: 429
Year: '95
Model: Cherokee
Engine: 4.0 HO
Default

Honestly, not bad for your 1st welding project. I've seen much worse. Keep at it, go slower, and remember: practice makes perfect! Keep up the good work.
XJNVA is offline
Old 07-13-2014, 11:15 AM
  #11
Seasoned Member

kelly4's Avatar

Join Date: Dec 2011
Location: Michigan
Posts: 253
Year: 2000
Model: Cherokee
Default

Arc welding can be really tough on finish welds like that on the outside. If you have access to a mig welder, it's much easier. But if not, make sure the electrode is closer to the metal when you're welding, and most importantly make sure that this distance and the speed that you travel is consistent. Most defects and trouble spots on a weld are caused by inconsistency.

If you want to try to fix those low spots in the weld, you can always just go over it again and then grind it down and repeat if necessary. That's what I normally do. It's really looking good though!
kelly4 is offline
Old 07-13-2014, 02:06 PM
  #12
Member
Thread Starter

kennethboyd's Avatar

Join Date: Jan 2013
Location: NOLA
Posts: 113
Year: 96
Model: Cherokee
Engine: 4.0 HO
Default

Yeah I could tell when I had a good run going. I wish I had a mig welder but I'd rather get a nicer mig later and learn on a cheap machine. I'll have to get some 3/32" so I can go slower. What size rod would you use on 16 ga steel? My next project is going to be a toolbox for the back.
kennethboyd is offline
Old 07-13-2014, 09:36 PM
  #13
Senior Member

Gary Briggs's Avatar

Join Date: Jan 2011
Location: Escalon, Ca
Posts: 842
Year: 1996
Model: Cherokee
Engine: 4litre
Default

6013 or 7018 in a 3/32 size will leave much nicer welds. I'd go with 7018 personally.

You can also get 1/16 rod for that thiner sheet metal.
Gary Briggs is offline
Old 07-21-2014, 03:52 PM
  #14
Newbie

Join Date: Mar 2014
Location: Florida
Posts: 8
Year: 1994
Model: Cherokee
Engine: 4.0
Default

i usually weld 6010/6011 1/8 at 75-85 amps. 3/32 7018 at 85-90 amps. for a project like this i would've used 3/32 7018. nice though for a first project. welding takes a lot of practice.
Dimitri95 is offline
Old 07-21-2014, 04:24 PM
  #15
CF Veteran

McCaffrey's Avatar

Join Date: Jun 2012
Location: California
Posts: 1,250
Year: 1989
Model: Cherokee
Engine: 4.0L
Default

Not sure why you have it in your kitchen but it looks good so far.
