On the trimming of the rear quarter panel, can i cut directly in the center of the tack weld or can i trim above or below it. Because the tack welds are right even with the flare attachment holes. And then I slice and bend up and in right? Sorry I like doin things right the first time. I guess in this instance, I have no choice. thanks.
Attached Images
Old 04-13-2010, 06:00 PM
  #2
Member

Lightfoot's Avatar

Join Date: Feb 2010
Location: Strongsville, Ohio
Posts: 118
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 l
Default

Every thing I have read said cut just below the spot welds. Then cut inbetween spot welds to bend up.
Old 04-13-2010, 07:22 PM
  #3
Senior Member

alwaysxj's Avatar

Join Date: Oct 2009
Location: Hyrum,UT
Posts: 859
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 1-6 4.0
Default

i would not even bother with cutting them then bending them up. i would and this is just me will save you some time. just cut slots after every pot weld or every couple of inches and hammer them up in the wheel well and call it good.
Old 04-13-2010, 10:03 PM
  #4
CF Veteran

96Cherokee113's Avatar

Join Date: Nov 2009
Location: New Jersey
Posts: 1,261
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 HO
Default

Yea, it's not really worth trimming the bottom off first. When you fold them up, they flatten down for the most part. Besides, nobody's gonna go up inside your wheel well to criticize your cut and fold. Just a little tip, since I screwed up a little on the first side. When your cutting the slots, don't go all the way to the body line, stop like 1-2 mm before other wise they show a little bit when your at eye level with it. Can't see it standing up though, but I imagine it would look cleaner.
Old 04-13-2010, 10:18 PM
  #5
Junior Member
Thread Starter

cheder's Avatar

Join Date: Nov 2009
Location: Gun Barrel City, Tx
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

Right on thanks guys will try to get to it tomorrow gotta busy day messing with my carb. BTW, I would be the guy sticking my head up someones fender well and critiquing their work. lol. always inquisitive.
Old 04-13-2010, 10:48 PM
  #6
zim
Member

zim's Avatar

Join Date: Oct 2009
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4 ltr
Default

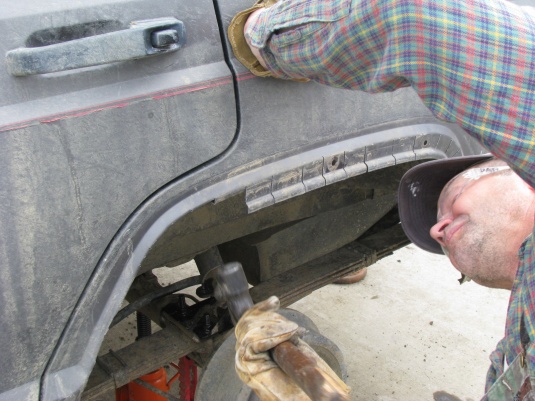

This may help.
Attached Images
Old 04-14-2010, 12:01 AM
  #7
Junior Member
Thread Starter

cheder's Avatar

Join Date: Nov 2009
Location: Gun Barrel City, Tx
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

DUDE!! That's exactly what I needed. curious, what did you use to make the cuts. cuz those look really clean. thanks for the pic!!

Last edited by cheder; 04-14-2010 at 12:04 AM.
Old 04-14-2010, 12:04 AM
  #8
zim
Member

zim's Avatar

Join Date: Oct 2009
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
Year: 1990
Model: Cherokee
Engine: 4 ltr
Default

Now go cut em up!
Old 04-14-2010, 12:16 AM
  #9
Junior Member
Thread Starter

cheder's Avatar

Join Date: Nov 2009
Location: Gun Barrel City, Tx
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

will do in the morning after I get my new carburetor installed!!!
Old 04-14-2010, 12:17 AM
  #10
CF Veteran

builtnotbought89''s Avatar

Join Date: May 2009
Location: SLC, UT
Posts: 6,328
Likes: 0
Received 1 Like on 1 Post
Year: 1989 2 door
Model: Cherokee
Engine: 4.0
Default

its also a good idea to use masking tape to stop the paint from chipping when folded!!!
Old 04-14-2010, 12:25 AM
  #11
Junior Member
Thread Starter

cheder's Avatar

Join Date: Nov 2009
Location: Gun Barrel City, Tx
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

will do thanks man. oh hey nice rig. dig the mudflaps lol. gotta hate utah laws lol
Old 04-14-2010, 08:55 AM
  #12
Senior Member

alwaysxj's Avatar

Join Date: Oct 2009
Location: Hyrum,UT
Posts: 859
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 1-6 4.0
Default

Originally Posted by cheder
will do thanks man. oh hey nice rig. dig the mudflaps lol. gotta hate utah laws lol
yes utah sucks for the laws.
Old 04-14-2010, 09:30 PM
  #13
Junior Member
Thread Starter

cheder's Avatar

Join Date: Nov 2009
Location: Gun Barrel City, Tx
Posts: 95
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee (XJ)
Engine: 4.0L
Default

The law sucks but damn its beautiful! I went up to SLC with a buddy to pic up his TJ and I was like whats with all the damn mudflaps. He was like its the state law and I was like thats GAY!!!
Old 04-14-2010, 10:00 PM
  #14
CF Veteran

builtnotbought89''s Avatar

Join Date: May 2009
Location: SLC, UT
Posts: 6,328
Likes: 0
Received 1 Like on 1 Post
Year: 1989 2 door
Model: Cherokee
Engine: 4.0
Default

ya I'll put up with the laws all day, as long as I can still have access to all the land & wheelin we have here!!!
