Hook hitch
#1
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
Hook hitch

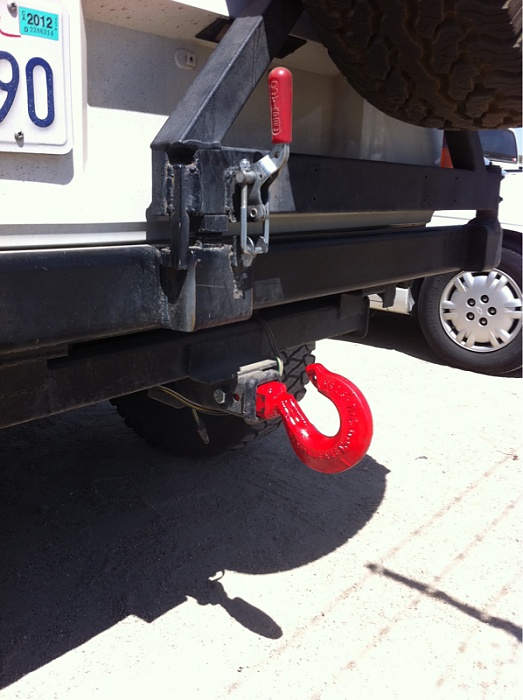

Got bored at work and made this. Got the hook of a pumping unit(that's what I do at work assemble them for the new wells) and got some square tubing welded it all together and drilled the for the pin.
#3
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
The hook is rated for 5000 lbs. And the rest of the hook is welded the square tubing. And the 5/8s pen goes there the hook it self everything. So it should strong
#4
CF Veteran
Join Date: Jan 2011
Location: Littleton, CO
Posts: 2,765
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 2001 4.0L
i like the idea, but i like my friends too much to send a hooked projectile towards them while extrcting my jeep!!
#5
Seasoned Member
Join Date: Oct 2009
Location: Tucson AZ
Posts: 416
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0
Curb weight for a stock XJ is about 3500lbs. A full size V8 PU with a real frame under it is about 5000lbs. On most light/med duty tow trucks the hooks and chains are rated somewhere between 4000 - 6000 lbs WLL. Not debating if that hook and weld job is strong enough for the job. That would depend on the job. Personally I would'nt use anything that was butt welded for recovery and overkill is not bad sometimes!
If you looked at What I do with a tow truck it's 2 hooks/chains all the time!!
If you looked at What I do with a tow truck it's 2 hooks/chains all the time!!
Last edited by mike mike; 08-07-2011 at 09:11 AM.
#6
CF Veteran
Join Date: Oct 2010
Location: Salem Nh
Posts: 1,756
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
When it comes to recovery, u should be using something thats, at least 3x more then what the weight of the vehical is. Theres alot more factors that need to be taken into effect, if a vehical that weighs 3000lbs, u think a 4500lbs tow strap would be able to pull the vehical no problem, and yea it would if the car is just lightly stuck in the snow or something but not for a fully equipped rig with like 35" stuck in mud. A 8k winch is the minimum u should go with, and most tow hooks, atleast the ones that came with my tow hook brackets are rated for 10,000lbs each.
#7
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
That hook is not butt welded to it. It has the shaft of the hook that goes into the tubing. And the hole for the pin is drilled through everything. So nothing coming off
Trending Topics
#8
CF Veteran
Join Date: Jan 2011
Location: Littleton, CO
Posts: 2,765
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 2001 4.0L
Curb weight for a stock XJ is about 3500lbs. A full size V8 PU with a real frame under it is about 5000lbs. On most light/med duty tow trucks the hooks and chains are rated somewhere between 4000 - 6000 lbs WLL. Not debating if that hook and weld job is strong enough for the job. That would depend on the job. Personally I would'nt use anything that was butt welded for recovery and overkill is not bad sometimes!
If you looked at What I do with a tow truck it's 2 hooks/chains all the time!!
If you looked at What I do with a tow truck it's 2 hooks/chains all the time!!
yeah curb weight....add big tires, wheels, bumpers, tire carrier and sliders, that xj now weighs closer to 5000 lbs....then another vehicle at the other end that weighs the same or more(and one of you would be stuck adding even more force).....way more than 5000 lbs of force, but whatever....its not me, my jeep, or friends. just lookin out for fellow jeepers.
Last edited by MallCrawlXJ; 08-07-2011 at 07:11 PM.
#9
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
It's not like I'm hanging my jeep from the damn thing. And I live in the dessert so not much mud to get stuck in. The only thing that matter is if I feel comfortable using it. And who ever I pull out.
#11
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
Originally Posted by KennethXJ
That will keep tail-gaters back
#12
CF Veteran
Join Date: May 2010
Location: Western Michigan
Posts: 1,680
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0l inline 6
I think you had some good ingenuity. As always recover safely, any equipment can fail at any given time so be prepared for the worse and you wont be surprised.
#13
Junior Member
Thread Starter
Join Date: Jul 2011
Posts: 35
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: In6 ho
Originally Posted by wildspear
I think you had some good ingenuity. As always recover safely, any equipment can fail at any given time so be prepared for the worse and you wont be surprised.
#14
Senior Member
Join Date: Aug 2010
Location: Arcata California
Posts: 850
Likes: 0
Received 4 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Iv'e seen many people do much dumber things than use that hook to pull some one out. You knock it till you need that guy to pull you out of a ditch.
#15
CF Veteran
Join Date: May 2010
Location: Western Michigan
Posts: 1,680
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0l inline 6
Getting a running start and yanking on a cable that's hooked to the axle. Even kids know that's a bad combo. But the hook on the cable didn't give way..... the axle did:icon_cheesyg rin:
