The Homebrew Jeep Mod Thread
#1398
Where did you get the bracket piece? Tractor Supply also?
#1399
Member
Join Date: Oct 2017
Location: New Mexico
Posts: 227
Likes: 0
Received 10 Likes
on
8 Posts
Year: 1998
Model: Cherokee(XJ)
Engine: 4.0 L I6
Auxillary headlights made from old cherokee headlights.
I welded a washer to the bottom of the headlight cavity then welded another washer to the mount. They go on the front roof rack rail. This way, I can angle which way they point.

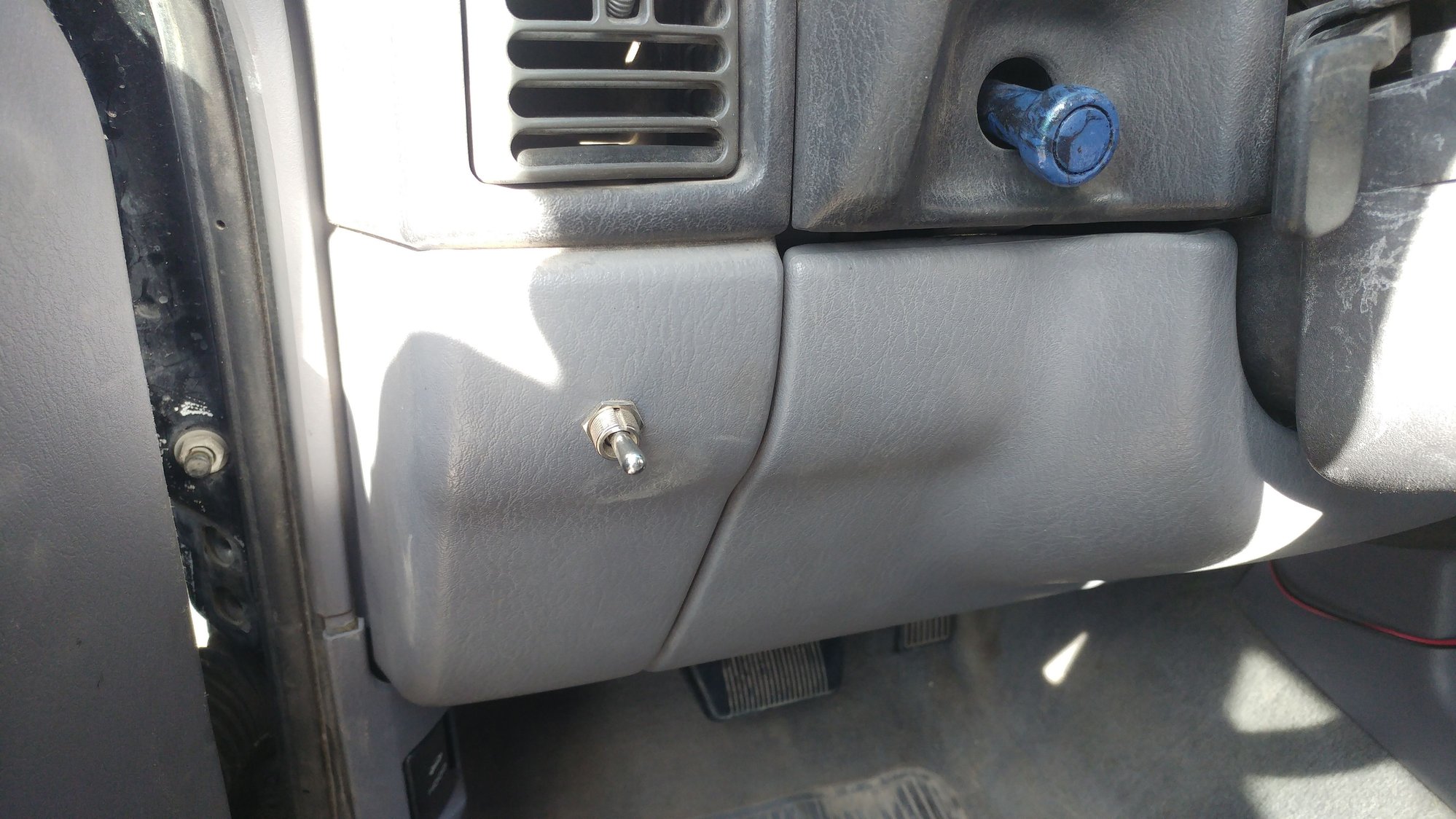

The switch is wired in right below the headlight switch, and the only place you can see the wires is coming through the roof (which is sealed with a rubber gasket and rtv). They draw 40 amps so that's why there's 4 wires (20a each 2 hot 2 ground). And hot side fused by the battery.
So far they haven't rattled off at all, the roof rack actually moves before the headlights do. ****ty jeep roof racks... They are really helpful driving at night to avoid animals. I have yet to be late enough to need to use them offroad. The wiring in the back of the bulbs is sealed off so they won't short.
I welded a washer to the bottom of the headlight cavity then welded another washer to the mount. They go on the front roof rack rail. This way, I can angle which way they point.
The switch is wired in right below the headlight switch, and the only place you can see the wires is coming through the roof (which is sealed with a rubber gasket and rtv). They draw 40 amps so that's why there's 4 wires (20a each 2 hot 2 ground). And hot side fused by the battery.
So far they haven't rattled off at all, the roof rack actually moves before the headlights do. ****ty jeep roof racks... They are really helpful driving at night to avoid animals. I have yet to be late enough to need to use them offroad. The wiring in the back of the bulbs is sealed off so they won't short.
#1400
CF Veteran
Built a custom diff cover with all the bells and whistles. Has a magnetic drain plug and dip stick. Also ties into the truss to make the whole thing stronger
#1404
CF Veteran
#1405
CF Veteran
Join Date: Apr 2016
Location: Pasquotank, NC
Posts: 1,679
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Wow. I thought you were going to say plasma table or water jet. You are dedicated my friend. Looks good, especially considering you cut it out by hand.
#1406
CF Veteran
Thanks. I modified my band saw a little to make all those small pieces easy and fast. Cutting the inside of the ring was a little bit of a pain
#1407
No, I don't lick fish.
We didn't always have plasma tables, water jets, or lazer CNC machines.... used to have to do everything with regular joe tools just like that.
