Half Door project

Old 05-21-2014, 05:37 PM
  #1
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default Half Door project

This will be a long drawn out project. Between work, 3 kids, wife and dogs my time is pretty consumed.

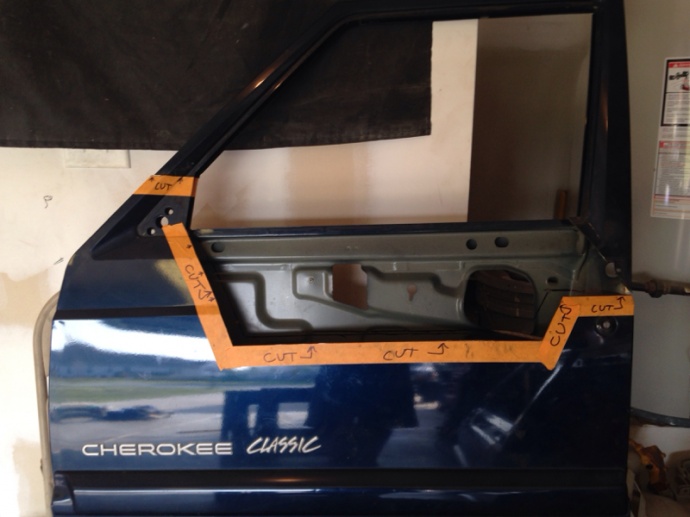

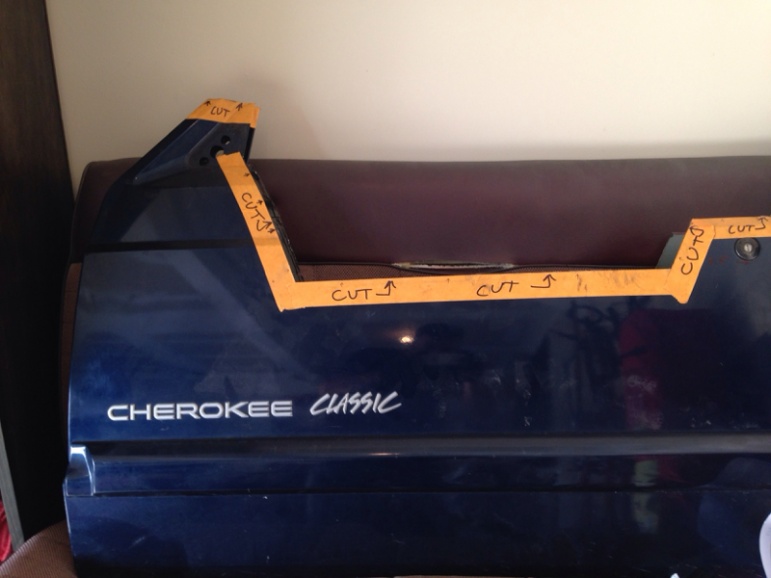

Got a set of doors to cut up and went to town. Step 1 of who knows is complete.

Welding in new sheet and some body work to clean everything up to follow.

I'll start the thread with a couple pics.
Attached Thumbnails Half Door project-image-1438205148.jpg   Half Door project-image-1388499669.jpg
XJGunny is offline
Old 05-21-2014, 07:42 PM
  #2
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Reminds me, I need to finish mine.
wiggles is offline
Old 05-21-2014, 09:17 PM
  #3
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

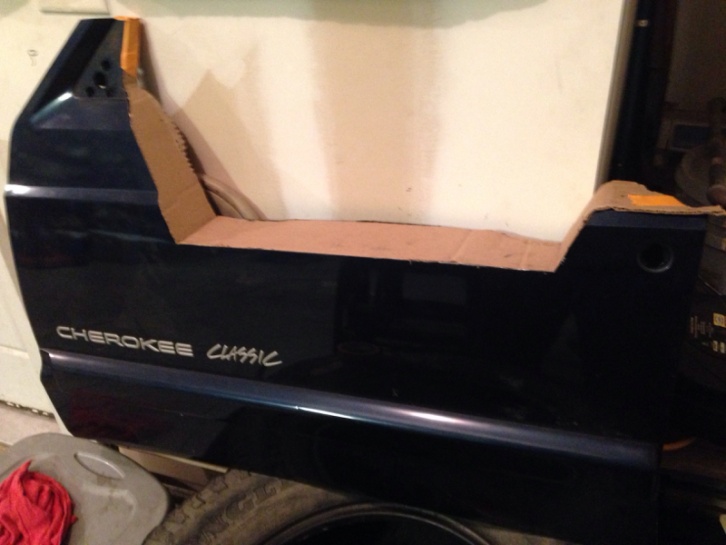

Got the CAD together to make a template. You know Cardboard Aided Design.
Attached Thumbnails Half Door project-image-984554423.jpg
XJGunny is offline
Old 05-21-2014, 10:22 PM
  #4
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

How are you going to do your latch? Stoked for the outcome, my jeep is the same color as those doors

Last edited by JerrytheJeep; 05-21-2014 at 10:24 PM.
JerrytheJeep is offline
Old 05-22-2014, 06:06 AM
  #5
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

Please be detailed on the build I want to do the same and have 0 fab skills. Would you make extra templates and send me a copy?
gettin_dirty_with_ruby is offline
Old 05-22-2014, 06:36 AM
  #6
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

The latch will be same as stock. Instead of using an exterior / interior door handle a rod/ button will be used to open the latch from the top of the door where new metal is put in.

I will be as detailed as possible. The templates I'm using are cut specific to how I cut the door. If it's something that can be duplicated I have no problem putting them out there

I'll also take measurements of my cut lines on the other door prior to making the cuts so that'll be available for reference.
XJGunny is offline
Old 05-22-2014, 07:09 AM
  #7
Member

XJNATION1997's Avatar

Join Date: Jun 2013
Location: CT
Posts: 119
Year: 1998
Model: Cherokee
Engine: 4.0 straight six
Default

I'm about to start this once I can get back from the junkyard this weekend. Look around on some other forums for ideas (naxj or pirates 4x4) they have some pretty cool stuff on there about half doors. Looks really clean so far though
XJNATION1997 is offline
Old 05-25-2014, 08:09 PM
  #8
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

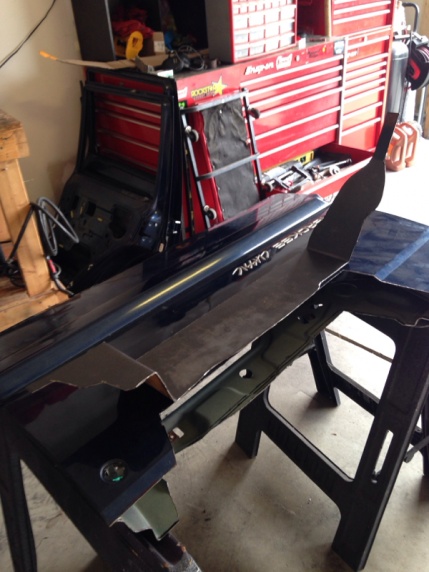

Made a lil progress today. Cut out the sheet using the template I made.
I bent it to shape using a cheap harbor freight metal brake. It did it's job bending the 16ga steel no problem.
Started the stitch weld process. I forgot how long that process is. Once it's all welded up, ole trusty grinder with a flap disc will come into play.
Attached Thumbnails Half Door project-image-3963165109.jpg   Half Door project-image-585785185.jpg
XJGunny is offline
Old 05-26-2014, 07:45 AM
  #9
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

Originally Posted by XJNATION1997 View Post
I'm about to start this once I can get back from the junkyard this weekend. Look around on some other forums for ideas (naxj or pirates 4x4) they have some pretty cool stuff on there about half doors. Looks really clean so far though
Do you have any links to share? Want to start this project soon and would appreciate the links
gettin_dirty_with_ruby is offline
Old 05-27-2014, 03:24 PM
  #10
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

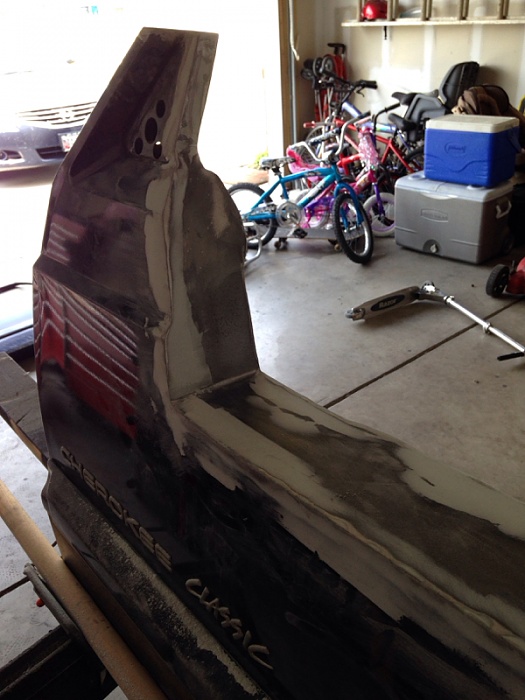

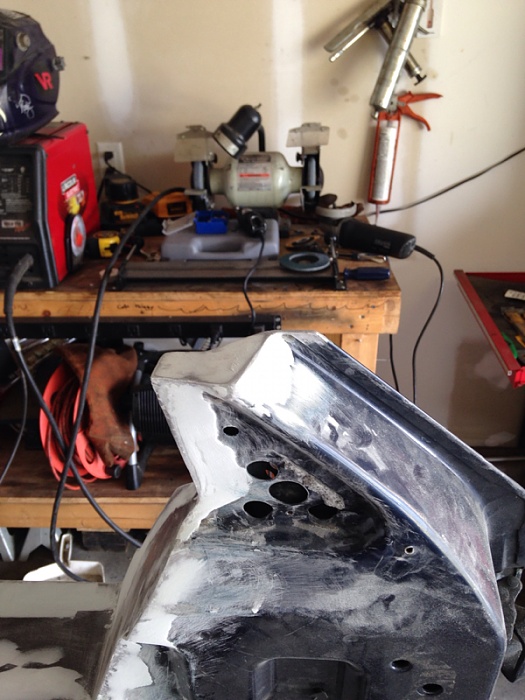

Got some more work done. Got the sheet all welded in and started the body work process with a thin layer of filler to cover a few pin holes.

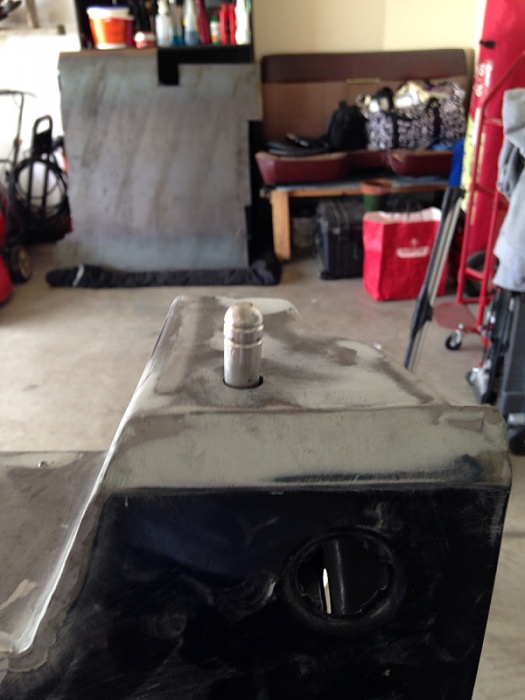

For the ones wonder what I'm was doing to open the door, I added a picture of my latch release button.
Going to finalize the body work/paint prep and then I'll start the other door.
Attached Thumbnails Half Door project-image-809390731.jpg   Half Door project-image-2010782332.jpg   Half Door project-image-1625125085.jpg
XJGunny is offline
Old 05-28-2014, 06:29 PM
  #11
Member

TheRoflWaffle's Avatar

Join Date: Oct 2013
Location: Buffalo, New York
Posts: 170
Model: Cherokee
Default

Loving them. I'm interested to see how that latch idea is going to work, haha.
TheRoflWaffle is offline
Old 05-28-2014, 06:48 PM
  #12
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

Thanks.

The latch release Is simple. The rod that normally released the latch was trimmed down and attached to the billet piece you see. Pressing down on it releases the door latch from the striker. It's spring loaded so it pops back up to the same position.
The billet "button" is actually a switch extension that is normally used for hydraulic/airbag switch boxes. I've built a few mini trucks and had a few laying around. They work out perfect and look cool as a door button.
I'm on the home stretch with the first door. Once I start the passenger side I'll add all the measurements and put up more pictures.
I'll get both doors 100% ready for paint and knock them out at the same time after I get them test fitted on the XJ.
I also plan on making a set of door panels rather than welding up all the interior holes. Anyone have ideas?
XJGunny is offline
Old 05-28-2014, 07:13 PM
  #13
CF Veteran

JerrytheJeep's Avatar

Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Year: 89
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by XJGunny View Post
Thanks.

The latch release Is simple. The rod that normally released the latch was trimmed down and attached to the billet piece you see. Pressing down on it releases the door latch from the striker. It's spring loaded so it pops back up to the same position.
The billet "button" is actually a switch extension that is normally used for hydraulic/airbag switch boxes. I've built a few mini trucks and had a few laying around. They work out perfect and look cool as a door button.
I'm on the home stretch with the first door. Once I start the passenger side I'll add all the measurements and put up more pictures.
I'll get both doors 100% ready for paint and knock them out at the same time after I get them test fitted on the XJ.
I also plan on making a set of door panels rather than welding up all the interior holes. Anyone have ideas?
Re use the stock ones? Just cut em to fit and put some door trim on the cut edge?
JerrytheJeep is offline
Old 05-28-2014, 07:27 PM
  #14
Seasoned Member
Thread Starter

XJGunny's Avatar

Join Date: Nov 2012
Location: NC
Posts: 401
Year: 2001
Model: Cherokee
Engine: 4.slow
Default

I tried that with the only extra panel I had. It looked like **** because of a weird gap it left. I'm taking too much time into these for that haha. Thanks for your input though.
XJGunny is offline
Old 05-28-2014, 09:45 PM
  #15
Seasoned Member

Join Date: Jun 2011
Location: San Antonio
Posts: 489
Year: 1992
Model: Cherokee
Engine: 6 Cyl
Default

I am anxiously waiting the detailed build photos and write up. Especially like the way the door will open and close.
gettin_dirty_with_ruby is offline
