front bumper 91xj

Thread Tools

Search this Thread

Old Jul 31, 2010 | 01:08 AM
Share
  #1
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default front bumper 91xj

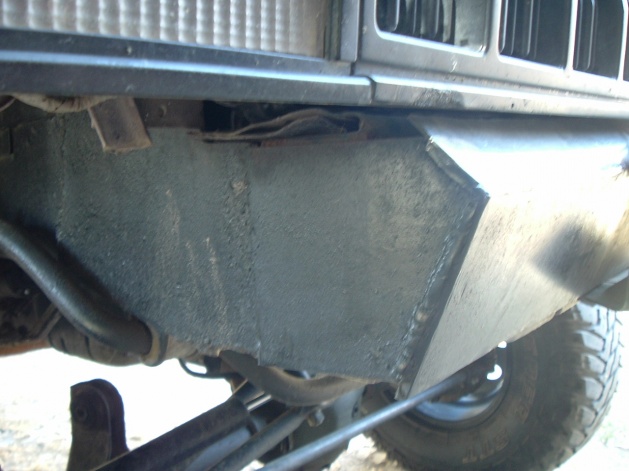

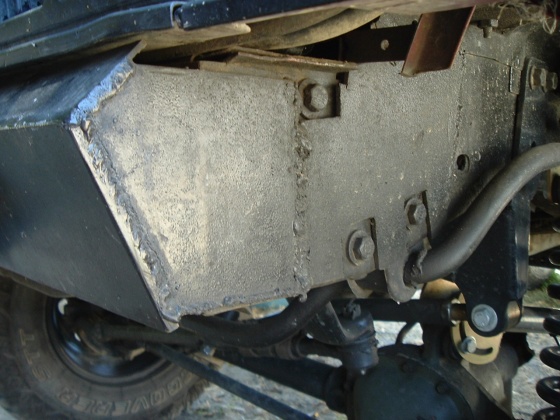

i am building a front bumper out of 3x3 box steel. i had to clean up the front crossmember i built after smashing the front end into a bank under some water. here are the pics of the crossmember
Attached Images
Reply
0
Old Jul 31, 2010 | 01:10 AM
Share
  #2
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default

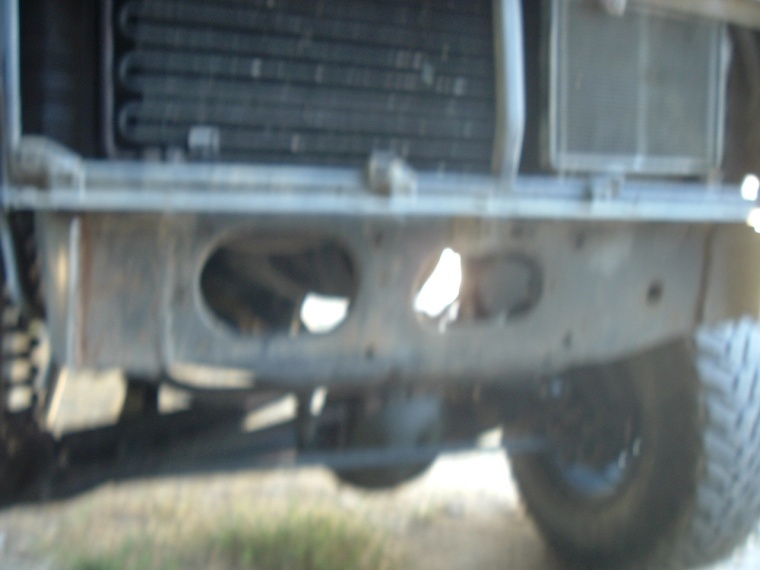

crossmember/mini bumper removed
Attached Thumbnails front bumper 91xj-dscf0650.jpg
Attached Images
Reply
0
Old Jul 31, 2010 | 01:12 AM
Share
  #3
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default

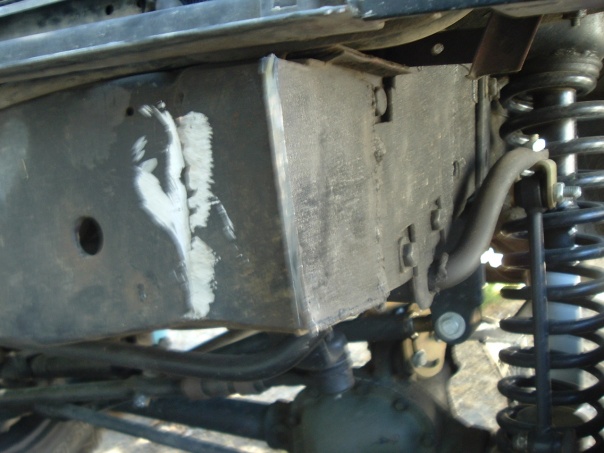

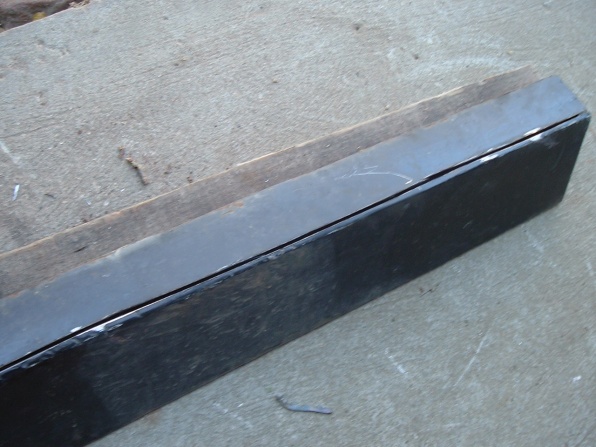

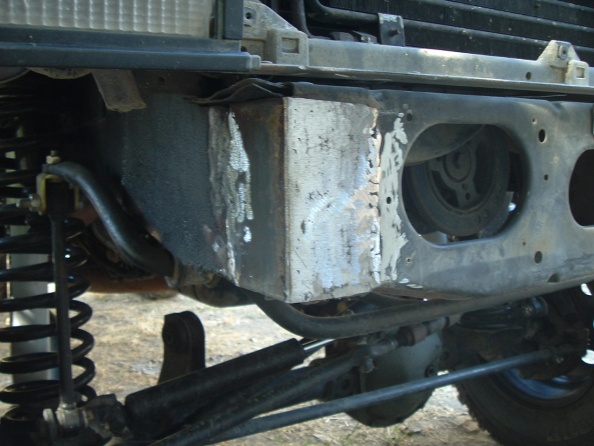

this shows one of the sides cleaned up so that my bumper mounts will sit flush with the uni body rails
Attached Images
Reply
0
Old Jul 31, 2010 | 01:15 AM
Share
  #4
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default

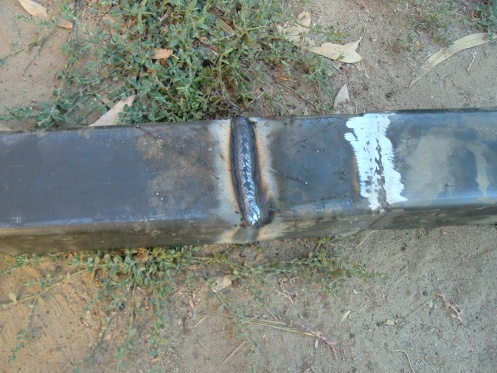

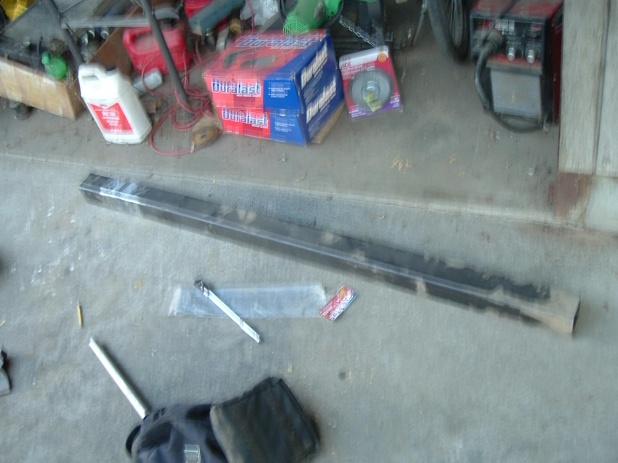

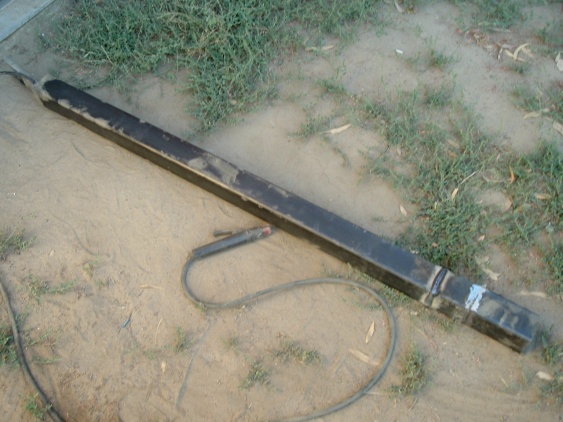

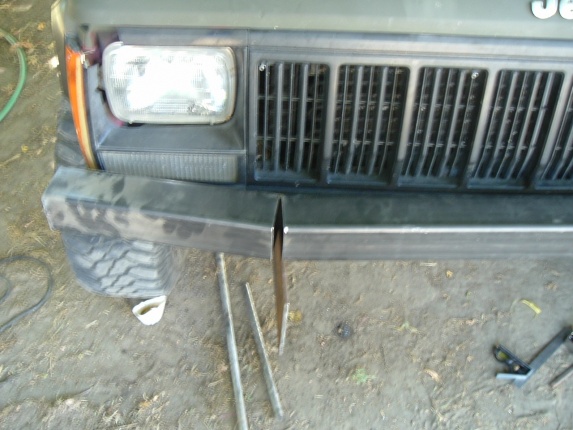

i had to add some pieces in to get the length i need. this is all scrap from a stand that i built for a sulfur dioxide tank. the metal is 3/16 walls, and all the flat iron is all 1/4 inch.
Attached Images
Last edited by 91xj; Aug 1, 2010 at 03:03 AM.
Reply
0
Old Jul 31, 2010 | 01:17 AM
Share
  #5
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
and no, i did not use that crappy 110 mig in the picture above
Reply
0
Old Aug 3, 2010 | 01:42 AM
Share
  #6
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
i know theres not much in this thread yet but ive got more pics and should have this thing done by tomorrow. its turning out really nice. you should be seeing the pics by tomorrow if everything goes as planned.
Reply
0
Old Aug 4, 2010 | 04:16 PM
Share
  #7
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default

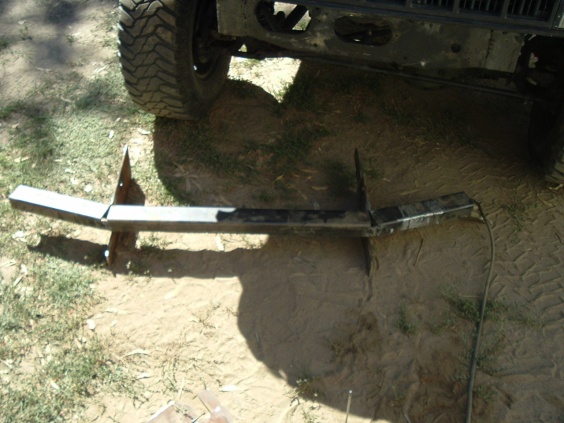

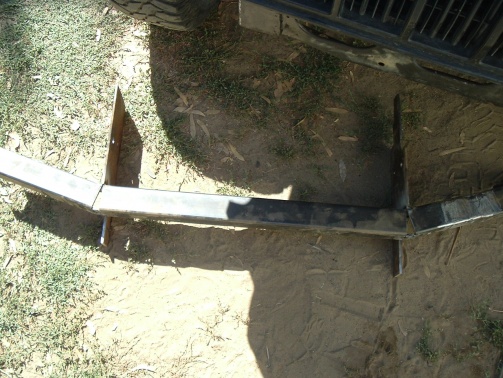

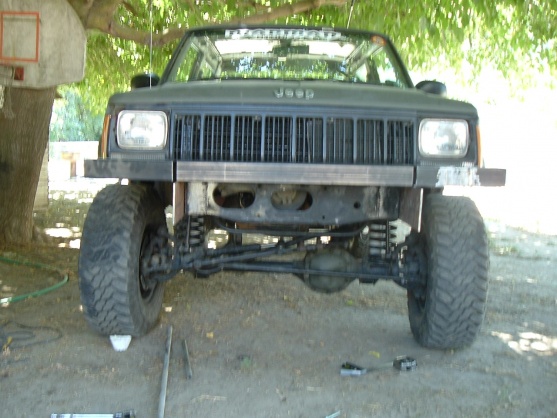

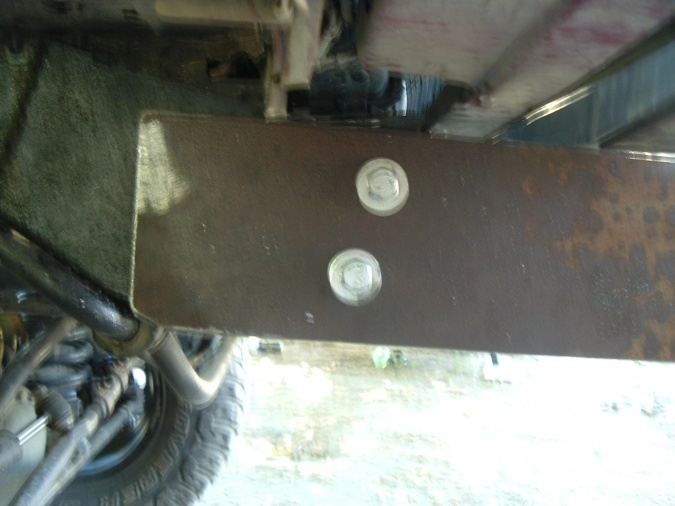

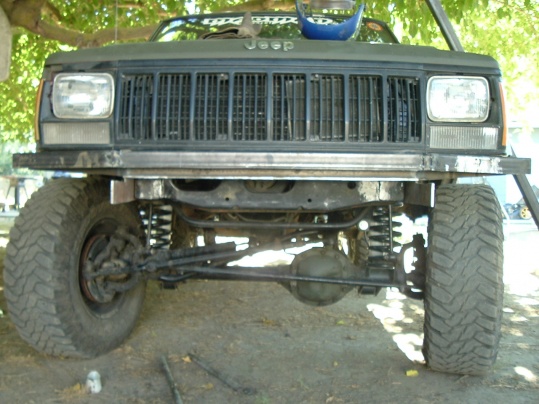

need to add more bolts
Attached Images
Last edited by 91xj; Aug 4, 2010 at 04:22 PM.
Reply
0

Trending Topics

Old Aug 4, 2010 | 04:18 PM
Share
  #8
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
..........

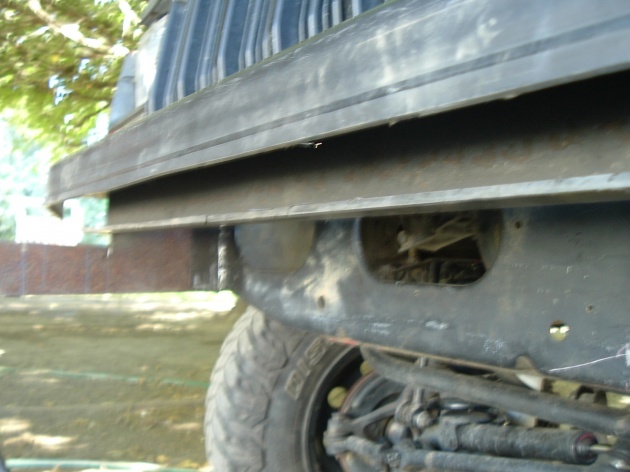

Attached Images
Reply
0
Old Aug 4, 2010 | 04:21 PM
Share
  #9
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
.......

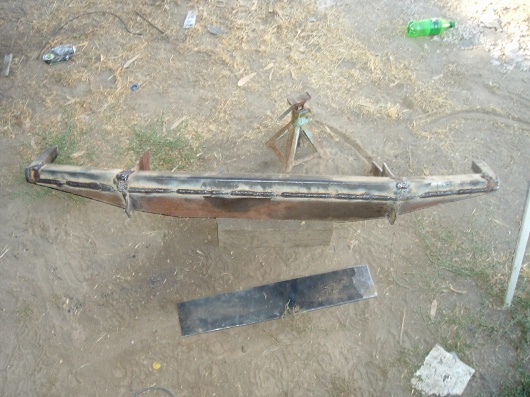

Attached Images
Reply
0
Old Aug 7, 2010 | 10:20 AM
Share
  #10
cjmass47's Avatar
cjmass47
Member

Joined: Jul 2009
Posts: 111
Likes: 1
Year: 1991
Model: Cherokee
Engine: 4.0 HO
Default
looks good man. im gonna start my bumper soon ill probably do something similar
Reply
0
Old Aug 8, 2010 | 01:18 PM
Share
  #11
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
thanks man. i actually stole the design from 99xj4x4. i really liked his bumper so i built it from the looks of his.
Reply
0
Old Aug 8, 2010 | 11:39 PM
Share
  #12
projectmayhem's Avatar
projectmayhem
CF Veteran

Joined: Feb 2009
Posts: 1,268
Likes: 0
From: rogersville, tn
Year: 1988
Model: Cherokee
Engine: 4.0
Default
nice i partial to tube bumpers myself
Reply
0
Old Aug 8, 2010 | 11:57 PM
Share
  #13
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
i prefer tube bumpers but since i dont have a tube bender yet i had to work with what i had
Reply
0
Old Aug 9, 2010 | 12:59 AM
Share
  #14
Sno_Blynd's Avatar
Sno_Blynd
Senior Member

Joined: May 2010
Posts: 824
Likes: 0
From: North Carolina
Year: 2000
Model: Cherokee
Engine: inline 6 4.0 lt
Default
how much would u charge to build me one?
Reply
0
Old Aug 10, 2010 | 12:36 AM
Share
  #15
91xj's Avatar
91xj
Thread Starter
Seasoned Member

Joined: Apr 2009
Posts: 344
Likes: 0
From: fresno, ca.
Year: 1991
Model: Cherokee
Engine: 4.0 liter h.o.
Default
well to build it would be about 300 dollars for the cost of materials and labor. shipping might cost more than that though. im guessing it weighs about 70 pounds.
Reply
0
