Finally finished my M416 Trailer
#1
Senior Member
Thread Starter
Join Date: Dec 2010
Location: Virginia Beach
Posts: 786
Likes: 0
Received 1 Like
on
1 Post
Year: 2016
Model: Grand Cherokee (WK2)
Engine: 5.7l HEMI
Finally finished my M416 Trailer
Well, took me some time but I think I can say my 1965 M416 Army trailer is done. It was given to me by a neighbor who sold her house, she was using it as a planter in her backyard. I had big plans for it like a roof top tent and stuff but then the Army came and said "your moving to Fort Bliss, TX".
My wife promptly said "see you when you get back!" We have a house in Virginia Beach, go figure! Anyway I scrambled to at least get her roadworthy for drive down here a few months ago. Last week I got around to tracking down some CJ-3 leaf springs and new shocks so she is good to go.
at the house in VA Beach getting ready for the drive down. Before a tongue extension and tool box with gas can mounts. I also installed a 2" receiver under the rear frame for my bicycle carrier.
We tore it apart and sanded everything, then painted it Olive Drab and Rhino lined the tub and sprayed hammered black Metallic Rustoleum on the frame. Here you can see the short tongue before the fabbing.
Here it is in Texas, I put boards in because I was hauling Flag Stones
Here it is just after I installed the new suspension
Here you can see the extended tongue. Next comes a 2" BB lift and a light bar. I plan on doing some campin out here!!!
My wife promptly said "see you when you get back!" We have a house in Virginia Beach, go figure! Anyway I scrambled to at least get her roadworthy for drive down here a few months ago. Last week I got around to tracking down some CJ-3 leaf springs and new shocks so she is good to go.
at the house in VA Beach getting ready for the drive down. Before a tongue extension and tool box with gas can mounts. I also installed a 2" receiver under the rear frame for my bicycle carrier.
We tore it apart and sanded everything, then painted it Olive Drab and Rhino lined the tub and sprayed hammered black Metallic Rustoleum on the frame. Here you can see the short tongue before the fabbing.
Here it is in Texas, I put boards in because I was hauling Flag Stones
Here it is just after I installed the new suspension

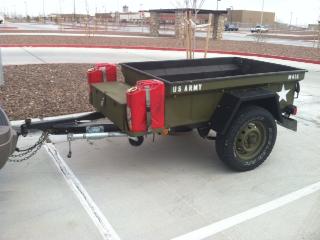

Here you can see the extended tongue. Next comes a 2" BB lift and a light bar. I plan on doing some campin out here!!!
