Default Fender Trim

I finally got a chance to start trimming my fenders. I only had time to do one today as it was very time consuming with a dremel. It looks alright but i roughed up the edge a little bit and i was wondering if theres any grommeting or something i can put over the edge to give it a cleaner look.

any suggestions?

Reply
Old May 4, 2010 | 08:42 PM
  #2
Captain Ruggy's Avatar
Junior Member

Joined: Mar 2010
Posts: 48
Likes: 0
From: Coal Region, Pa.
Year: 1994
Model: Cherokee
Engine: 4.0
Default

Looks good. You can get some edge molding at an auto parts store. I used stuff from advance when I did mine. It was small and had glue inside it that held really well.
Reply
Old May 4, 2010 | 09:34 PM
  #3
greatwhite's Avatar
Junior Member

Joined: May 2008
Posts: 66
Likes: 1
From: Peoria, AZ
Year: 86 and 89
Model: Cherokee
Engine: 2.5L and 4.0L
Default

looks good man, when you get a chance try to stuff the tire and see if it hits. I didnt and now i have a tire with 3/4" deep cuts in it. Live and learn I guess, didnt know i had that much flex.
Reply
Old May 4, 2010 | 09:54 PM
  #4
grn99's Avatar
Senior Member

Joined: Jan 2009
Posts: 836
Likes: 3
From: Redford MI
Year: 1999
Model: Grand Cherokee
Engine: 4.0
Default

x2 on the flex check. My avatar shows my issue.
Reply
Old May 4, 2010 | 10:00 PM
  #5
mwdouglas's Avatar
CF Veteran

Joined: Feb 2010
Posts: 1,010
Likes: 0
From: gloucester va
Year: 1990
Model: Cherokee
Engine: 4.0
Default

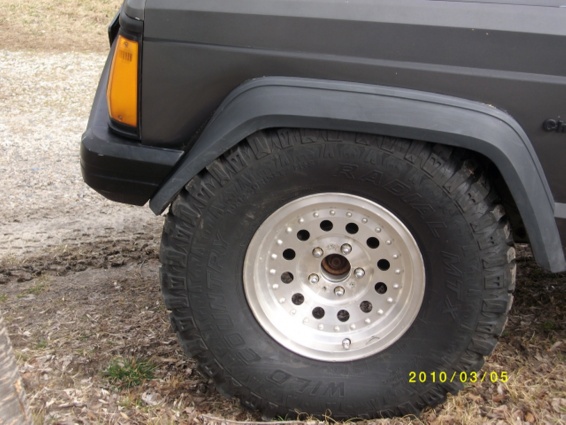

here's another good reason to do a flex test i have since removed stock flairs and trimmed about an inch off
Attached Images
Reply
Old May 5, 2010 | 12:20 AM
  #6
projectmayhem's Avatar
CF Veteran

Joined: Feb 2009
Posts: 1,268
Likes: 0
From: rogersville, tn
Year: 1988
Model: Cherokee
Engine: 4.0
Default

x3
Reply
Old May 5, 2010 | 08:07 AM
  #7
offroadnut36's Avatar
CF Veteran

Joined: Aug 2008
Posts: 5,603
Likes: 0
From: Hollidaysburg, PA
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Also watch out for that pinch seam. You might want to cut it and hammer it flat, like you would do a rear cut and fold.
Reply
Old May 5, 2010 | 10:22 AM
  #8
mwdouglas's Avatar
CF Veteran

Joined: Feb 2010
Posts: 1,010
Likes: 0
From: gloucester va
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Originally Posted by offroadnut36
Also watch out for that pinch seam. You might want to cut it and hammer it flat, like you would do a rear cut and fold.
i was wondering if you could cut and fold that seam i wasnt sure but now that it seems like i can will be the next mod cause my tire hits that thing
Reply
Old May 5, 2010 | 12:34 PM
  #9
Captain Ruggy's Avatar
Junior Member

Joined: Mar 2010
Posts: 48
Likes: 0
From: Coal Region, Pa.
Year: 1994
Model: Cherokee
Engine: 4.0
Default

I diddn't cut the pinch seam when I did mine, I just hammered it over.
Reply
Old May 5, 2010 | 01:22 PM
  #10
wheeler's Avatar
Senior Member

Joined: May 2009
Posts: 728
Likes: 1
From: gig harbor, washington
Year: 1995
Model: Cherokee
Engine: 4.0 L
Default

my pinch seam has two bolts so when i gt around to doing mine i figured i would just cut back to the second one... am i wrong with this idea?
Reply
Old May 5, 2010 | 01:57 PM
  #11
offroadnut36's Avatar
CF Veteran

Joined: Aug 2008
Posts: 5,603
Likes: 0
From: Hollidaysburg, PA
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Originally Posted by wheeler
my pinch seam has two bolts so when i gt around to doing mine i figured i would just cut back to the second one... am i wrong with this idea?
Just cut and fold the whole pinch seam that's in the fenderwell.
Originally Posted by Captain Ruggy
I diddn't cut the pinch seam when I did mine, I just hammered it over.
It's much easier to hammer it down when there are slits every 3" or so.
Originally Posted by mwdouglas
i was wondering if you could cut and fold that seam i wasnt sure but now that it seems like i can will be the next mod cause my tire hits that thing
Definitely cut and fold it, if you don't your gonna cut up your tires.
Reply
Old May 5, 2010 | 07:20 PM
  #12
krkx93's Avatar
CF Veteran

Joined: Sep 2009
Posts: 1,152
Likes: 2
From: louisiana
Year: 1994
Model: Cherokee
Engine: 2.5L
Default

looks good. i also did the cut and fold
Reply
Old May 5, 2010 | 07:27 PM
  #13
mwdouglas's Avatar
CF Veteran

Joined: Feb 2010
Posts: 1,010
Likes: 0
From: gloucester va
Year: 1990
Model: Cherokee
Engine: 4.0
Default

will be tackling that tomorrow thanks for the advise i wasn't sure but now i feel much better about doing it
Reply
Old May 6, 2010 | 10:51 AM
  #14
offroadnut36's Avatar
CF Veteran

Joined: Aug 2008
Posts: 5,603
Likes: 0
From: Hollidaysburg, PA
Year: 1990
Model: Cherokee
Engine: 4.0 lt. 242 cu.in.
Default

Originally Posted by mwdouglas
will be tackling that tomorrow thanks for the advise i wasn't sure but now i feel much better about doing it
Not a problem.
Reply
Old May 6, 2010 | 12:59 PM
  #15
mwdouglas's Avatar
CF Veteran

Joined: Feb 2010
Posts: 1,010
Likes: 0
From: gloucester va
Year: 1990
Model: Cherokee
Engine: 4.0
Default

"No mud permitted on vehicles, Please remove mud from parking space"
Oh really? Do you have a shovel?
"No"
Neither do I!
dude i love this its a riot
