EZ poop pipe ZJ lightbar

Old 03-17-2014, 03:55 PM
  #1
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default EZ poop pipe ZJ lightbar

GF took my Dakota and left me her ZJ and I was looking at the mangled factory fogs. I worked up a design in my head and started with a 3' length of 1" sched 80. I put a couple bends in it to suit my taste and cut the ends at a 45. The tabs are 2" wide flat stock .187" thick that I cut using a shear. Laid it all out on the ratty factory bumper to get an idea where I wanted the tabs. Not sure what lights will go on so I went with five tabs.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 03:57 PM
  #2
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Tacked all the tabs up,,,,,
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:02 PM
  #3
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Finshed all the welds and cleaned it up with a flap disc. The brackets will attach to the factory mounting holes. I used 1 1/2" .250" thick bar for the mounts as seen in the background.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:05 PM
  #4
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

The grill is a tight fit with the 1/4" bar, but it fits.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:10 PM
  #5
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Since I cut the tube ends at a 45 degree angle, the holes needed oval shaped plugs. I use plywood and carboard templates with my plasma cutter. My neighbor, who is a woodworker, suggested drilling the plywood template with a holesaw at a 45. That neat little trick did the job.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:20 PM
  #6
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

The plugs turned out to be a perfect fit!
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:24 PM
  #7
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

My buddy stopped by with a better JY bumper just in time for the final fitting. The bumper is a little muddy but it will clean up. Everything is welded up and ready for bedliner and lights.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 03-17-2014, 04:31 PM
  #8
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

and it's done. Total time maybe 3 hours including drying time.
Attached Thumbnails EZ poop pipe ZJ lightbar-image.jpg
offroadordnance is offline
Old 04-14-2014, 01:30 PM
  #9
Member

AZSnake98's Avatar

Join Date: Mar 2012
Posts: 160
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Hope you have some EXTREMELY slim/low profile lights or you are going to have to modify the grille.
AZSnake98 is offline
Old 04-22-2014, 09:32 PM
  #10
CF Veteran
Thread Starter

offroadordnance's Avatar

Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default

[QUOTE=AZSnake98;2832402]Hope you have some EXTREMELY slim/low profile lights or you are going to have to modify the grille.[/QUOT

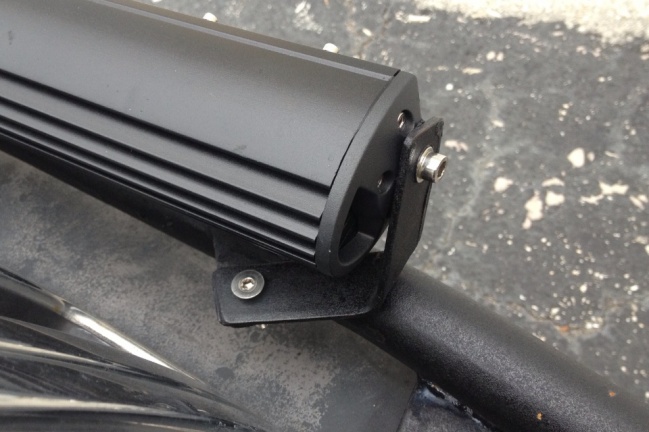

I have plenty of room behind the light bar. I made these brackets which move the light up an inch, but there's a few inches clearance regardless.
