Easier way to keep it cool
03-14-2010, 04:46 PM
#1
CF Veteran
Thread Starter
Easier way to keep it cool

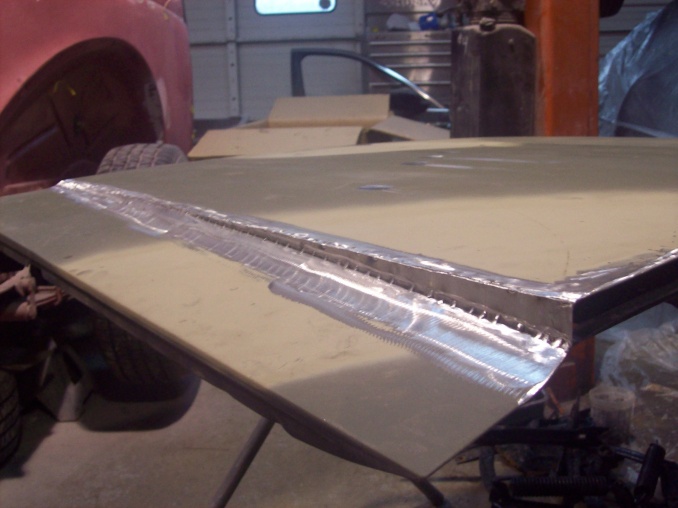

This is what I spent all day doing yesterday. Wasint really going for looks. Was more of a concern to keep the temp down by letting the hot air out thru the top. I raised it 1 inch which I thought would be plenty. Anybody thats going to do this should know if not already know keep it cool and don't go nuts on the welding or it will warp the hood bad and it will look like crap. I would do a write up but I don't have the privilages to. Tell me what you guys think. Thanks
Last edited by JeepingDan; 03-14-2010 at 06:54 PM.
03-14-2010, 05:04 PM
#3
CF Veteran
That is almost EXACTLY what I was thinking about doing this summer! Well now I know exactly what it will look like. awesome. Kudos!
03-14-2010, 05:11 PM
#4
CF Veteran
Thread Starter
03-14-2010, 05:15 PM
#5
CF Veteran
What I want to do is go up about an inch and a half. And in the middle part, keep that at stock height. so I would have to make 4 cuts and more welds, but have a double bulge hood.
Trending Topics
03-14-2010, 06:45 PM
#8
CF Veteran
Thread Starter
03-14-2010, 08:35 PM
#9
Junior Member
Join Date: Nov 2009
Location: MORIARTY, N.M.
Posts: 50
Likes: 0
Received 1 Like
on
1 Post
Year: 1989
Model: Cherokee
Engine: 4.0
I just put in this vents. They work great for me. I like your hood too. Just like a cowl induction hood. With out the cost of buying a new hood.
03-16-2010, 11:45 PM
#12
CF Veteran
Join Date: May 2008
Posts: 1,237
Likes: 0
Received 1 Like
on
1 Post
Year: 1988
Model: Cherokee
Engine: 4.0
I did the 1" spacers on the back of mine but that is a damn nice job you did on that one. There is someone on here that built a cowl into the back of the hood and moutned a radiator fan in it. The only downfall I see is I get a little lawer of crap on the bottom of my windshield since i did mine. Doesnt bother me thow, I figure its at the bottomand makes the ice a little easier to get off down there.
03-18-2010, 07:30 AM
#15
Senior Member
Join Date: Oct 2009
Location: Sutton, New Hampshire
Posts: 633
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Easiest way to keep the welds from warping the thin metal of the hood is to tack on end, wipe with a cold, wet rag, then move down to the opposite end and tack, wipe down, and basically move back and forth between the two extremes of distance until you reach in the middle. That way no one part of the hood has a chance to heat up enough to warp.
