Custom cargo box

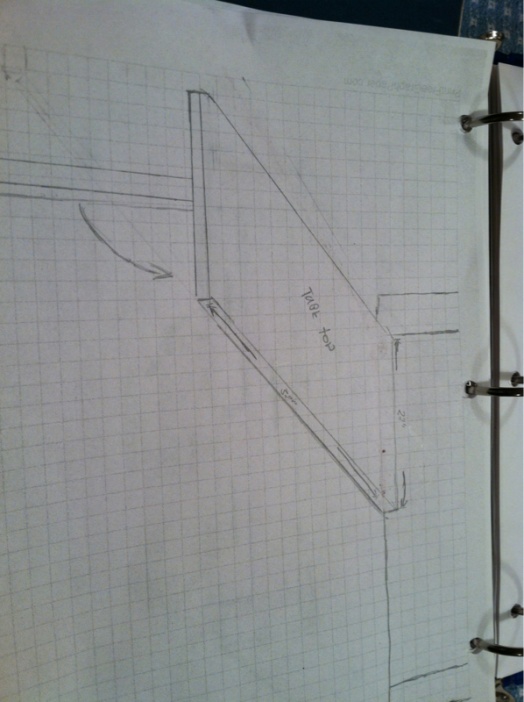

I have decided its time to build a cargo box for the Xj but I wanted to do something different. I wanted to build something with plenty if storage space for recovery gear, an axe, spare parts, tools, etc. I also wanted to build in some nice features for long trail rides and camping trips. This I what I came up with. The top is just a drawer. The bottom right side is a drawer for a camping stove/grill and the left will be a pullout table with a leg that folds down to support the end. I was hoping to get some comments. I plan to start building it in a couple weeks.
#2
CF Veteran
Join Date: Aug 2011
Location: San Jose
Posts: 1,994
Likes: 0
Received 7 Likes
on
7 Posts
Year: 89
Model: Cherokee
Engine: 4.0 I6
Pictures are sideways so its a little hard to see.
a few things that come to mind:
-I would consider making your table a swing out deal, I.E have it pivot from one corner out, measuring the whole width of the box. you would have to raise the grill area but not by much, maybe an inch or two depending on the thickness of the table. The amount of table space you gain is incredible though.
-You have an area to the left of your table, that is unused? I believe it fits snug with the wheel well from what I can see. If so, do you have the same thing on the other side? I see a little box that says storage but isn't that what the whole thing is for? Why not just make it part of the rest of the box?
Just some things to consider, I look forward to seeing your progress, this is something I have contemplated a well.
Cheers.
a few things that come to mind:
-I would consider making your table a swing out deal, I.E have it pivot from one corner out, measuring the whole width of the box. you would have to raise the grill area but not by much, maybe an inch or two depending on the thickness of the table. The amount of table space you gain is incredible though.
-You have an area to the left of your table, that is unused? I believe it fits snug with the wheel well from what I can see. If so, do you have the same thing on the other side? I see a little box that says storage but isn't that what the whole thing is for? Why not just make it part of the rest of the box?
Just some things to consider, I look forward to seeing your progress, this is something I have contemplated a well.
Cheers.
#4
Member
Thread Starter
Join Date: Aug 2011
Location: Quincy
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO
Thanks for the input. Sorry about the pix i didnt realize they would come out portrait and not landscape. As far as the side box is concerned, the drawers are only going to be 44 inches wide , the width of the wheel wells so as a result I have 5 inches if space on the side that I figured I would just box that off for more storage. Also i considered purring an inverter in there. On the other side there is the bump for the gas full hose so I figured I would just close that off and leave it be. For the table I like the idea of the full size table but the pivot concerns me a bit. In stead of a pivot I could make the box an inch taller and make a slot for the table to slide in so that, in stead of being attached to the box, it just stores in it and I can set it up where I like. I also wouldn't have to worry about the ground being flat around the back of the jeep.
#6
Member
Thread Starter
Join Date: Aug 2011
Location: Quincy
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0L HO

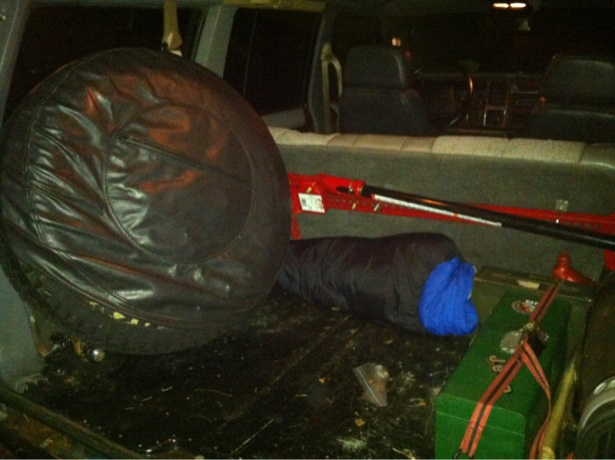

This is what I am starting with. I am also currently in the planning stages for a tire carrier bumper. The tire and hi-lift will be relocated outside to the carrier. The toolbox will end up in the deep end in the deep end of the drawer along with my fold up shovel.
