Converting to bead locks
#1
Member
Thread Starter
Join Date: Dec 2008
Location: Holts Summit Missouri
Posts: 242
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
Converting to bead locks
Is there any way to convert my soft 8s to bead locks? If this is not possible someone just slap me please...
#2
CF Veteran
How about if I slap you then tell you?
OMF Beadlocks
http://www.omfperformance.com/beadlo...onversions.php
OMF Beadlocks
http://www.omfperformance.com/beadlo...onversions.php
#5
MJ>XJ
Join Date: Mar 2009
Location: Griffin, G.A.
Posts: 17,836
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1990
Model: Comanche
Engine: 4.0 I6
double beadlocks... just get you some H1 wheels and have them re-centered... and get some PVC inserts to make the double beadlocks instead of just one side like most... they come with runflats but they sucks and are heavy... you dont want them... lol

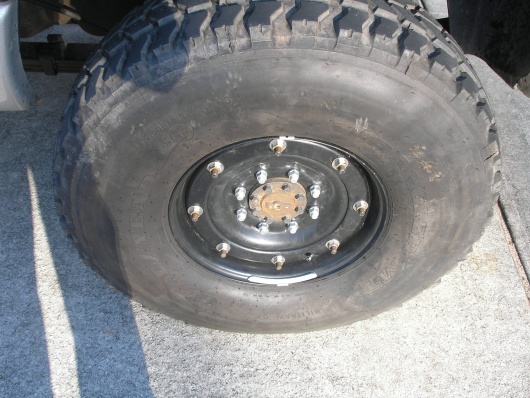

first one is the 12 bolt style... designed for radials and way better.
the second are 8 bolt style and i was breaking the outter bolts off like they were nothing... but not designed for on road use at high speeds and radials... made for the 36 bias plys...
first one is the 12 bolt style... designed for radials and way better.
the second are 8 bolt style and i was breaking the outter bolts off like they were nothing... but not designed for on road use at high speeds and radials... made for the 36 bias plys...
#6
MJ>XJ
Join Date: Mar 2009
Location: Griffin, G.A.
Posts: 17,836
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1990
Model: Comanche
Engine: 4.0 I6
you can get the wheels on ebay for $250ish shipped... theres a guy on pirate who sells the PVC inserts and can send the recentering sections in different styles... or you can send the wheels to him and get him to recenter for 5 lug and backspacing... heck you can buy the wheels from him too... even make rock rings that protect the bolts you see sticking out... pretty sweet... my 8 stud style will eventually go on the XJ but the 12 bolt style is on my 03 cummins... that how i know the 8 bolt style wont make it on the road... lol... even drilled the holes larger and stuck 9/16 grade 8 bolts and nuts instead of lugs and they pulled in half like they were nothing... lol
#7
MJ>XJ
Join Date: Mar 2009
Location: Griffin, G.A.
Posts: 17,836
Likes: 0
Received 4 Likes
on
3 Posts
Year: 1990
Model: Comanche
Engine: 4.0 I6
this is what they would look like recentered to 5 lug with rock rings...
http://cgi.ebay.com/ebaymotors/ws/eB...d=260506448063
dang there sexy...
http://cgi.ebay.com/ebaymotors/ws/eB...d=260506448063
dang there sexy...
Trending Topics
#8
Member
Thread Starter
Join Date: Dec 2008
Location: Holts Summit Missouri
Posts: 242
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
GO TO www.crawlfab.com $225.00 for rings.
#9
CF Veteran
Join Date: Aug 2009
Location: Herriman, Utah
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Just do what I did, find a buddy with access to a water jet, give him dimensions, have him cut them out, then weld em up! Pretty simple!
#11
Member
Thread Starter
Join Date: Dec 2008
Location: Holts Summit Missouri
Posts: 242
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0L
So do they first cut the lip off off the rim then weld the inner ring on? Then the outer ring bolts to the inner?
X1994J Do you have any pics of the sides of the rim completed? Like the width of the rim not the front?
There is a new shop here in town that has a water jet and i cant imagine they would charge alot to cut them for me. And ill have to ask my uncle he has some pretty serious connections around town. He may be able to get them to do it even cheaper....
X1994J Do you have any pics of the sides of the rim completed? Like the width of the rim not the front?
There is a new shop here in town that has a water jet and i cant imagine they would charge alot to cut them for me. And ill have to ask my uncle he has some pretty serious connections around town. He may be able to get them to do it even cheaper....
#12
CF Veteran
Join Date: Aug 2009
Location: Herriman, Utah
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
So do they first cut the lip off off the rim then weld the inner ring on? Then the outer ring bolts to the inner?
X1994J Do you have any pics of the sides of the rim completed? Like the width of the rim not the front?
There is a new shop here in town that has a water jet and i cant imagine they would charge alot to cut them for me. And ill have to ask my uncle he has some pretty serious connections around town. He may be able to get them to do it even cheaper....
X1994J Do you have any pics of the sides of the rim completed? Like the width of the rim not the front?
There is a new shop here in town that has a water jet and i cant imagine they would charge alot to cut them for me. And ill have to ask my uncle he has some pretty serious connections around town. He may be able to get them to do it even cheaper....
The inner ring sits inside the lip.. like so.
The inner bead seats on the rim like normal. The outer bead is clamped between the inner and outer ring. Here is a shot with the outer ring sitting on top of the inner...
Another shot from the side.
Here is a pic of it welded...
This style of bead lock will make your rim about an inch wider over all.
Last edited by X1994J; 12-23-2009 at 10:38 AM.
#13
Registered Users
Join Date: Dec 2009
Location: Everett, WA
Posts: 1,859
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
You guys that have DIY beadlocks, how do you center the tire on the wheel? All the manufacturers of BL have a centering ring and anitconeing ring. I dont see those with the DIY
#14
CF Veteran
Join Date: Aug 2009
Location: Herriman, Utah
Posts: 1,534
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
Very carefully. I centered everything best I could. i never even put mine on a balance machine, dumped 8 ounces of BB's in each one, mounted them up, and ran them down the freeway at 80 mph. There was a very small amount of coning, that really didn't bother be or affect the way they worked, heck, nobody ever even noticed it or said anything about it. I ran mine at 4 pounds in Moab, it liked it.
