Another Rear Bumper
06-07-2013, 05:40 PM
#1
Member
Thread Starter
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0

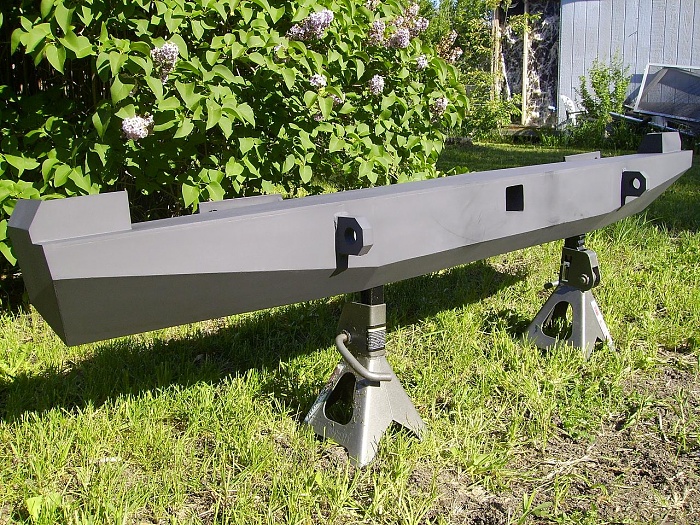

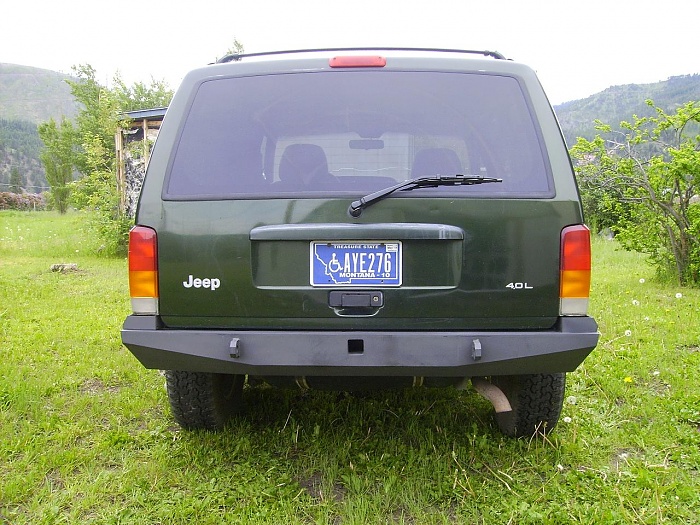

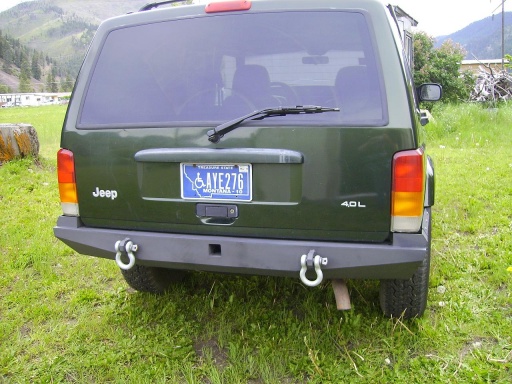

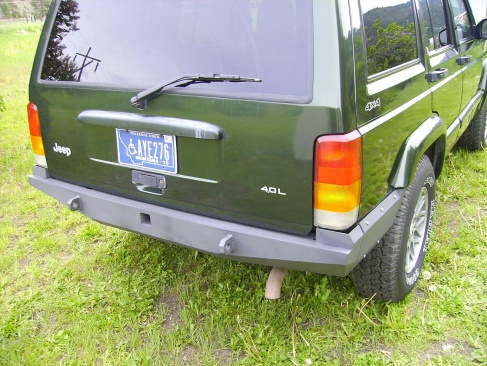

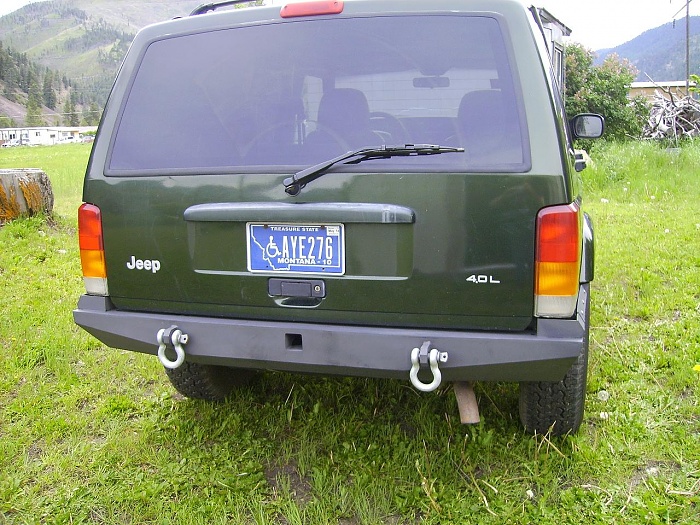

Another Rear Bumper

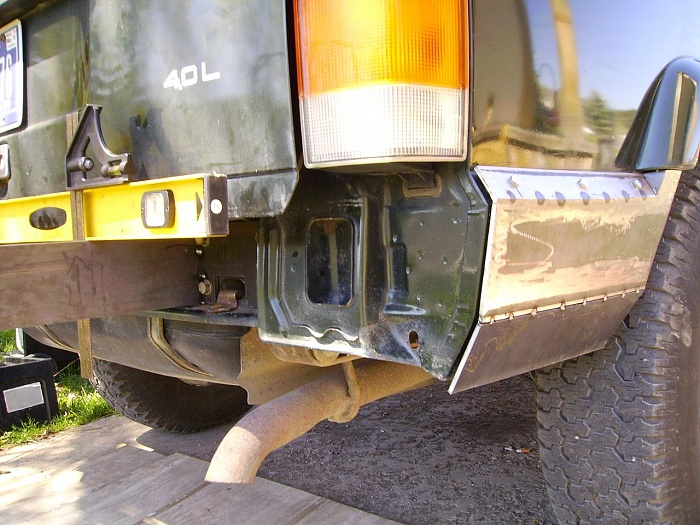

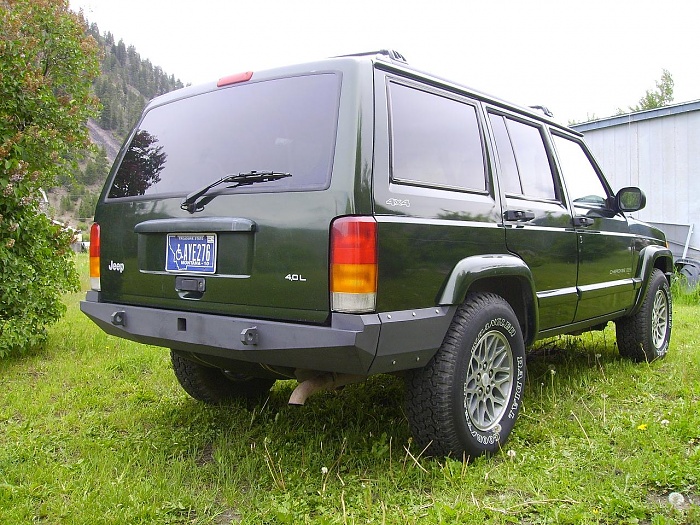

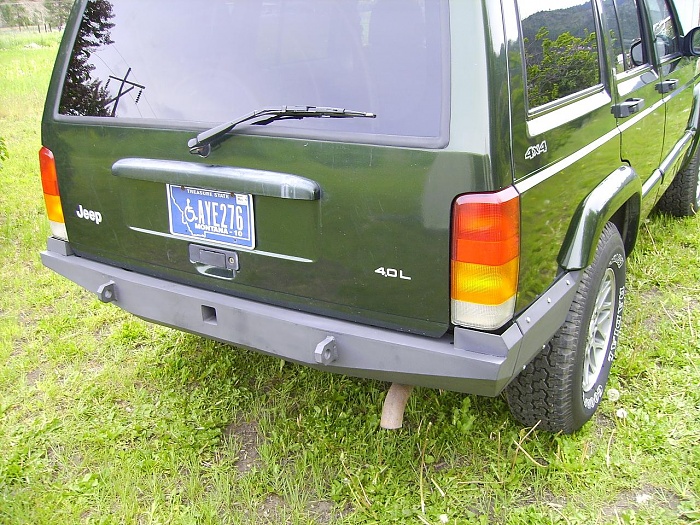

Well, I really like the looks of Logan's bumpers and I wanted some rear quarter panel armour as well. I was shooting for some nice, crisp lines without the "rounded-off-with-a-grinder" look.
06-07-2013, 05:44 PM
#2
Member
Thread Starter
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0

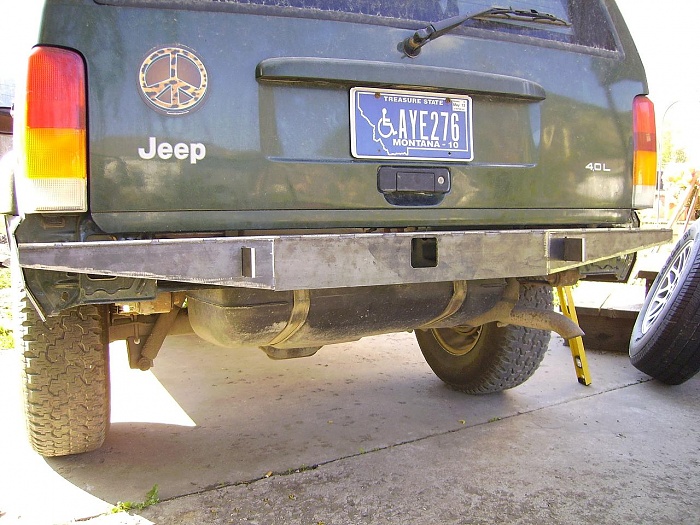

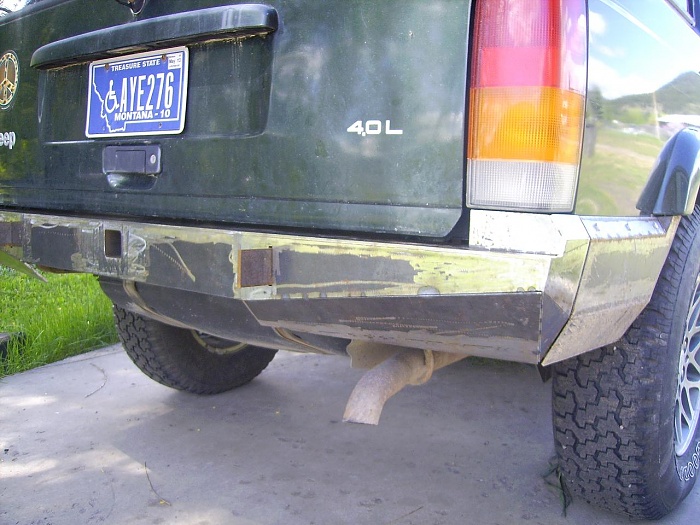

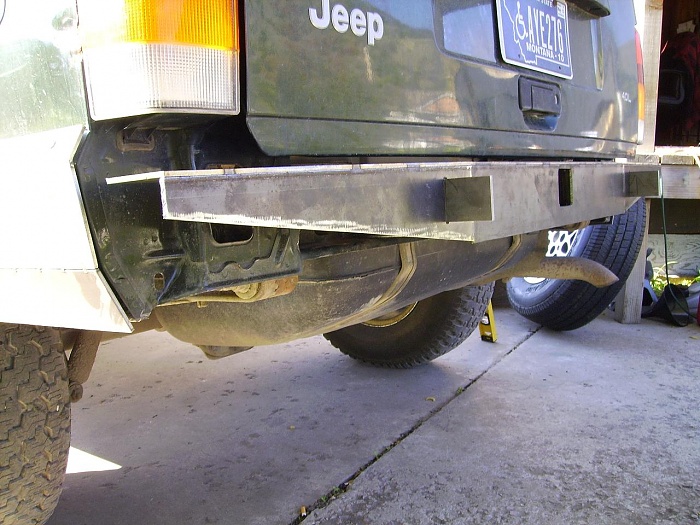

Sorry to not take a lot of pictures during the build, but you probably get the idea......I would say it takes at least twice as long to build one like this, with all the beveling, than it does to just "weld it up and grind it down". I think it's worth it though.
06-10-2013, 07:04 PM
#7
Newbie
Join Date: Jun 2013
Location: Raleigh, NC
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
What everyone else said! Can you elaborate on this "not just welding it up and grinding it down"? I guess you basically just cut to make nice tight joints, and then weld it up on the backside? Really like the corner protection as well. Extremely nice lines.
Trending Topics
06-10-2013, 09:30 PM
#8
Member
Thread Starter
Join Date: May 2012
Posts: 132
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Thanks,
In retrospect, maybe that didn't sound very nice
What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker.
As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
In retrospect, maybe that didn't sound very nice
What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker. As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
06-10-2013, 09:35 PM
#9
Junior Member
Thanks,
In retrospect, maybe that didn't sound very nice What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker.
As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
In retrospect, maybe that didn't sound very nice
What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker. As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
Bumper looks good.
06-10-2013, 09:49 PM
#10
Newbie
Join Date: Jun 2013
Location: Raleigh, NC
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Thanks,
In retrospect, maybe that didn't sound very nice What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker.
As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
In retrospect, maybe that didn't sound very nice
What I was refering are bumpers that are welded sloppily and then rounded off with a grinder. It is probably just a personal peeve due to many years as a cabinet maker. As far as crisp corners....ya gotta bevel the crap out of em to get them to fit right.....the alternative is to fill a large outside corner with a weld bead and try to grind a nice straight line. I tend to bevel and weld the inside strong and fit the outside as close as possible...then run a very small bead for filler, and carefully grind it down.
In most instances, especially if the bumper is going to be finished in a flat, or medium gloss, finish....it probably doesn't matter. However, if a person wanted to use a high gloss finish...like matching the body color...the lines would need to be right IMHO.
