Default 14-bolt build for MJ

I'm finally starting on my 14 bolt build for the rear of my MJ.

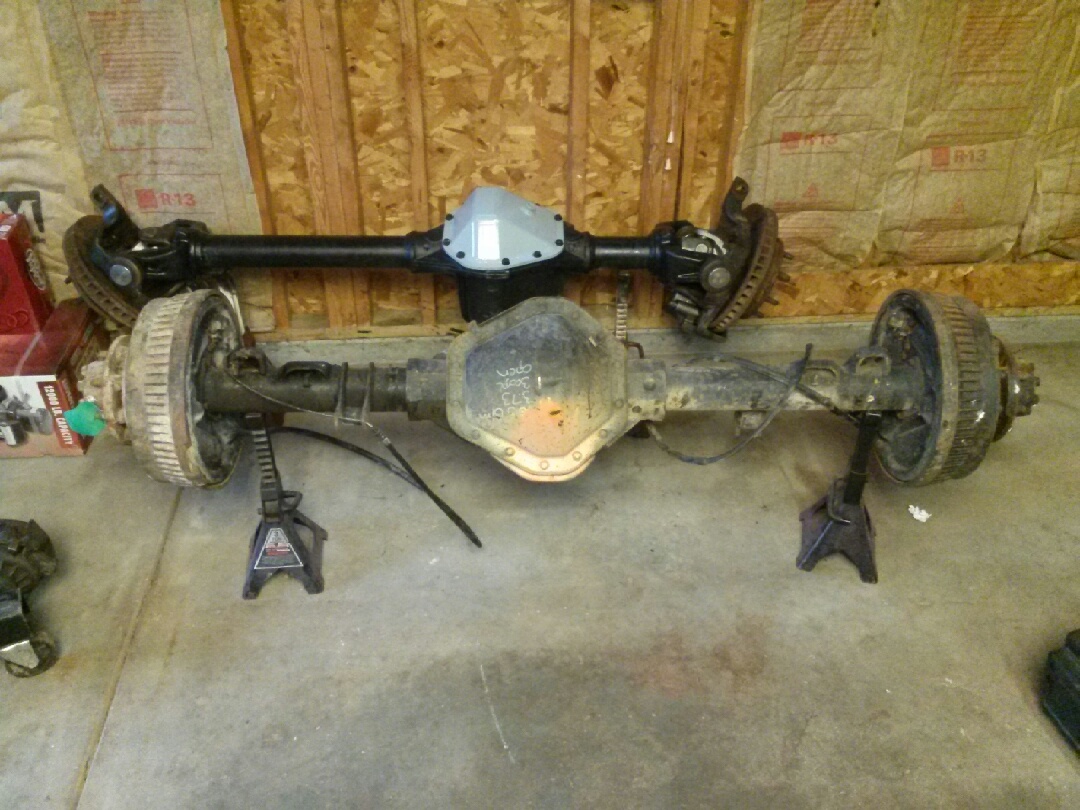

Scored 2 of these from my shop for $100. both with fresh rebuilds (some years ago).

going to set it up with anti wrap leaf spring perch's. 5.13 gears, Grizzly locker, HD diff cover, Shave bottom of housing, Pinion guard, Disc brakes, truss and possibly a traction arm.
14-bolt build for MJ-cam013471.jpg

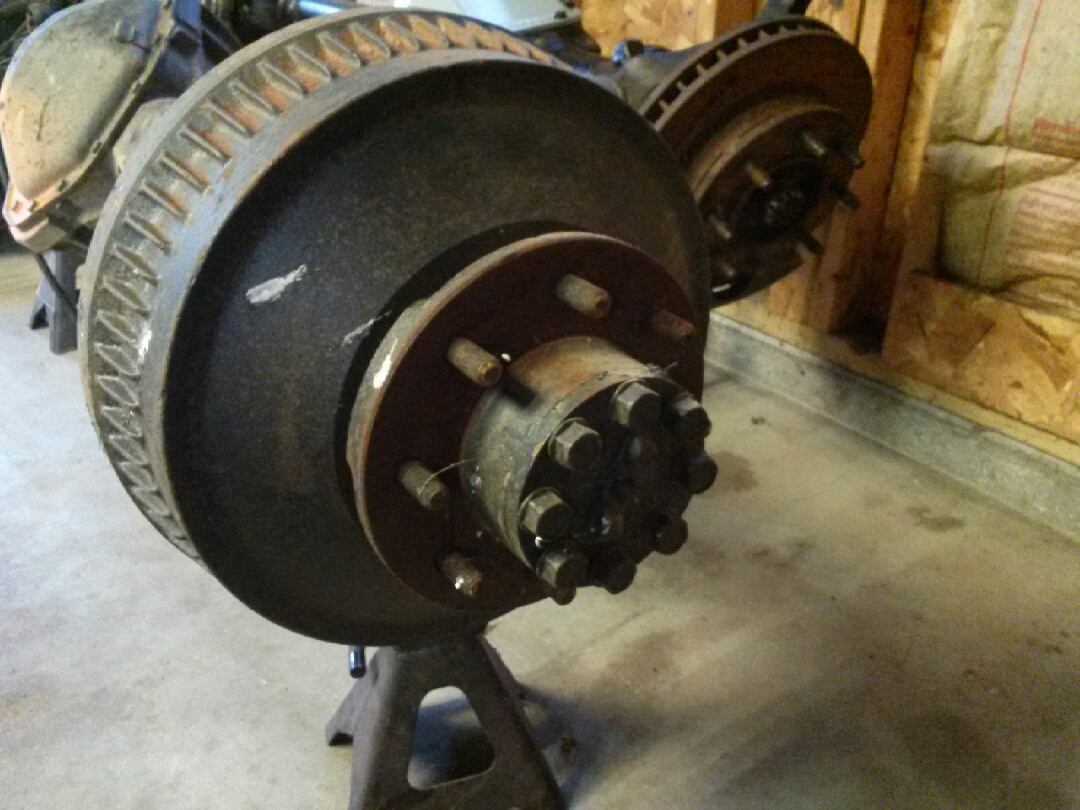

14-bolt build for MJ-cam013501.jpg
Brand new 3.73 gears... Not gonna do me much good...
14-bolt build for MJ-cam013511.jpg
Shiny parts are always nice to see

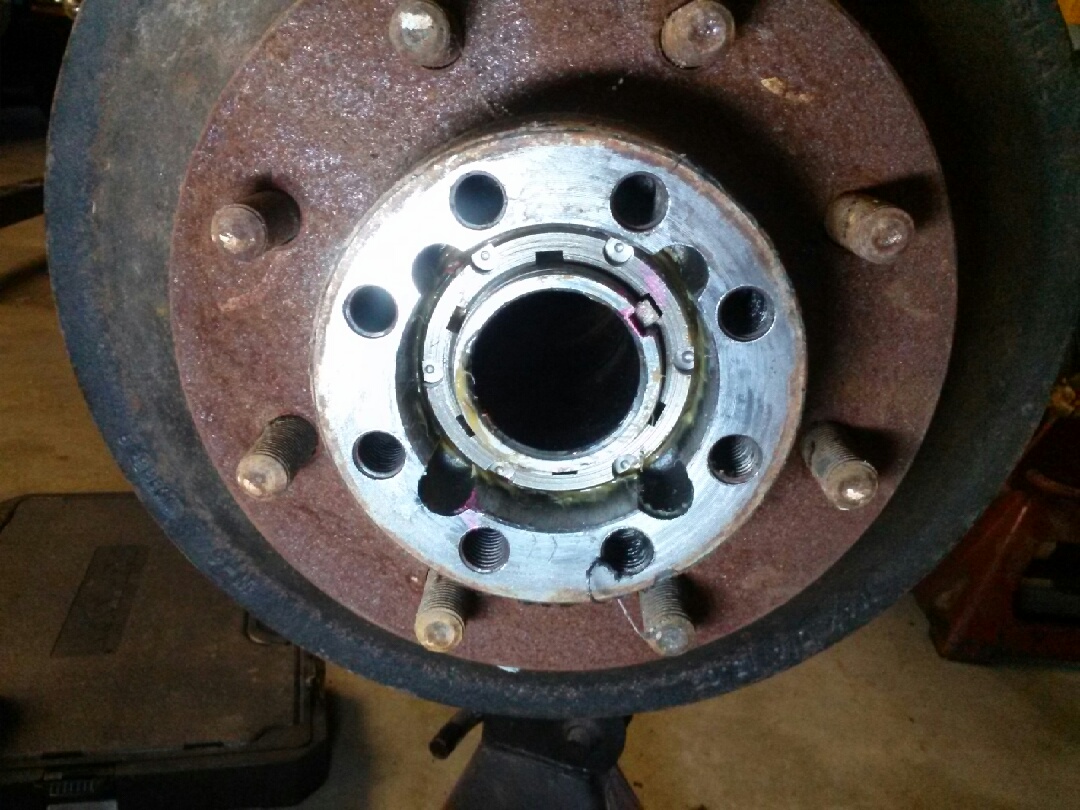

14-bolt build for MJ-cam013531.jpg

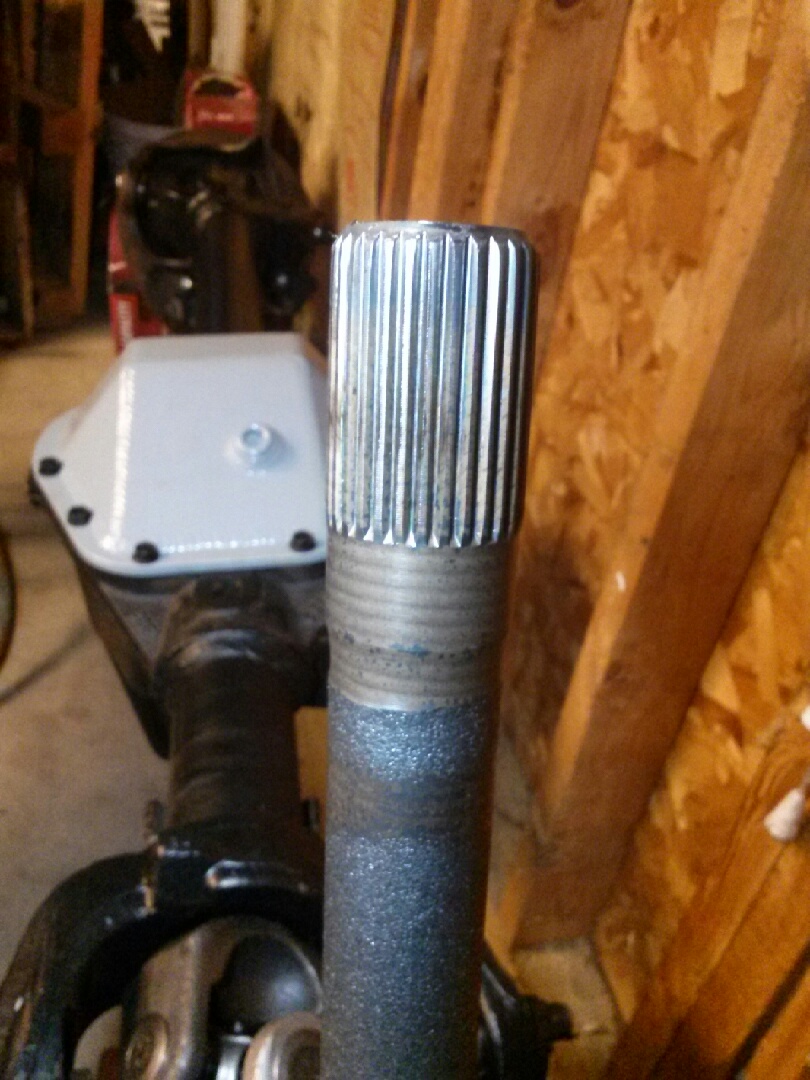

14-bolt build for MJ-cam013541.jpg
That Jeep Guy XJMJ is offline
Old 09-02-2015, 07:13 AM
  #2
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,078
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

What are u gonna run in the front?
XJwonders is online now
Old 09-02-2015, 12:07 PM
  #3
CF Veteran

adamk's Avatar

Join Date: Aug 2010
Location: Greensboro
Posts: 1,220
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by XJwonders View Post
What are u gonna run in the front?
My guess would be the 8 lug 44 in the back ground
adamk is offline
Old 09-02-2015, 05:20 PM
  #4
Seasoned Member

StuckBuck's Avatar

Join Date: Mar 2015
Location: Oregon
Posts: 453
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by adamk View Post
My guess would be the 8 lug 44 in the back ground
LOL! Yep I'd put my money on that!
StuckBuck is offline
Old 09-02-2015, 06:45 PM
  #5
CF Veteran

caged's Avatar

Join Date: Nov 2008
Location: Northern Ontario, Canada
Posts: 7,495
Year: 1990, 1999, 2000
Model: Cherokee
Engine: 4.0
Default

nice.
are you gonna do the 15 bolt and a shave?
caged is offline
Old 09-02-2015, 08:01 PM
  #6
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,078
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Originally Posted by adamk View Post
My guess would be the 8 lug 44 in the back ground
I don't know, that kinda look like a 60
XJwonders is online now
Old 09-02-2015, 08:23 PM
  #7
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,339
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

Originally Posted by adamk View Post
My guess would be the 8 lug 44 in the back ground
Its a Dana 60. shortened with chromoly inner shafts... Details for that are in my Comanche build thread

Originally Posted by caged View Post
nice.
are you gonna do the 15 bolt and a shave?
Yes, I plan on running the Barnes4wd Diff cover. Just bolt it on and remove the excess housing area. No shaving the ring gear or needing to re-weld the bottom of the housing.
That Jeep Guy XJMJ is offline
Old 09-02-2015, 08:37 PM
  #8
CF Veteran

adamk's Avatar

Join Date: Aug 2010
Location: Greensboro
Posts: 1,220
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by XJwonders View Post
I don't know, that kinda look like a 60
Good call.
adamk is offline
Old 11-08-2015, 12:14 PM
  #9
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,339
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

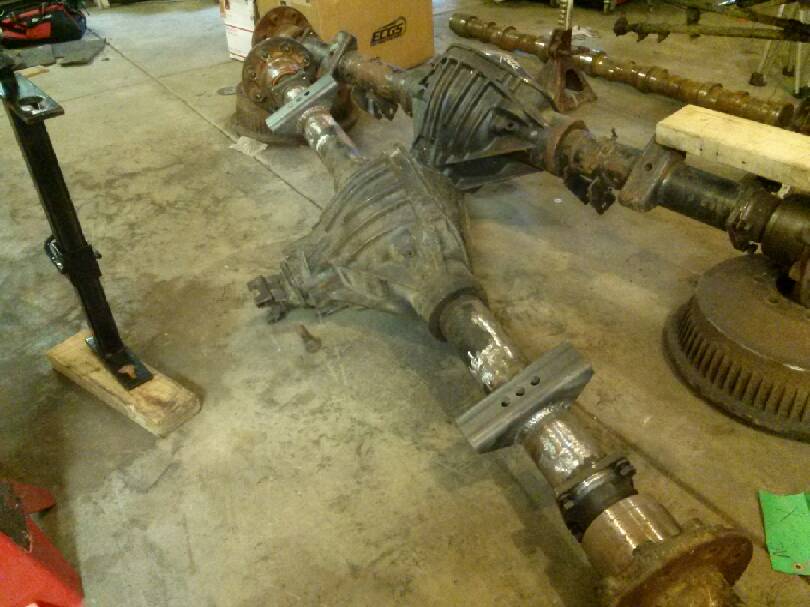

Old brackets removed and the anti wrap leaf perches welded up. Also removed all the factory HEAVY drum assy's

14-bolt build for MJ-cam013761.jpg

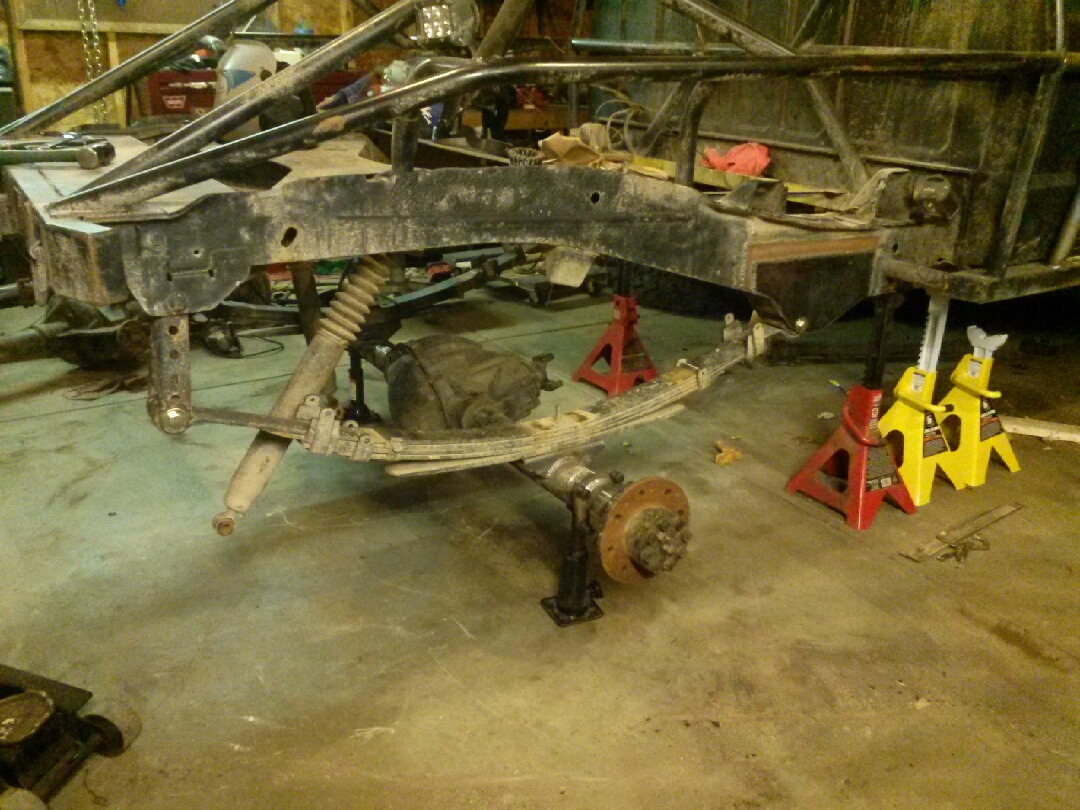

Had to do a little repair work to my factory leaf spring mount(s). Axle isn't "ready" for install yet BUT I did want to check my fitment for the perch's

14-bolt build for MJ-cam015021.jpg

Just ordered up the Grizzly locker this weekend, should be here within the next week. Gears and install/setup to come
That Jeep Guy XJMJ is offline
Old 11-10-2015, 07:32 PM
  #10
Seasoned Member

StuckBuck's Avatar

Join Date: Mar 2015
Location: Oregon
Posts: 453
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

Man that rear half looks sick I'm gunna have to go read your build thread lol!
StuckBuck is offline
Old 11-11-2015, 05:53 PM
  #11
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,339
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

Originally Posted by StuckBuck View Post
Man that rear half looks sick I'm gunna have to go read your build thread lol!


Haha thanks There's a little more tube work where that came from in the build thread...
That Jeep Guy XJMJ is offline
Old 12-03-2015, 08:33 PM
  #12
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,339
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

14-bolt build for MJ-imag0005.jpg

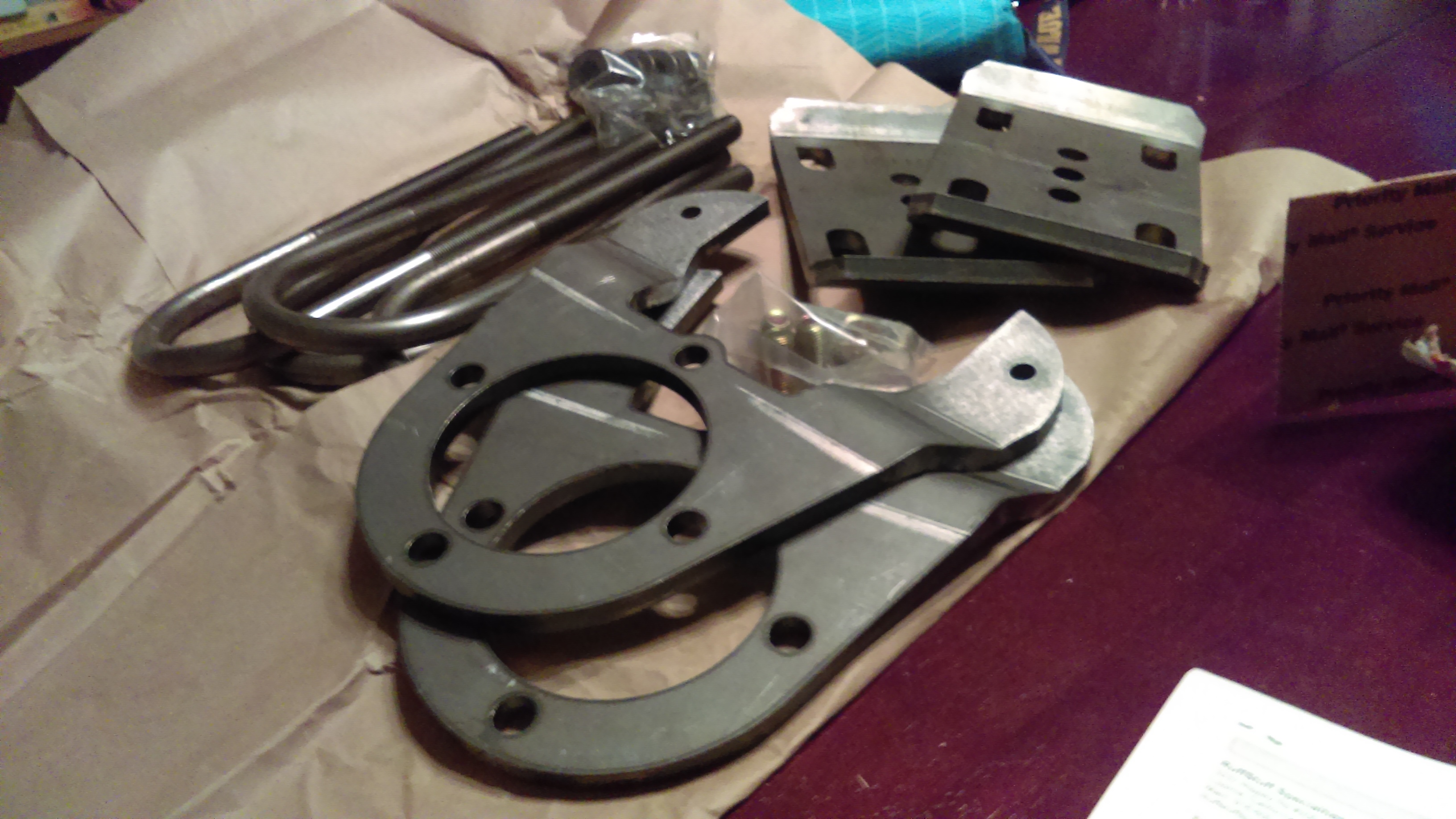

Ruffstuff Specialties u-bolts and plates and disc brake adapters

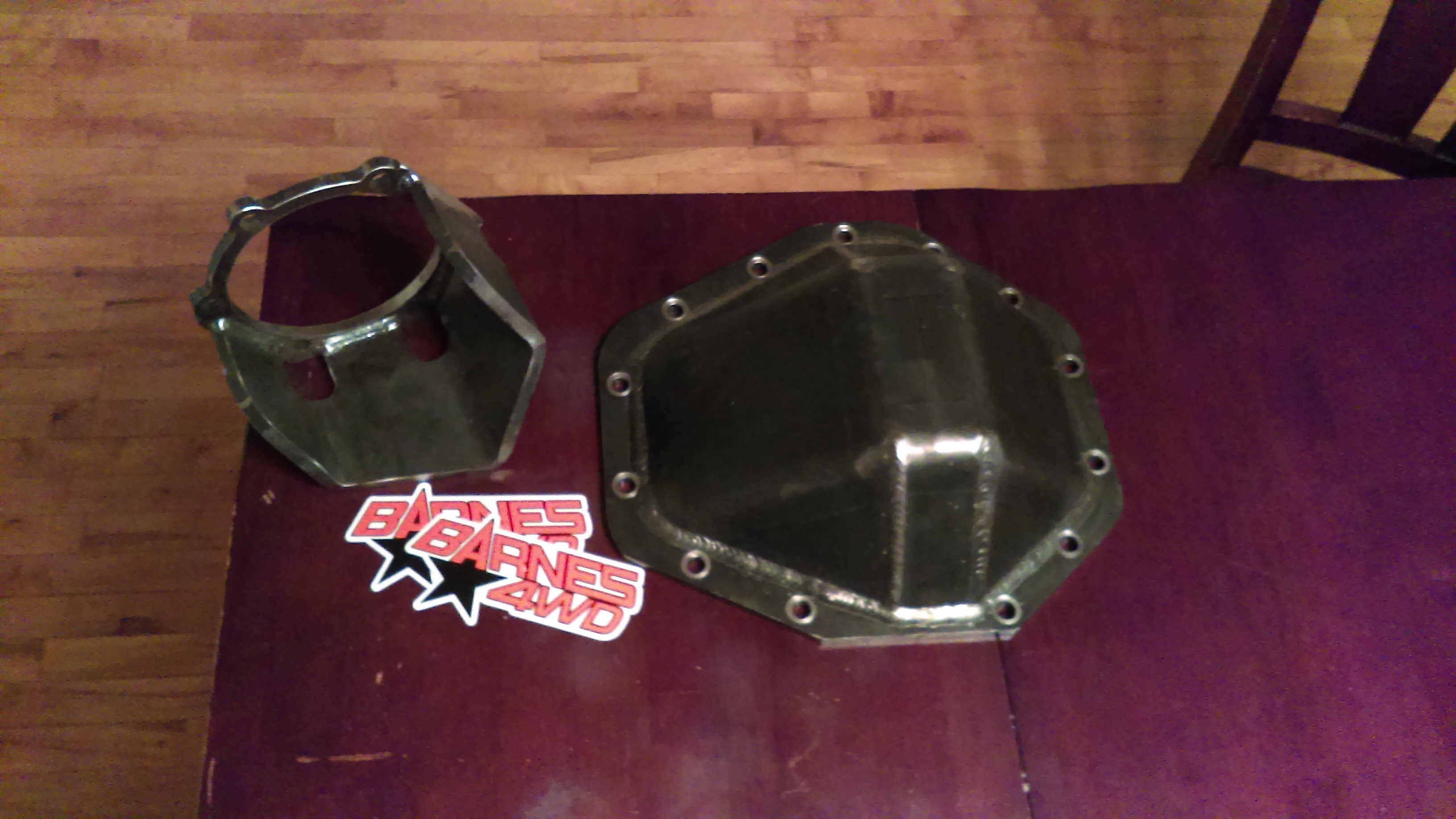

14-bolt build for MJ-barnes-4wd.jpg
Barnes4wd 3/8" cover and 3/8" pinion guard

14-bolt build for MJ-imag0039.jpg

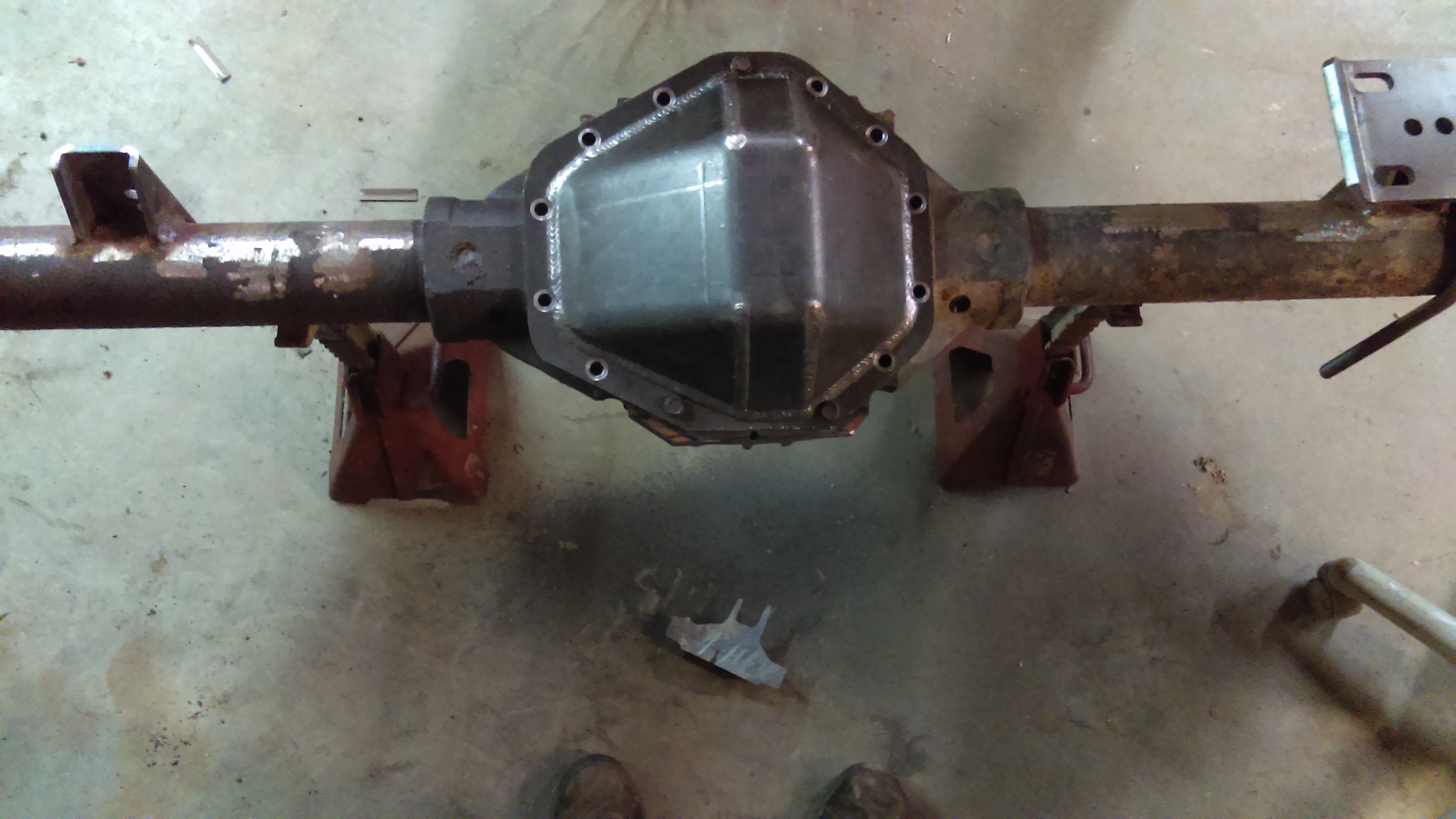

Chop Chop

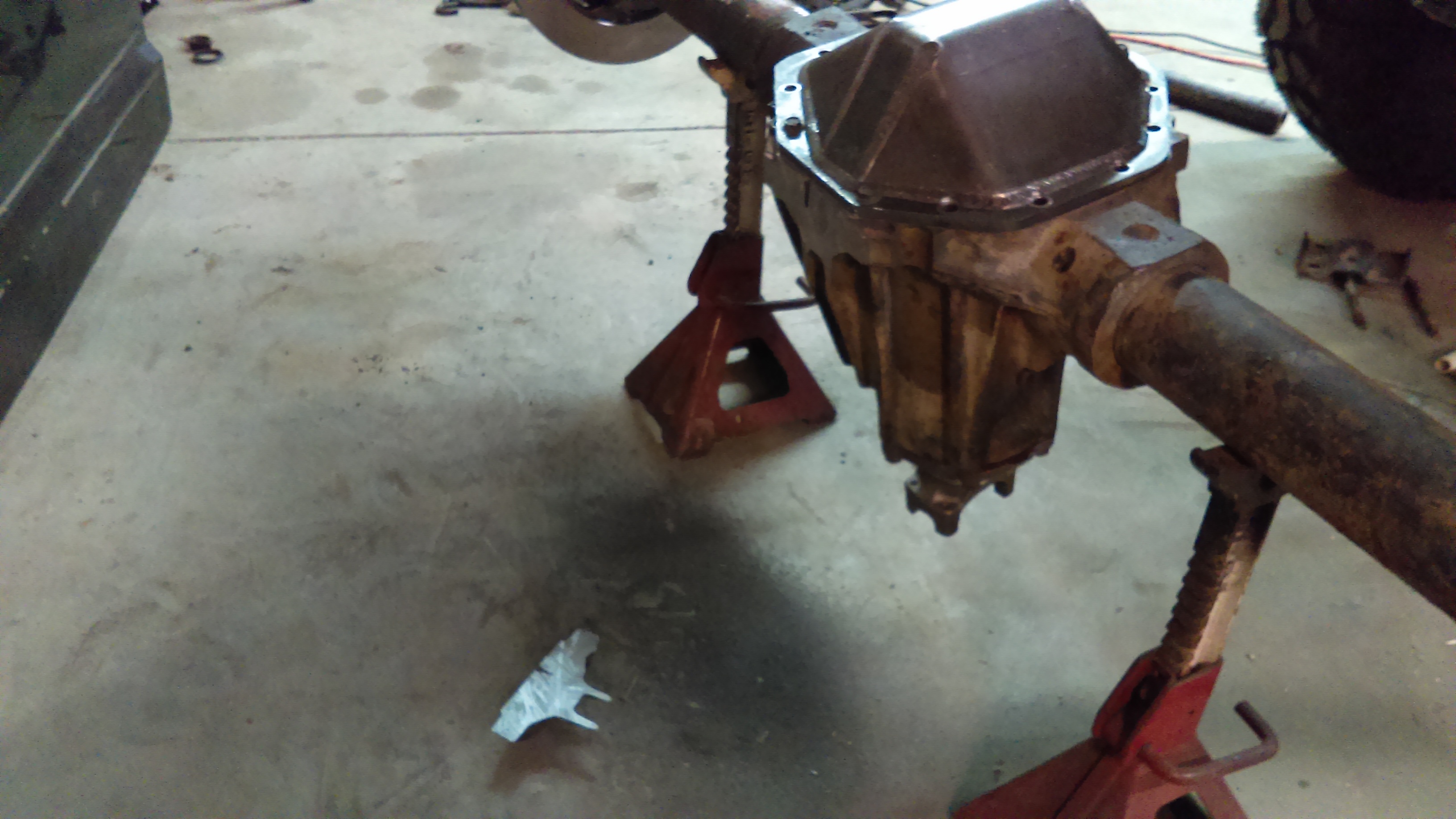

14-bolt build for MJ-imag0038.jpg
That Jeep Guy XJMJ is offline
Old 12-05-2015, 06:47 PM
  #13
CF Veteran
Thread Starter

That Jeep Guy XJMJ's Avatar

Join Date: Jun 2009
Location: Michigan
Posts: 1,339
Year: 1987 MJ, 1998 XJ, 1973 J2000, C2500
Model: Comanche
Engine: 4.0L H.O, 2.5L
Default

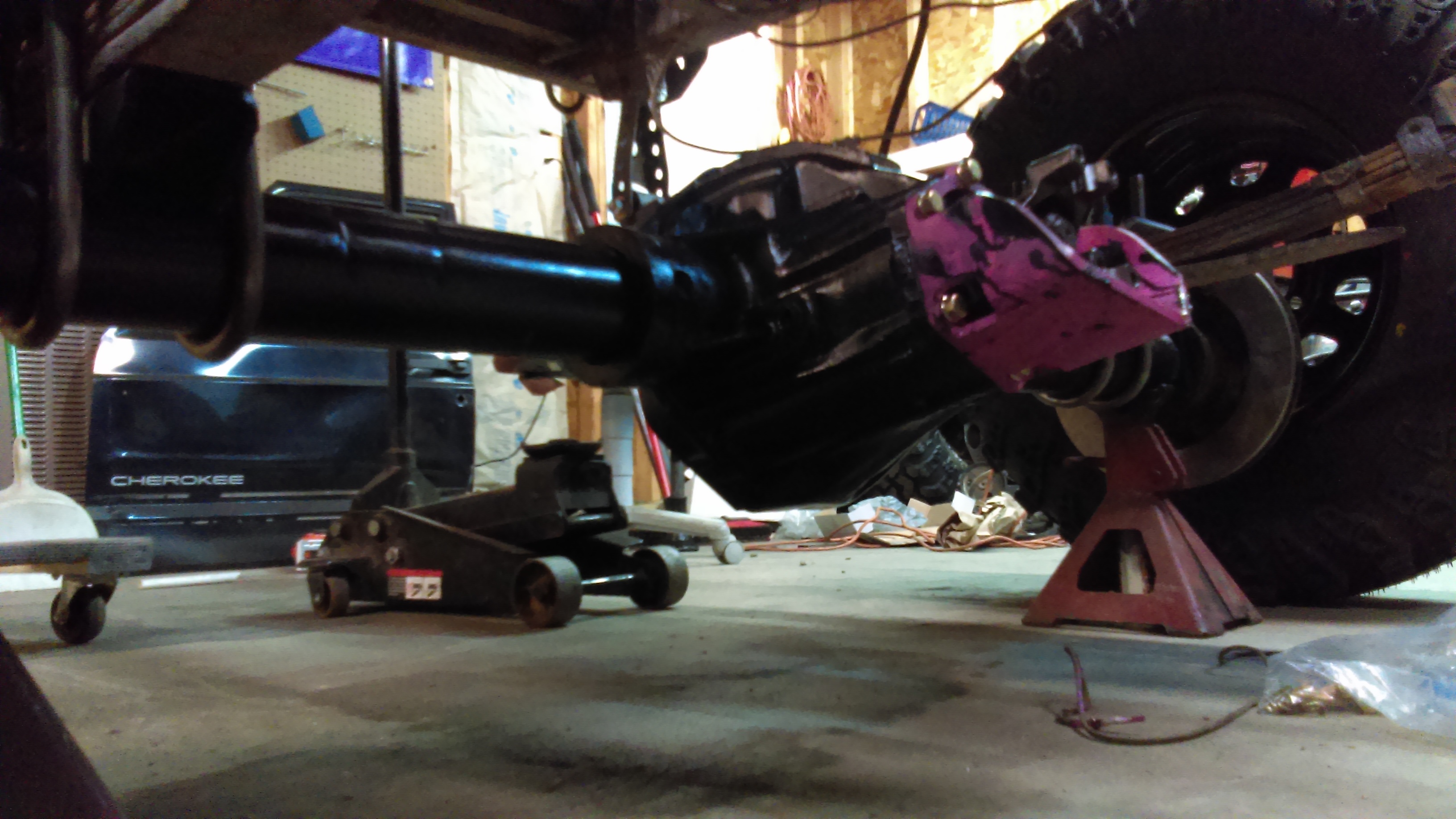

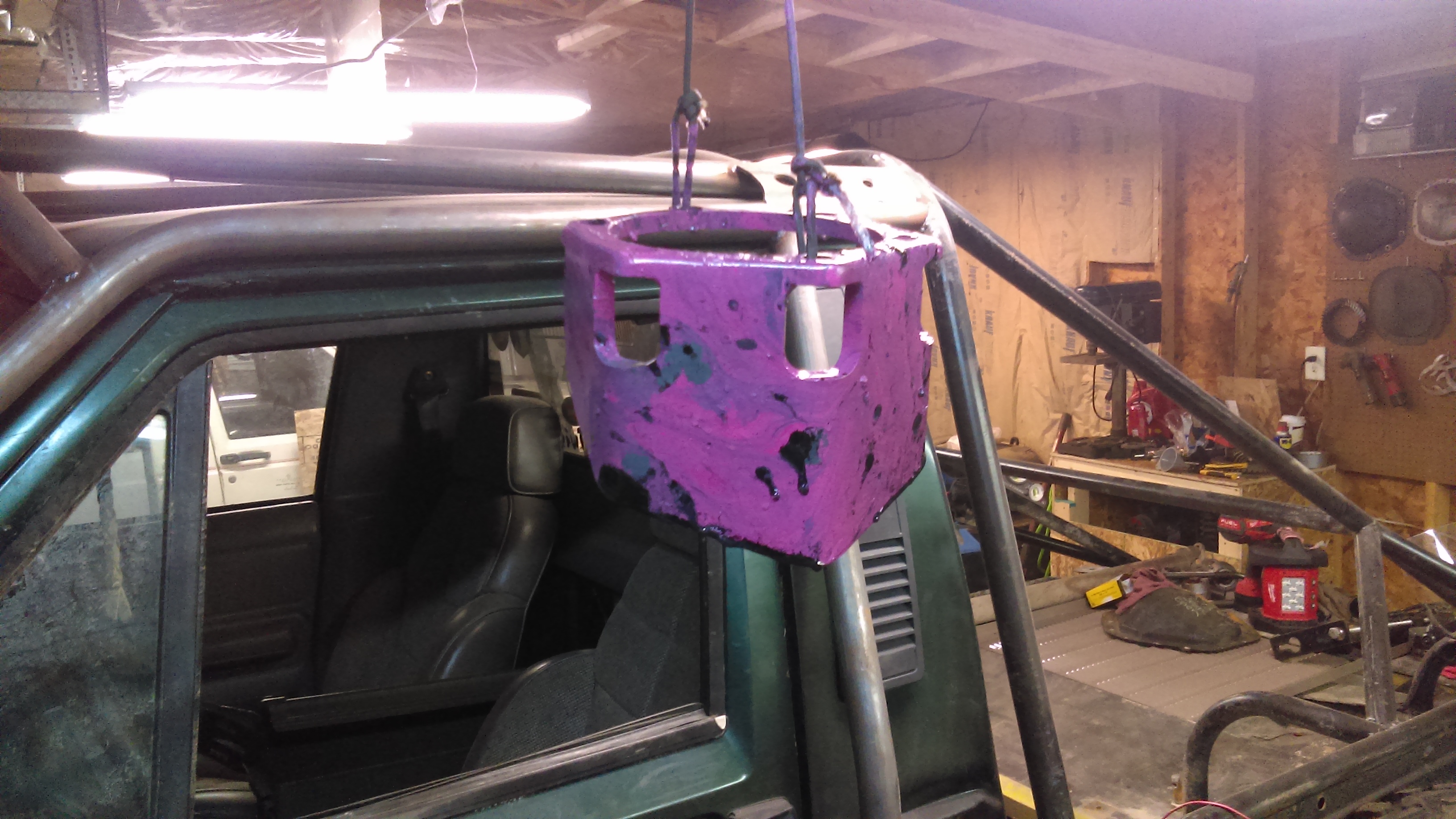

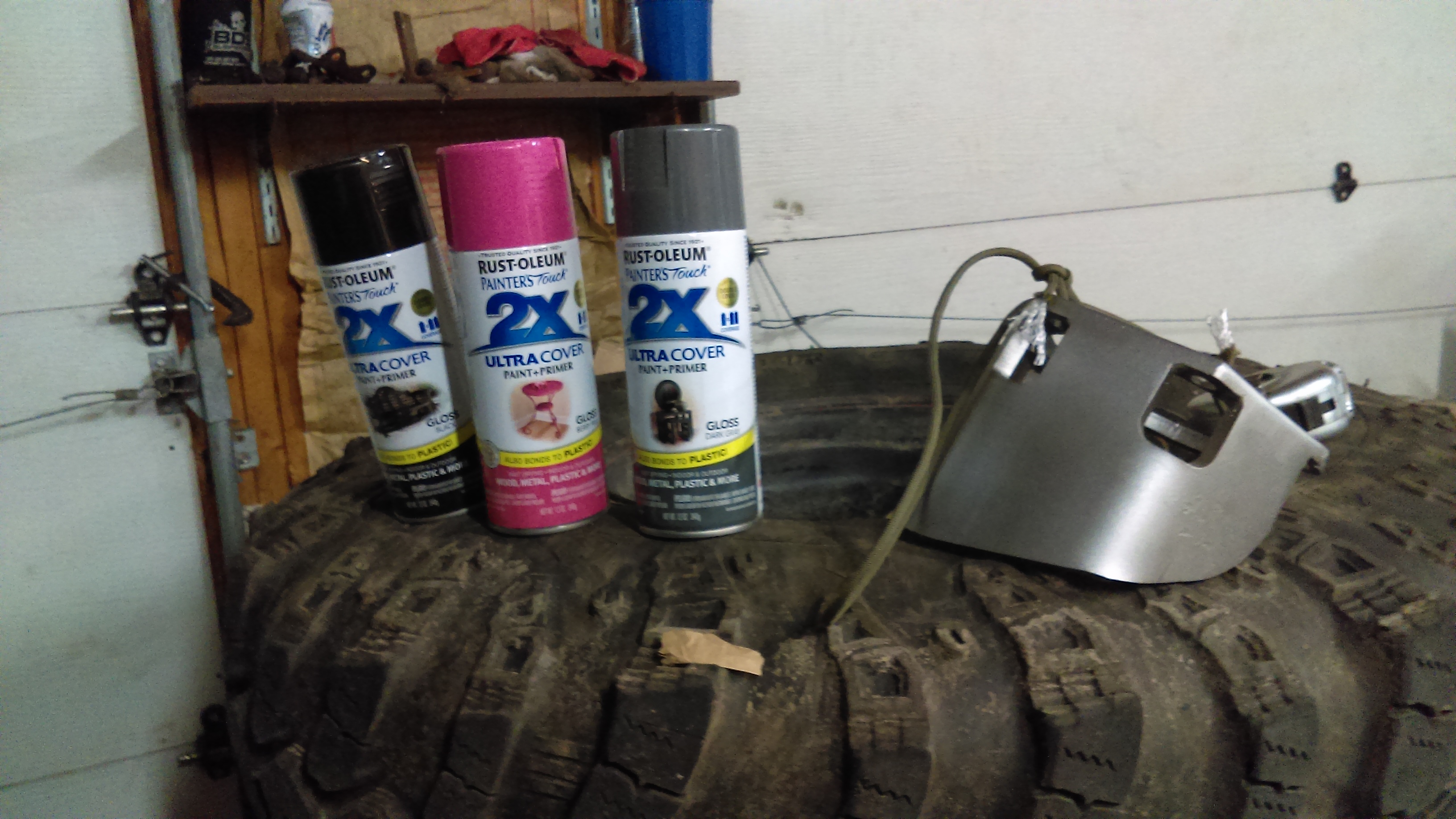

Did some final touche's with the grinder to the bottom of the housing and smoothed it all over with a flap wheel. New break rotors installed onto the hubs. Then some paint for the axle and some paint dipping for the pinion support. Mounted it under the jeep with the Ruffstuff u-bolts and plates. Shock mounts will come later on in my build.

14-bolt build for MJ-imag0048.jpg

14-bolt build for MJ-imag0045.jpg

14-bolt build for MJ-imag0047.jpg

14-bolt build for MJ-imag0053.jpg

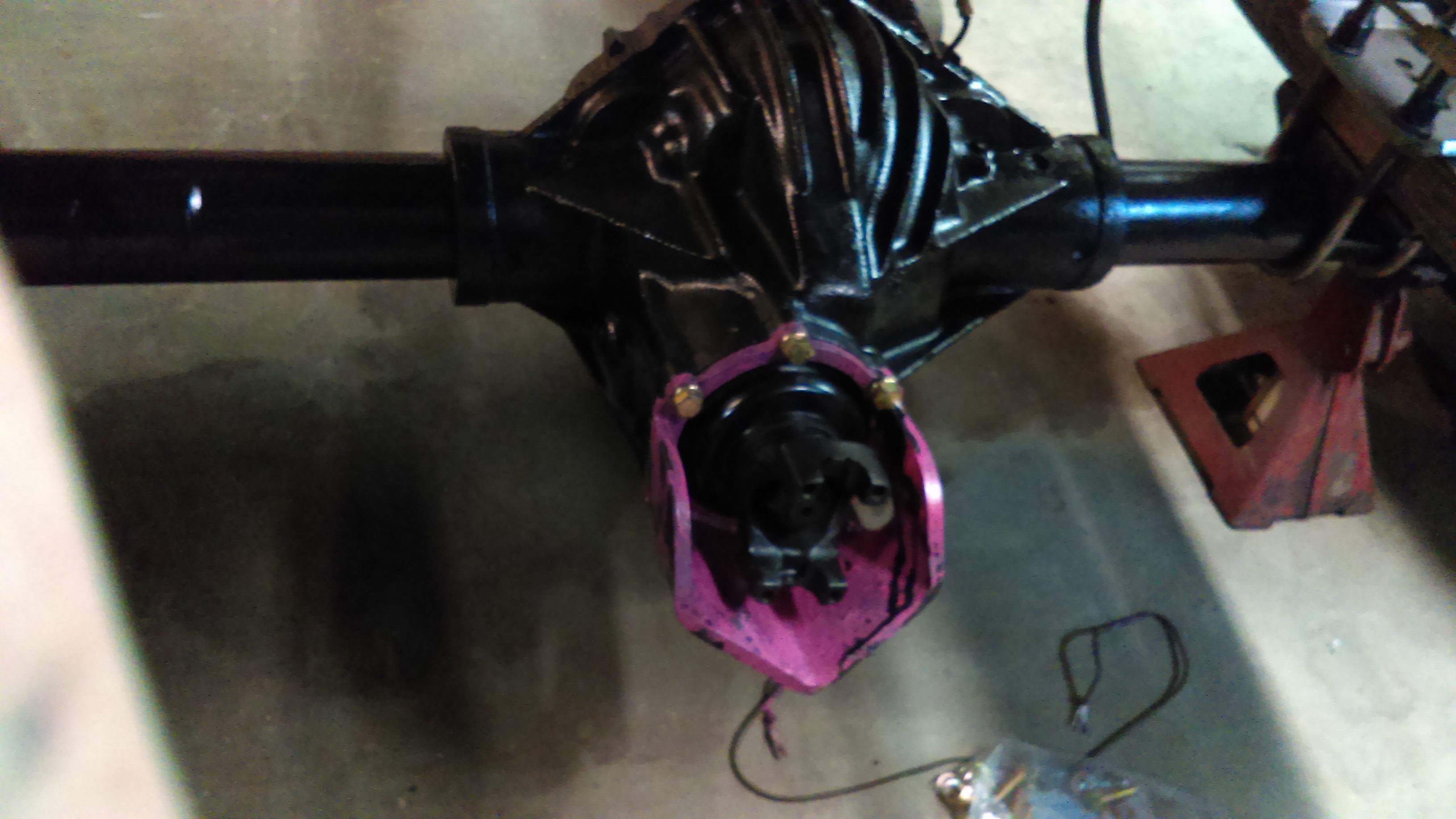

14-bolt build for MJ-imag0056.jpg

Not afraid to rock a little Pink on this MJ.
