Default Rough Country L/A Bushing Replacement

So the time came my bushings got worn out and decided this would make a good write up.
First your gonna have to jack up the front of the Jeep and let the front axle droop to make this easy.
And aways remember to add extra support under the vehicle for safety "Jack stands aways the best"

So here's the new parts 2 piece bushings, and washers with snap rings and even a grease fitting.
Rough Country L/A Bushing Replacement-trail-stuff-2-001.jpg
Here's the typical tools your gonna need.
Rough Country L/A Bushing Replacement-trail-stuff-2-004.jpg
First thing. Get the Jam nut loose just a half turn. You don't wanna back it off all the way or your gonna lose your alignment setting.
Rough Country L/A Bushing Replacement-trail-stuff-2-005.jpg
Next removed the L/A bolt
Rough Country L/A Bushing Replacement-trail-stuff-2-006.jpg
Pull the arm down and unscrew from the control arm
Rough Country L/A Bushing Replacement-trail-stuff-2-007.jpg
JeepingDan is offline
Old 11-29-2010, 04:41 PM
  #2
::CF Moderator::
Thread Starter

JeepingDan's Avatar

Join Date: Apr 2009
Location: CT.
Posts: 18,740
Year: 88
Engine: 4.0 HO
Default Rough Country L/A bushing replace

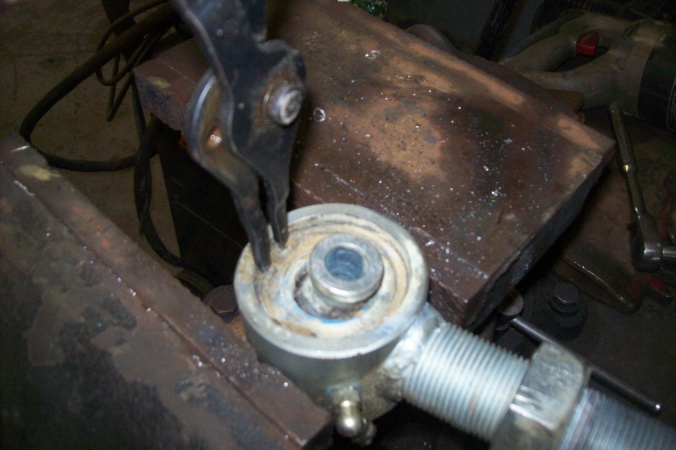

Make it easy lock it in a vise and remove the snap ring.
I know it came with 2 rings but I only removed one.
Rough Country L/A Bushing Replacement-trail-stuff-2-008.jpg

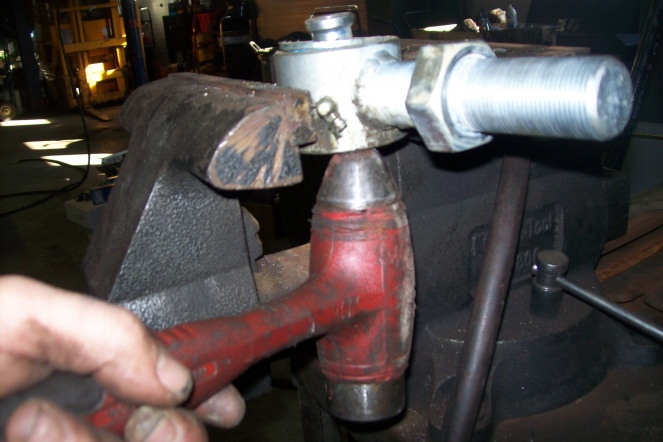

I used a ball peen hammer to knock the bushings out.
Rough Country L/A Bushing Replacement-trail-stuff-2-009.jpg
Now with everything apart now we can start assembling the new bushings.
Rough Country L/A Bushing Replacement-trail-stuff-2-010.jpg
Install new snap ring and washer and then bushing. Doesn't hurt to put axle bearing grease in during assembly to prevent premature failure.
Rough Country L/A Bushing Replacement-trail-stuff-2-011.jpg
Next the ball helm
Rough Country L/A Bushing Replacement-trail-stuff-2-013.jpg
JeepingDan is offline
Old 11-29-2010, 04:53 PM
  #3
::CF Moderator::
Thread Starter

JeepingDan's Avatar

Join Date: Apr 2009
Location: CT.
Posts: 18,740
Year: 88
Engine: 4.0 HO
Default Rough Country L/A bushing replace

Next bushing
Rough Country L/A Bushing Replacement-trail-stuff-2-014.jpg
Then washer
Rough Country L/A Bushing Replacement-trail-stuff-2-018.jpg
Now it's a tight squeeze so the snap ring is not going to just go in. But I got it in just enough but not snapped in yet.
Rough Country L/A Bushing Replacement-trail-stuff-2-021.jpg
This is were the 30mm socket helps alot to get the snap ring to sink and lock with some help from the hammer.
Rough Country L/A Bushing Replacement-trail-stuff-2-020.jpg
Just to make sure the ring is snapped in.. I punched it with a flat head screw driver around the entire ring and now it's looking good!
Rough Country L/A Bushing Replacement-trail-stuff-2-029.jpg
JeepingDan is offline
Old 11-29-2010, 05:00 PM
  #4
::CF Moderator::
Thread Starter

JeepingDan's Avatar

Join Date: Apr 2009
Location: CT.
Posts: 18,740
Year: 88
Engine: 4.0 HO
Default Rough Country L/A bushing replace

And just one last thing. Throw some anti seize on the threads for easy future servicing. Screw it back into the control arm replace the bolts and tighten the Jam nut and grease it and your good to go.
Rough Country L/A Bushing Replacement-trail-stuff-2-030.jpg

These instructions also apply to the upper arms to.
