Flaring new brake lines

Old 07-20-2012, 03:20 PM
  #1
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default Flaring new brake lines

Purchased a 4.5in lift kit. With this kit came new front brake lines that are longer for flex. My jeep is 25 years old now so the brake lines were not coming off with out breaking. Rounded out the 3/8 fitting trying to loosen. Vise grips just stares twisting the hard line so with the i control where it breaks by cutting it.

I picked up a 20 dollar double flaring tool kit at O'reillys and a couple of short brake lines to practice on.



Flaring new brake lines-image-1998021025.jpg

First i practiced then i went and cut off the old lines with my dremel. You nees to get a clean cut so don't use dykes. Tube cutter or dremel or what ever else will give you a clean cut.



Flaring new brake lines-image-1082078143.jpg

I had to make two cuts first one was a little crooked!

Last edited by XJ Stryker; 07-20-2012 at 04:56 PM.
XJ Stryker is offline
Old 07-20-2012, 04:39 PM
  #2
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Flaring new brake lines-image-2714385388.jpg

Attach brace in 3/16 area. Tighten the bolt to clamp line in place. You have to measure the depth with the attachments.



Flaring new brake lines-image-233889349.jpg

The depth is determined by the bottom base part.
XJ Stryker is offline
Old 07-20-2012, 04:42 PM
  #3
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Once you have the depth down and the line clamped secure. Put the 3/16 attachment in the hole and start flaring it in. Thos gives you the rolled affect.



Flaring new brake lines-image-1963349923.jpg

Tighten it down till the small attachment is flush.



Flaring new brake lines-image-2207834119.jpg

After that back it off till it is flush.
XJ Stryker is offline
Old 07-20-2012, 04:46 PM
  #4
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Next just remove the small attachment. Keep the line clamped and start flaring it in again this will flare it out to hold the fitting on.



Flaring new brake lines-image-190258912.jpg

Flare it as far as it will go the remove the tools.



Flaring new brake lines-image-525299020.jpg

It should look similar to this.
XJ Stryker is offline
Old 07-20-2012, 04:49 PM
  #5
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

My line got a lil bent with the torque i was putting on the line and the fitting would not slide down. I took a small punch stuck it in the hole and was able to bend the line straight pretty easily.



Flaring new brake lines-image-196580957.jpg

At this point i needed a new beer.



Flaring new brake lines-image-3748552481.jpg

America's oldest brewery.
XJ Stryker is offline
Old 07-20-2012, 04:50 PM
  #6
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Flaring new brake lines-image-3198291775.jpg

New rough country brake lines.



Flaring new brake lines-image-3200713952.jpg

Bracket bolted in to stock location.
XJ Stryker is offline
Old 07-20-2012, 04:51 PM
  #7
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Flaring new brake lines-image-2877570515.jpg

Attach line and bang the clip in place.


Flaring new brake lines-image-2703235148.jpg

Now its ready.
Attached Thumbnails Flaring new brake lines-image-3568183728.jpg
XJ Stryker is offline
Old 07-20-2012, 04:54 PM
  #8
The CF Moderator
Thread Starter

XJ Stryker's Avatar

Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Default

Dont forget antiseize.



Flaring new brake lines-image-4001060836.jpg

3/8 line wrench is the best tool for attaching the brake line.

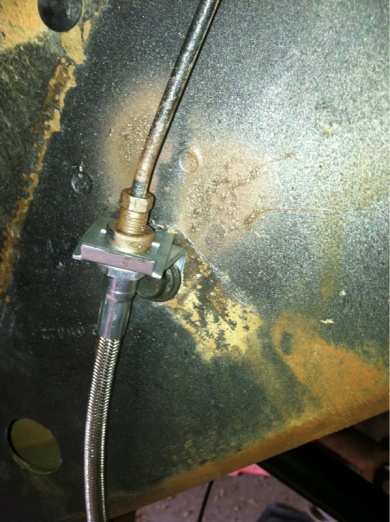

Flaring new brake lines-image-342948046.jpg

You are done bleed the brakes.
XJ Stryker is offline
