Lift Kit with Steering problem.
#1
Newbie
Thread Starter
Join Date: Dec 2011
Location: Stratford Texas
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0 Straight Six
Lift Kit with Steering problem.
I have a 97 Jeep Gran Cherokee that I purchased recently. It has a ProComp lift kit. The steering is an issue. I have had the front end aligned and the steering wheel functions properly as far as my untrained eye goes. The problem is that the steering of the vehicle is very soft. Meaning that on a windy day with the wind pushing left or right I have to turn the wheel five or six inches to compensate. The front steering system has a shock absorber attached that I assume works with the steering. Does that need replaced? It has an ES ProComp 2000. Please advise if you have any suggestions.
#2
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
I would take it to an alignment shop and have the caster angle checked out and look for any worn steering linkage parts. Pick a shop that has been around for a long time with old timers working there, places like Sears or Les Schwab have kids fresh out of school working for them and will only do the bare minimum if you're lucky.
#4
Senior Member
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Sounds like you have worn out tie rods, or it has the Rugged Ridge heavy duty steering setup (or one similar).
Do you have a pic of the steering you could share?
Do you have a pic of the steering you could share?
#5
Senior Member
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
I have also had a few people come in my shop with the same problem and had a broken steering box mount...???
Check that too.
Check that too.
#7
Senior Member
Join Date: Jun 2010
Location: ............
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Originally Posted by West Texan

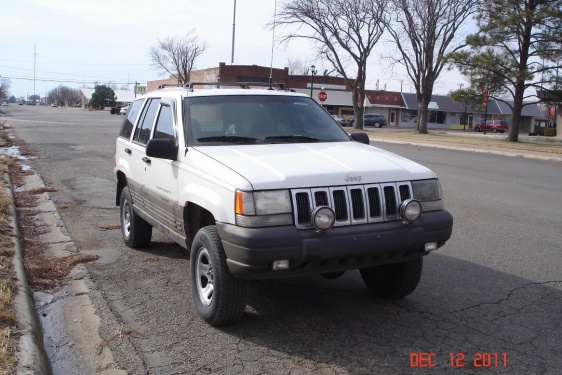

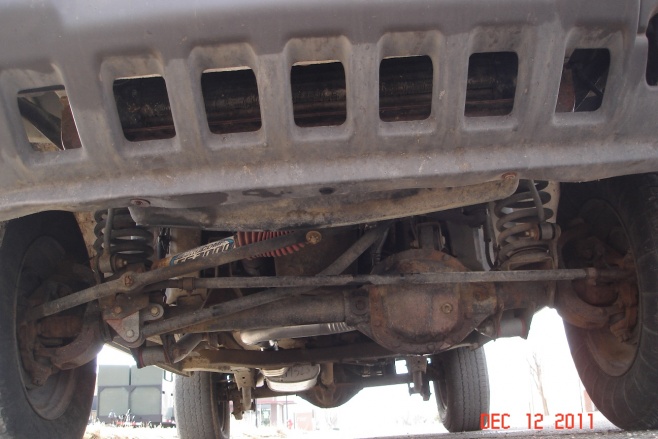

Pictures of the front suspension and vehicle.
Trending Topics
#8
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
It looks like the track bar bracket on the axle may be moving a little, the rusty powdery stuff on the bracket is a hint to what is going on there.
#9
Newbie
Thread Starter
Join Date: Dec 2011
Location: Stratford Texas
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Grand Cherokee
Engine: 4.0 Straight Six
Lift Kit with Steering problem.
Thanks guys I really appreciate it. I will let you know how it goes. T
#10
Senior Member
Join Date: Oct 2011
Location: Warren, PA 16365
Posts: 763
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
My lifted TJ had very similar driving characteristics after being lifted. Turns out my buddy who was helping with the lift thought i torqued all the track bar bolts, and since he was down there, I thought he did it...
After about a month of "chase the steering", much like you described, I noticed some rusty powder around the drop track bar bracket. Once it was torqued to spec and welded to the frame, I haven't had an issue since.
Have someone sit in the driver's seat while you look at the steering. Have them move the wheel slowly back and forth while you watch for parts moving or not moving when they should. then repeat this with them wiggling the wheel faster, again watching for irregular movement or lack there of.
I had some issues with my XJ at stock height, and just found that the collar holding the TRE to the pitman arm had worked itself loose and was allowing the threads on the TRE to clunk around. This made for a very scary ride until I figured it out and fixed it.
After about a month of "chase the steering", much like you described, I noticed some rusty powder around the drop track bar bracket. Once it was torqued to spec and welded to the frame, I haven't had an issue since.
Have someone sit in the driver's seat while you look at the steering. Have them move the wheel slowly back and forth while you watch for parts moving or not moving when they should. then repeat this with them wiggling the wheel faster, again watching for irregular movement or lack there of.
I had some issues with my XJ at stock height, and just found that the collar holding the TRE to the pitman arm had worked itself loose and was allowing the threads on the TRE to clunk around. This made for a very scary ride until I figured it out and fixed it.
