IAT/MAF Sensor
#1
Newbie
Thread Starter
Join Date: Apr 2012
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
IAT/MAF Sensor

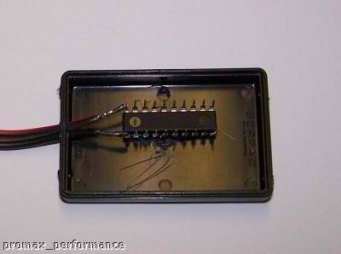

It seems this is a question that stumps everyone. Where do I find my IAT/MAF sensor on my 1999 Grand Cherokee 4.0 litre 6cyl and which 2 wires do I connect my G force chip to?
Last edited by pamoo; 04-11-2012 at 08:19 PM. Reason: More information
#2
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
You don't have a MAF sensor, you have a MAP sensor and it is on the throttle body, the IAT is screwed into the intake manifold. That G Force chip will do nothing.
#5
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
I changed the location of my IAT sensor to the air cleaner lid and noticed a slight change in how the engine runs. A free mod for the better. So far I've swapped in 703 injectors, relocated the IAT sensor, and swapped the intake manifold for a 99+ manifold. I can feel an increase in power and my mileage has not dropped a bit, all of these mods have not cost me as much as a "chip" would have and I can feel the difference.
#6
Member
Join Date: Feb 2012
Location: Union County, NJ
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2002
Model: Grand Cherokee
Engine: 4.0L
You can't chip a Chrysler system. The ignition advance, and fuel maps are hardcoded in ROM inside the PCM. The PCM itself would have to be reprogrammed if you want to change the stuff that really counts.
#7
Senior Member
Join Date: Mar 2011
Location: Norway
Posts: 651
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L I6
Trending Topics
#8
CF Veteran
#9
Senior Member
Join Date: Mar 2011
Location: Norway
Posts: 651
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L I6
#10
Member
Join Date: Feb 2012
Location: Union County, NJ
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2002
Model: Grand Cherokee
Engine: 4.0L
#11
CF Veteran
Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Bot on topic those "chips" do work if placed on the right sensor, the #'s are no where near whats claimed (you'd have better luck throwing a baseball to the moon) but they do "work" a "little".
#12
Member
Join Date: Feb 2012
Location: Union County, NJ
Posts: 229
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2002
Model: Grand Cherokee
Engine: 4.0L
There were some guys in the 80's that sold copper reliefs of Abraham Lincoln for 5 dollars suitable for framing plus shipping and handling.
Bot on topic those "chips" do work if placed on the right sensor, the #'s are no where near whats claimed (you'd have better luck throwing a baseball to the moon) but they do "work" a "little".
Bot on topic those "chips" do work if placed on the right sensor, the #'s are no where near whats claimed (you'd have better luck throwing a baseball to the moon) but they do "work" a "little".
#14
CF Veteran
Join Date: Oct 2011
Location: Bakersfield CA
Posts: 1,268
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
EXACTLY...... so why not just drill the hole in your air box put a IAT in it and lengthen the harness much cheaper. Did mine for the whopping price of three bucks and 4 minits.
