Default axle questions

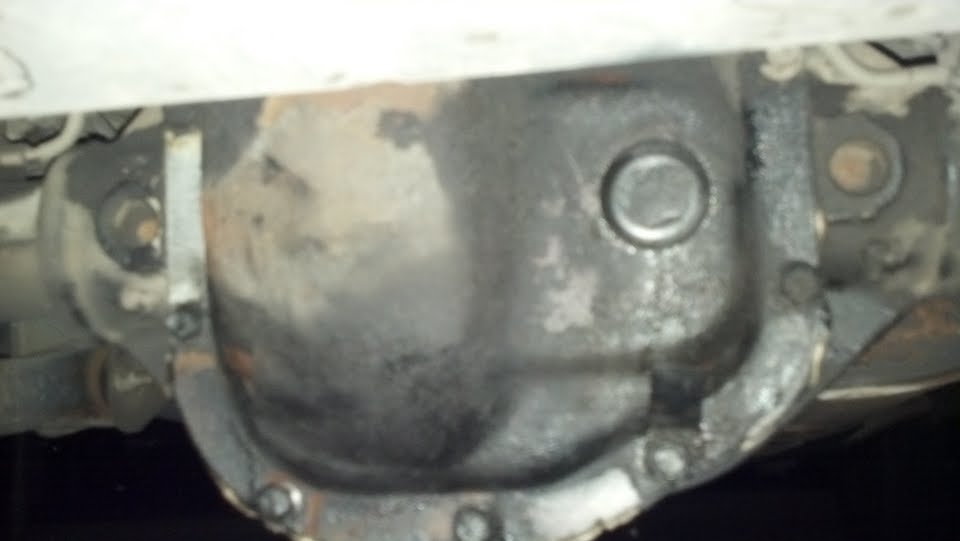

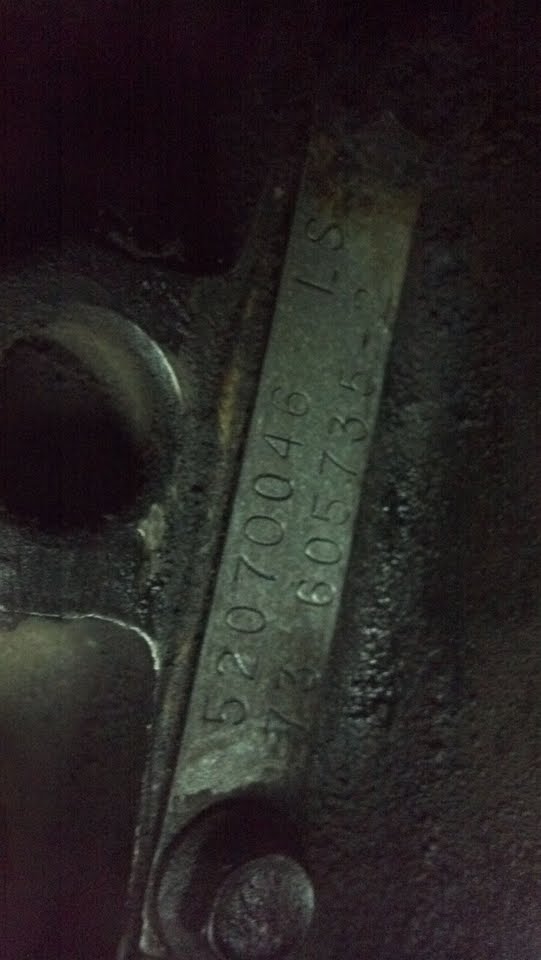

I have a couple random questions for you gues. Im guessing I have a d44 rearend see pics. I have a 96 limited 5.2. I have a almost humming noise when on freeway is ir normal or heck no. Im not used to the alltime 4wd. and what gearoil should I be putting in front and rear. and I took a pic of a tag on the rear and it has numbers then a LS could that mean Limited slip? Sorry for the newbi questions
Attached Thumbnails axle questions-rear-diff-2.jpg   axle questions-rear-diff.jpg
Old 09-06-2012, 10:51 PM
  #2
Senior Member

dnuccio's Avatar

Join Date: May 2012
Location: Ahwatukee, Phoenix, AZ
Posts: 960
Likes: 0
Received 2 Likes on 2 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
Default

that is a dana 44a. the humming could be a bunch of things. where is it coming from?
Old 09-06-2012, 11:21 PM
  #3
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes on 18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

LS= limited slip. make sure to add a bottle of friction modifier to the diff oil when you change it. 85-90 gear oil is what you want.
Old 09-06-2012, 11:52 PM
  #4
CF Veteran
Thread Starter

91familyxj's Avatar

Join Date: Aug 2009
Location: Las Vegas
Posts: 1,263
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996 Limited
Model: Grand Cherokee
Engine: 5.2
Default

sound like its coming from front drivers side but only at higher speeds. Would I use same oil in the front also? and I know my xj had a trac loc locker is it the same in this one?
Old 09-07-2012, 08:18 AM
  #5
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes on 18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

Same oil, but no friction modifier is needed in the front axle. Check the ujoints in the front driveshaft and look at the hub bearings, those could be the cause of the noise.
Old 09-07-2012, 08:56 AM
  #6
CF Veteran
Thread Starter

91familyxj's Avatar

Join Date: Aug 2009
Location: Las Vegas
Posts: 1,263
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996 Limited
Model: Grand Cherokee
Engine: 5.2
Default

Thanks man. It should only be like what 3 bottles? How much additive do i put in?
Old 09-07-2012, 09:10 AM
  #7
Senior Member

xjboy14's Avatar

Join Date: Jun 2012
Location: PA
Posts: 524
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L I6 Power Tech Engine
Default

Like 2-3 bottles per diff depending on how much you spill, front can be kinda tricky
Old 09-07-2012, 01:42 PM
  #8
CF Veteran

Bustedback's Avatar

Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes on 18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

Buy a gallon and a pump.
Old 09-07-2012, 01:50 PM
  #9
CF Veteran

troy fritz's Avatar

Join Date: Jul 2009
Posts: 2,471
Likes: 0
Received 1 Like on 1 Post
Default

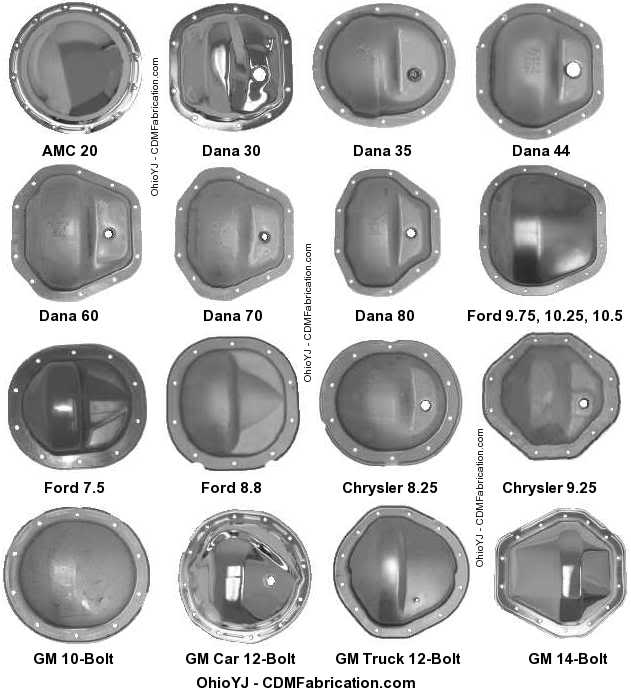

Name:  axlechart.jpg
Views: 15
Size:  45.3 KB
