ACK!!! Found some broken metal in my transmission pan!
#1
Newbie
Thread Starter
Join Date: Jun 2017
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
ACK!!! Found some broken metal in my transmission pan!
Holy crap....
2002 Grand Cherokee with a transmission that would only shift to second at high RPMs and accelerator released. While in the process of taking the pan down to replace the governor pressure solenoid and sensor, I first notice there's no magnet in the pan. Then I found this...

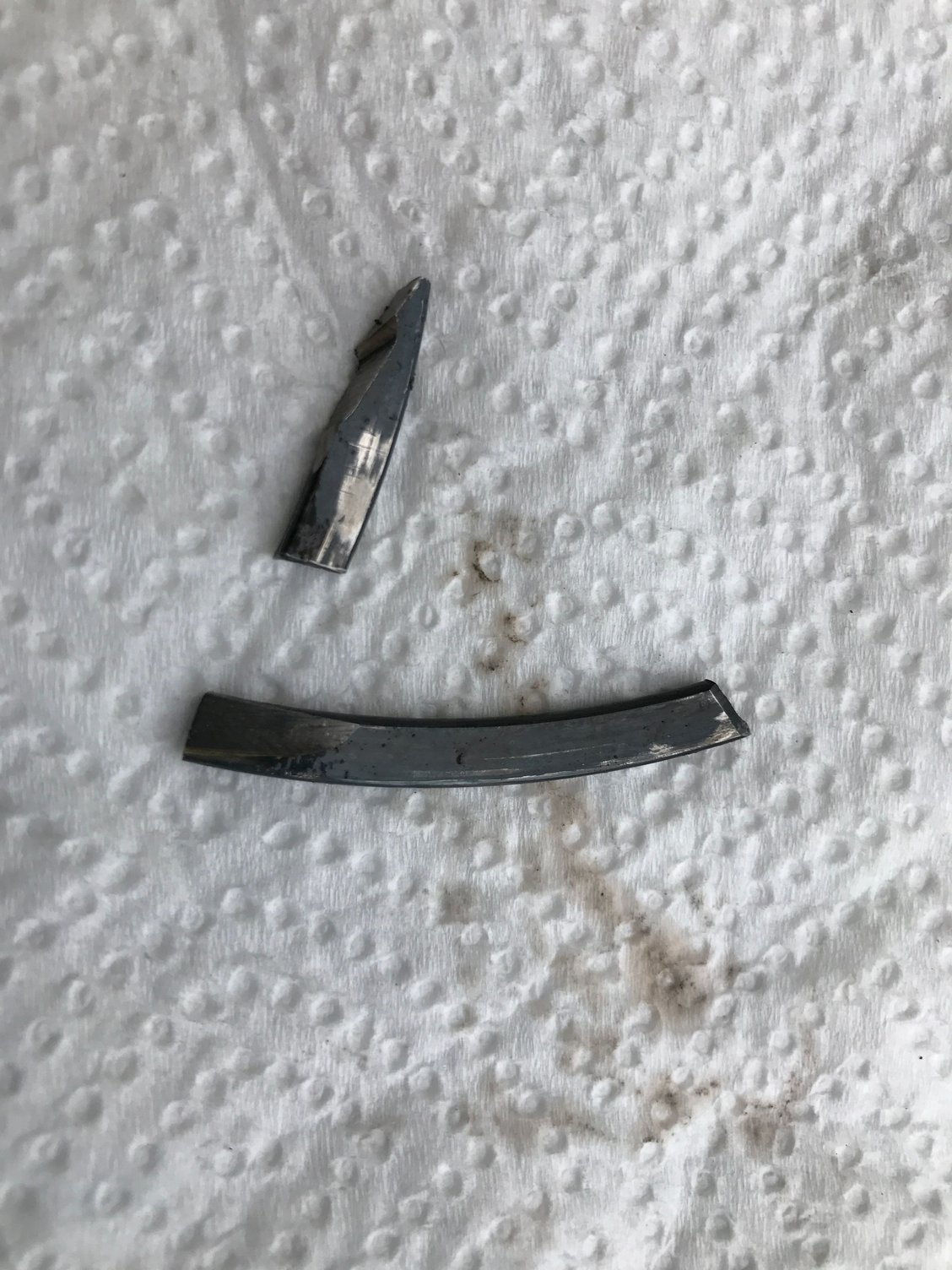

42RE transmission pieces
So, what am I looking at here and what does it mean?
2002 Grand Cherokee with a transmission that would only shift to second at high RPMs and accelerator released. While in the process of taking the pan down to replace the governor pressure solenoid and sensor, I first notice there's no magnet in the pan. Then I found this...
42RE transmission pieces
So, what am I looking at here and what does it mean?
#3
Old fart with a wrench
Yup. There is a 600 lb spring behind that snap ring and it holds the O/D clutch pack together. It's located in the O/D housing on the rear of the transmission and can be repaired as a separate unit without pulling the trans out. You can remove it safely by using pieces of threaded rod and nuts to replace the 4 bolts, then backing them off gradually until the spring pressure is released. The t/case has to be removed first. There are write-ups on this forum and Youtube videos about it.
Last edited by dave1123; 06-24-2017 at 02:46 AM.
#4
Newbie
Thread Starter
Join Date: Jun 2017
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Yup. There is a 600 lb spring behind that snap ring and it holds the O/D clutch pack together. It's located in the O/D housing on the rear of the transmission and can be repaired as a separate unit without pulling the trans out. You can remove it safely by using pieces of threaded rod and nuts to replace the 4 bolts, then backing them off gradually until the spring pressure is released. The t/case has to be removed first. There are write-ups on this forum and Youtube videos about it.
That's a scary spring!!! I'll see if I can find information on how to do it myself...
#5
Old fart with a wrench
Search this forum. I'm sure that's where I saw someone removing a busted one.
#6
Seasoned Member
Join Date: May 2014
Location: Nor Cal
Posts: 371
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993 & 1994
Model: Grand Cherokee
Engine: 4.0
For my dodge I was super busy at work so I paid a transmission shop $250 to replace that snap ring and the tail shaft bushing and seal. Not sure what they would charge for a jeep in your area but may be worth a call if you are unsure about the repair.
Max
Max
