ABS sensor location.
#1
Seasoned Member
Thread Starter
Join Date: Aug 2013
Location: Kentucky
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Model: Grand Cherokee
Engine: 4.0
ABS sensor location.
I have a 94 gc 4.0 2wd, i was reading through the fourms trying to find where it is located seen where one guy wrote that it fixed his bad mpg, but that is not my concern, would be nice though. my question is where is that sensor, is there only one, or is there more than one. Thank you
#2
Senior Member
Join Date: May 2012
Location: Ahwatukee, Phoenix, AZ
Posts: 960
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1995
Model: Cherokee
Engine: 4.0L
I have a 94 gc 4.0 2wd, i was reading through the fourms trying to find where it is located seen where one guy wrote that it fixed his bad mpg, but that is not my concern, would be nice though. my question is where is that sensor, is there only one, or is there more than one. Thank you
#3
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
There is a wheel speed sensor at each wheel, and there is a vehicle speed sensor at the output shaft in the tail housing of the transmission.
#4
Seasoned Member
Thread Starter
Join Date: Aug 2013
Location: Kentucky
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Model: Grand Cherokee
Engine: 4.0
I am grateful that you guys posted back with what i asked, can any light be shed on what they look like, i looked on google images but there were so many different type of sensors.
#5
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
A three channel ABS system uses a single sensor on the diff, and a sensor at each front wheel. A four channel ABS system uses a sensor at each wheel.
Last edited by Bustedback; 10-04-2013 at 06:28 PM.
Trending Topics
#9
Seasoned Member
Thread Starter
Join Date: Aug 2013
Location: Kentucky
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Model: Grand Cherokee
Engine: 4.0

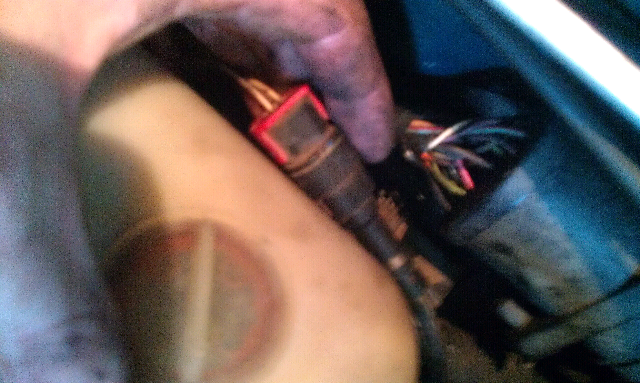

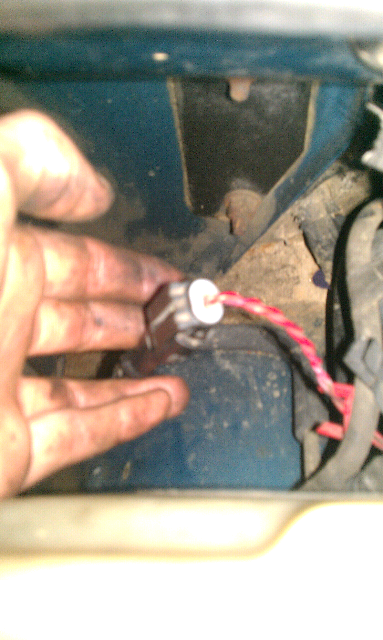

Those pictures are for anybody that needs to know what the abs sensors look like. Being that my jeep is 2 wd i only had two sensors, and it's a 94 grand cherokee. With that being said if your jeep is older or newer it may look different i just wanted to share some information, also the two other picture are where the sensors are hooked up at, one is below the brake booster while the other one is tucked below the pcm, or the coolant container. Be warned that they are expenisve, 115 dollars a piece at my local advanced auto, may be cheaper other place. Thank you guys
#11
Old fart with a wrench
Yeah, they're Hall Effect switches like the CPS. What on a Jeep ISN'T expensive?
#13
Seasoned Member
Thread Starter
Join Date: Aug 2013
Location: Kentucky
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Model: Grand Cherokee
Engine: 4.0
My abs sensor light stays on, and if i have to stop pretty quickly it's a train wreck but it will stop, i just hate how the whole the rear end goes from left to right when braking hard, i tried cleaning the abs sensors but it didn't work. No auto store around here has a code reader that will work on a 1994, it has to be a 1996 and up. So i dont want to throw money at it not knowing which one is bad, also if it rains real hard my brakes a very touchy, i mean like your head will hit the steering wheel if you push them, very annoying, it has always done that, why is that?
#14
Seasoned Member
Thread Starter
Join Date: Aug 2013
Location: Kentucky
Posts: 358
Likes: 0
Received 0 Likes
on
0 Posts
Model: Grand Cherokee
Engine: 4.0
#15
Senior Member
Join Date: Mar 2011
Location: Norway
Posts: 651
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Grand Cherokee
Engine: 4.0L I6
My abs sensor light stays on, and if i have to stop pretty quickly it's a train wreck but it will stop, i just hate how the whole the rear end goes from left to right when braking hard, i tried cleaning the abs sensors but it didn't work. No auto store around here has a code reader that will work on a 1994, it has to be a 1996 and up. So i dont want to throw money at it not knowing which one is bad, also if it rains real hard my brakes a very touchy, i mean like your head will hit the steering wheel if you push them, very annoying, it has always done that, why is that?
