Old 02-19-2016, 05:48 AM
  #286
CF Veteran

Battle's Avatar

Join Date: May 2013
Location: Asheville, NC
Posts: 2,562
Received 250 Likes on 168 Posts
Year: 1999
Engine: 4.0
Default

AX15 for the win is how he got that.
Old 02-27-2016, 06:51 PM
  #287
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

Rough Country sent me a new set of four shocks and I got them swapped in today. It's back to driving like new again!



While I was at it, I did the 703 injector install. So far I don't see a "more responsive throttle" so we'll see how it goes with more driving. In addition, a new budget has been approved and over the next six months we should see some armor, control arms, and lights added to *****.

Last edited by WillyXJ; 02-27-2016 at 06:54 PM.
Old 03-06-2016, 08:01 PM
  #288
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

I've finally put together a little video of the exhaust system so you know how it sounds outside and inside.

Old 03-12-2016, 08:39 AM
  #289
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

I upgraded my headlights to Hella Vision Plus H4 and the harness. I have noticed a difference, but am still thankful for my PIAA driving lights.



I did what I could to hide the yellow harness from showing in the grill and mounted the relays pointed down.

Old 03-17-2016, 02:14 PM
  #290
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

The power door locks quit working some time ago. I originally thought it was the switch module since they are prone to failure, but upon further diagnosis I found the fuse kept blowing. Turns out the wire bundle under the rear seats rubbed through the insulation on a bolt holding the ZJ seat bracket thus causing a short. So, I repaired the wire bundle and put RTV on the bolt ends (I don't plan to ever pull the bolts out), adjusted the bundle route, and replaced the fuse. All is well now! It's nice to have power locks again for the keyless entry.
Old 03-21-2016, 02:42 PM
  #291
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

I've just ordered up these



Old 03-21-2016, 07:33 PM
  #292
Member

OmgNoWai's Avatar

Join Date: Jan 2015
Location: KY
Posts: 179
Received 16 Likes on 14 Posts
Year: 1997
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by jonlabass
I went with the Flats as I think they look better than Cut-Outs.
X2. Ive been eyeing the flats for a while now.

Rig looks good.
Old 03-21-2016, 08:02 PM
  #293
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

Originally Posted by OmgNoWai
X2. Ive been eyeing the flats for a while now. Rig looks good.
Thanks. Interestingly I'm liking the cutouts more now that I've had the flats. Snow and mud build up on the front side of the rears so passengers get wet/muddy getting in and out of the back seat. I don't care much for that and the cutouts don't have that problem.
Old 03-21-2016, 10:32 PM
  #294
Member

OmgNoWai's Avatar

Join Date: Jan 2015
Location: KY
Posts: 179
Received 16 Likes on 14 Posts
Year: 1997
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by jonlabass
Thanks. Interestingly I'm liking the cutouts more now that I've had the flats. Snow and mud build up on the front side of the rears so passengers get wet/muddy getting in and out of the back seat. I don't care much for that and the cutouts don't have that problem.
Well its good I don't have any back seats! Ha, only the dogs get in and out of the back doors. Sounds like flats are for me!
Old 04-02-2016, 07:16 PM
  #295
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

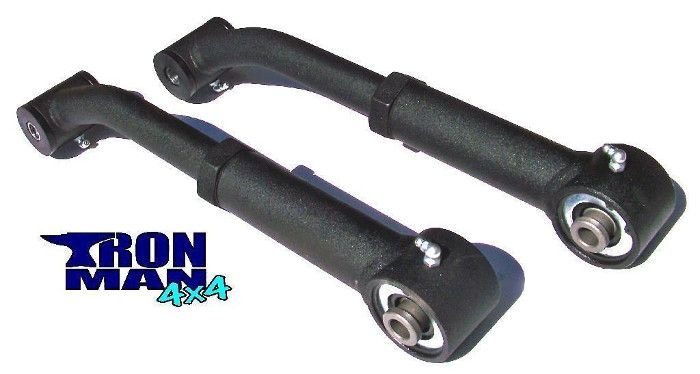

These just arrived from Ironman Andy! I was hoping to get them installed today, but it looks like it may be a couple of weeks.

Old 04-12-2016, 06:52 PM
  #296
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

I've added a ZJ tierod to the work order. It's gonna be a busy weekend.

Old 04-13-2016, 11:55 AM
  #297
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

Ever since I bought this XJ in 2011, my CEL would come on only when I'm engine braking in 4Lo at high elevation. It would turn off by the time I'd get home or the next day. I finally found out it throws a P0107 code which is MAP sensor low voltage. There's never been any noticeable impact when it's triggered.

I've finally found the problem which is just a bug in the PCM that lights the CEL under those conditions. Looks like I'll need to make a trip to the dealer to get the flash update applied.

More information including the service bulletin.
Old 04-13-2016, 08:51 PM
  #298
Seasoned Member

jswift716's Avatar

Join Date: Oct 2014
Location: Buffalo NY
Posts: 383
Likes: 0
Received 3 Likes on 3 Posts
Year: 2000 shell
Model: Cherokee
Engine: 1998 4.0l I6
Default

Originally Posted by jonlabass
Ever since I bought this XJ in 2011, my CEL would come on only when I'm engine braking in 4Lo at high elevation. It would turn off by the time I'd get home or the next day. I finally found out it throws a P0107 code which is MAP sensor low voltage. There's never been any noticeable impact when it's triggered.

I've finally found the problem which is just a bug in the PCM that lights the CEL under those conditions. Looks like I'll need to make a trip to the dealer to get the flash update applied.

More information including the service bulletin.
Dude. You are awesome. I took a weekend trip about 2 weeks ago and the very same happened to me right after a bunch of long steep grades. It cost me 3 hours out of my way to get it figured out and find an open store to run the code and what not.
Old 04-24-2016, 07:51 AM
  #299
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

I got the tierods and all four control arms replaced. I couldn't get the axle-end bushings removed with a balljoint press so I purchased an air hammer which then became a quick job. The alignment is scheduled for tomorrow at Firestone (lifetime alignment so this will be free).



Old 05-16-2016, 07:24 PM
  #300
Seasoned Member
Thread Starter

WillyXJ's Avatar

Join Date: Nov 2011
Posts: 323
Likes: 0
Received 39 Likes on 27 Posts
Year: 1998
Model: Cherokee
Engine: Golen 4.6L
Default

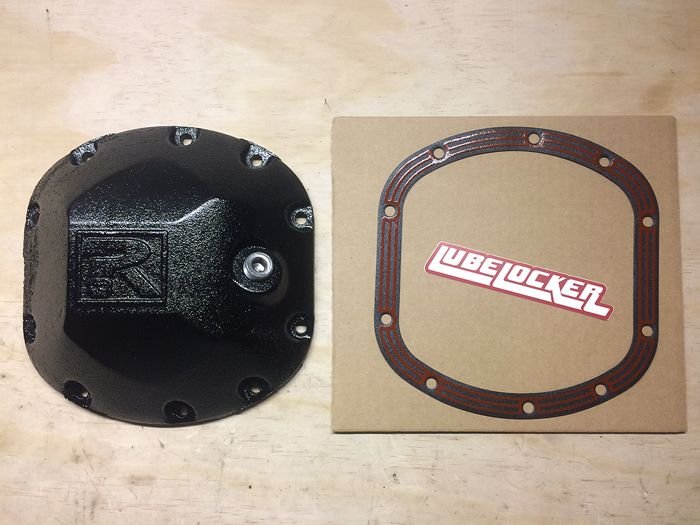

Got a Riddler diff cover for the front along with the Lube Locker. Primered and painted:



Installed:
