still havent swapped intakes or rebuilt the exhaust but i did build a simple bumper, added some more length to the rear bump stops, and went wheeling with the chick a few days ago

bumper brackets are from the flop shop, tubing is 1.75 .120 wall DOM that mic'd out at .140ish. eventually ill be adding a hidden winch mount and recovery points











ruffstuff 1/4-20 trick tabs






painted









still have a nice approach angle







here you can see i had hockey pucks attached to the bottom of the bumstops temporarily till i found the time to add more 2x2x.250 square tube









couple wheeling pics












only slight carnage after this trip lol

TFitzPat87

Turned out good! Digging that old school Budweiser sign!

wheelsaz08

thanks! my cousin nabbed the sign for me at a garage sale a while back

bad_idea

First, lemme say outstanding build. Fine craftsmanship.

Got any more pictures of the air intake setup? I am building a cowl intake and plan to route it much like your intake is routed. What did the rubber hose attached to the throttle body come off of? Thanks.

wheelsaz08

thank you. the intake doesnt actually sit like that though. i just rotated it out of the way while plumbing brakes/steering lines. the elbow is from a stock air box

old pic, but this is it in the correct orientation

bad_idea

Interesting. Thank you. I have a 90 XJ, so the stock setup is a little different.

wheelsaz08

oh gotcha. the renix ones are alot different. have you thought about swapping to a later model intake and tb? pick up a couple ponies and would make it a lot easier to build a cowl intake from there. or if you weld, then you can use the metal triangular part to build off of.


which reminds me, i picked up a 63mm bored tb from Jeff Leigh and some stroker stickers! i was going to hold off on installing it till i was ready to swap intakes, but i had to send my old one back as a core so i put it on last night. i wouldnt say the seat-of-the-pants-dyno felt much but man did it help free up the top end. the motor used to fall on its face around 4k ish (not sure cause my tach doesnt work) but now it revs to the moon! haha cant wait to swap manifolds and see more improvement

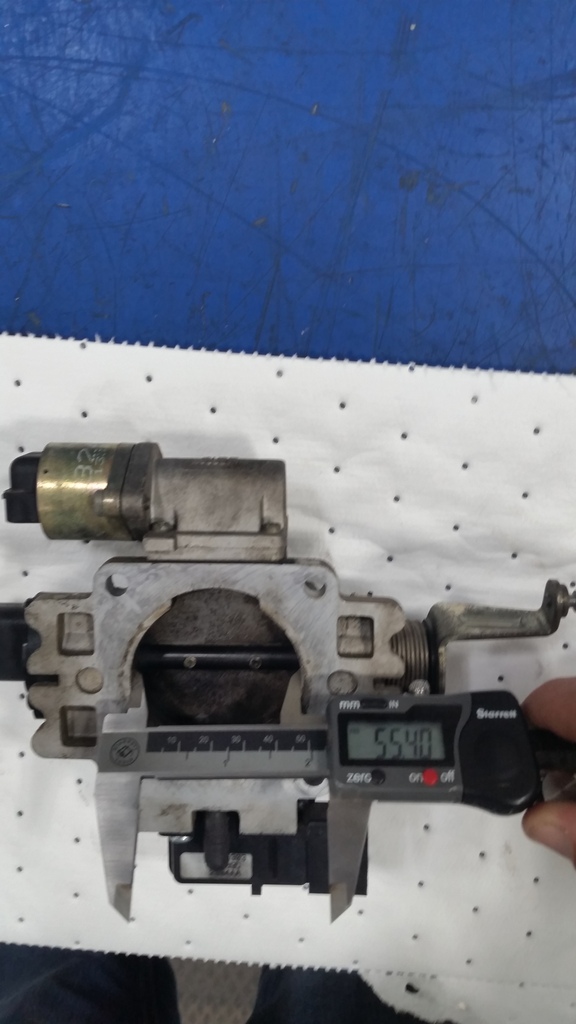

no installed pics cause it looks stock, but heres some comparison shots


old (stock) tb





dat new new

wheelsaz08

just about finished up my new exhaust and intake swap. got the wrong gasket or it would have been put together today. apparently, whoever built this motor used a renix block and a HO head.. anyways, exhaust is now entirely 2.5" form the collector back. i kept it up high and tight around the trans and crossmember, and after that its just above the bottom of the "frame". flex pipe added to prevent the header from cracking, again. (the PO wrapped it...) i brazed the cracks the best i could and coated it with black VHT. flowmaster super 44 replaced the TINY cherry bomb i had before lol stole the idea for the bed exit from a member on comanche club. intake has been gasket matched, injectors cleaned, new pintle caps and orings installed, bolted the 63mm tb on and capped off the ports in not using. hopefully ill get the right gasket tomorrow and have it all back together.

pics

new oem parts for the intake swap



messy...


marking intake for gasket match





had a little accident.. took it to my buddy and had him tig weld it







done








and the exhaust. ive got the hangers done just didnt get pics. once its all back together again and running ill get better ones. also still need a tip



old vs new downpipe

Guywitha92

Nice. Great work. Makes me want to hurry up and build mine

wheelsaz08

got the intake swap finished up and put a few hundred miles on the ol jeep. definitely woke it up some! especially on the top end. the motor would fall on its face before, but now it pulls to the redline. im gonna guess fixing the exhaust leaks helped out to. i ditched the ac/fan/idler pulley mount after i got the intake on since i wasnt using any of it. took 6 tries to get the right belt though! relocated the IAT sensor as well and i also added a flange between the muffler and flex pipe to make the exhaust system easier to remove in the future.











pulled the doors off for two reasons. number one being its summer time in az and i got no a/c! haha and secondly i plan on starting my cage build soon








went wheeling a few days ago too. got a couple pics

Guywitha92

Looks nice. Im planning a trip to the gila river, salt river, or verde river on the 10th of June if you wanna meet up and hit some trails

wheelsaz08

Thanks! Wish i could make it but I'll be in vegas that weekend for a bachelor party... another time for sure though

Guywitha92

Cool. Never been wheeling up that way. Let me know if you know someone that knows the area and is free to show me around

wheelsaz08

been a while, havent done any wheeling lately, so i ripped out the interior and sawzall!

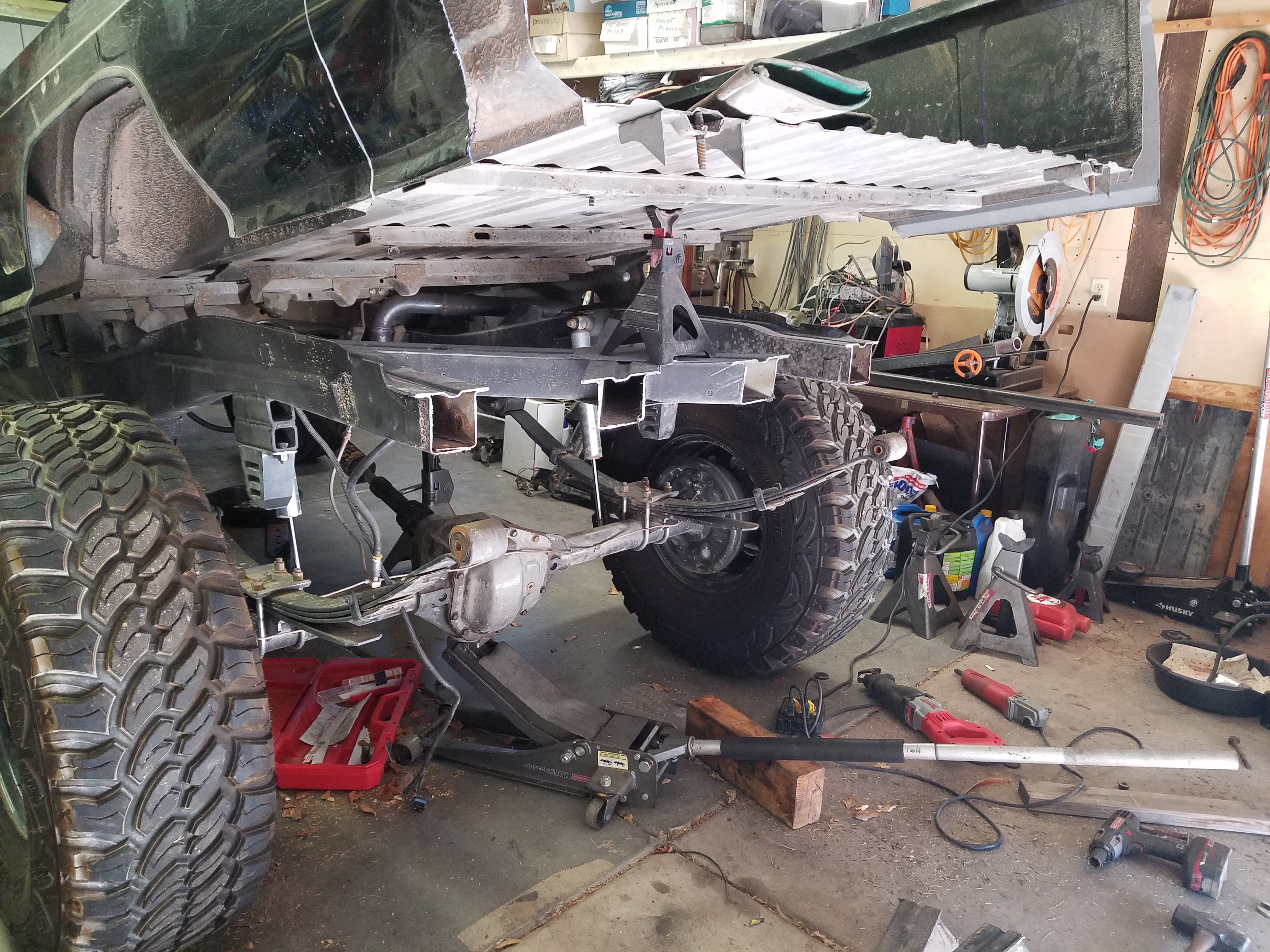

took 16 inches out of the "frame" and cut the end of the bed off. im for sure bobbing it but may also dovetail, we'll see. last night i got the new rear crossmember and shackle hangers tacked and partially welded but didnt get pics, will tonight though

bad_idea

Well, that escalated quickly. Put the sawz-all down and take two steps back.

I'm interested in seeing where this goes. What do you plan to do with the shackle mounts for the rear springs?
