Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Tan Bedliner xj

Old 09-06-2015, 10:32 PM
  #61
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

I have decided that the local offroad shop should probably look at it. So will have them do it when I get my alignment done. After looking around I believe that I am going to buy the nut inserts for the steering knuckles instead of reaming them out. Also I notice that smittybilt started selling a stinger for there bumpers so I may eventually end up with one of them.
by921 is offline
Old 09-26-2015, 05:39 PM
  #62
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Steering is installed and it goes in and out of 4wd. There is a lot of bump steer so that is another thing to fix. But I did a local trail and it did really well.







by921 is offline
Old 10-26-2015, 04:13 PM
  #63
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Have not updated in a while because not a lot of work has been done.





Got a Cherokee forum sticker





Did a headlight upgrade, the rampage headlight kit from quadratec. Way better than stock





Just a photo of the one ton steering





Wrapped the steering wheel in paracord





Made door panels, was never happy with how the factory ones looked. Also installed fatmat mega may sound deadener to help quiet things down.





Built a new storage box because I wanted more bass then I was getting from the alpine type r 8 I had. This is a Jl 12 in a ported box and it is louder than the two 12s I had before on the same amp. Also I think the storage box looks better.





Also made it so I can haul my bike on the roof with a fork mount using Yakima blockhead mounts.

The next thing I would like to do is fix the door gaps. the weather stripping does not touch the door and that causes a lot of wind noise at highway speeds.
by921 is offline
Old 11-01-2015, 04:17 AM
  #64
Banned

Join Date: Oct 2014
Location: tucson
Posts: 17
Year: 1992
Model: Cherokee
Engine: 4.0
Default

Looking good. I think you have inspired me to paint my whole jeep. Its two toned now cuz I don't care for all tan cherokees but yours looks good so I think I may paint the rest of mine
93_xjcherokee is offline
Old 11-02-2015, 05:58 AM
  #65
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by 93_xjcherokee View Post
Looking good. I think you have inspired me to paint my whole jeep. Its two toned now cuz I don't care for all tan cherokees but yours looks good so I think I may paint the rest of mine
Thanks, yes the first thing people notice is the paint, after someone saw I painted there yj like it. And I have a friend that wants to paint his bronco the same way.
by921 is offline
Old 12-22-2015, 12:10 PM
  #66
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

A few things have been done and a few things are going to happen. I have been looking for a parts jeep 1997 and up to take the axles out and build them and installed them with lockers, regear and iron Rock offroad trusses.

I would also like the doors but need to find a jeep with roll up windows so the swap is do able. And I would like to take the center console so I can cup holders and a e brake. But this is what I have done and have bought.

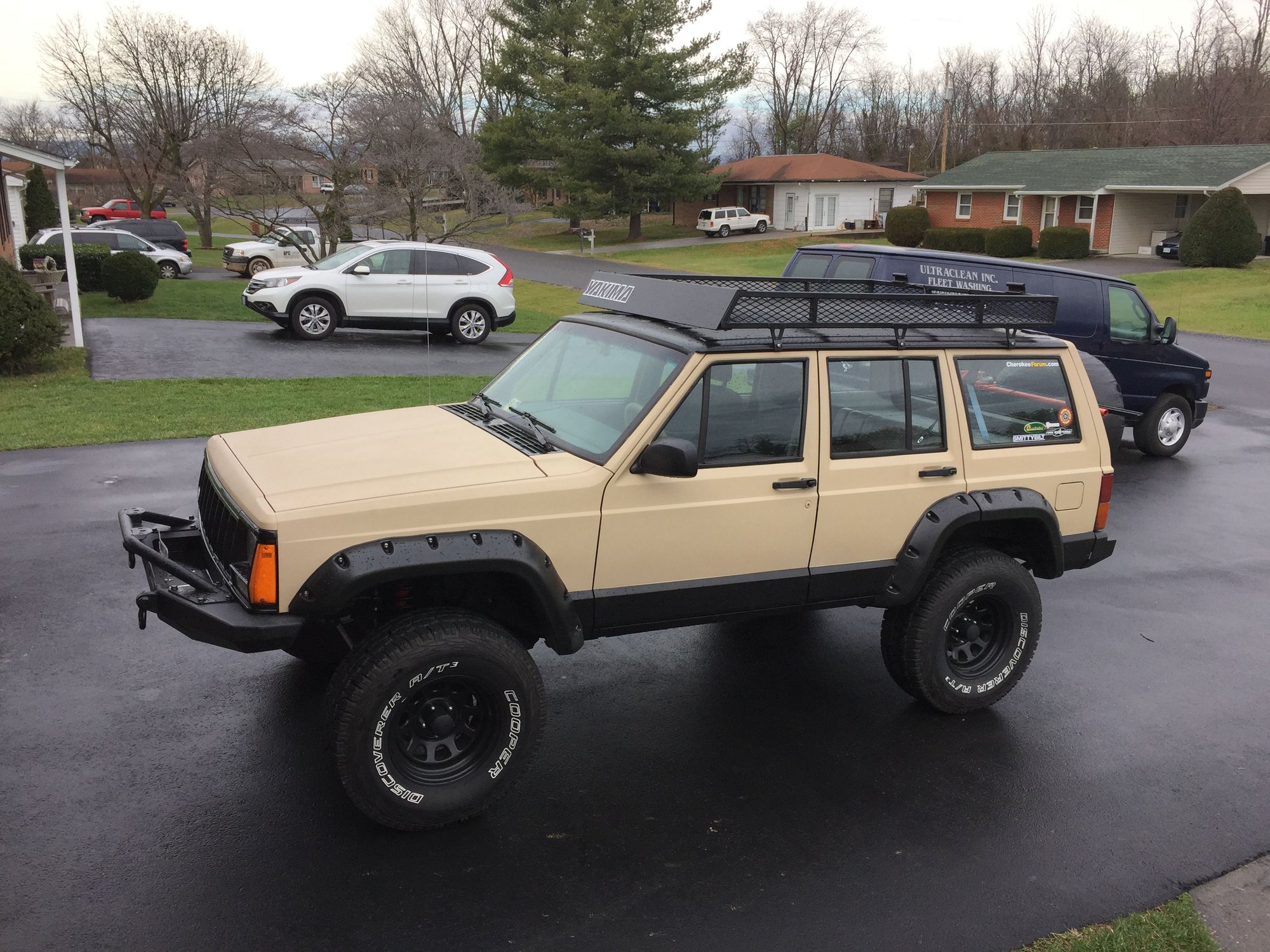

Painted the roof black





Installed a 10 inch light bar for the rear of the rack. It is the quadratec 10 inch flood bar. Very bright good price and I like the single row





Installed a rear camera off of a garmin navigator





Order this winch

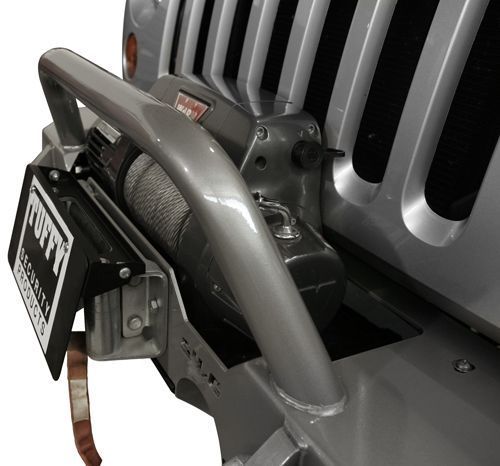

This is a flip up license plate bracket for the winch.

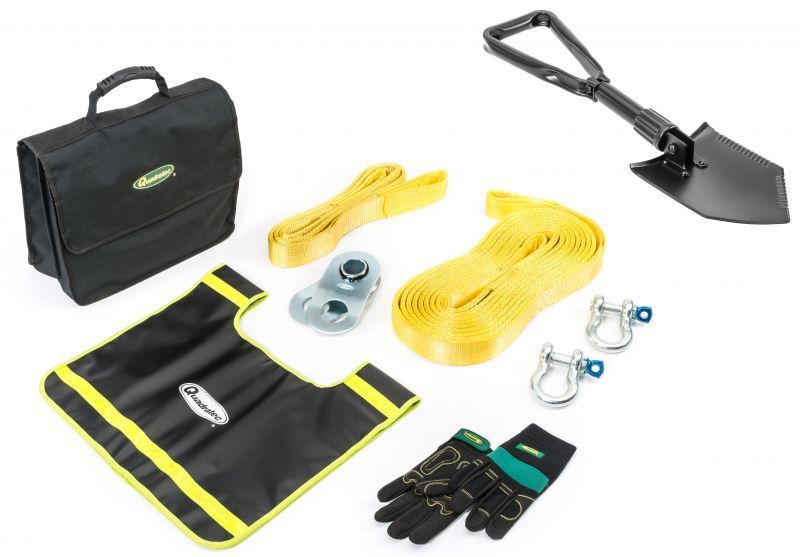

Offroad winch kit and it came with a free shovel.





This is a 20 inch light bar same one as the rear but it is a combo bar instead of a flood.





And iron rock offroad frame stiffeners.
by921 is offline
Old 12-22-2015, 12:47 PM
  #67
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,593
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Still having steering issues? Might be because you have an OTK steering with a UTK track bar. They should be as close to parallel as possible, your angles are off.
unidentifiedbomb is offline
Old 12-22-2015, 04:26 PM
  #68
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by unidentifiedbomb View Post
Still having steering issues? Might be because you have an OTK steering with a UTK track bar. They should be as close to parallel as possible, your angles are off.
Yea it has a bit of bump steer, what is a otk track bar.
by921 is offline
Old 12-22-2015, 04:40 PM
  #69
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,593
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Originally Posted by by921 View Post
Yea it has a bit of bump steer, what is a otk track bar.
Most of the time when going OTK (Over The Knuckle) with the steering, you have to relocate the track bar to go higher as well. You want the steering drag link and track bar to be parallel. Here is a picture of Serious Offroad's OTK steering, you can see the new track bar mount above the factory one. I'll also include a JCR OTK steering with the relocated track bar.




Serious





JCR
unidentifiedbomb is offline
Old 12-22-2015, 04:50 PM
  #70
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by unidentifiedbomb View Post
Most of the time when going OTK (Over The Knuckle) with the steering, you have to relocate the track bar to go higher as well. You want the steering drag link and track bar to be parallel. Here is a picture of Serious Offroad's OTK steering, you can see the new track bar mount above the factory one. I'll also include a JCR OTK steering with the relocated track bar.




Serious





JCR
So all it is the mount moved up higher and not a new track bar?
by921 is offline
Old 12-22-2015, 06:02 PM
  #71
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,593
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Might need one, depending on how much adjustment you have. If it is raised two inches then you need to shorten it roughly two inches. I edited a picture your steering picture to illustrate what I'm describing to help. The yellow is your current setup, and the orange is the correct angle and where the track bar would be with a higher mount. The mounts aren't hard to find.
unidentifiedbomb is offline
Old 12-22-2015, 09:42 PM
  #72
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by unidentifiedbomb View Post
Might need one, depending on how much adjustment you have. If it is raised two inches then you need to shorten it roughly two inches. I edited a picture your steering picture to illustrate what I'm describing to help. The yellow is your current setup, and the orange is the correct angle and where the track bar would be with a higher mount. The mounts aren't hard to find.
In order to get it correct I would most likely need a new track bar. But if there are no downsides having them in parrell then having bump steer I will live with it until I get a front axle to build
by921 is offline
Old 12-22-2015, 10:34 PM
  #73
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,593
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

Originally Posted by by921 View Post
In order to get it correct I would most likely need a new track bar. But if there are no downsides having them in parrell then having bump steer I will live with it until I get a front axle to build
Sounds good. But at least you know what you have to do when you build the axle. Looking forward to seeing how this build goes, it's come a long way from almost a piece of scrap.
unidentifiedbomb is offline
Old 01-28-2016, 07:15 PM
  #74
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

I have gotten the winch and the light bar installed and works well but I did have to do an oil pan gasket and while I had it apart I did a rear main seal and cause a new problem. Before when it got hot it would leak oil out of the pan on to the exhaust and make it smoke a lot. Know it doesn't leak from the pan but leaks from the rear main seal when I turn the jeep off so now it needs done again. Also I still have not installed the frame siffeners yet. Anyway here are photos of the light and winch.



The license plate mount I ordered didn't work so I had to order the smittybilt one instead. It is very tuff as I ran it to something with it and it didn't even fall of





I had to make a bracket because the light was too big for the bull bar





High beams





Light bar
by921 is offline
Old 01-28-2016, 08:51 PM
  #75
Member

98XJSPORTSATINJADED's Avatar

Join Date: Apr 2015
Location: Youngstown Ohio
Posts: 132
Year: 1998
Model: Cherokee
Default

Are you worried about over heating at all haha ?? You blocked a good 70% of your grill!! Looks real good though!!

Originally Posted by by921 View Post
I have gotten the winch and the light bar installed and works well but I did have to do an oil pan gasket and while I had it apart I did a rear main seal and cause a new problem. Before when it got hot it would leak oil out of the pan on to the exhaust and make it smoke a lot. Know it doesn't leak from the pan but leaks from the rear main seal when I turn the jeep off so now it needs done again. Also I still have not installed the frame siffeners yet. Anyway here are photos of the light and winch.



The license plate mount I ordered didn't work so I had to order the smittybilt one instead. It is very tuff as I ran it to something with it and it didn't even fall of





I had to make a bracket because the light was too big for the bull bar





High beams





Light bar
98XJSPORTSATINJADED is offline
