Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Tan Bedliner xj

Old 04-26-2017, 10:01 AM
  #136
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Fixed the steering wobble, it turn out that tie rod end boots are important and the only one that didnt have a boot was worn out. Other than that the jeep is going good. Trail rides a few times a month, it is fun being the only cherokee. Next event is jeep beach.



Amelia Island

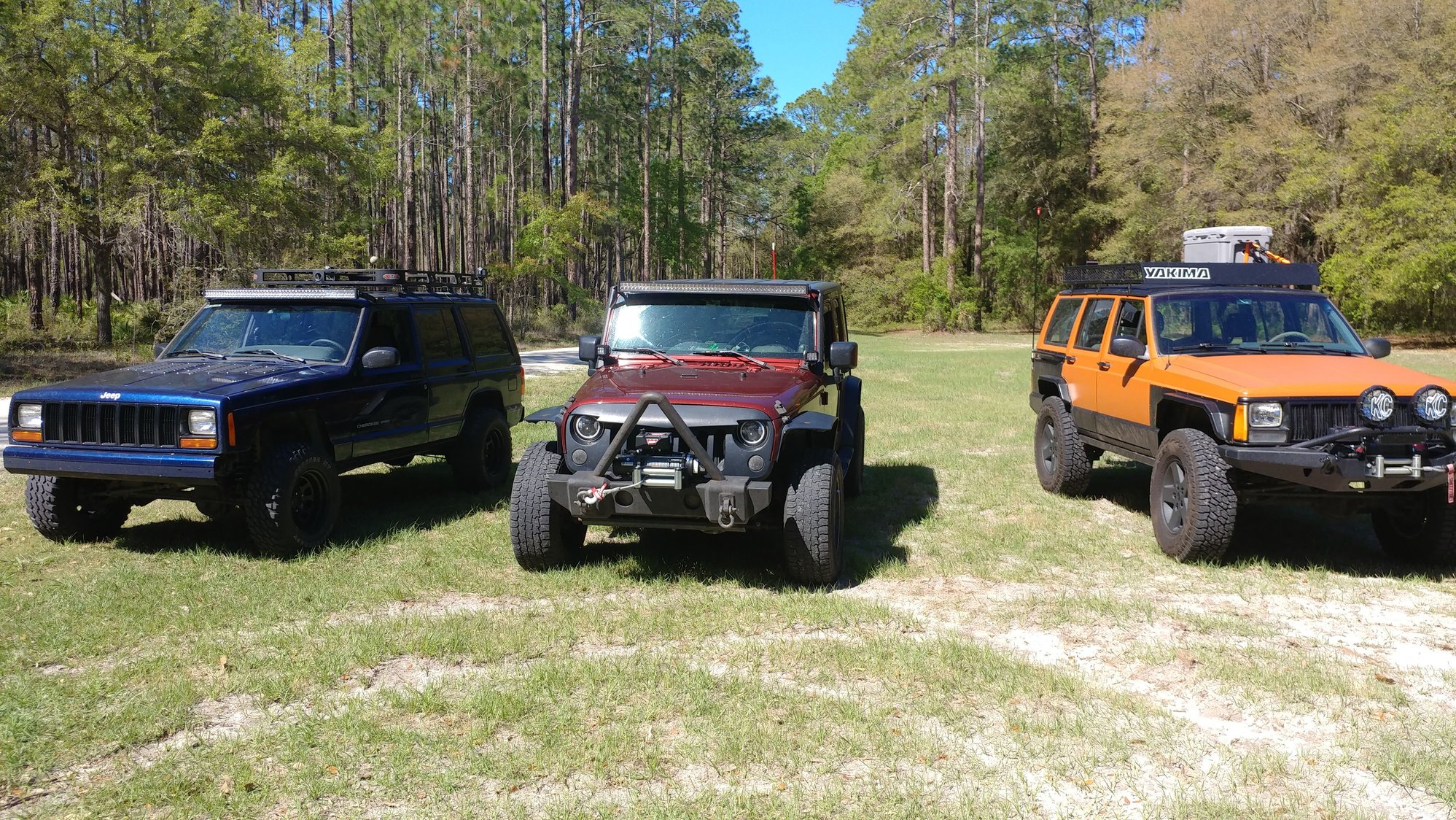

Osceola State Park





by921 is offline
Old 05-01-2017, 08:17 AM
  #137
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

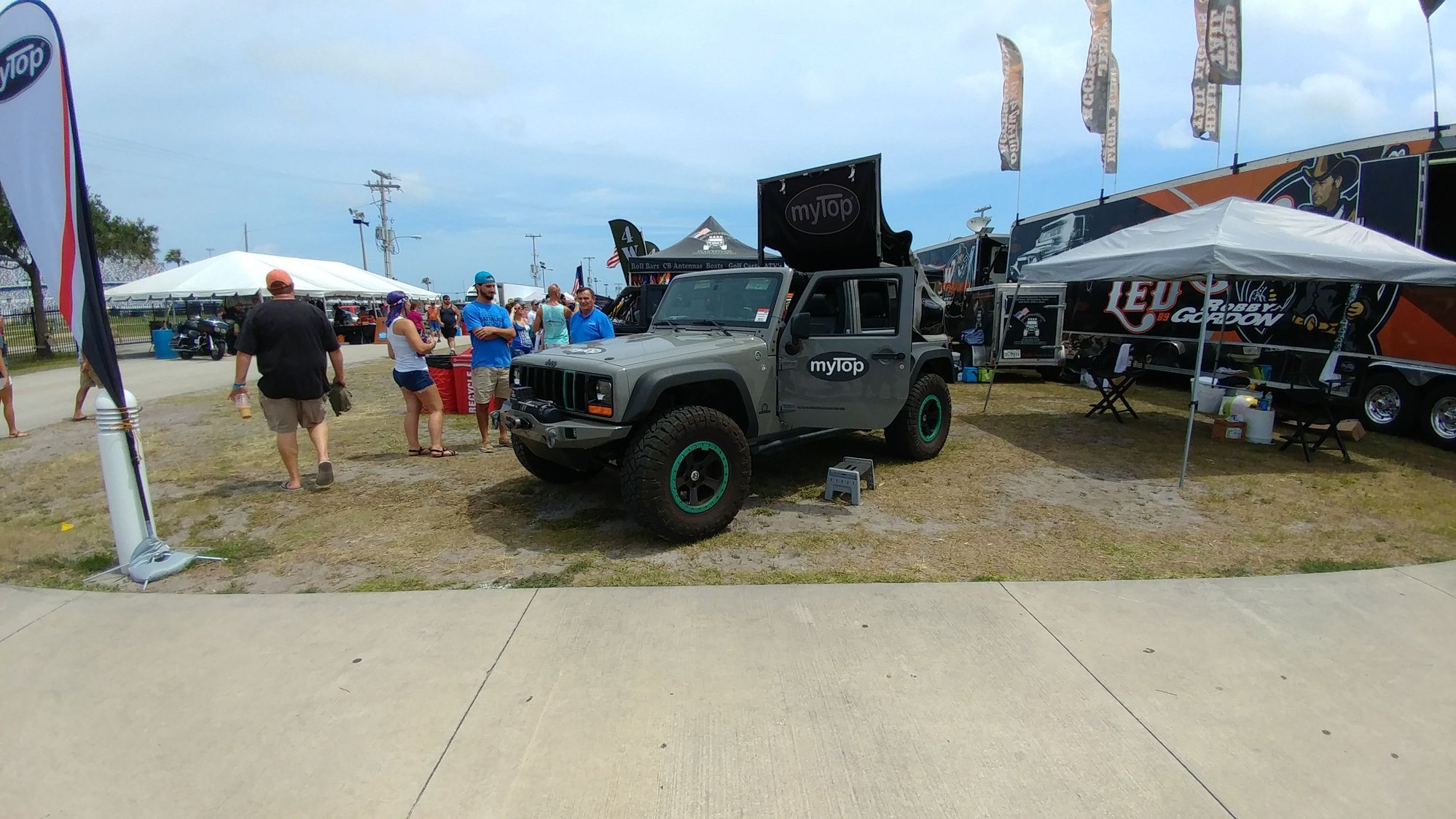

Jeep Beach was awesome. Tons of cool jeeps and then a lot of Jks where there too.

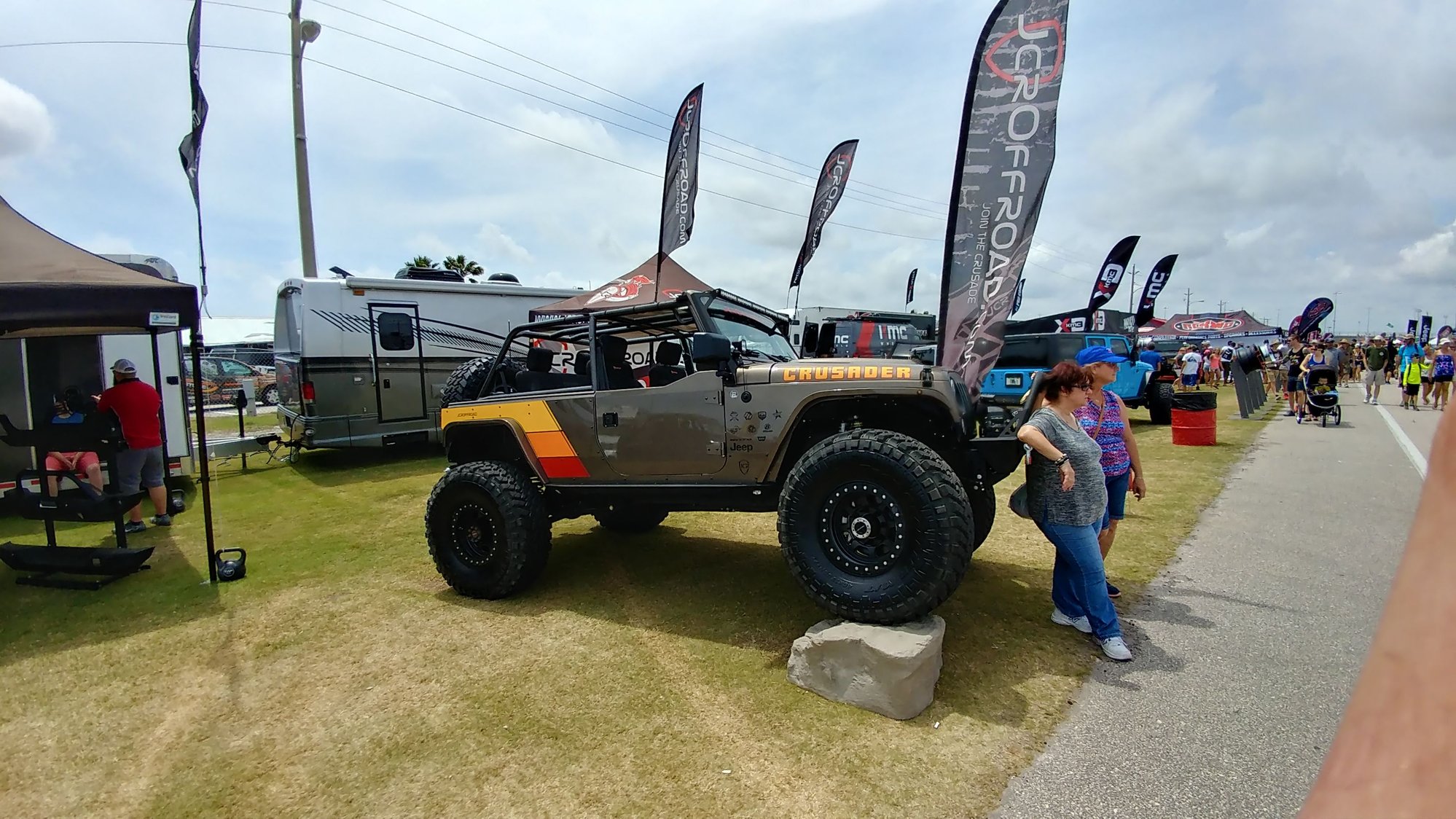

A ultimate adventure Jeep



Pathkiller



A Ultimate Adventure Jeep



Clayton 3 link front and 4 link Rear. I am 100% this is the 3 link I will buy when the time comes. Huge skid, high clearance, square arms and knowledgeable sale staff.



Jcrs Killer Jk

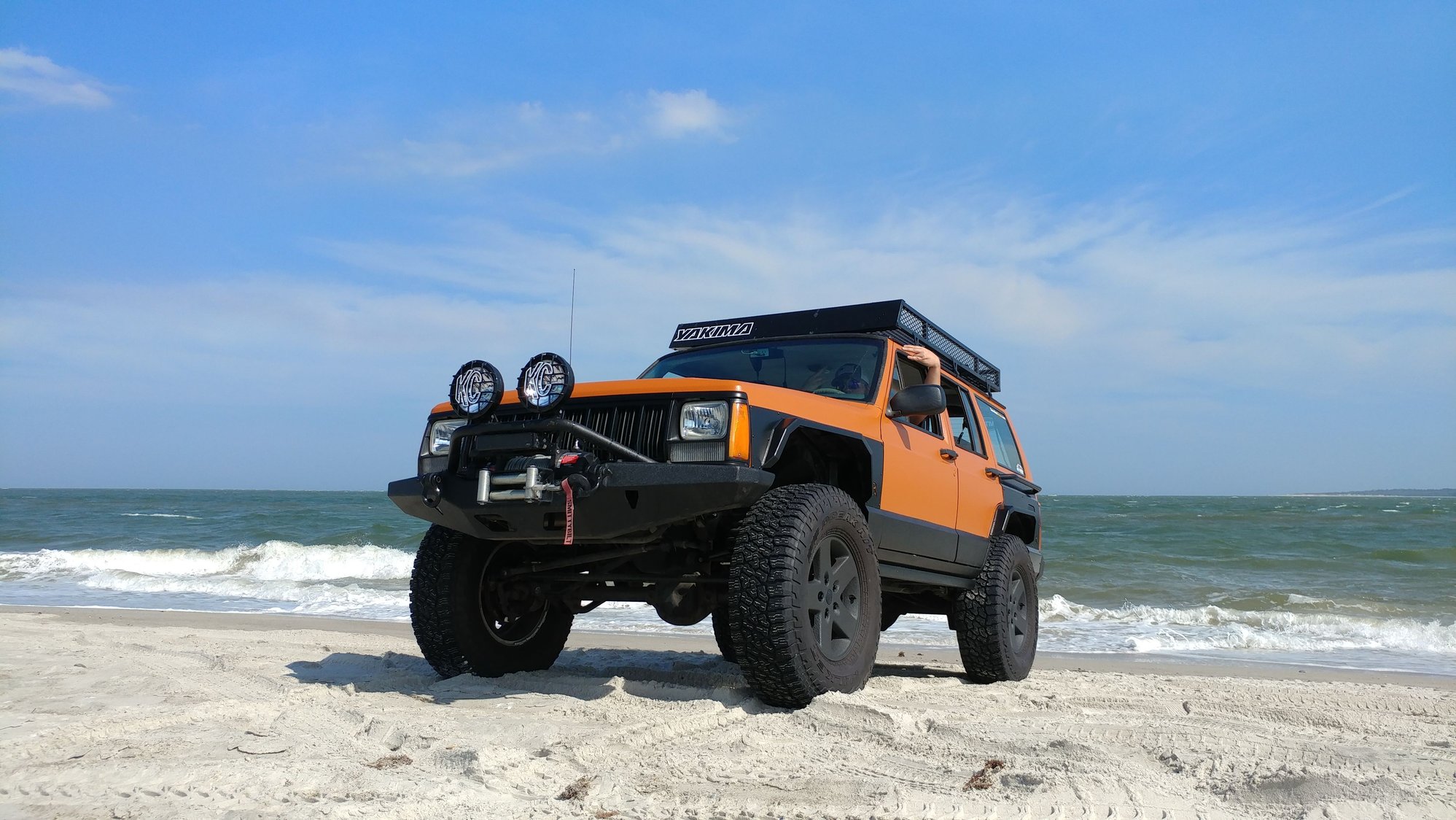

Some beach photos

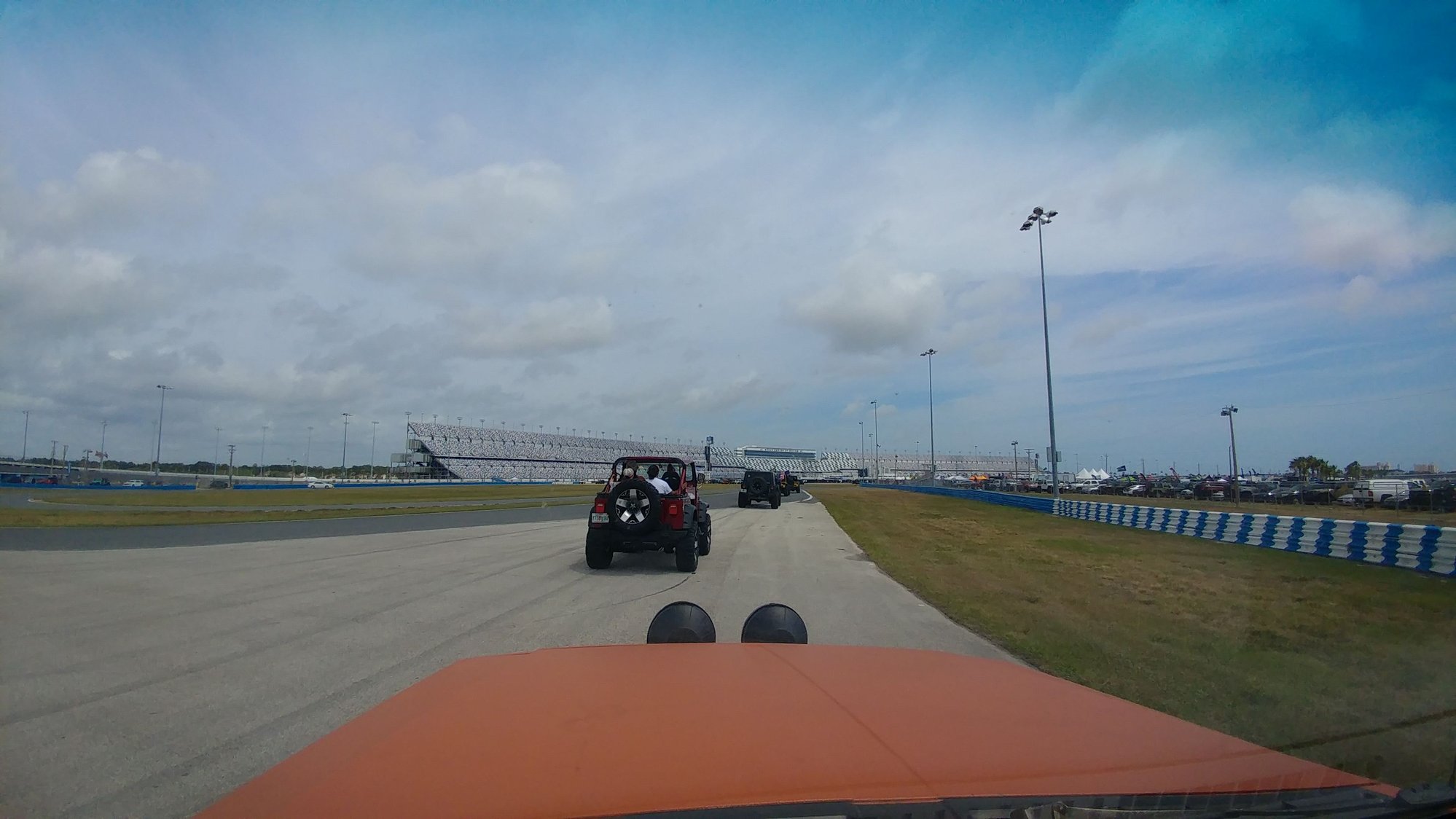

Photo from in the track

I didn't do the obstacle course as I didn't want to wait in line and I didn't really care about it. But lots of cool venders and free stuff
by921 is offline
Old 10-13-2017, 01:53 PM
  #138
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default f

The jeep is back home and has had a few things done to it. It need new brakes all the way around, wheel bearings were shot and one of them I don’t think was every replaced as it was very hard to get off, the track bar crapped out so it was changed to the cav fab track bar, and a new set of wheels and tires. Also ordered iron man 4x4 rear shackles to get some more height and adjustability and take a little of the squat out.

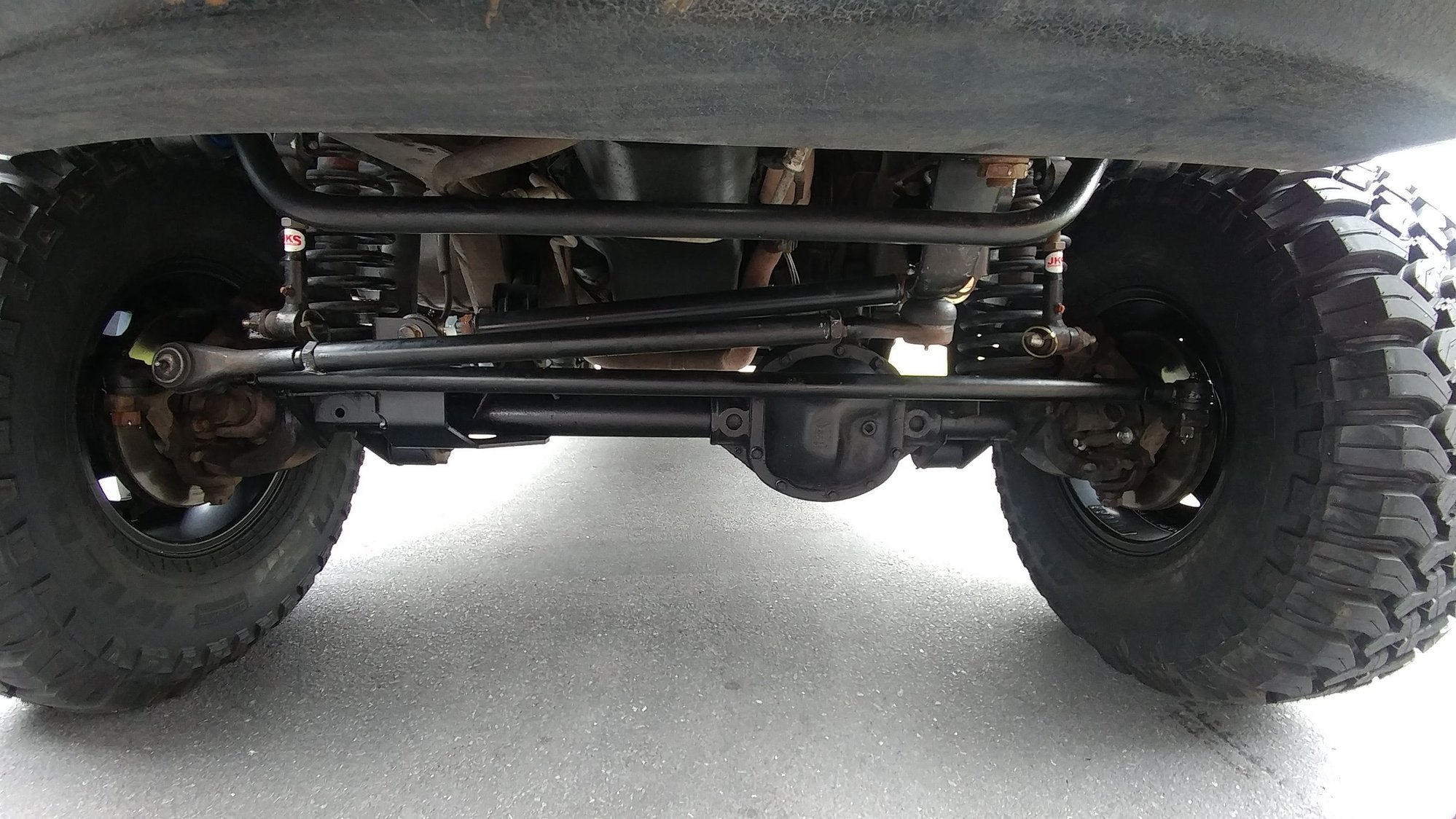

Cav fab track bar. Angles are much better

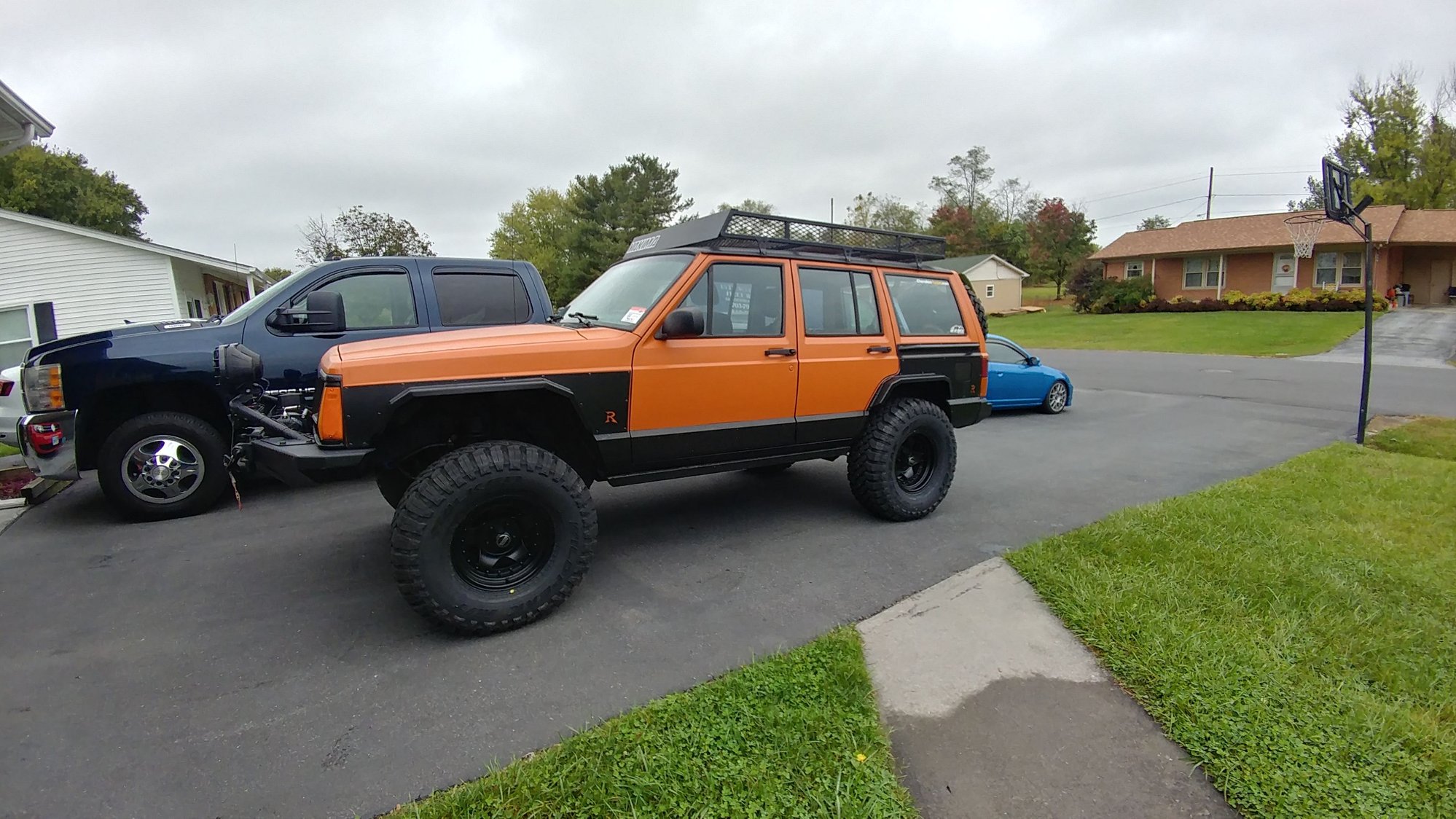

33 12.50 falken mt tire on American racing alloy wheels




Next items to get done is new transfer case shift linkage, a under hood relay box for all the knic nacks, a lighter weight roof rack, and some new bumpers as i no longer like these. They don’t seem to hold up very well and the rear tire carrier has a broken latch.

Last edited by by921; 10-13-2017 at 02:12 PM.
by921 is offline
Old 12-07-2017, 04:44 PM
  #139
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Installed my shackles and the angle was way off so I bought the relocation kit and fixed that issue. Getting it mounted was a bit off work, the bumper mounts need to be changed a good bit. Once it was all together my shocks where maxed out at ride height so i got some longer skyjackers to replace them. I am making upper mounts to get rid of the bar pins.




Shackle bracket welded up with 7018

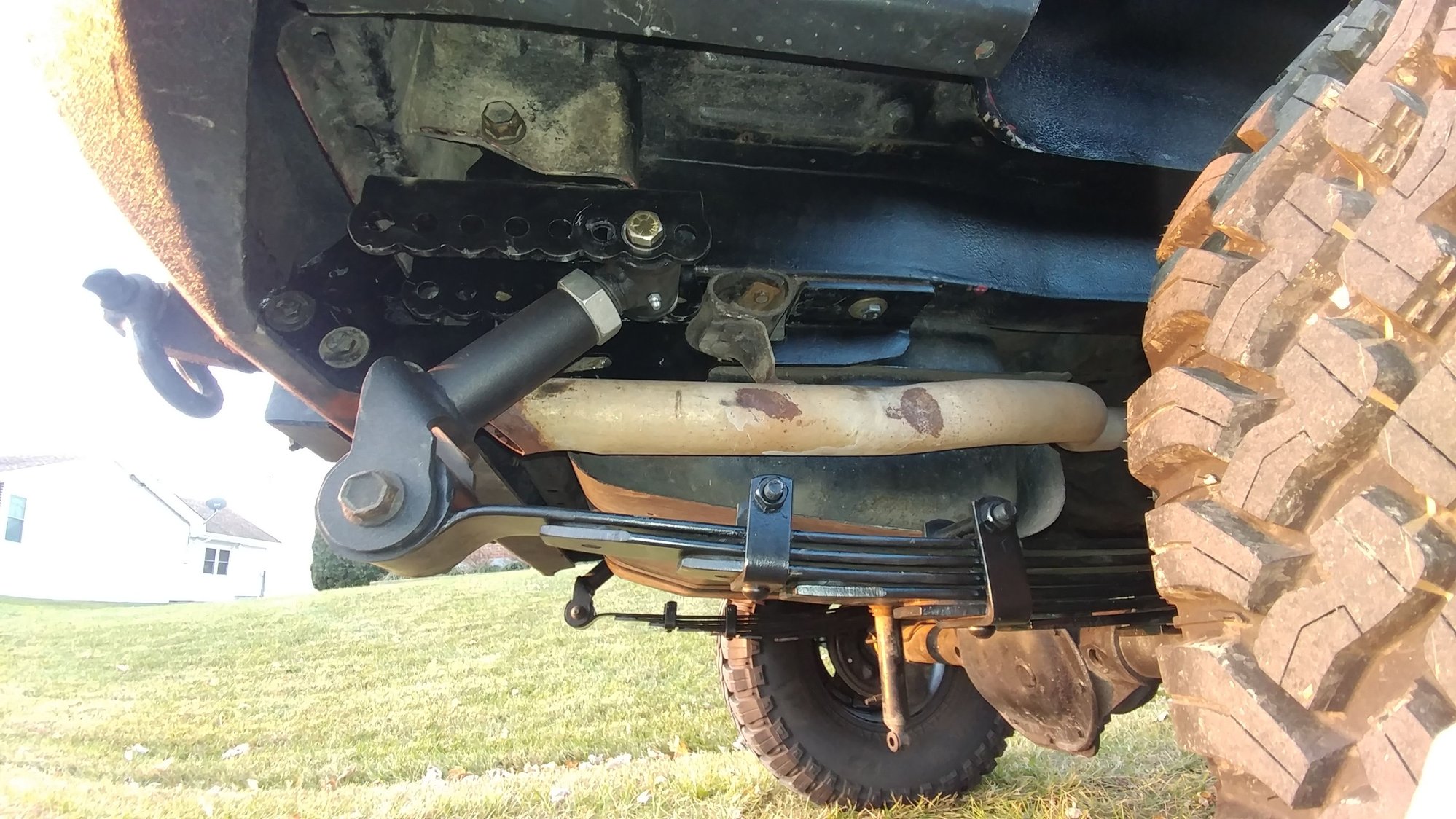

Shackle angle



Iro 3 link



Iro 3 link



Long arm bracket



Frame stiffener and brake line



Shackles iron man vs iron rock

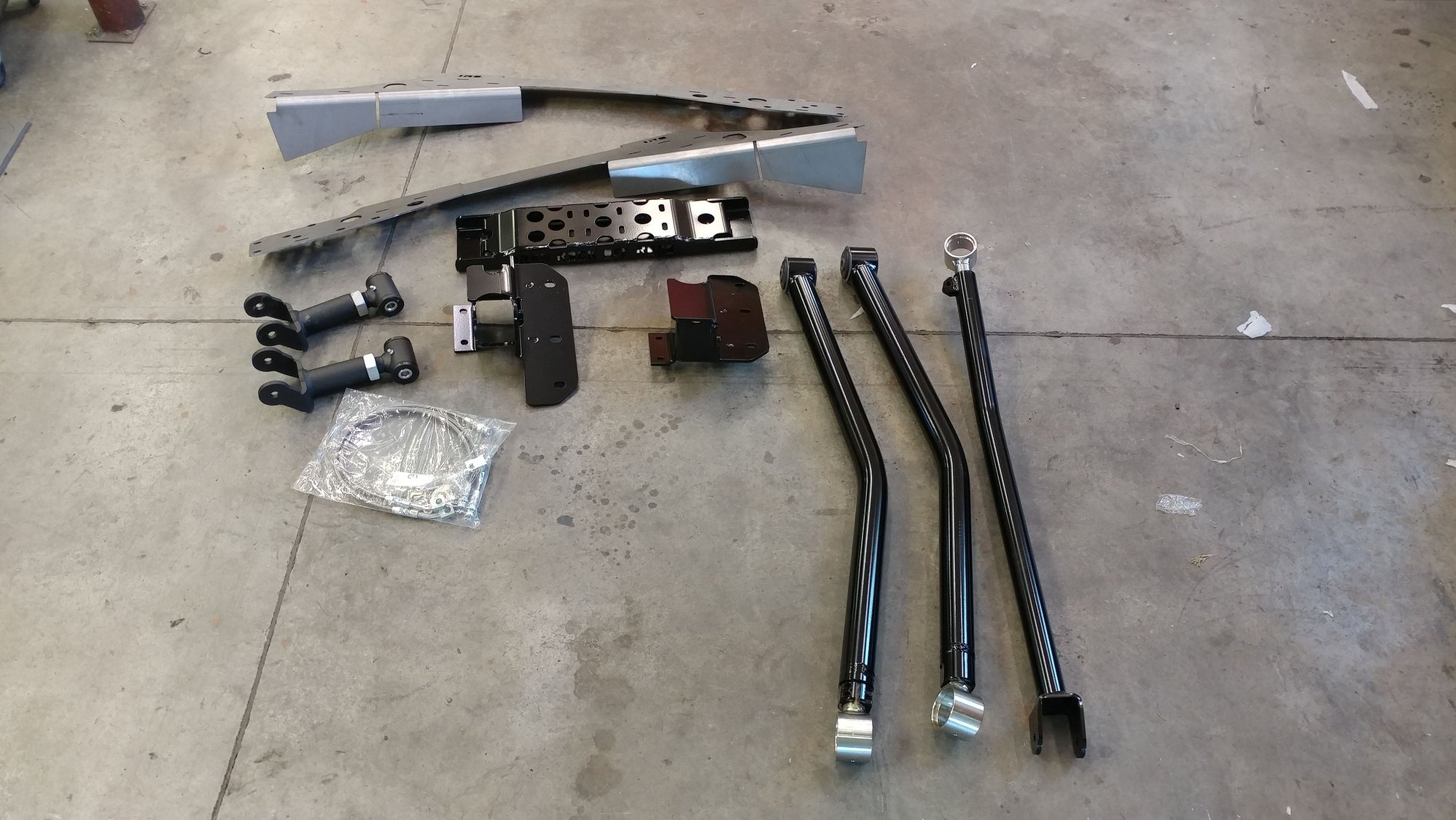

Parts pile



A lot closer to level

Next things are a new roof rack to mount lights to and lighter weight. Also I may do a acos spacer up front and new shocks. I am working on getting a Dana 44 rear axle at the moment but donít know if the guy will sell it to me yet.
by921 is offline
Old 12-07-2017, 04:59 PM
  #140
CF Veteran

unidentifiedbomb's Avatar

Join Date: May 2011
Location: DE
Posts: 5,598
Year: 1988
Model: Cherokee
Engine: I6 4.0
Default

I really like the IRO 3 link.
unidentifiedbomb is offline
Old 12-08-2017, 03:59 AM
  #141
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by unidentifiedbomb View Post
I really like the IRO 3 link.
I am liking it as well but there are some weird things about it that I didnít notice till it arrived. It doesnít use jam nuts to lock the arms in place it has bolts that clamp the links tight on the joints. And the joints look maxed out at ride height. I donít think it will cause any issues though. I would still buy it again.
by921 is offline
Old 01-22-2018, 05:59 PM
  #142
Newbie

Join Date: Aug 2017
Location: Rochester NY
Posts: 1
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

Nice jeep, i'm in the process of installing the same long arm kit on mine.

Noticed 2 things in your pictures 1 your crossmember is installed backwards. (The text side faces forward)

2 the Flex joint on the LCA bolt at the crossmember not the axle. That maybe why the joints look maxed out.

Last edited by nnausmann; 01-22-2018 at 06:26 PM.
nnausmann is offline
Old 01-22-2018, 06:47 PM
  #143
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Originally Posted by nnausmann View Post
Nice jeep, i'm in the process of installing the same long arm kit on mine.

Noticed 2 things in your pictures 1 your crossmember is installed backwards. (The text side faces forward)

2 the Flex joint on the LCA bolt at the crossmember not the axle. That maybe why the joints look maxed out.
That makes sense. I just went on there web site and saw the picture of it put together and mine is wrong. Thankyou. It makes a noise when you hit a bump ant it must the the joint maxing out and hitting the lca.
by921 is offline
Old 01-22-2018, 10:42 PM
  #144
CF Veteran

Join Date: Oct 2017
Posts: 1,382
Model: Cherokee
Default

Those iron rock shackles look bad ***!
XJIrish4x4 is offline
Old 01-23-2018, 01:04 AM
  #145
Seasoned Member

Join Date: Jun 2015
Posts: 474
Model: Cherokee
Default

Build looks great! It's come along way since I first started reading the thread a while ago. Great job.
CantDrive55 is offline
Old 05-12-2019, 06:00 PM
  #146
Member
Thread Starter

by921's Avatar

Join Date: Dec 2014
Location: Virginia
Posts: 204
Year: 1996
Model: Cherokee
Engine: 4.0l
Default

Havent posted in a while. I still have it and i am still doing mods. I have installed a acos coil spacer to get the jeep sitting how i want it to, new roof rack, new 1/0 power wire for speaker amps and accessories, relay box, interior lights, and just general cleaning up wiring.



I built a new roof rack out of aluminum tube and used 8 inch kc hid lights.

Small quadratec led lights on the rear of the rack

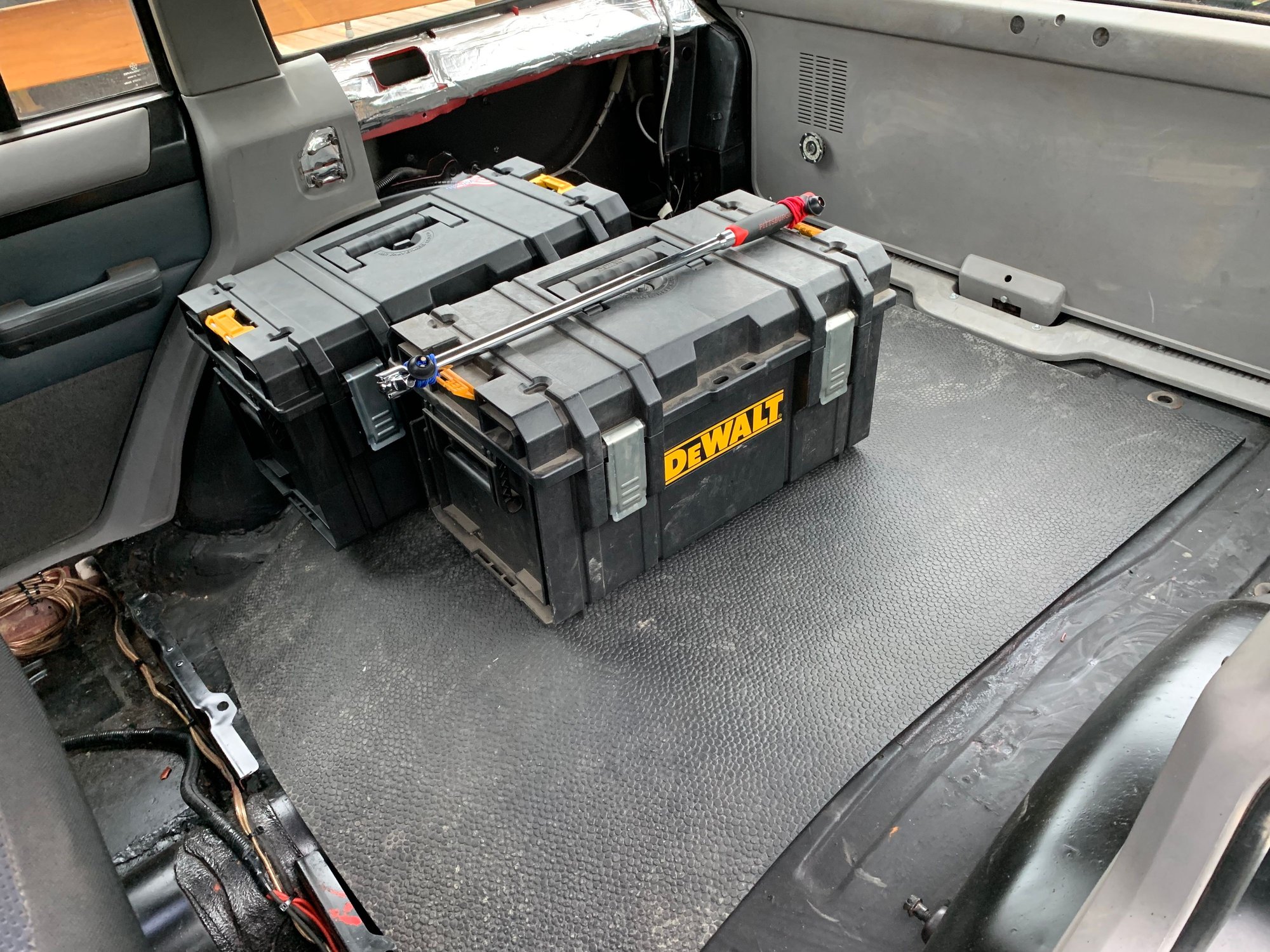

I had a large storage system in the back and i decided to remove it along with the rear seats.

Rough country relay box, speaker amp, and power distribution.

New seats i will be putting in. The drivers seat will have a seat heater and the passenger seat will not.

Next things are making the floor in the back flat after i put the new seats in. Then i will buy some new shocks, I still have the front shocks from my 2 inch lift. I have been eyeing some 12 in short body bilstein 7100 or fox 2.0 shocks but havent decided yet.
by921 is offline
