Well got a little more work on the rear Sterling axle today. I bought a universal truss from RuffStuff but had to widen it some to clear the pumpkin.
https://cimg1.ibsrv.net/gimg/www.che...737259000d.jpg https://cimg8.ibsrv.net/gimg/www.che...7e9b4fdcda.jpg Finished it up with RuffStuff upper link bracket. https://cimg3.ibsrv.net/gimg/www.che...a3ba3f7cf2.jpg I'm going to fabricate some extension to incorporate the lower shock mounts but I need to find those locations first before I cut the plate (I'll be using 1/4" plate). Tomorrow I thinking about starting on the front Dana 60. I plan on making my own truss from scratch for this since I want to incorporate the shock mounts, track bar, upper links and 4500 style double end ram mount. I'd like to get the motor mounts done but I haven't figured out how I want to run the exhaust (some sort of headers or stock manifolds). But I think I need to finalize the front axle first to figure out where the front driveshaft will be and then I can finish the engine offset for the best clearance. |
Started on the front truss.
https://cimg0.ibsrv.net/gimg/www.che...f25f9a5708.jpg What do you do when you don't have one of those expensive iron worker, just use what you have. https://cimg6.ibsrv.net/gimg/www.che...19f67abd69.jpg |

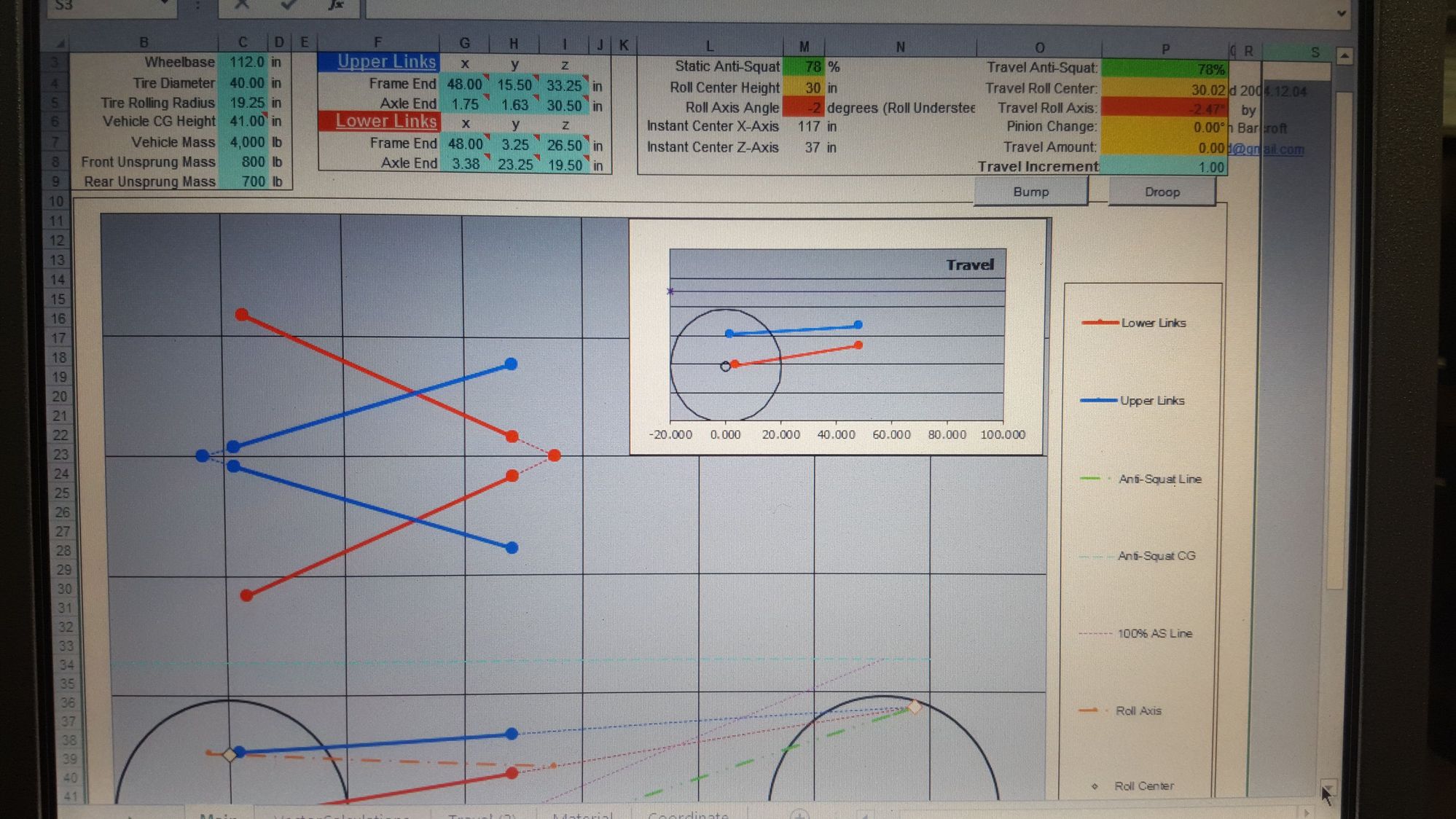

Finally have a weekend off, so off to the shop for some Jeep time. I ordered a couple of pairs of 1.25" hiems from RuffSutt to start the mock ups. I found a good deal on a Panosonic Toughbook to have out in the shop to run the Link calculator and BendTech software. I ran spome new numbers on the the 4-link calculator and this is what I'm going with.

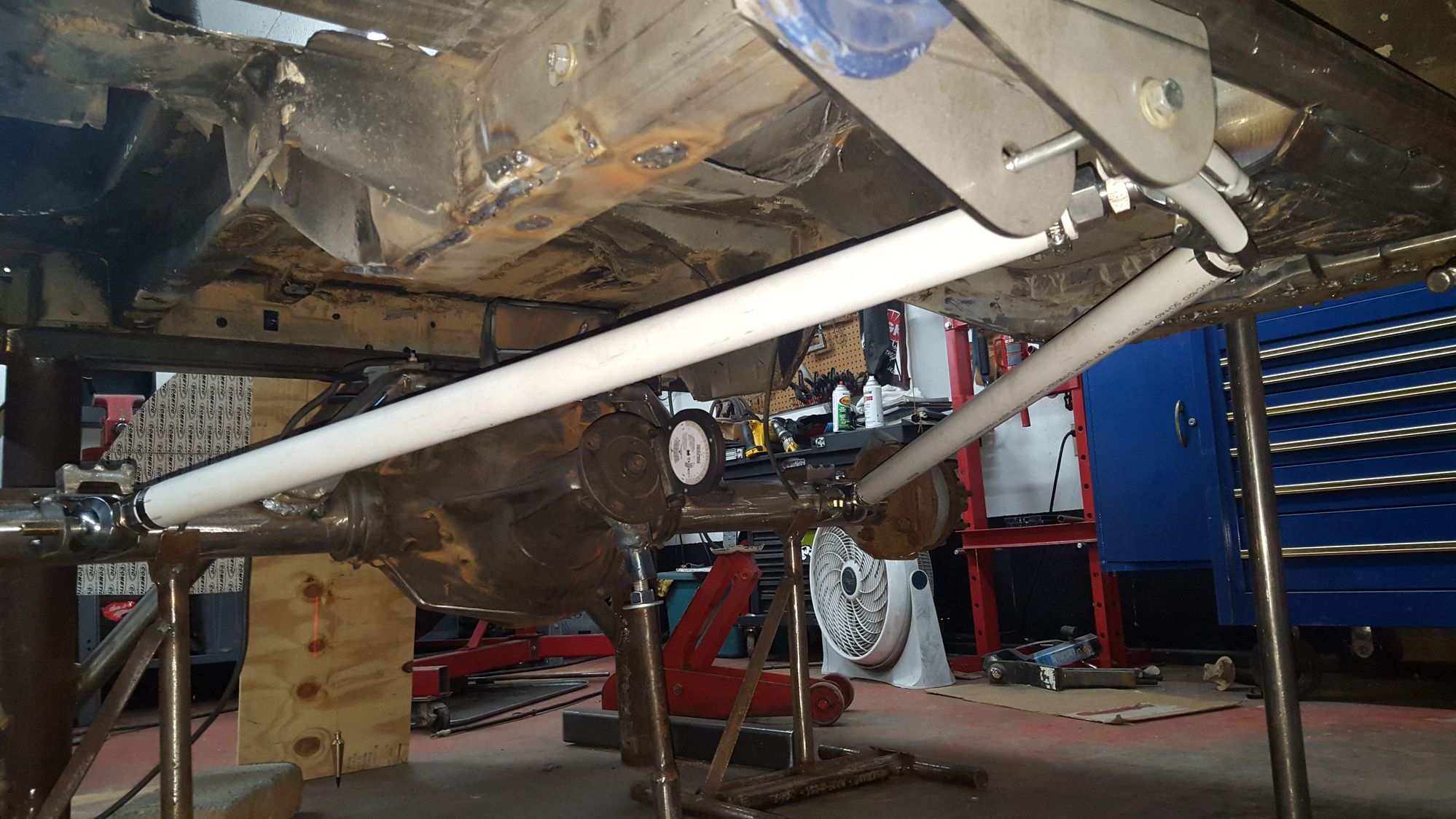

https://cimg4.ibsrv.net/gimg/www.che...abece35c74.jpg Mocked up the lowers using some pcv tubes. https://cimg1.ibsrv.net/gimg/www.che...d0fdbbe0d9.jpg Hopefully RuffStuff will have a EJS sale so I can either get the rest of the Hiems. |
Rear arms starting to take shape.

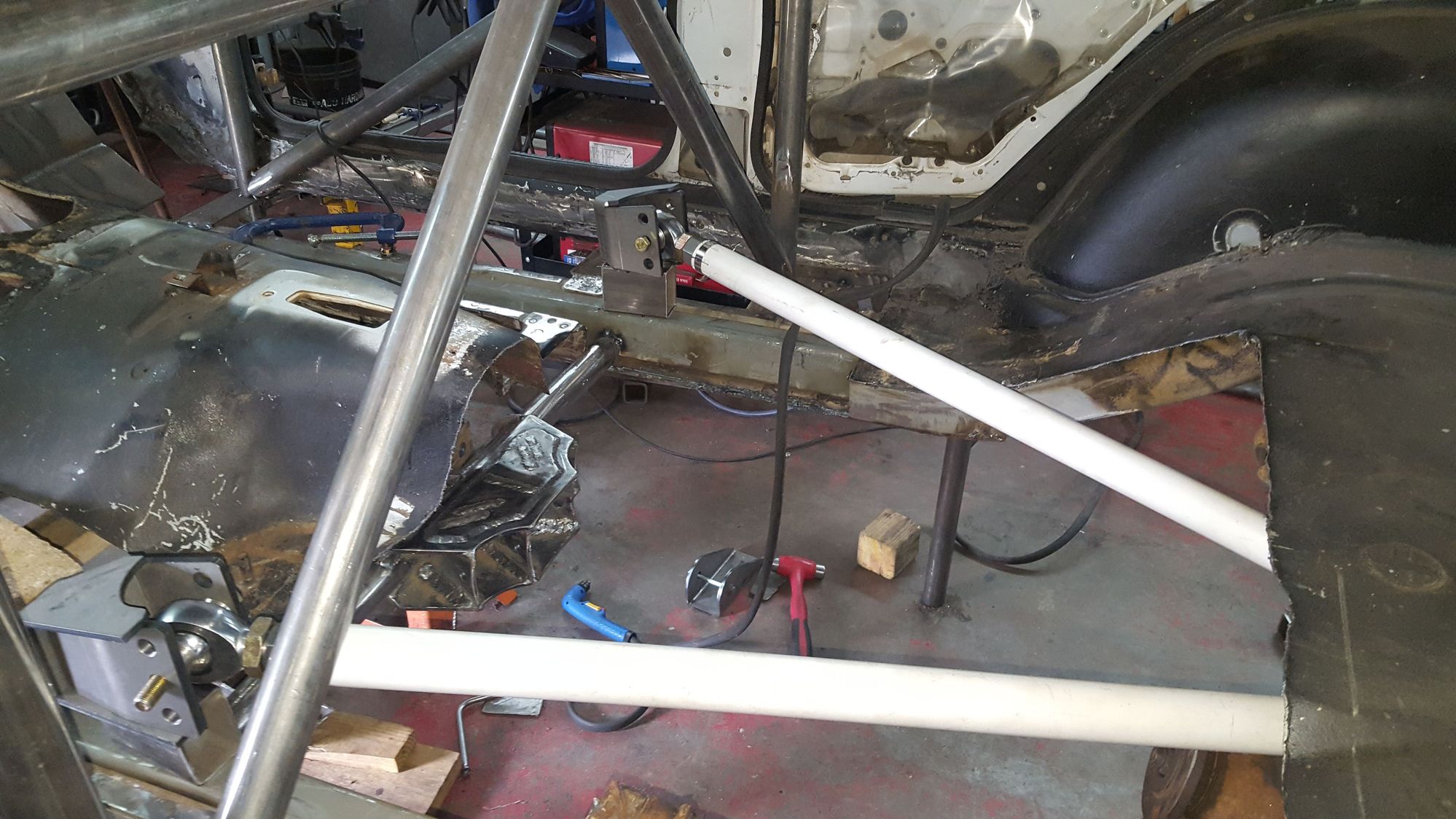

https://cimg5.ibsrv.net/gimg/www.che...bfaa9a476e.jpg https://cimg1.ibsrv.net/gimg/www.che...b5159694ed.jpg Got the lower RuffStuff frame mount done. Lowers arms mocked up. Bottom of the lower mount height is same as frame (25"). https://cimg7.ibsrv.net/gimg/www.che...c4dccfdc36.jpg Mockup of the uppers. It has 7.875" of separation in the middle hole. |
Well I took a step backwards this weekend and redid the cage. I just didn't like how it was fitting for head room.

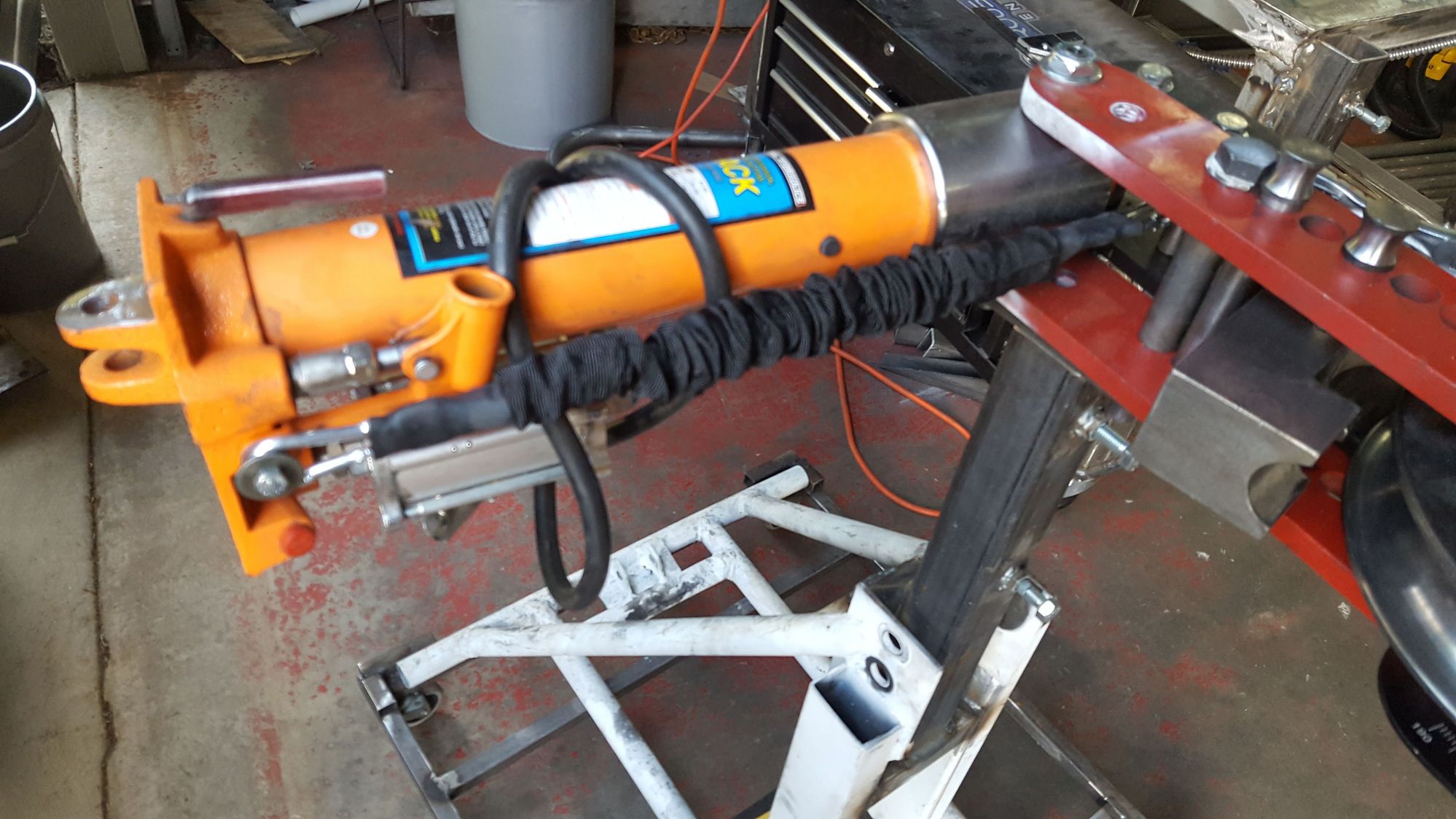

I so didn't quite like how my bender was so I upgraded it with a kit from Swagbucks Off-road. https://cimg2.ibsrv.net/gimg/www.che...127c27926c.jpg https://cimg1.ibsrv.net/gimg/www.che...defacedd5f.jpg https://cimg4.ibsrv.net/gimg/www.che...ad6170e633.jpg https://cimg7.ibsrv.net/gimg/www.che...2a3efd388a.jpg https://cimg8.ibsrv.net/gimg/www.che...78e7124139.jpg I started to make the cross over bars but my hole saw blade finally gave up the ghost and I didn't have a spare. This seems like a gained a 1/2"+ of head room. |
Got a little more work done tonight.

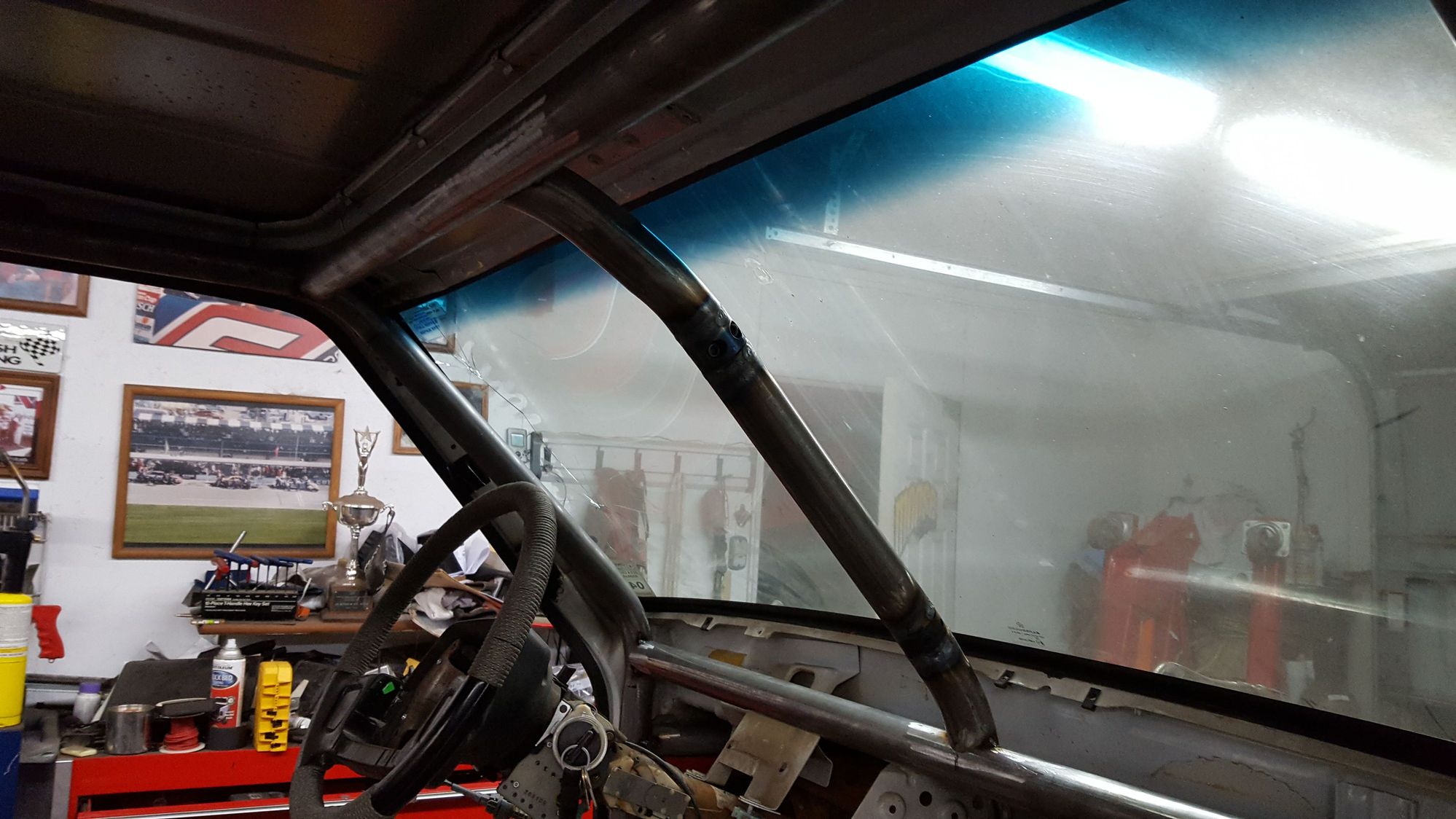

https://cimg8.ibsrv.net/gimg/www.che...1a9622c775.jpg Made the the center windshield bar removable for street driving (mainly for the yearly vehicle inspection). https://cimg0.ibsrv.net/gimg/www.che...34686c40bb.jpg |
Lookin sick!
|
Thanks Chipmaker.
|
