Ok so Iv had my 94 XJ for about a year now and have done a lot to it. So I thought I should start a build. So this is what Iv gotten done so far let me know what ya'll think?

So this is a pic of whin I went to look at her


My lovely wife was talking to a close friend of are's that works and a shop here in Devine and said I was looking for a 4x4 XJ and he told her that one of his Customers was trying to sale one that he had rebuilt the motor and put a 4.6 stroker kit in about a year before and the kid was asking $1800. I was able to talk the kid down to $800 and picked her up the next day.

Here's whin I got her home.


The first thing I had to do was change the flex plate, and then I did a 97+ console swap.
Name:  7B2EA90E-DFB0-4302-8729-ED83697F6016-6658-000009A2145675EA_zpsac128105.jpg
Views: 28
Size:  30.1 KB

Then about a day after that a tornado came throw Devine and wile everyone was hiding. I played.lol







Then I found a 2in budget lift on Craig's list for $50 and wint to pick-n-pull and picked up some S10 blazer leafs.
Name:  6D73B448-9EFF-4C2F-BE07-78E591C4EFB5-4938-000008B67213DA31_zpsac06d66a.jpg
Views: 23
Size:  40.0 KB

Then ordered 3in coils from iron rock.
Name:  2CA06A5E-AE30-4D3E-9379-2149D6C8DEAC-4938-000008B6755D1119_zps407dc273.jpg
Views: 26
Size:  27.2 KB

Then ordered a CROK gear box spacer, and lucked apon a drango gear box at pick-n-pull so I snatched that up.
Name:  67A84224-615D-40BD-A188-191D6825BAF6-4938-000008B67B2BAD4C_zpsbc8891a9.jpg
Views: 23
Size:  51.2 KB

Then found a set of 33x12.5's on Craig's list.

Here's a pic with the lift but not the tire's.
Name:  61DA340C-7C12-4A7C-A65C-9925DD9F418F-4938-000008B67F9E678E_zpsf9b2cc56.jpg
Views: 30
Size:  31.5 KB

Then I got the tire's on and found out I need new LCA's so ordered some from rocky road.
Name:  CB335762-43DA-427F-AB4A-4118488B0A44-4938-000008B67DBD171A_zps69750e07.jpg
Views: 31
Size:  48.4 KB

Name:  FA21F1E4-5819-4CC6-8297-9CF19F9A8362-4938-000008B682225230_zpsf1219e1b.jpg
Views: 23
Size:  24.7 KB


Here is how she sits next to my wife's 2wd with just a 2in


Name:  EDAE416D-07B7-456A-BFC3-EB76281CCB72-4938-000008B698D0D12F_zps6fa8e4d5.jpg
Views: 33
Size:  29.5 KB

Then I had to replace the motor mounts so I got some brown dogs and throw them in.
Name:  119594A9-D2E8-4D72-9D79-120672E8AFD6-7879-00000D5B086BE00A_zps29d8e9ea.jpg
Views: 27
Size:  115.7 KB
Name:  81734DF1-F6FD-4360-AFF0-D16421054291-7879-00000D5AF7B0A0DF_zpsb149f499.jpg
Views: 27
Size:  117.7 KB

Then about 4 months ago my land lords son got stock in the back feld and came asking if I could pull him out? So I did and got to play a little
This is the truck that got stuck.



Then after I got him out I got to play


My son that was 10 months at the time loved it.



Now that your up to date I started on some sliders this weekend just need to cap the ends and weld some Angle iron at the Ends to mount them.



and a friend gave me some free bees today a gas and transfer case skid off of a ZJ.

Last edited by caldwell_sean; 04-01-2013 at 10:04 PM.
caldwell_sean is offline
Old 04-14-2013, 11:00 AM
  #2
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

Well some how I found the time in my busy schedule to get my free ZJ gas tank skid in.
Name:  F15CCEAD-F852-45BB-A876-CC4E0E1F9C01-1857-000002DA1D213BF7_zpsca646a97.jpg
Views: 26
Size:  102.2 KB
Name:  30B3E5CF-D787-421E-9200-45C6FB4576AB-1857-000002D8D4E19E8D_zps94846f6f.jpg
Views: 25
Size:  113.0 KB

I had to do a little modifying but it was no big deal.

Had to cut off a little lip so to prevent it from rubbing on the tank and
Name:  ECC04DE5-834D-4E52-8B01-64E70E5680E5-1857-000002D8FCEBDAD1_zpsf3ae0644.jpg
Views: 23
Size:  85.1 KB
Had to cut out a little so that the hitch can sit back far enough so I could line up the bolts
But other then that it bolted up.
caldwell_sean is offline
Old 04-14-2013, 11:05 AM
  #3
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

I'm also going to work on my rock sliders today I should get them done and ready for paint.
caldwell_sean is offline
Old 04-20-2013, 05:21 PM
  #4
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

Ok so I decided to put off my rock sliders until I can get the extra cash for a set of unibody stiffeners. I found the ones I want just got to get the money. On the bright side I was at Pick-N-Pull today getting an A/C bracket for my wife's XJ and came a crossed a 97 with a 3in lift on it. While I was looking at it I noticed that it had a factory front skid plate. So I quickly pulled it off, and to my surprise they only charged me $12 for it.

Name:  C7CD1D41-0D0D-4C64-95D9-F210AB8D4C08-1582-00000275C7BD7169_zpsad5a3ceb.jpg
Views: 25
Size:  169.8 KB

Once I get it off I realized that the previous owner reinforced the bottom of it with angle iron. Witch I really like because they are prone to bend.

Name:  FF54F3F3-F46A-431A-811D-E089FE03570B-1686-000002839B033E14_zps728407f5.jpg
Views: 44
Size:  99.7 KB
There it is installed on mine. lol
caldwell_sean is offline
Old 04-21-2013, 06:11 PM
  #5
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

Well I made some more head way on the rig today. I got my AX-15 tranny crossmember in today and got rid of my rednack transfer case drop. (1in of stacked washers) also got my ZJ transfer case skid in.



caldwell_sean is offline
Old 04-21-2013, 09:00 PM
  #6
Senior Member

98REDXJ2's Avatar

Join Date: Mar 2012
Location: ROCKFORD IL
Posts: 943
Year: 1998, 1993
Model: Cherokee
Engine: 4.0
Default

Looking good. I am pretty sure all front skids have the angle iron reinforcement. I bought mine from a member and it also had it.
98REDXJ2 is offline
Old 04-21-2013, 09:06 PM
  #7
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

Thanks and I thought so to but whin I looked at it closer the welds looked like crap but u may b right.
caldwell_sean is offline
Old 04-21-2013, 09:23 PM
  #8
CF Veteran

Cane's Avatar

Join Date: Mar 2012
Location: Quebec
Posts: 1,024
Year: 1996
Model: Cherokee
Engine: 4.0L
Default

Hey, I really like the look with only 2".

What are the tires/wheels specs? Size - backspacing?
Cane is offline
Old 04-21-2013, 10:43 PM
  #9
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

I'm not sure about the backspaceing the rims came with the jeep. But the tires are 33/12.5
Bridgestone Dueler MT.
caldwell_sean is offline
Old 04-21-2013, 10:47 PM
  #10
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

And the 2" is on my wife's silver 92.
caldwell_sean is offline
Old 04-29-2013, 07:20 PM
  #11
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

I picked up some neon 703 injectors today. I'm going to pick up an oring kit tomorrow and if I get the chance ill install them to.

Name:  null_zpsc7f67237.jpg
Views: 20
Size:  105.6 KB
caldwell_sean is offline
Old 09-15-2013, 09:01 PM
  #12
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

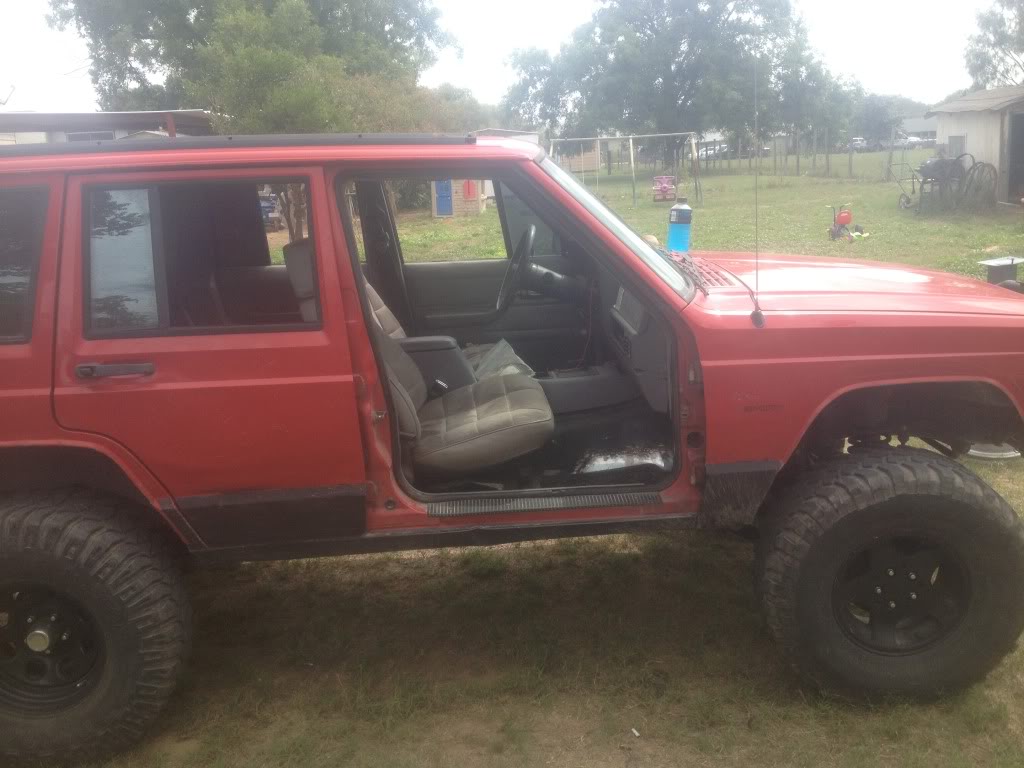

I got bored to day and the end result if that was the front doors came off .

Name:  null_zps6729ae45.jpg
Views: 29
Size:  114.3 KB
Name:  null_zps14b325f8.jpg
Views: 28
Size:  142.7 KB
Name:  null_zps28cd475e.jpg
Views: 27
Size:  74.1 KB
Name:  null_zps1dbb8ea8.jpg
Views: 30
Size:  97.4 KB
caldwell_sean is offline
Old 09-24-2013, 05:58 AM
  #13
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

Picked me up some bilstein 5100 shocks over the weekend.
Name:  null_zps9167ce33.jpg
Views: 22
Size:  172.1 KB
And got them installed on sun the front wint smooth, the back on the other hand was a diffrent story the bar-pins did not want to come out. So I had to cut them off and beat them out.

But all an all they wornt to bad I got them all in
caldwell_sean is offline
Old 10-06-2013, 04:48 PM
  #14
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

I picked me up some 280Z hood vents last weekend at pick n pull.



So i undercoated them dering the week.





And i got them instelled today its not a show quality but it looks good to me.

Name:  null_zps01a4875c.jpg
Views: 17
Size:  153.3 KB
Name:  null_zps4ba2af38.jpg
Views: 23
Size:  78.2 KB
Name:  null_zpse62f9568.jpg
Views: 23
Size:  140.2 KB
Name:  null_zpsa6a468d2.jpg
Views: 30
Size:  141.5 KB
caldwell_sean is offline
Old 03-22-2014, 08:30 PM
  #15
Member
Thread Starter

caldwell_sean's Avatar

Join Date: Dec 2011
Location: Somerset TX
Posts: 235
Year: 94
Model: Cherokee
Engine: 4.6 stroker
Default

well been busy workin this past year but did get some stuff done.

first off i got a new set of wrangler Dura track tires



picked up a trans cooler (still needs to go on)


decided to use a spare nitrogen tank and regulator I have from work to use as onboard air


got some rubber pucks free from work to use as extended pump stops(still need to go on)


got a set of YJ front brake lines and just got them on today
Name:  7FDC3E55-262B-44E2-988D-1800D537177C_zpstvhf7oyk.jpg
Views: 25
Size:  102.3 KB


and also got my Dakota rear line on today
Name:  3E5A1F50-E371-4113-A688-714D1C6649DB_zpszwpudxps.jpg
Views: 24
Size:  79.2 KB

got a bushing to use as a hinge for my swing out tires Carrier


and the best freebie I've gotten so far. a real good friend gave me his old 9,000lb winch that needs a new cable and controller
Name:  20238FDA-C478-4A46-8AA3-4E4A089608C0_zps3skgezfq.jpg
Views: 34
Size:  108.8 KB

also i ordered a set of DIY bumper mount plates so i can make a winch bumper that should b coming in soon.
caldwell_sean is offline
