Jeep Builds Make your own jeep build thread here, discuss and view jeeps here. All Jeep models are welcome here.

Raunchous

Old 05-04-2014, 07:28 PM
  #1
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default Raunchous

Nothing righteous about it (it is a solid jeep with cosmetic issues)...

99 sport - 97,100 miles on the clock - Auto - 231 - interior is minty, even the headliner. Undercarriage is solid & clean. Only rust I can see is on the leafs & axles. Exterior is color correct but looks like it was repaired by a highschool shop class.

Drive home was my first test & it eased my nerves alot. Drove great runs strong / steering's solid / shifts perfect. Quiet.

so far so good. Perfect candidate for a lift / swap. (Old XJ Died)

(now to the cool part)

Landed some TJ moabs ...ordered some 265 75 16s

Name:  DSC00746.jpg
Views: 5
Size:  135.2 KB
Name:  DSC00869_zpseca6833f.jpg
Views: 16
Size:  83.4 KB
Hammered is offline
Old 05-04-2014, 07:29 PM
  #2
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

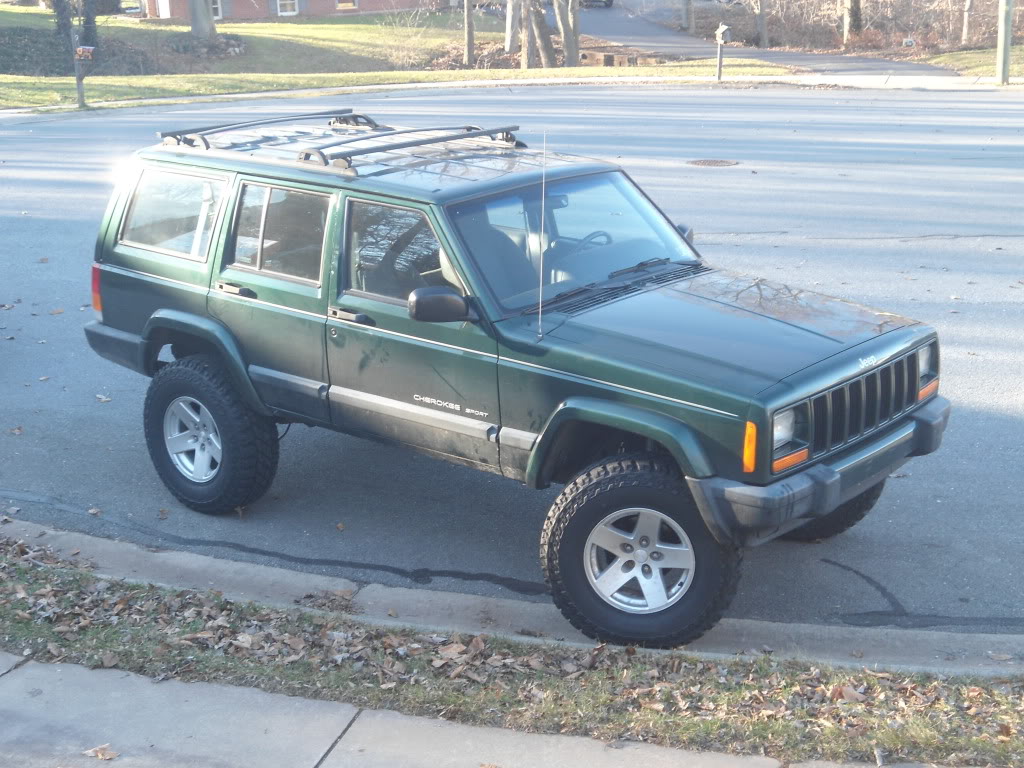

Name:  DSC00874.jpg
Views: 8
Size:  164.4 KB
Hammered is offline
Old 05-04-2014, 07:34 PM
  #3
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

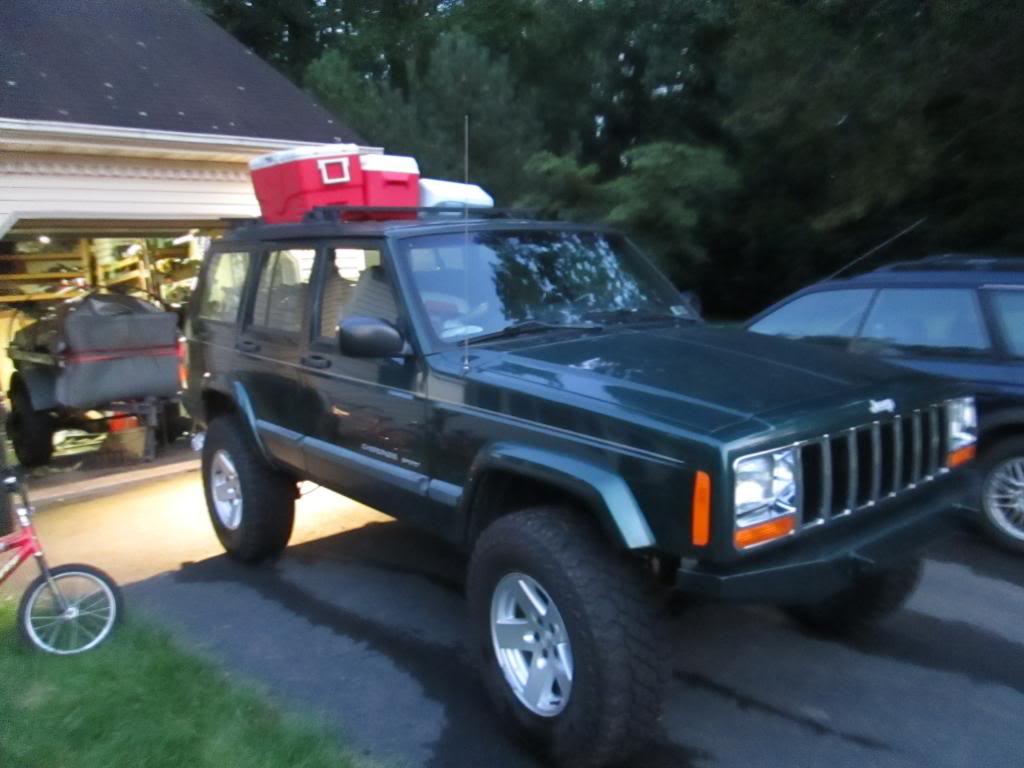

built my own front bumper... bought a chrome grille (Yeah I know but it compliments the green pretty well heh heh)

Name:  IMG_0534_zps233e2584.jpg
Views: 15
Size:  72.1 KB

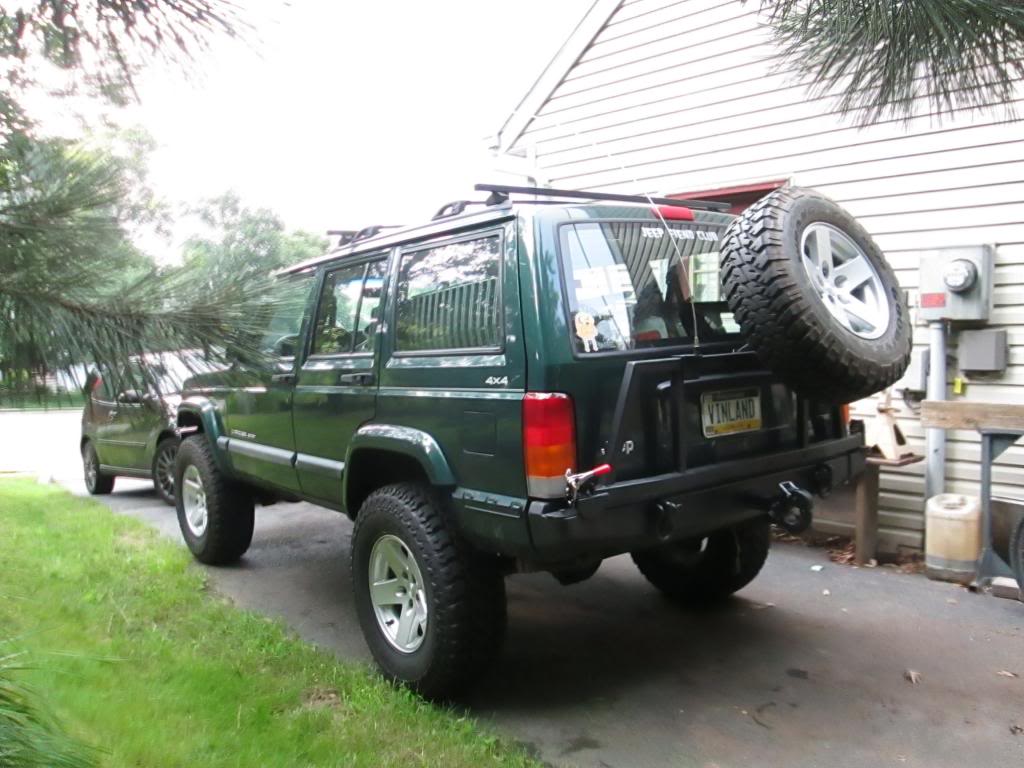

Put the swing out that came off the old XJ.

Name:  IMG_0539_zps84bbea82.jpg
Views: 7
Size:  100.9 KB
Hammered is offline
Old 05-04-2014, 07:37 PM
  #4
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

So the lift that was swapped over is basically a Unicorn Express 3.5 lift... replaced bushings, replaced the LCAs, ordered BDS shocks... etc etc...
Hammered is offline
Old 05-04-2014, 07:40 PM
  #5
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

FINALLY got the rear leaf bushings swapped. Major pain in the ****. New moogs are lifetime so...

rides a little nicer now.

On the "to do" list.

- Put on the Riddler Diff covers. (came off my old XJ)
- Install the Transfer skid plate. (came off my old XJ)
- Replace rear bumpstops (I have replacement / extended ones (came off my old XJ))

On the 'to buy' List.

- simple Rock rails.

Ordered

- bilstein 5100s
- Currie 4" LJ coils (Much nicer ride / flex than the RE 3.5 coils)

I decided against ordering the FOX 2.0s (theyre SOFT SOFT) Ive done some reading and theyre great for offroad or Wranglers but with a street XJ they allow lots of body roll. Not that I care but I want a safe streetable XJ. So the plan is to go with he 5100s front & rear.

Last edited by Hammered; 05-04-2014 at 07:42 PM.
Hammered is offline
Old 05-04-2014, 07:40 PM
  #6
Senior Member

Kingfisher's Avatar

Join Date: Mar 2014
Location: Central Indiana
Posts: 552
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Nice
Kingfisher is offline
Old 05-04-2014, 07:44 PM
  #7
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

Put the Currie Coil springs in, and put in the front Bilsteins. Still sits nice & level. I think I need new adjustable lower control arms, the fixed clevite lowers seem short-ish.

to do-do: rock rails + rear shackle relocation brackets. + LCAs

Name:  IMG_0723_zps2874627e.jpg
Views: 12
Size:  135.9 KB

Name:  IMG_0724_zpsfe750727.jpg
Views: 15
Size:  203.4 KB
Hammered is offline
Old 05-10-2014, 04:48 PM
  #8
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

Started the rust cleaning on the axles, spraying it down with the rust reformer then giving some coats of engine enamel satin black.
should be good for a little while. If the rain dries up I'll get the riddler diff covers and the HD Offroad T Case skid on.

Ordered new leafs, old ones were getting saggy. Just throwing money in the Jeep hole.

More to come.
Hammered is offline
Old 05-10-2014, 05:46 PM
  #9
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

Just a note: You can see a saw horse looking thing holding the front of my XJ up. Made it at work just for this purpose... Makes it sturdy, stable AKA SAFE to work under. Love this.
Hammered is offline
Old 05-21-2014, 05:09 PM
  #10
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

new RE 3.5 leafs installed as well as rear Bilstein 5100s & rear extended bumpstops.

Just ordered the ARB Awning. CarID.com has them for 80 bucks cheaper than anyone else.

So instead of $280 I got it for 200.. Very excited about this, cant wait to use it.

http://www.carid.com/arb-roof-racks/arb ... 60733.html
Hammered is offline
Old 05-21-2014, 05:15 PM
  #11
Senior Member

Kingfisher's Avatar

Join Date: Mar 2014
Location: Central Indiana
Posts: 552
Year: 1996
Model: Cherokee
Engine: 4.0
Default

.......
Kingfisher is offline
Old 05-21-2014, 05:39 PM
  #12
Seasoned Member

BigSquirrly89's Avatar

Join Date: Apr 2014
Location: NJ
Posts: 443
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Clean jeep man love moabs
BigSquirrly89 is offline
Old 05-27-2014, 09:16 PM
  #13
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

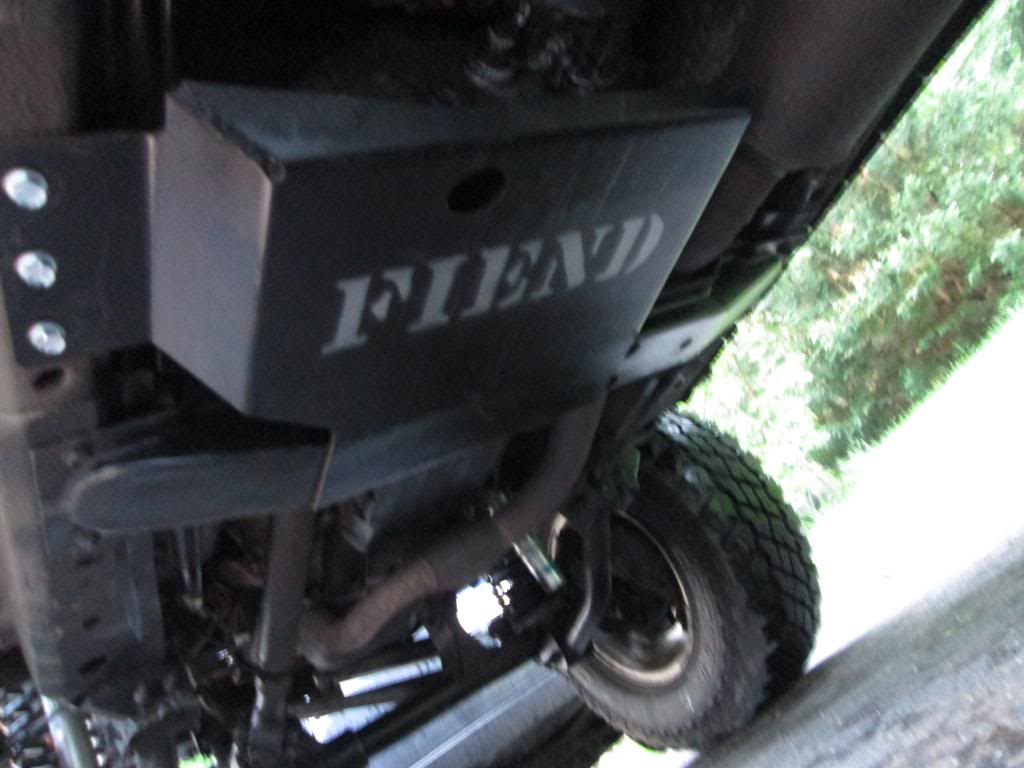

Got the diff covers & T case skid on.

Name:  IMG_0913_zps6d1c566b.jpg
Views: 6
Size:  76.0 KB

Name:  IMG_0914_zps1253e7d1.jpg
Views: 10
Size:  70.2 KB

Name:  IMG_0911_zpsbc6449dc.jpg
Views: 4
Size:  95.0 KB

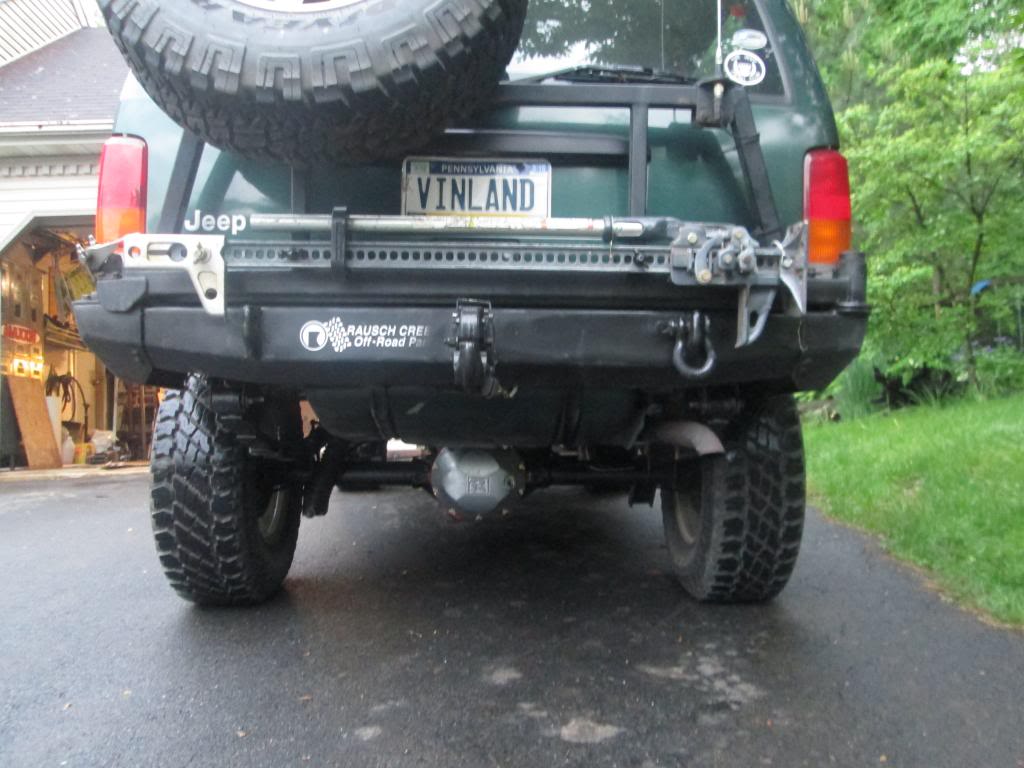

Ive been wanting to install this HiLift mount I made for my swing out... FINALLY got it painted & put on.
Hammered is offline
Old 05-28-2014, 12:53 AM
  #14
CF Veteran

stang65's Avatar

Join Date: Aug 2012
Location: oregon
Posts: 1,592
Year: 1993
Model: Cherokee
Engine: 4.0 ho 99 intake ps pump 1" tb spacer 62mm bored tb eletric fans and more
Default

nice looking jeep well done.
how do you like the cooper st/ maxx tires thinking of buying them for my jeep I have the older st model and loved them but they are toast.
stang65 is offline
Old 05-28-2014, 04:13 AM
  #15
Seasoned Member
Thread Starter

Hammered's Avatar

Join Date: Jan 2009
Posts: 487
Year: 97
Model: Cherokee
Default

Very happy with the Coopers. I'd buy em again... I like the crossover MT AT design. they have done well for me this winter and I've had no issues offroad or in the rain On the street.
Hammered is offline
